ICON 11-16 GM HD 6-8in Front 2.5 Series Shocks VS IR w/ Upper Control Arm - Pair

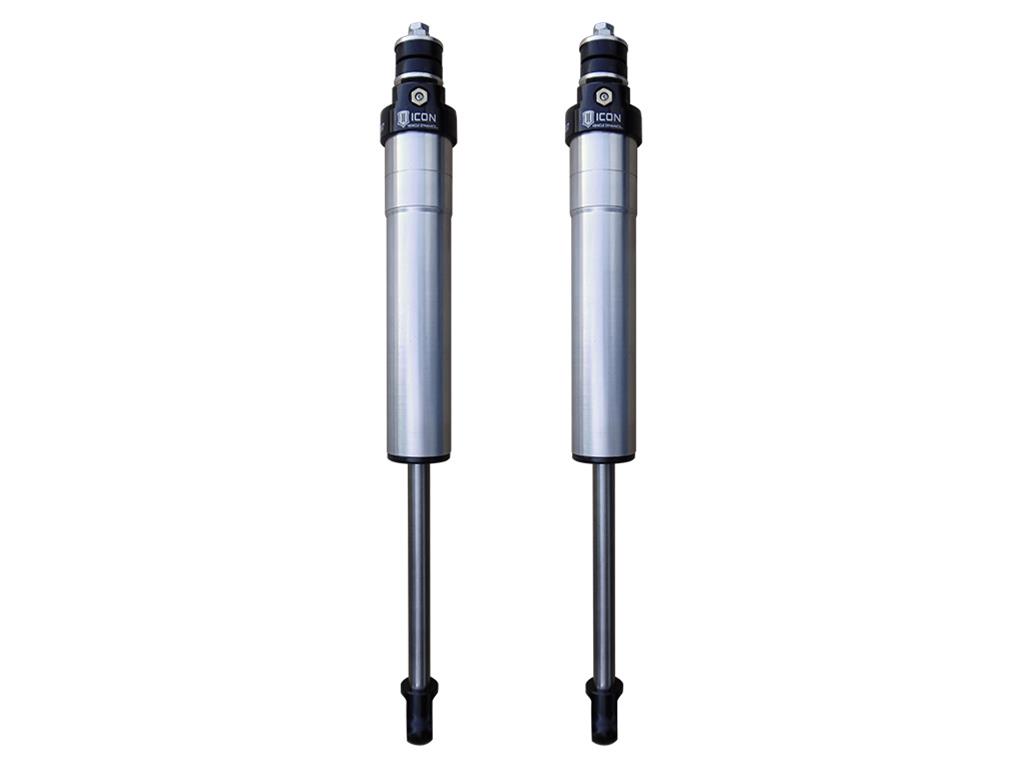

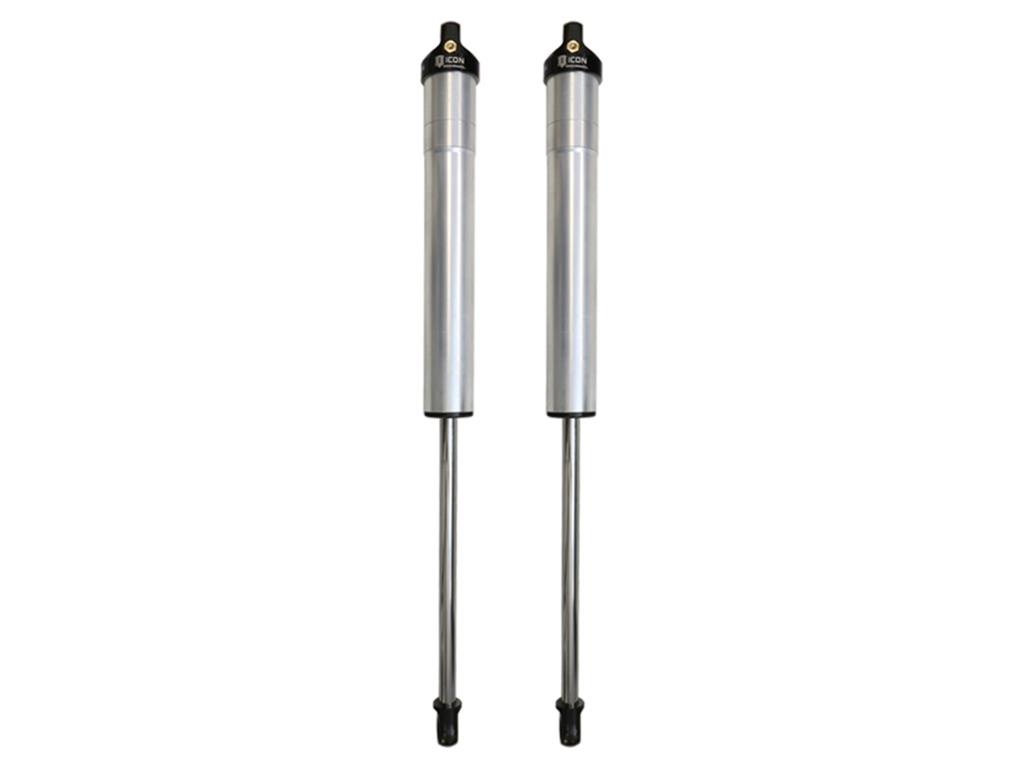

ICON 11-16 GM HD 6-8in Front 2.5 Series Shocks VS IR w/ Upper Control Arm - Pair
A$1,928.58
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks.
Product Overview
ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks.
Features and Benefits
- 100% Revalveable
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with internal reservoir
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
- Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
- 100% Rebuildable
Product Details
| 71059: | ICON Vehicle Dynamics; Shock Absorber Set; Adjustable: No; Boot Included: No; Bore Diameter: 2.25 IN; Compressed Length: 13.46 IN; Fully Open Length: 18.79 IN; Gas Charged: Yes; Lower Mount Type: Clevis; Mounting Hardware Included: Yes; Shock Absorber Body End Measuring Point: Shoulder of Stem; Shock Absorber Rod End Measuring Point: Center of Clevis Holes; Stroke Length Front: 5.3 IN; Tube Outside Diameter: 2.50 IN; Upper Mount Type: Stem; External Reservoir: No |
|---|---|
| 71060: | NO |
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 252010 - 2.5 IFP REBUILD KIT |
| Adjustable: | NO |
| Attributed Description: | ICON Vehicle Dynamics; Shock Absorber Set; Adjustable: No; Boot Included: No; Bore Diameter: 2.25 IN; Compressed Length: 13.46 IN; Fully Open Length: 18.79 IN; Gas Charged: Yes; Lower Mount Type: Clevis; Mounting Hardware Included: Yes; Shock Absorber Body End Measuring Point: Shoulder of Stem; Shock Absorber Rod End Measuring Point: Center of Clevis Holes; Stroke Length Front: 5.3 IN; Tube Outside Diameter: 2.50 IN; Upper Mount Type: Stem; External Reservoir: No |
| Boot Included: | NO |
| Bore Diameter: | 2.25 |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Color: | Silver |
| Cylinder Material: | Steel |
| Damping Type: | Oil |
| Description: | 11-16 GM HD 6-8" FRONT 2.5 VS IR EXT TRAV PAIR |
| Diámetro del árbol: | 2021-07-08 |
| External Reservoir: | NO |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Lower Mount Type: | Clevis |
| Material del cilindro: | Acero |
| Mounting Hardware Included: | Yes |
| Part Number: | ico77608P |
| Service Parts: | 252010 - 2.5 IFP REBUILD KIT |
| Shaft Diameter: | 0.875 |
| Shaft Material: | Chrome |
| Shock Absorber Body End Measuring Point: | Shoulder of Stem |
| Shock Absorber Rod End Measuring Point: | Center of Clevis Holes |
| Tipo de Grado: | Reparación de Banda |
| Title: | 11-16 GM HD 6-8" FRONT 2.5 VS IR EXT TRAV PAIR |
| Tube Outside Diameter: | 2.5 |
| Upper Mount Type: | Stem |
Part Type
Suspension Shock Absorber Set
Features
- 100% Rebuildable
- 100% Revalveable
- 6061 aircraft grade aluminum CNC machined components
- 7/8” diameter induction hardened, chrome plated shock shaft
- CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
- Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
- Nitrogen charged monotube design with internal reservoir
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- PTFE lined spherical bearings and application specific mounting hardware
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 77608P
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - Product Line
- Icon Vehicle Dynamics 2.5 VS IR Shocks
- Product Attributes - UPC
- 00840103406206
- Product Attributes - Ride Height
- Lifted
- Product Attributes - Ride Height Note
- Additional ride height information may be available for your vehicle, please refer to the app tab.
- Product Attributes - Lifted Amount Range (in.)
- 6.00-8.00 in.
- Product Attributes - Extended Length (in.)
- 18.79
- Product Attributes - Collapsed Length (in.)
- 13.46
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Adjustable Valving
- No
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Upper Mount
- Stud
- Product Attributes - Lower Mount
- Clevis
- Product Attributes - Bushing Material
- Spherical bearing/PTFE
- Product Attributes - Boot Included
- No
- Product Attributes - Body Diameter (in.)
- 2.500
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a pair.
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico77608P |
| SFX Item ID | 4140671 |
| Supplier Item Code | 4140671 |
| Manufacturer SKU | 77608P |
| Manufacturer UPC | 840103406206 |
| Alternative References | IVD77608P, 6-8in |
