ICON 15-23 GM Canyon/Colorado 2.0 Series Rear Shock VS RR
ICON 15-23 GM Canyon/Colorado 2.0 Series Rear Shock VS RR
A$607.19
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.
Product Overview
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.
Features and Benefits
- Nitrogen charged monotube design with remote reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- Fully rebuildable and re-tunable
Product Details
| AAP_UDA_12: | EA |
|---|---|
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Active or Passive Suspension: | Passive |
| Add-On Part: | 614600 - 2.0 ICON BILLET RESI CLAMP KIT |
| Adjustable Compression: | No |
| Adjustable Damping: | No |
| Adjustable Rebound: | No |
| Adjustable Ride Height: | No |
| Body Color: | Gray |
| Body Diameter: | 2 |
| Body Material: | Aluminum |
| Boot Included: | NO |
| Bore Diameter: | 1.75 |
| Bushing Color: | Black |
| Bushing Included: | yes |
| Bushing Material: | Polyurethane |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included: | NO |
| Color: | Silver |
| Cylinder Color: | Gray |
| Cylinder Finish: | Anodized |
| Cylinder Material: | Aluminum |
| Cylinder Outside Diameter: | 2 |
| Damping Type: | Oil |
| Description: | ICON 15-23 GM Canyon/Colorado 2.0 Series Rear Shock VS RR |
| Dust Boot Included: | No |
| Dust Shield Included: | No |
| Dust Shield: | NO |
| External Reservoir: | Yes |
| Finish: | Anodized |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Hydraulic Lockout: | No |
| Includes Bump Stop: | No |
| Internal Construction Type: | Single Tube |
| Internal Rebound Bumper: | Yes |
| Internal Rebound Spring: | No |
| Lower Mount Type: | EYELET |
| Material: | Steel |
| Maximum Ride Height Raising Distance: | 2 |
| Mounting Hardware Included: | No |
| Part Number: | ico76550R |
| Remote Reservoir: | Yes |
| Rod Diameter: | .625 |
| Self-Leveling: | No |
| Service Parts: | 202003 - 2.0 REMOTE RESI REBUILD KIT |
| Shaft Diameter: | 0.625 |
| Shaft Material: | Chrome |
| Shock Absorber Body End Measuring Point: | CENTER OF EYELET |
| Shock Absorber Bore Size: | 1.75 |
| Shock Absorber Rod End Measuring Point: | CENTER OF EYELET |
| Title: | ICON 2015-2024 Chevrolet Colorado/GMC Canyon, 0-2†Lift, Rear 2.0 Aluminum Series Remote Reservoir Shock |
| Upper Mount Type: | EYELET |
| Valving Type: | Digressive |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |

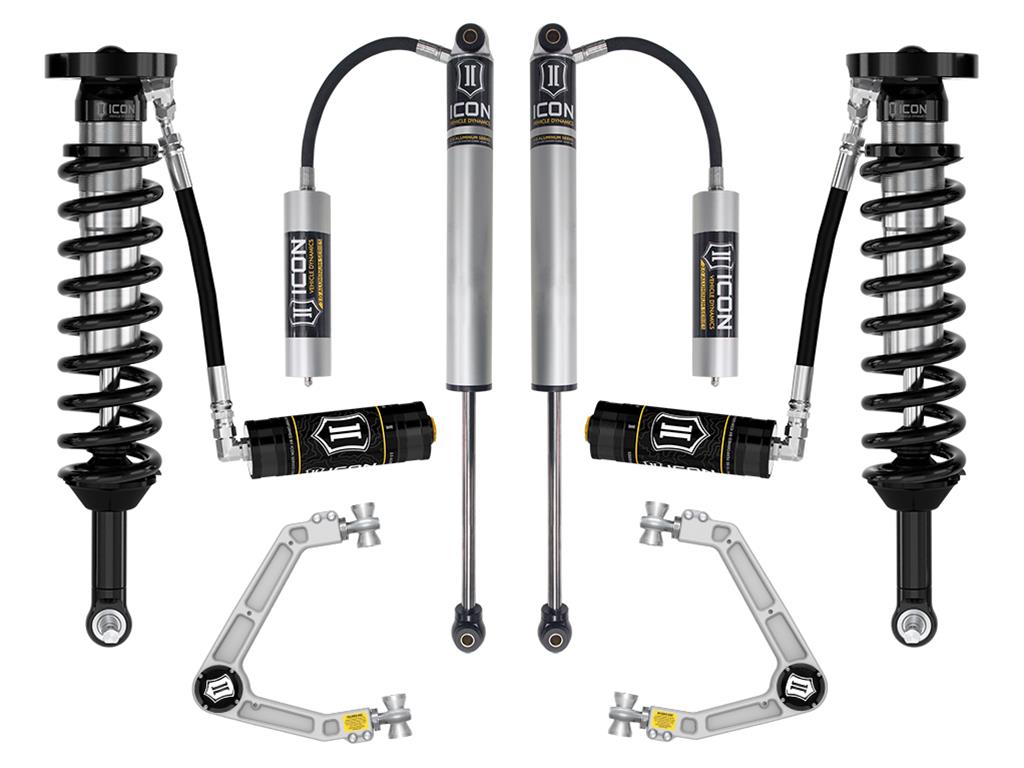

icoK73083T | Icon 2023+ GM Canyon/Colorado 1.75in-2.5in Stage 3 Suspension System w/ Tubular UCA (1x ico78660DJ, 1x ico71670, 2x ico76550R) |
 |
icoK73093T | ICON 2023 Chevrolet Colorado 1.75-2.5in Stage 3 Suspension System w/ Tubular UCA (2x ico76550R, 1x ico71671, 1x ico78661DJ) |
 |
icoK73093 | ICON 2023 Chevrolet Colorado 1.75-2.5in Stage 3 Suspension System w/ Billet UCA (2x ico76550R, 1x ico78761DJ, 1x ico71671) |
Part Type
Suspension Shock Absorber
Features
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Fully rebuildable and re-tunable
- Nitrile rubber top out bumper for noise free operation
- Nitrogen charged monotube design with remote reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 76550R
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - UPC
- 00840103427171
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico76550R |
| SFX Item ID | 4141712 |
| Supplier Item Code | 4141712 |
| Manufacturer SKU | 76550R |
| Manufacturer UPC | 840103427171 |
| Alternative References | IVD76550R |
