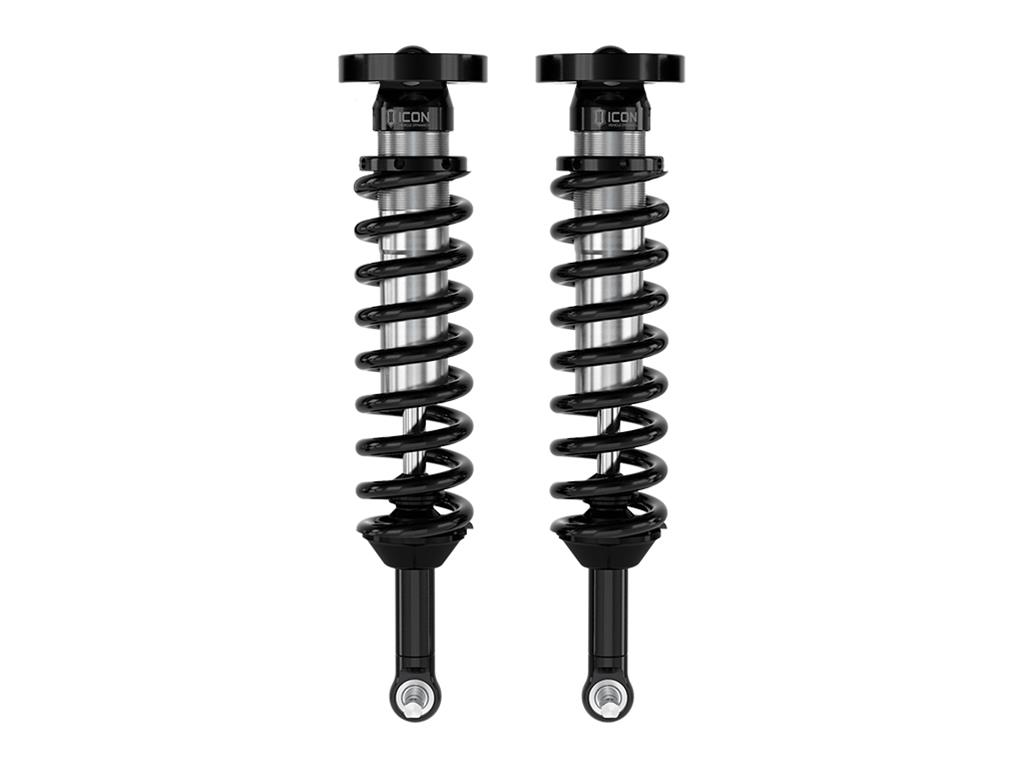

ICON 2023+ Chevrolet Colorado 2.5 Series Shocks VS IR Coilover Kit
ICON 2023+ Chevrolet Colorado 2.5 Series Shocks VS IR Coilover Kit
A$3,109.03
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description
ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023-2026 Chevrolet Colorado WT, LT, and Z71 trucks. Specifically designed for the narrower track width of these Colorado submodels, their longer than stock length offers an increase in total front wheel travel compared to stock while still being compatible with the stock front upper control arms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Chevrolet Colorado WT, LT, and Z71.
Product Overview
ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023-2024 Chevrolet Colorado WT, LT, and Z71 trucks. Specifically designed for the narrower track width of these Colorado submodels, their longer than stock length offers an increase in total front wheel travel compared to stock while still being compatible with the stock front upper control arms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Chevrolet Colorado WT, LT, and Z71.
Features and Benefits
- Increased front wheel travel and improved ride quality over stock
- 100% Bolt-on - no drilling, cutting, or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- Adjustable for 1.75-2.5" of front lift height over stock
- Internal nitrogen reservoir ensures consistent performance under hard use
- ICON engineered coil springs
- Corrosion resistant CAD plated 2.5” diameter shock bodies
- 7/8" diameter hardened chrome plated shafts
- 6061 Aircraft grade aluminum CNC machined components
- PTFE lined spherical bearings for extended longevity and minimal deflection
- High strength alloy CNC machined lower bar pin and application specific mounting hardware
- Fully rebuildable and re-tunable
Product Details
| AAP_UDA_12: | EA |
|---|---|
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Damping: | No |
| Adjustable Height: | Yes |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Damping Type: | Oil |
| Description: | ICON 2023+ Chevrolet Colorado 2.5 Series Shocks VS IR Coilover Kit |
| Dust Shield Included: | No |
| Dust Shield: | No |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Lower Mount Type: | Bar Pin |
| Material: | Aluminum |
| Maximum Lift: | 2.5 |
| Minimum Lift: | 1.75 |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico71616 |
| Recommended Aftermarket Tires: | 33" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels: | 17x8.5" w/ 5.46†Backspace / 18mm Offset |
| Remote Reservoir: | No |
| Service Parts: | 252010 - 2.5 IFP REBUILD KIT |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Flat on Bar Pin |
| Spring Color: | Black |
| Spring Material: | Steel |
| Spring Rate Type: | Linear |
| Title: | ICON 2023-2024 Chevrolet Colorado WT, LT, & Z71, 2.5 Series Coilover Kit, Internal Reservoir |
| Upper Mount Type: | Mounting Plate |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |
icoK73091 | ICON 2023 Chevrolet Colorado 1.75-2.5in Stage 1 Suspension System (2x ico76550, 1x ico71616) |
 |
icoK73092T | ICON 2023 Chevrolet Colorado 1.75-2.5in Stage 2 Suspension System W Tubular UCA (2x ico76550, 1x ico71616, 1x ico78661DJ) |
 |
icoK73092 | ICON 2023 Chevrolet Colorado 1.75-2.5in Stage 2 Suspension System W Billet UCA (2x ico76550, 1x ico71616, 1x ico78761DJ) |
Part Type
Coilover Set
Features
- 100% Bolt-on - no drilling, cutting, or welding necessary for installation
- 6061 Aircraft grade aluminum CNC machined components
- 7/8" diameter hardened chrome plated shafts
- Adjustable for 1.75-2.5" of front lift height over stock
- Corrosion resistant CAD plated 2.5” diameter shock bodies
- Fully rebuildable and re-tunable
- High strength alloy CNC machined lower bar pin and application specific mounting hardware
- ICON engineered coil springs
- Increased front wheel travel and improved ride quality over stock
- Internal nitrogen reservoir ensures consistent performance under hard use
- PTFE lined spherical bearings for extended longevity and minimal deflection
- Vehicle specific tuned for superior shock damping and control
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 71616
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - UPC
- 00840103427546
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico71616 |
| SFX Item ID | 4141740 |
| Supplier Item Code | 4141740 |
| Manufacturer SKU | 71616 |
| Manufacturer UPC | 840103427546 |
| Alternative References | IVD71616 |
