ICON 2017+ Ford F-250/F-350 Super Duty 4WD 7in Front 2.5 Series Shocks VS RR CDCV - Pair

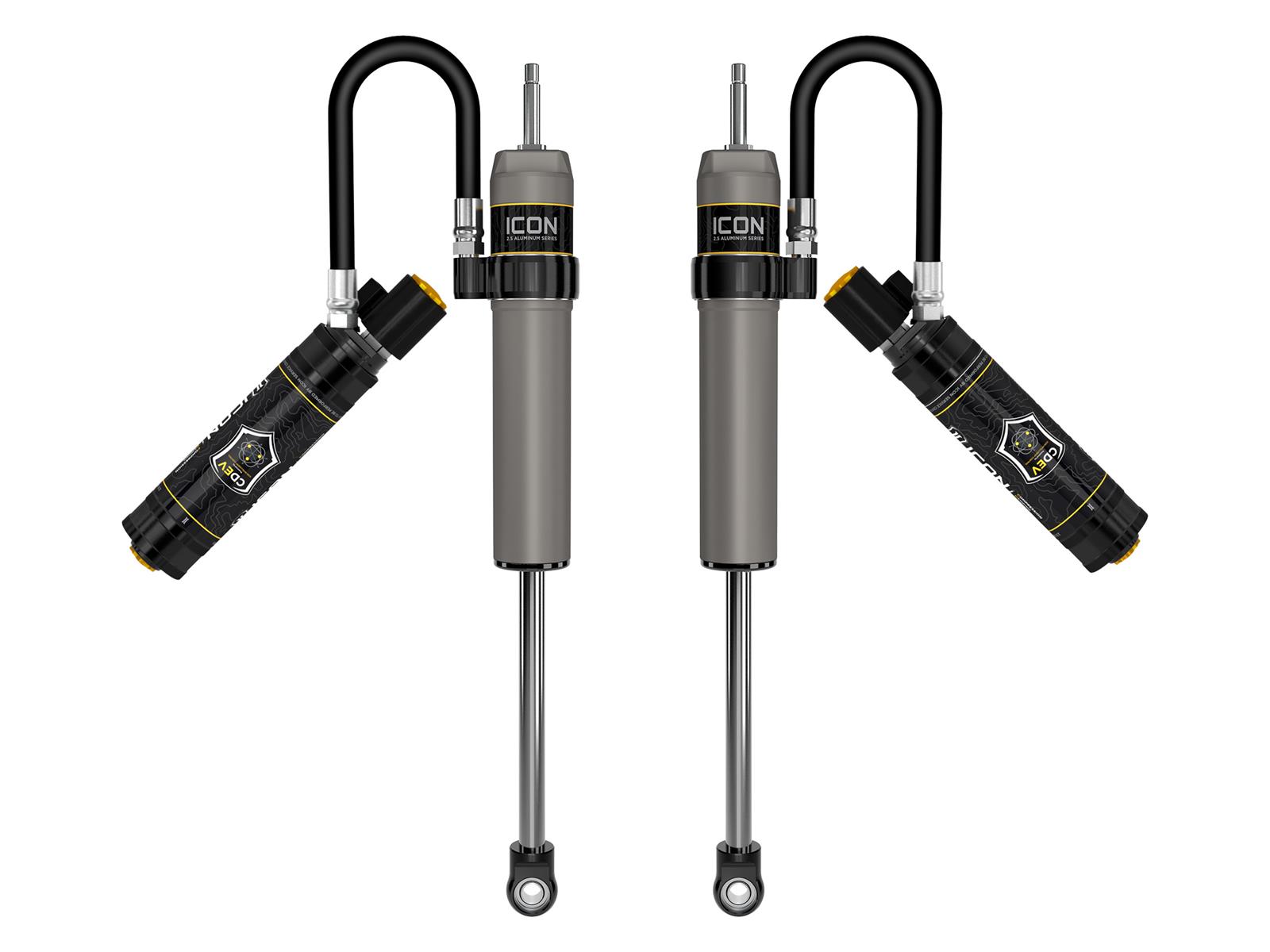

ICON 2017+ Ford F-250/F-350 Super Duty 4WD 7in Front 2.5 Series Shocks VS RR CDCV - Pair
A$4,012.99
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Product Overview
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Features and Benefits
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Fully rebuildable and re-tunable
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
Product Details
| AAP_UDA_12: | EA |
|---|---|
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| Adjustable: | Electronically |
| Boot Included: | NO |
| Bore Diameter: | 2.25 |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Color: | Grey |
| Cylinder Material: | Aluminum |
| Damping Type: | Oil |
| Description: | ICON 2017+ Ford F-250/F-350 Super Duty 4WD 7in Front 2.5 Series Shocks VS RR CDCV - Pair |
| External Reservoir: | Yes |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Lower Mount Type: | Eyelet |
| Mounting Hardware Included: | Yes |
| Part Number: | ico67820EP |
| Service Parts: | 611006 - 9/16 HD STEM BUSHING KIT |
| Shaft Diameter: | 0.875 |
| Shaft Material: | Chrome |
| Shock Absorber Body End Measuring Point: | Shoulder of Stem |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Title: | ICON 2017-2022 Ford Super Duty 4WD. Front 2.5 VS Remote Reservoir Shocks w/CDEV, 7†Lift, Pair |
| Tube Outside Diameter: | 2.5 |
| Upper Mount Type: | Stem |
Part Type
Suspension Shock Absorber Set
Features
- 6061 aircraft grade aluminum CNC machined components
- 7/8” diameter induction hardened, chrome plated shock shaft
- Fully rebuildable and re-tunable
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- PTFE lined spherical bearings and application specific mounting hardware
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 67820EP
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - Product Line
- Icon Vehicle Dynamics 2.5 VS RR CDEV Shocks
- Product Attributes - UPC
- 00840103414614
- Product Attributes - Ride Height
- Lifted
- Product Attributes - Ride Height Note
- Additional ride height information may be available for your vehicle, please refer to the app tab.
- Product Attributes - Lifted Amount Range (in.)
- 7.00 in.
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Upper Mount
- Stud
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Bushing Material
- Spherical bearing/PTFE
- Product Attributes - Boot Included
- No
- Product Attributes - Body Diameter (in.)
- 2.500
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a pair.
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico67820EP |
| SFX Item ID | 4141476 |
| Supplier Item Code | 4141476 |
| Manufacturer SKU | 67820EP |
| Manufacturer UPC | 840103414478 |
| Alternative References | IVD67820EP, F-250/F-350, 4WD, 7in |
