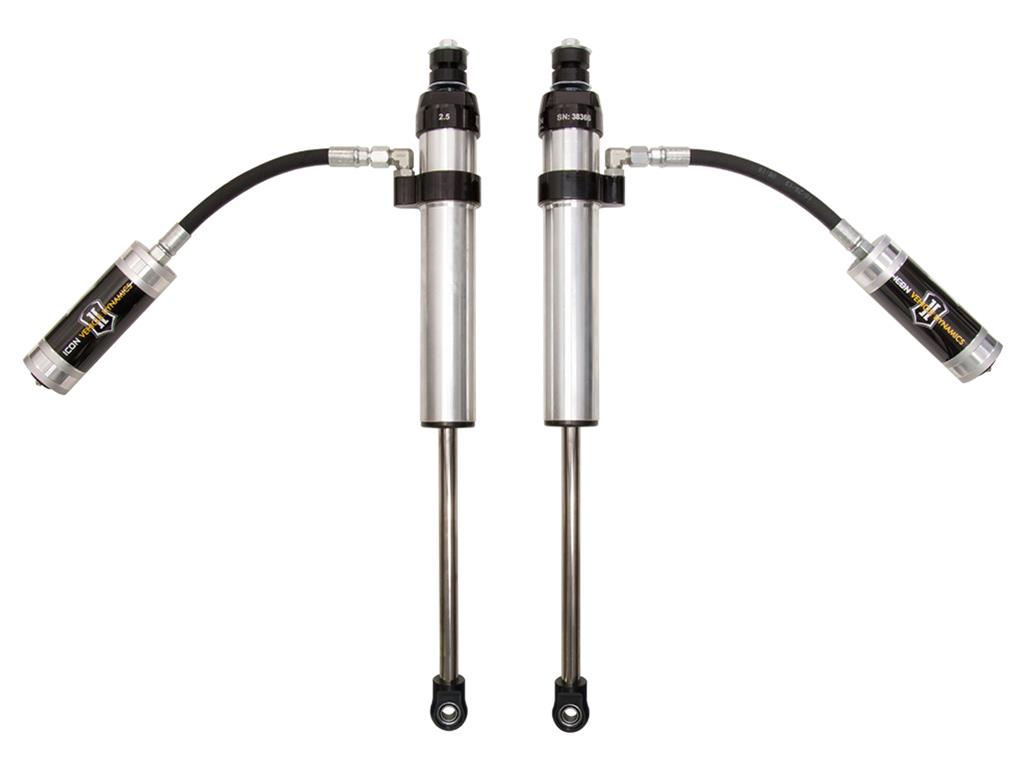

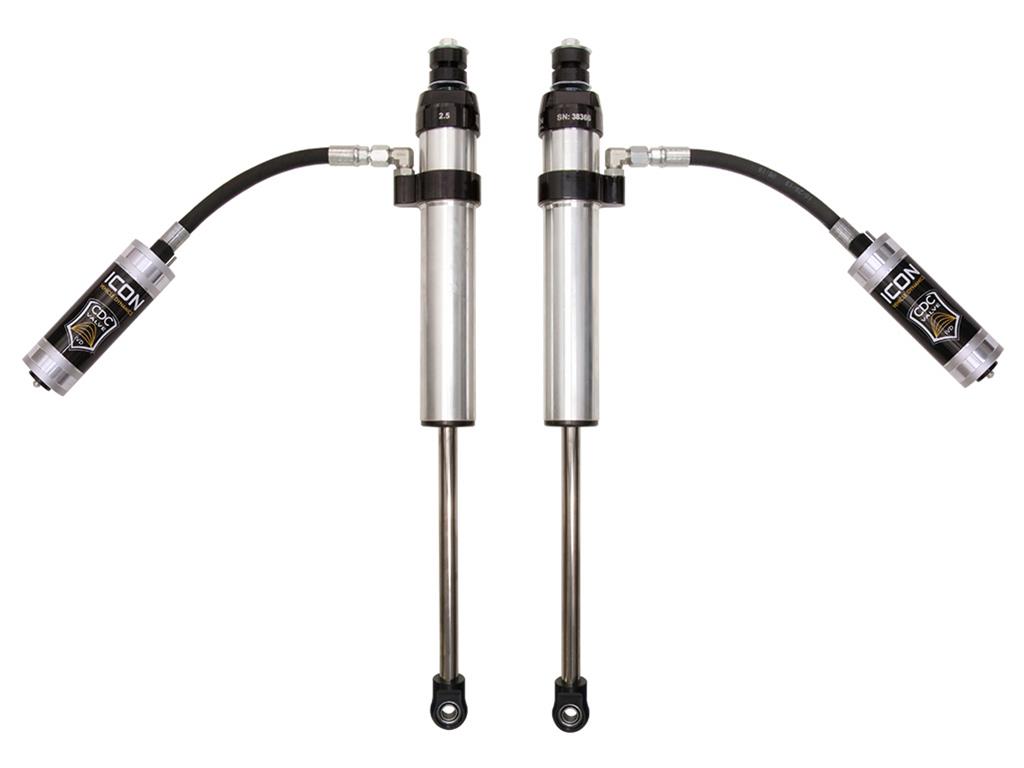

ICON 2017+ Ford F-250/F-350 Super Duty Rear 2-5in 2.0 Series Aluminum Shocks VS RR
ICON 2017+ Ford F-250/F-350 Super Duty Rear 2-5in 2.0 Series Aluminum Shocks VS RR
A$610.99
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.
Product Overview
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.
Features and Benefits
- 100% revalveable
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 100% rebuildable
- Nitrogen charged monotube design with remote reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- Application-specific reservoir mounting hardware
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
Product Details
| 110: | No |
|---|---|
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Active or Passive Suspension: | Passive |
| Add On Part: | 614600 - Billet Reservoir Clamp Kit |
| Add-On Part: | 614600 - 2.0 ICON BILLET RESI CLAMP KIT |
| Adjustable Compression: | No |
| Adjustable Damping: | No |
| Adjustable Rebound: | No |
| Adjustable Ride Height: | No |
| Adjustable: | No |
| Body Color: | Gray |
| Body Diameter: | 2 |
| Body Material: | Aluminum |
| Boot Included: | No |
| Bore Diameter: | 1.75 |
| Bushing Color: | Black |
| Bushing Included: | yes |
| Bushing Material: | Polyurethane |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Spring Insulator(s) Included: | No |
| Color: | Gray |
| Configuration: | Performance |
| Cubre Polvo Incluido: | no |
| Cylinder Color: | Gray |
| Cylinder Finish: | Anodized |
| Cylinder Material: | Aluminum |
| Cylinder Outside Diameter: | 2 |
| Damping Type: | Oil |
| Description: | 17-UP FSD REAR 2-5" 2.0 VS RR |
| Dust Boot Included: | No |
| Dust Shield Included: | No |
| Dust Shield: | No |
| External Reservoir: | Yes |
| Finish: | Anodized |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Hydraulic Lockout: | No |
| Includes Bump Stop: | No |
| Internal Construction Type: | Single Tube |
| Internal Rebound Bumper: | Yes |
| Internal Rebound Spring: | No |
| Lower Mount Sleeve Inside Diameter: | .56 |
| Lower Mount Sleeve Overall Length: | 1.475 |
| Lower Mount Type: | Eyelet |
| Material: | Aluminum |
| Maximum Ride Height Raising Distance: | 5 |
| Minimum Ride Height Raising Distance: | 2 |
| Mounting Hardware Included: | No |
| Part Number: | ico66517R |
| Quantity: | 1 |
| Remote Reservoir: | Yes |
| Reservoir Diameter: | 2 |
| Reservoir Hose Inside Diameter: | .25 |
| Reservoir Hose Length: | 5.75 |
| Reservoir Length: | 8 |
| Reservoir Type: | Remote |
| Rod Diameter: | .625 |
| Self-Leveling: | No |
| Service Parts: | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Shaft Diameter: | 0.625 |
| Shaft Material: | Chrome |
| Shock Absorber Body End Measuring Point: | Center of Eylet |
| Shock Absorber Bore Size: | 1.75 |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Suspension Type: | Spring |
| Tipo de Grado: | Reparación de Banda |
| Title: | ICON 2017-2024 Ford F-250/F-350 Super Duty, 2-5†Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir |
| Upper Mount Type: | Eyelet |
| Valving Type: | Digressive |
Part Type
Suspension Shock Absorber
Features
- 100% rebuildable
- 100% revalveable
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Application-specific reservoir mounting hardware
- Nitrile rubber top out bumper for noise free operation
- Nitrogen charged monotube design with remote reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 66517R
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - Product Line
- Icon Vehicle Dynamics 2.0 VS RR Shocks
- Product Attributes - UPC
- 00840103405735
- Product Attributes - Ride Height
- Lifted
- Product Attributes - Lifted Amount Range (in.)
- 2.00-5.00 in.
- Product Attributes - Adjustable Valving
- No
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Upper Mount
- Eyelet
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Bushing Material
- Polyurethane
- Product Attributes - Bushing Color
- Black
- Product Attributes - Boot Included
- No
- Product Attributes - Body Diameter (in.)
- 2.000
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Features a remote reservoir.
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico66517R |
| SFX Item ID | 4141116 |
| Supplier Item Code | 4141116 |
| Manufacturer SKU | 66517R |
| Manufacturer UPC | 840103405735 |
| Alternative References | IVD66517R, F-250/F-350, 2-5in |
