ICON 2017+ Ford F-250/F-350 5in Leaf Spring Hardware Kit

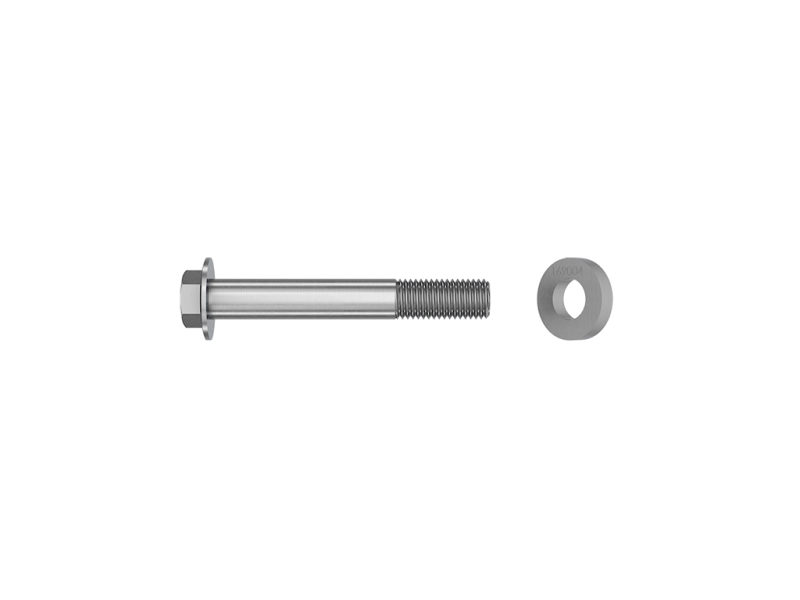

ICON 2017+ Ford F-250/F-350 5in Leaf Spring Hardware Kit
A$121.99
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
The ICON Vehicle Dynamics 5” Lift Leaf Spring Hardware Kit eases the installation of ICON leaf springs onto the 2017-2025 Ford F-250 & F-350 Super Duty. Because of the placement of the fuel tank, the driver side front leaf spring hanger bolt cannot be removed without dropping the fuel tank. This replacement bolt kit allows the OE bolt to be cut and removed while leaving the fuel tank in position, and then replaced with a new bolt with the new leaf spring, drastically shortening installation time. Featuring a genuine Ford bolt, you can rest assured that the new mounting bolt is up to the task of securing the new leaf spring in place.
Product Overview
The ICON Vehicle Dynamics 5” Lift Leaf Spring Hardware Kit eases the installation of ICON leaf springs onto the 2017-2025 Ford F-250 & F-350 Super Duty. Because of the placement of the fuel tank, the driver side front leaf spring hanger bolt cannot be removed without dropping the fuel tank. This replacement bolt kit allows the OE bolt to be cut and removed while leaving the fuel tank in position, and then replaced with a new bolt with the new leaf spring, drastically shortening installation time. Featuring a genuine Ford bolt, you can rest assured that the new mounting bolt is up to the task of securing the new leaf spring in place.
Features and Benefits
- Eases installation of ICON 5” lift rear leaf spring packs
- Genuine Ford OEM leaf spring hanger bolt
- Precision CNC laser cut, zinc plated washer
- ICON Limited Lifetime Warranty
Product Details
| AAP_UDA_12: | EA |
|---|---|
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Description: | 17-UP 5" LEAF SPRING HARDWARE KIT |
| Grade Type: | Standard Replacement |
| Part Number: | ico65505H |
| Title: | ICON 2017-2024 Ford F-250/F-350 Super Duty, Rear, 5" Lift Leaf Spring Hardware Kit |
| Universal Or Specific Fit: | Specific |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |
icoK67111 | ICON 2017+ Ford F-250/F-350 7in Stage 1 Suspension System (2x ico168506, 1x ico62530, 1x ico64038, 1x ico64055, 1x ico65000, 1x ico65501, 1x ico65505H, 1x ico67003, 1x ico67015, 1x ico67031, 1x ico67035, 2x ico36511, 2x ico66514, 2x ico66517) |
 |
icoK67113 | ICON 2017+ Ford F-250/F-350 7in Stage 3 Suspension System (2x ico168506, 1x ico37701P, 1x ico62530, 1x ico64038, 1x ico64055, 1x ico65000, 1x ico65501, 1x ico65505H, 1x ico67003, 1x ico67015, 1x ico67031, 1x ico67035, 1x ico67720P, 2x ico36511) |
 |
icoK67112 | ICON 2017+ Ford F-250/F-350 7in Stage 2 Suspension System (2x ico168506, 1x ico67620P, 1x ico37601P, 1x ico62530, 1x ico64038, 1x ico64055, 1x ico65000, 1x ico65501, 1x ico65505H, 1x ico67003, 1x ico67015, 1x ico67031, 1x ico67035, 2x ico36511) |
 |
icoK67114 | ICON 2017+ Ford F-250/F-350 7in Stage 4 Suspension System (2x ico168506, 1x ico37701P, 1x ico64038, 1x ico65000, 1x ico65501, 1x ico65505H, 1x ico67003, 1x ico67015, 1x ico67031, 1x ico67035, 1x ico67720P, 2x ico36511, 1x ico164501, 1x ico164502, 1x ico164504) |
 |
icoK67115R | ICON 2017+ Ford F-250/350 7in Stage 5 Suspension System w/ Radius Arm (2x ico168506, 1x ico37701CP, 1x ico64038, 1x ico64055, 1x ico65000, 1x ico65501, 1x ico65505H, 1x ico67003, 1x ico67015, 1x ico67031, 1x ico67035, 1x ico67720CP, 2x ico36511, 1x ico64041) |
 |
icoK67114R | ICON 2017+ Ford F250/F350 7in Stage 4 Suspension System w/ Radius Arm (2x ico168506, 1x ico37701P, 1x ico64038, 1x ico64055, 1x ico65000, 1x ico65501, 1x ico65505H, 1x ico67003, 1x ico67015, 1x ico67031, 1x ico67035, 1x ico67720P, 2x ico36511, 1x ico64041) |
Part Type
Leaf Spring Mount Kit
Features
- Eases installation of ICON 5” lift rear leaf spring packs
- Genuine Ford OEM leaf spring hanger bolt
- ICON Limited Lifetime Warranty
- Precision CNC laser cut, zinc plated washer
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 65505H
- Product Attributes - Part Type
- Leaf Spring Shackle and Hanger Hardware Kits
- Product Attributes - UPC
- 00840103408972
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico65505H |
| SFX Item ID | 4140802 |
| Supplier Item Code | 4140802 |
| Manufacturer SKU | 65505H |
| Manufacturer UPC | 840103408972 |
| Alternative References | IVD65505H, F-250/F-350, 5in |
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
