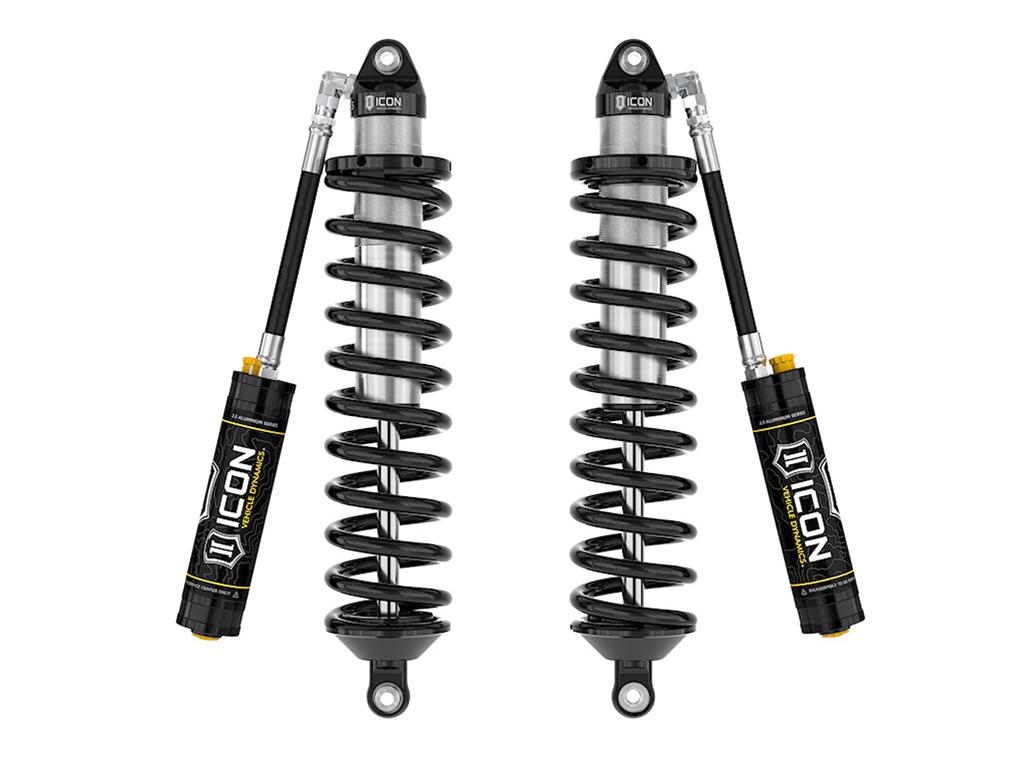

ICON 2008+ Ford F-250/F-350 Super Duty 4WD 4.5in 2.5 Series Shocks VS RR CDCV Coilover Kit
ICON 2008+ Ford F-250/F-350 Super Duty 4WD 4.5in 2.5 Series Shocks VS RR CDCV Coilover Kit
A$3,955.41
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description
The ICON Vehicle Dynamics Coilover Conversion System transforms the front suspension of 2008-2016 Ford Super Duty trucks by replacing the factory coil spring arrangement with a high-performance, bolt-in coilover system designed for use with ICON fabricated shock hoops. Ride height adjustable coilovers provide 4-6.5" of front lift, delivering improved suspension tuning capability along with reduced body roll and significantly enhanced on- and off-road ride dynamics. Vehicle-specific shock valving is engineered to provide exceptional ride quality and precise control, while remote reservoirs increase shock oil capacity and dissipate heat to maintain consistent damping performance during extended off-road use. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. The corrosion-resistant CAD plated coilover shock bodies, 7/8" shafts for exceptional strength, and ICON-engineered dual-rate coil springs are backed by a lifetime guarantee against sagging or breakage. High-strength FK rod end bearings minimize deflection while providing long-lasting durability in demanding environments. Designed with future performance upgrades in mind, the coilover conversion also allows for the addition of a secondary shock, making it an ideal foundation for high-performance Super Duty suspension systems.
Product Overview
Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Product Details
| 110: | No |
|---|---|
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Damping: | Yes |
| Adjustable Height: | Yes |
| Amortiguación Ajustable: | SI |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Damping Type: | Oil |
| Description: | 08-16 FSD 4WD 4.5" 2.5 VS RR CDCV COILOVER KIT |
| Diámetro del árbol: | 2021-07-08 |
| Dust Shield: | No |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Lower Mount Type: | Eyelet |
| Material del resorte: | Acero |
| Material: | Steel |
| Muelles helicoidales incluidos: | SI |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico61750C |
| Recommended Aftermarket Tires: | 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels: | ICON Alloys - 17x8.5" w/ 5.00†Backspace / 6mm Offset |
| Remote Reservoir: | Yes |
| Service Parts: | 191015 - 10" FINNED RESI UPGRADE KIT |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Center of Eylet |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Spring Color: | Black |
| Spring Material: | Steel |
| Tipo de Grado: | Reparación de Banda |
| Title: | 08-16 FSD 4WD 4.5" 2.5 VS RR CDCV COILOVER KIT |
| Upper Mount Type: | Eyelet |
Part Type
Coilover Set
Features
- Bolt-in system fits in ICON fabricated shock hoops
- Coilover conversion allows for addition of secondary shock
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- Decreased body roll and improved on and off-road ride dynamics
- FK Rod End bearings for extended longevity and minimal deflection
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- ICON engineered coil springs guaranteed for life against sagging or breakage
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- Ride height adjustable coilovers provide 4-6.5" of front lift over stock
- Shocks are fully rebuildable and revalveable
- Vehicle-specific shock valving provides unparalleled ride quality and control
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 61750C
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - Product Line
- Icon Vehicle Dynamics 2.5 RR Coilover Kits
- Product Attributes - UPC
- 00840103405469
- Product Attributes - Coilover Kit Position
- Front
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Shocks Included
- Yes
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Coilover Springs Included
- Yes
- Product Attributes - Suspension Height Adjustment
- 4.0-6.5 in. raised
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Upper Mount
- Bracket
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Body Diameter (in.)
- 2.500
- Product Attributes - Shock Body Material
- Aluminum
- Product Attributes - Shock Body Finish
- Silver
- Product Attributes - Spring Finish
- Black
- Product Attributes - Crossmember Included
- No
- Product Attributes - Adjustable Mounting Bracket Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Welding Required
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico61750C |
| SFX Item ID | 4141189 |
| Supplier Item Code | 4141189 |
| Manufacturer SKU | 61750C |
| Manufacturer UPC | 840103405469 |
| Alternative References | IVD61750C, F-250/F-350, 4WD, 4.5in |
