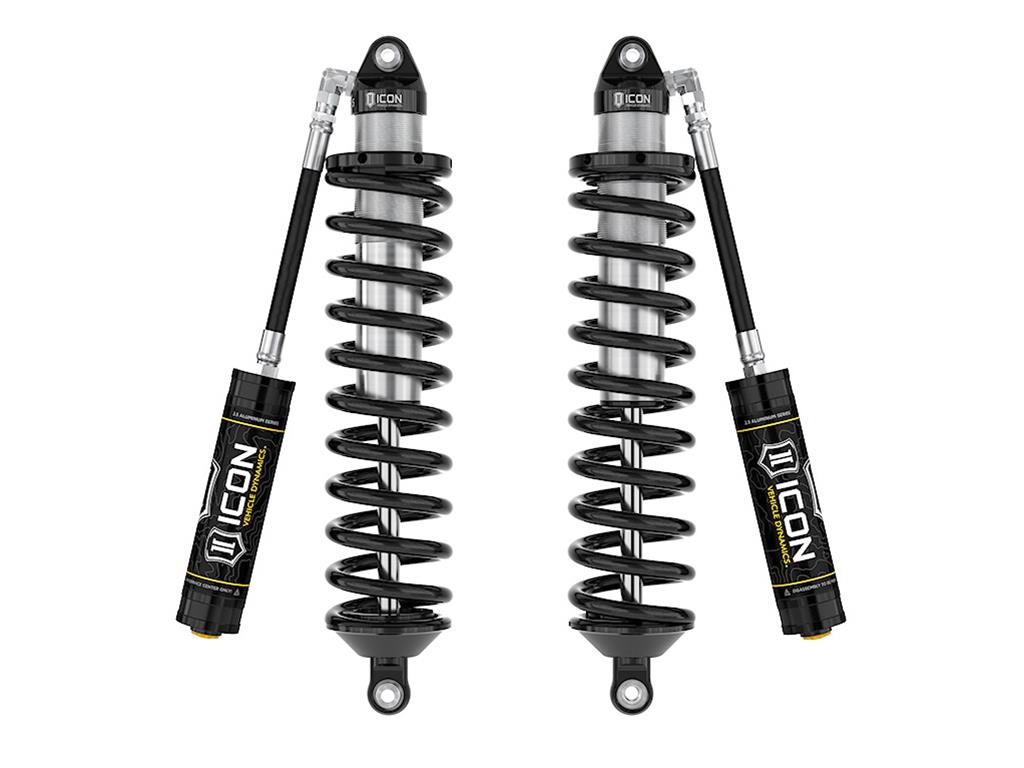

ICON 2008+ Ford F-250/F-350 Super Duty 4WD 4.5in 2.5 Series Shocks VS RR Coilover Kit
ICON 2008+ Ford F-250/F-350 Super Duty 4WD 4.5in 2.5 Series Shocks VS RR Coilover Kit
A$3,457.78
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
These coil-over shocks are the ultimate suspension modification for your Super Duty. These are not race style shocks that were modified to fit they were designed from the ground up for the 2008 - 2016 Super Duty. They are adjustable in ride height from 4" to 6.5" of lift. They have any external Reservoir for excellent heat dissipation, a Dual Rate Spring for a great ride quality on or off-road, and are completely Rebuilable.
Product Overview
These coil-over shocks are the ultimate suspension modification for your Super Duty. These are not race style shocks that were modified to fit they were designed from the ground up for the 2008 - 2016 Super Duty. They are adjustable in ride height from 4" to 6.5" of lift. They have any external Reservoir for excellent heat dissipation, a Dual Rate Spring for a great ride quality on or off-road, and are completely Rebuilable.
Product Details
| 110: | No |
|---|---|
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Damping: | NO |
| Adjustable Height: | yes |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Damping Type: | Oil |
| Description: | 08-16 FSD 4WD 4.5" 2.5 VS RR COILOVER KIT |
| Diámetro del árbol: | 2021-07-08 |
| Dust Shield: | No |
| Gas Charged: | yes |
| Grade Type: | Performance |
| Lower Mount Type: | Eyelet |
| Material del resorte: | Acero |
| Muelles helicoidales incluidos: | SI |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico61750 |
| Recommended Aftermarket Tires: | 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels: | ICON Alloys - 20x9" w/ 5.25†Backspace / 6mm Offset |
| Remote Reservoir: | Yes |
| Service Parts: | 191015 - 10" FINNED RESI UPGRADE KIT |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Spring Color: | Black |
| Spring Material: | Steel |
| Tipo de Grado: | Reparación de Banda |
| Title: | 08-16 FSD 4WD 4.5" 2.5 VS RR COILOVER KIT |
| Upper Mount Type: | Mounting Plate |
Part Type
Coilover Set
Features
- Bolt-in system fits in ICON fabricated shock hoops
- Coilover conversion allows for addition of secondary shock
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- Decreased body roll and improved on and off-road ride dynamics
- FK Rod End bearings for extended longevity and minimal deflection
- ICON engineered coil springs guaranteed for life against sagging or breakage
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- Ride height adjustable coilovers provide 4-6.5" of front lift over stock
- Shocks are fully rebuildable and revalveable
- Vehicle-specific shock valving provides unparalleled ride quality and control
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 61750
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - Product Line
- Icon Vehicle Dynamics 2.5 RR Coilover Kits
- Product Attributes - UPC
- 00840103405452
- Product Attributes - Coilover Kit Position
- Front
- Product Attributes - Adjustable Valving
- No
- Product Attributes - Shocks Included
- Yes
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Coilover Springs Included
- Yes
- Product Attributes - Suspension Height Adjustment
- 4.0-6.5 in. raised
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Upper Mount
- Bracket
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Body Diameter (in.)
- 2.500
- Product Attributes - Shock Body Material
- Aluminum
- Product Attributes - Shock Body Finish
- Silver
- Product Attributes - Spring Finish
- Black
- Product Attributes - Crossmember Included
- No
- Product Attributes - Adjustable Mounting Bracket Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Welding Required
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico61750 |
| SFX Item ID | 4141188 |
| Supplier Item Code | 4141188 |
| Manufacturer SKU | 61750 |
| Manufacturer UPC | 840103405452 |
| Alternative References | IVD61750, F-250/F-350, 4WD, 4.5in |
