Description

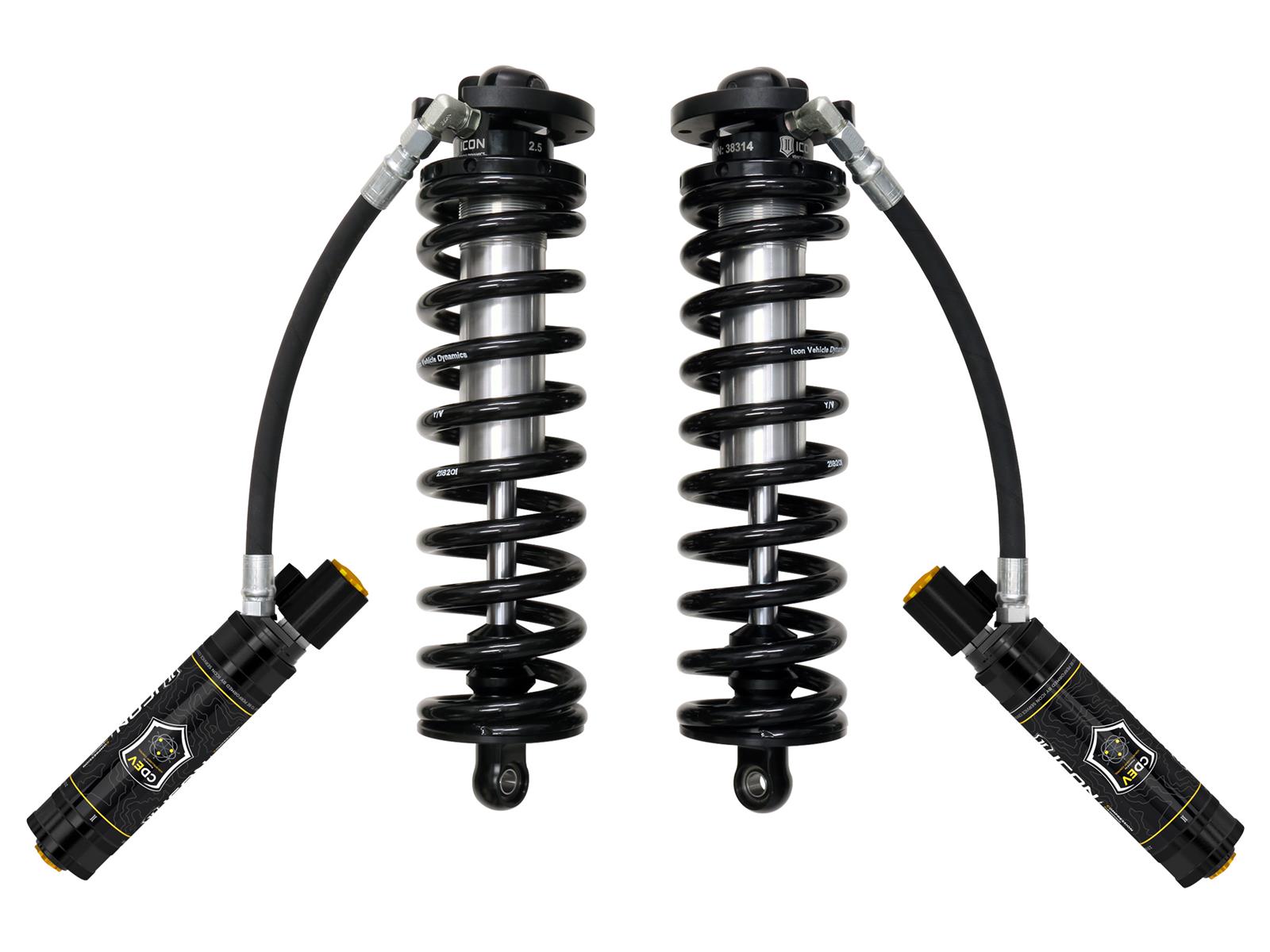

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2026 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-tuned as necessary. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

Product Overview

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2025 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-tuned as necessary. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

Features and Benefits

• Bolt-in system fits in OE coil bucket location
• Fully rebuildable and re-tunable
• Ride height adjustable coilovers
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Coilover conversion allows for addition of optional secondary shocks
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• ICON engineered coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection

Product Details

AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Active or Passive Suspension:	Active
Add-On Part:	93502 - 23-24 FSD IIC INSTALL KIT
Adjustable Compression:	Yes
Adjustable Damping:	Yes
Adjustable Height:	Yes
Adjustable Rebound:	No
Body Diameter:	2.5
Boot Included:	No
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included:	Yes
Cylinder Color:	Silver
Cylinder Finish:	Cadmium Plated
Cylinder Material:	Steel
Damping Adjustment Type:	Electronic
Damping Type:	Oil
Description:	ICON 2017+ Ford F-250/F-350 SD 4WD 4.5-5in 2.5 Series Shocks VS RR CDEV Bolt-In Conversion Kit
Dust Shield Included:	No
Dust Shield:	No
Gas Charged:	Yes
Grade Type:	Performance
Internal Construction Type:	Single Tube
Lower Mount Type:	Eyelet
Material:	Steel
Maximum Lift:	6.25
Minimum Lift:	3.5
OEM Wheels & Tires Fitment:	Yes
Part Number:	ico61721E
Recommended Aftermarket Tires:	37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels:	ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Remote Reservoir:	Yes
Reservoir Style:	Remote
Self-Leveling:	No
Service Parts:	191016 - 7.5" FINNED RESI UPGRADE KIT
Shaft Diameter:	0.875
Shock Absorber Body End Measuring Point:	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point:	Center of Eylet
Spring Color:	Black
Spring Material:	Steel
Spring Rate Type:	Linear
Title:	ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 4-5.5” Lift, Front, 2.5 V.S. Remote Reservoir CDEV Coilover Conversion Kit
Upper Mount Type:	Mounting Plate
Valving Type:	Digressive

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK63178	ICON Vehicle Dynamics - Coilover Kits for 2023 F-250 SUPER DUTY, F-350 DUTY K63178 COILOVER CONVERSION 23 FORD F250/F350 4-5.5" STAGE 8 SYSTEM
	icoK63178L	ICON Vehicle Dynamics - Coilover Kits for 2023 F-250 SUPER DUTY, F-350 DUTY K63178L COILOVER CONVERSION 23 FORD F250/F350 4-5.5" STAGE 8 SYSTEM W/ EXPANSION PACKS
	icoK63178R	ICON Vehicle Dynamics - Coilover Kits for 2023 F-250 SUPER DUTY, F-350 DUTY K63178R COILOVER CONVERSION 23 FORD F250/F350 4-5.5" STAGE 8 SYSTEM W/ RADIUS ARMS
	icoK63178RL	ICON Vehicle Dynamics - Coilover Kits for 2023 F-250 SUPER DUTY, F-350 DUTY K63178RL COILOVER CONVERSION 23 FORD F250/F350 4-5.5" STAGE 8 COILOVER CONV SYS RADIUS ARMS/EXPANSION PACKS
	icoK63179	ICON Vehicle Dynamics - Coilover Kits for 2023 F-250 SUPER DUTY, F-350 DUTY K63179 COILOVER CONVERSION 23 FORD F250/F350 4-5.5" STAGE 9 SYSTEM
	icoK63179L	ICON Vehicle Dynamics - Coilover Kits for 2023 F-250 SUPER DUTY, F-350 DUTY K63179L COILOVER CONVERSION 23 FORD F250/F350 4-5.5" STAGE 9 SYSTEM W/ EXPANSION PACKS
	icoK63179R	ICON Vehicle Dynamics - Coilover Kits for 2023 F-250 SUPER DUTY, F-350 DUTY K63179R COILOVER CONVERSION 23 FORD F250/F350 4-5.5" STAGE 9 SYSTEM W/ RADIUS ARMS
	icoK63179RL	ICON Vehicle Dynamics - Coilover Kits for 2023 F-250 SUPER DUTY, F-350 DUTY K63179RL COILOVER CONVERSION 23 FORD F250/F350 4-5.5" STAGE 9 SYS RADIUS ARMS/EXPANSION PACKS

Data: v4.2 - Upd: 2026-10-15 15:08:24

Features

Specifications

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Manufacturer's Part Number

61721E

Product Attributes - Part Type

Coilover Kits

Product Attributes - Product Line

Icon Vehicle Dynamics 2.5 RR CDEV Coilover Kits

Product Attributes - UPC

00840103414447

Product Attributes - Coilover Kit Position

Front

Product Attributes - Adjustable Valving

Yes

Product Attributes - Shocks Included

Yes

Product Attributes - Coilover Springs Included

Yes

Product Attributes - Gas Charged

Yes

Product Attributes - Crossmember Included

No

Product Attributes - Adjustable Mounting Bracket Included

No

Product Attributes - Hardware Included

Yes

Product Attributes - Welding Required

No

Product Attributes - Quantity

Sold as a kit.
