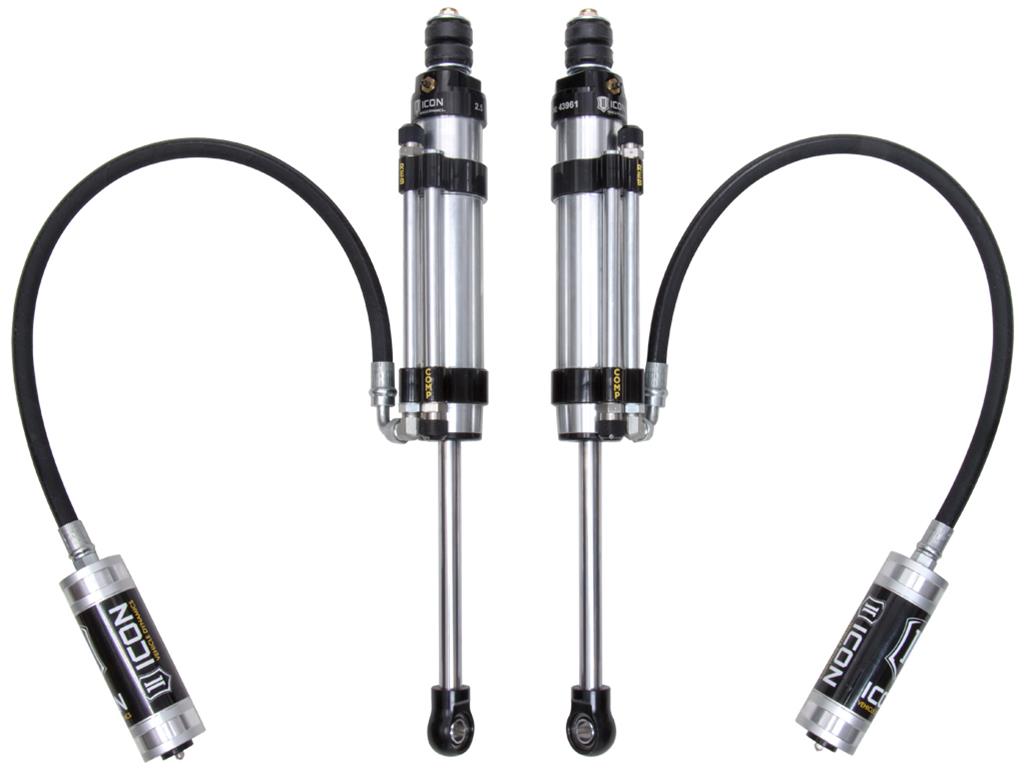

ICON 2008+ Toyota Land Cruiser 200 0-2in Rear 2.5 Omega Series Shocks VS - Pair
ICON 2008+ Toyota Land Cruiser 200 0-2in Rear 2.5 Omega Series Shocks VS - Pair
A$4,378.84
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.
Product Overview
ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.
Features and Benefits
- 100% Revalveable
- ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
- 6061 aircraft grade aluminum CNC machined components
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 100% Rebuildable
- Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
- Bypass tubes are replaceable in the event of damage
- Internal “Bump Zone” increases damping force to provide more control as the shock approaches full compression
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
Product Details
| 71060: | Yes |
|---|---|
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable: | Yes |
| Boot Included: | NO |
| Bore Diameter: | 2.25 |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Material: | Aluminum |
| Description: | 08-UP LC 200 0-2" REAR 2.5 VS OMEGA PAIR |
| External Reservoir: | Yes |
| Gas Charged: | Yes |
| Lower Mount Type: | EYELET |
| Mounting Hardware Included: | Yes |
| Part Number: | ico59925P |
| Service Parts: | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Shock Absorber Body End Measuring Point: | Shoulder of Stem |
| Shock Absorber Rod End Measuring Point: | CENTER OF EYELET |
| Title: | 08-UP LC 200 0-2" REAR 2.5 VS OMEGA PAIR |
| Tube Outside Diameter: | 2.5 |
| Upper Mount Type: | Stem |
Part Type
Suspension Shock Absorber Set
Features
- 100% Rebuildable
- 100% Revalveable
- 6061 aircraft grade aluminum CNC machined components
- 7/8” diameter induction hardened, chrome plated shock shaft
- Bypass tubes are replaceable in the event of damage
- Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
- ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
- Internal “Bump Zone” increases damping force to provide more control as the shock approaches full compression
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- PTFE lined spherical bearings and application specific mounting hardware
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 59925P
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - Product Line
- Icon Vehicle Dynamics 2.5 VS Omega RR Shocks
- Product Attributes - UPC
- 00840103404837
- Product Attributes - Ride Height
- Stock/Lifted
- Product Attributes - Ride Height Note
- Additional ride height information may be available for your vehicle, please refer to the app tab.
- Product Attributes - Lifted Amount Range (in.)
- 0.00-2.00 in.
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Upper Mount
- Stud
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Bushing Material
- Spherical bearing/PTFE
- Product Attributes - Boot Included
- No
- Product Attributes - Body Diameter (in.)
- 2.500
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a pair.
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico59925P |
| SFX Item ID | 4140841 |
| Supplier Item Code | 4140841 |
| Manufacturer SKU | 59925P |
| Manufacturer UPC | 840103404837 |
| Alternative References | IVD59925P, 0-2in |
