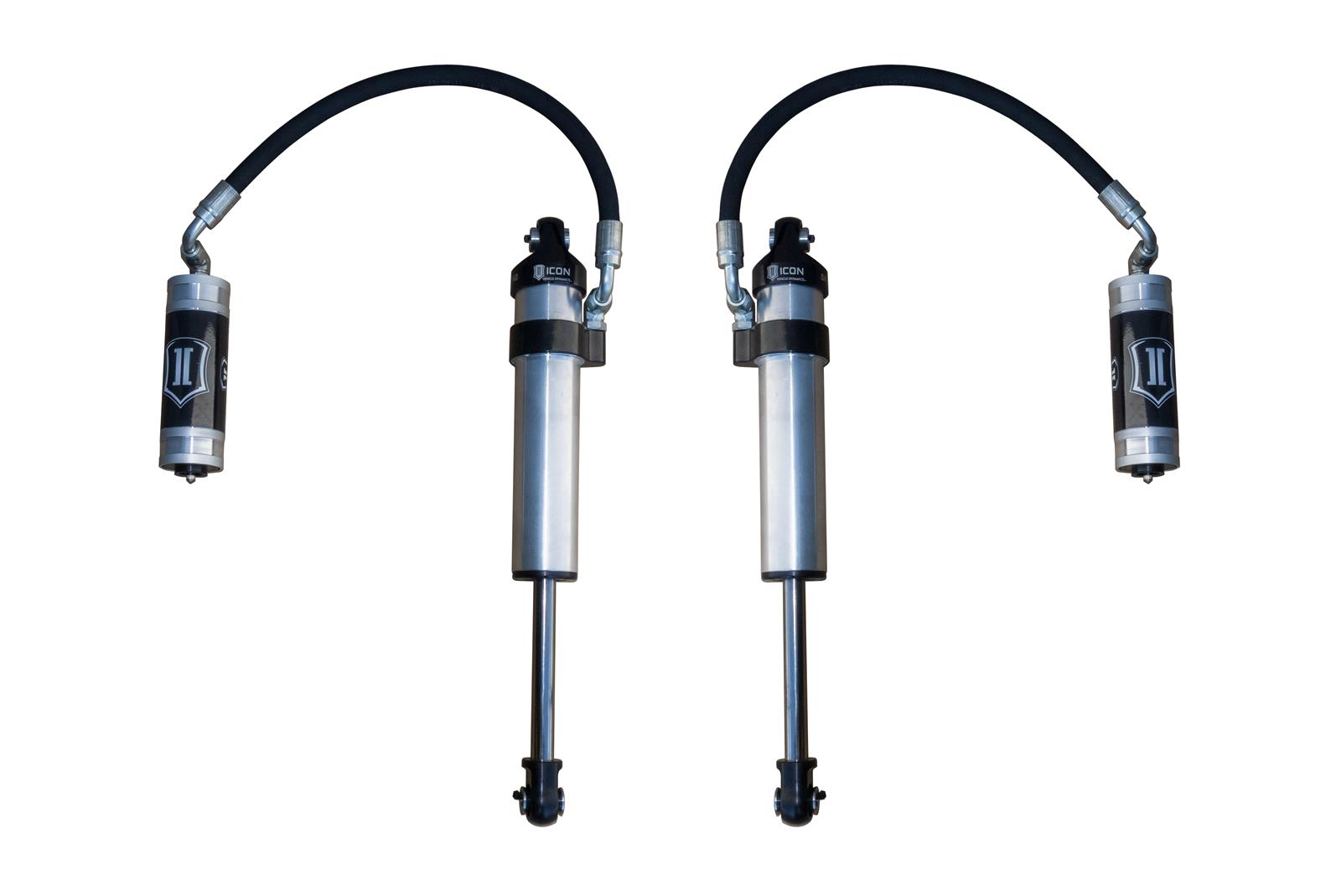

ICON Toyota Secondary Stock Travel 2.5 Series Shocks RR - Pair
ICON Toyota Secondary Stock Travel 2.5 Series Shocks RR - Pair
A$2,854.54
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.
Product Overview
ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.
Features and Benefits
- 100% Revalveable
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with remote reservoir
- 100% Rebuildable
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- 6061 aircraft grade aluminum CNC machined components
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- PTFE lined spherical bearings and application specific mounting hardware
- 7/8” diameter induction hardened, chrome plated shock shaft
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
Product Details
| 71060: | Yes |
|---|---|
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| Adjustable Damping: | No |
| Adjustable: | NO |
| Boot Included: | NO |
| Bore Diameter: | 2.25 |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Color: | Gray |
| Cylinder Diameter: | 2.5 |
| Cylinder Material: | Aluminum |
| Damping Type: | Oil |
| Description: | TOYOTA SECONDARY STOCK TRAVEL 2.5 RR PAIR |
| Diámetro del árbol: | 2021-07-08 |
| External Reservoir: | Yes |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Lower Mount Type: | EYELET |
| Material del cilindro: | Acero |
| Mounting Hardware Included: | Yes |
| Part Number: | ico59702P-CB |
| Service Parts: | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Shaft Diameter: | 0.875 |
| Shaft Material: | Chrome |
| Shock Absorber Body End Measuring Point: | Center of Eylet |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Tipo de Grado: | Reparación de Banda |
| Title: | ICON 2003-2024 Toyota 4Runner/2005-2023 Toyota Tacoma/2007-2014 Toyota FJ Cruiser, Front, 2.5 VS Stock Width Remote Reservoir Secondary Shocks, Pair |
| Tube Outside Diameter: | 2.5 |
| Upper Mount Type: | EYELET |
Part Type
Suspension Shock Absorber Set
Features
- 100% Rebuildable
- 100% Revalveable
- 6061 aircraft grade aluminum CNC machined components
- 7/8” diameter induction hardened, chrome plated shock shaft
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- Nitrogen charged monotube design with remote reservoir
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- PTFE lined spherical bearings and application specific mounting hardware
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 59702P-CB
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - Product Line
- Icon Vehicle Dynamics 2.5 VS RR Shocks
- Product Attributes - UPC
- 00840103404639
- Product Attributes - Ride Height
- Stock
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Adjustable Valving
- No
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Upper Mount
- Eyelet
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Boot Included
- No
- Product Attributes - Body Diameter (in.)
- 2.500
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a pair.
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico59702P-CB |
| SFX Item ID | 4140832 |
| Supplier Item Code | 4140832 |
| Manufacturer SKU | 59702P-CB |
| Manufacturer UPC | 840103404639 |
| Alternative References | IVD59702P-CB |
