ICON 22-23 Toyota Tundra 3.0 Series Shocks VS RR CDEV Coilover Kit

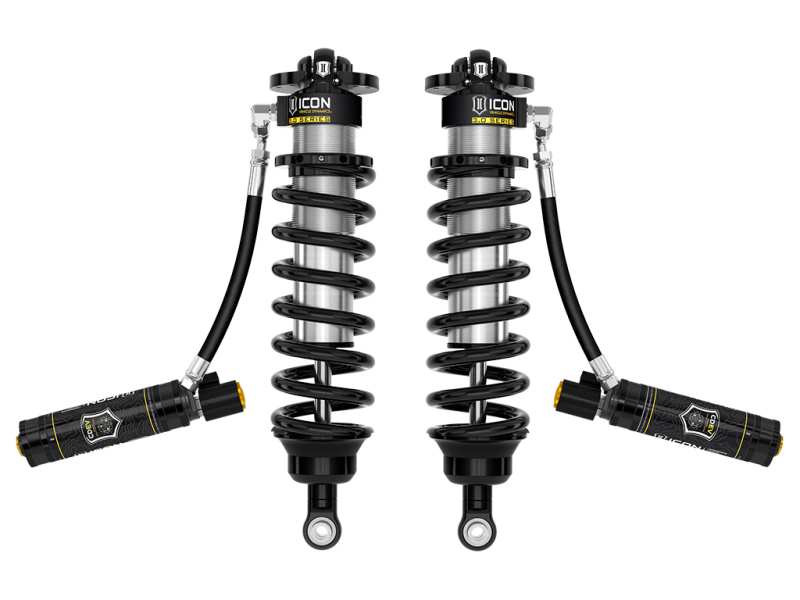

ICON 22-23 Toyota Tundra 3.0 Series Shocks VS RR CDEV Coilover Kit
A$6,307.95
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
These 3.0 Series coilovers are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Built-in ride height adjustability yields 1.25 to 3.25” of front lift height on Tundra or 3-4.25" of front lift on Sequoia allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.
Product Overview
ICON's exclusive Compression Damping Electronic Valves are included for actively dialing in your suspension performance. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
Features and Benefits
- 40% increase in front wheel travel over stock
- Fully Rebuildable and Re-tunable
- Adjustable up to 1.25-3.25" of front lift height over stock on Tundra or 3-4.25" of front lift on Sequoia
- Vehicle specific design and tuning for superior shock damping and control
- 3.0” Body diameter for increased oil volume and larger piston area
- ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearings for extended longevity and minimal deflection
- 7/8” diameter induction hardened, chrome plated shock shafts
Product Details
| AAP_UDA_12: | EA |
|---|---|
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Active or Passive Suspension: | Active |
| Add-On Part: | 57840EP - 22-24 TUNDRA 0-1.5"/23-24 SEQUOIA 0-3" REAR 2.5 VS CDEV RR PAIR |
| Adjustable Compression: | Yes |
| Adjustable Damping: | Yes |
| Adjustable Height: | Yes |
| Adjustable Rebound: | No |
| Adjustable: | Yes |
| Body Diameter: | 3 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Cylinder Color: | Gray |
| Cylinder Finish: | Ceramic Coated |
| Cylinder Material: | Steel |
| Damping Adjustment Type: | Electronic |
| Damping Type: | Oil |
| Description: | ICON 22-23 Toyota Tundra 3.0 Series Shocks VS RR CDEV Coilover Kit |
| Dust Shield Included: | No |
| Dust Shield: | No |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Internal Construction Type: | Single Tube |
| Lower Mount Type: | Eyelet |
| Material: | Aluminum |
| Maximum Lift: | 3.25 |
| Minimum Lift: | 1.25 |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico58775E |
| Remote Reservoir: | Yes |
| Reservoir Style: | Remote |
| Self-Leveling: | No |
| Service Parts: | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Center of Eyelet |
| Spring Color: | Black |
| Spring Material: | Steel |
| Spring Rate Type: | Linear |
| Title: | ICON 2022-2024 Toyota Tundra 1.25-3.25" Lift/2023-2024 Sequoia 3-4.25" Lift, V.S. 3.0 Series Front Coilover Kit, Remote Reservoir w/ CDEV, Pair |
| Upper Mount Type: | Mounting Plate |
| Valving Type: | Digressive |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |
icoK53214T | ICON 22-23 Toyota Tundra 2-3.5in Stage 4 3.0 Suspension System - Tubular (1x ico55154, 1x ico54002, 1x ico54102, 1x ico58461DJ, 1x ico53508, 1x ico57840EP, 1x ico58775E) |
 |
icoK53215 | ICON 22-23 Toyota Tundra 1.25-3.25in Stage 5 3.0 Suspension System - Billet (1x ico55154, 1x ico58561DJ, 1x ico54002, 1x ico54102, 1x ico53508, 1x ico58775E, 1x ico57845EP) |
 |
icoK53216 | ICON 22-23 Toyota Tundra 1.25-3.25in Stage 6 3.0 Suspension System - Billet (1x ico55154, 1x ico58561DJ, 1x ico54002, 1x ico54102, 1x ico54202, 1x ico53508, 1x ico58775E, 1x ico57845EP, 1x ico51210) |
 |
icoK53216S | ICON 22-23 Toyota Tundra 1.25-3.25in Stage 6 3.0 Suspension System - Billet (TRD) (1x ico55154, 1x ico58561DJ, 1x ico54002, 1x ico54102, 1x ico54202, 1x ico53508, 1x ico58775E, 1x ico57845EP, 1x ico51211) |
 |
icoK53215T | ICON 22-23 Toyota Tundra 2-3.25in Stage 5 3.0 Suspension System - Tubular (1x ico55154, 1x ico54002, 1x ico54102, 1x ico58461DJ, 1x ico53508, 1x ico58775E, 1x ico57845EP) |
 |
icoK53216T | ICON 22-23 Toyota Tundra 2-3.25in Stage 6 3.0 Suspension System (1x ico55154, 1x ico54002, 1x ico54102, 1x ico54202, 1x ico58461DJ, 1x ico53508, 1x ico58775E, 1x ico57845EP, 1x ico51210) |
 |
icoK53216TS | ICON 22-23 Toyota Tundra 2-3.25in Stage 6 3.0 Suspension System - Tubular (TRD) (1x ico55154, 1x ico54002, 1x ico54102, 1x ico54202, 1x ico58461DJ, 1x ico53508, 1x ico58775E, 1x ico57845EP, 1x ico51211) |
 |
icoK53214 | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2022-2025 TUNDRA K53214 22-23 1.25-3.25" STAGE 4 3.0 SUSPENSION SYSTEM BILLET |
 |
icoK53253 | Icon Vehicle Dynamics Stage 3 3.0 Suspension Lift Kits for 2023-2024 SEQUOIA - K53253 Kit, Coil Springs With Shocks, , 1.250-3.250 in. lift, Front, 0.00-3.00 in. lift, Rear,Toyota, Kit |
 |
icoK53253S | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023-2024 SEQUOIA K53253S 23-24 3-4.25" STAGE 3 3.0 SUSPENSION SYSTEM BILLET (TRD) |
 |
icoK53253T | Icon Vehicle Dynamics Stage 3 3.0 Suspension Lift Kits for 2023-2024 SEQUOIA - K53253T Kit, Coil Springs With Shocks, , 1.250-3.250 in. lift, Front, 0.00-3.00 in. lift, Rear,Toyota, Kit |
 |
icoK53253TS | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023-2024 SEQUOIA K53253TS 23-24 3-4.25" STAGE 3 3.0 SUSPENSION SYSTEM TUBULAR (TRD) |
 |
icoK53254 | Icon Vehicle Dynamics Stage 4 3.0 Suspension Lift Kits for 2023-2024 SEQUOIA - K53254 Kit, Coil Springs With Shocks, , 1.250-3.250 in. lift, Front, 0.00-1.00 in. lift, Rear,Toyota, Kit |
 |
icoK53254S | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023-2024 SEQUOIA K53254S 23-24 3-4.25" STAGE 4 3.0 SUSPENSION SYSTEM BILLET (TRD) |
 |
icoK53254T | Icon Vehicle Dynamics Stage 4 3.0 Suspension Lift Kits for 2023-2024 SEQUOIA - K53254T Kit, Coil Springs With Shocks, , 1.250-3.250 in. lift, Front, 0.00-1.00 in. lift, Rear,Toyota, Kit |
 |
icoK53254TS | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023-2024 SEQUOIA K53254TS 23-24 3-4.25" STAGE 4 3.0 SUSPENSION SYSTEM TUBULAR (TRD) |
Application Summary
ICON 22-23 TUNDRA/23 SEQUOIA 3.0 VS RR CDEV COILOVER KIT
Part Type
Coilover Set
Features
- 3.0” Body diameter for increased oil volume and larger piston area
- 40% increase in front wheel travel over stock
- 7/8” diameter induction hardened, chrome plated shock shafts
- Adjustable up to 1.25-3.25" of front lift height over stock on Tundra or 3-4.25" of front lift on Sequoia
- CNC machined 6061 aluminum components with a black anodized finish
- Fully Rebuildable and Re-tunable
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
- PTFE lined spherical bearings for extended longevity and minimal deflection
- Vehicle specific design and tuning for superior shock damping and control
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 58775E
- Product Attributes - Part Type
- Suspension Leveling & Lift Kits
- Product Attributes - UPC
- 00840103421292
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico58775E |
| SFX Item ID | 4141568 |
| Supplier Item Code | 4141568 |
| Manufacturer SKU | 58775E |
| Manufacturer UPC | 840103421292 |
| Alternative References | IVD58775E |
Brochures
Compatibility
ICON 22-23 TUNDRA/23 SEQUOIA 3.0 VS RR CDEV COILOVER KIT
