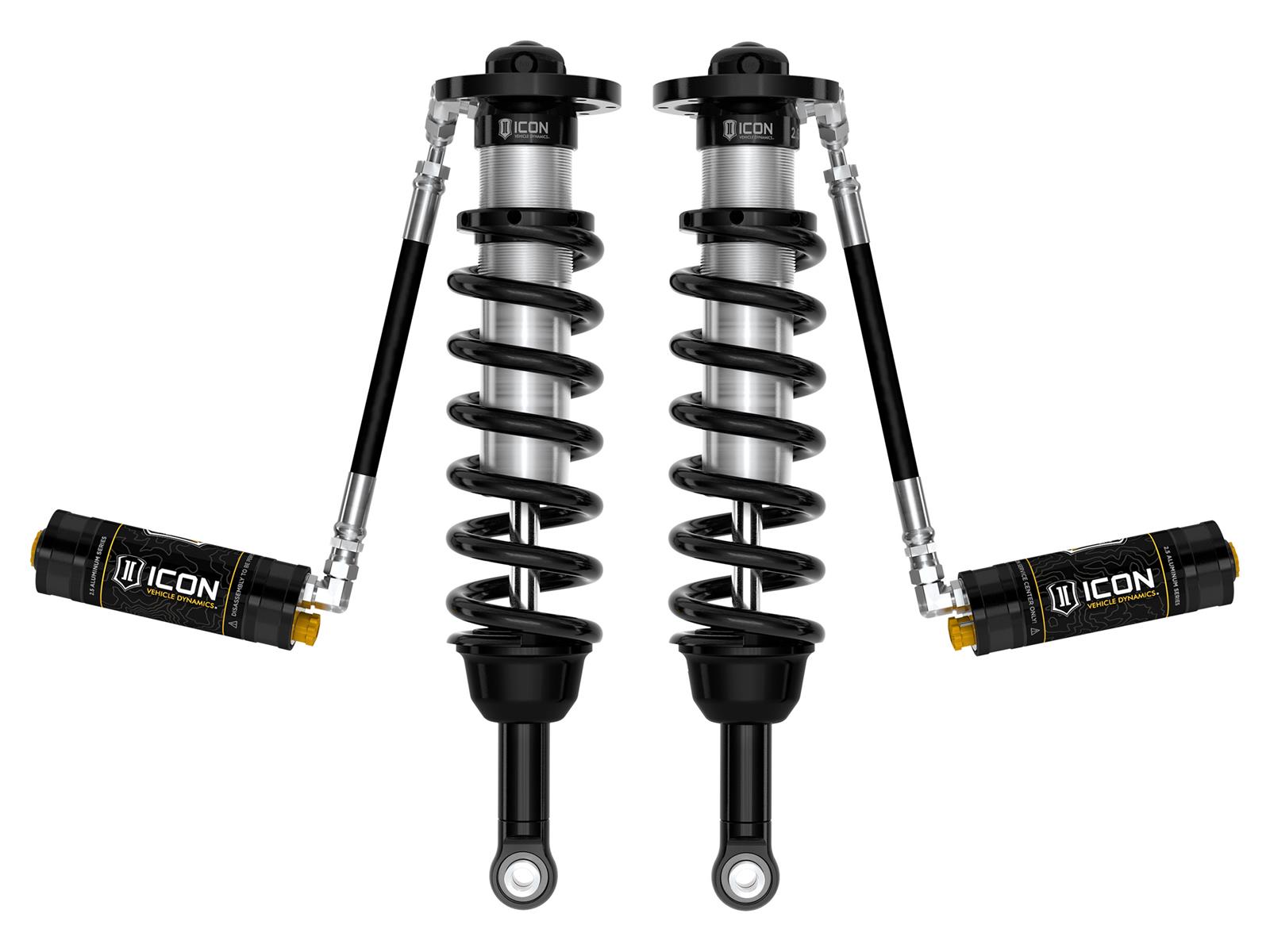

ICON 23-24 Toyota Sequoia TRD Pro 2.5 VS RR CDCV Coilover Kit
ICON 23-24 Toyota Sequoia TRD Pro 2.5 VS RR CDCV Coilover Kit
A$4,004.59
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2023-2026 Toyota Sequoia TRD Pro. These adjustable coilovers allow up to 1-2.5” of lift height adjustability on Sequoia TRD Pro, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. Additionally, their vehicle specific shock length allows the stock, billet TRD front upper control arms to be utilized with the new suspension system, eliminating the requirement for ICON front UCAs. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Sequoia TRD Pro.
Product Overview
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2023-2025 Toyota Sequoia TRD Pro. These adjustable coilovers allow up to 1-2.5” of lift height adjustability on Sequoia TRD Pro, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. Additionally, their vehicle specific shock length allows the stock, billet TRD front upper control arms to be utilized with the new suspension system, eliminating the requirement for ICON front UCAs. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Sequoia TRD Pro.
Features and Benefits
- Increased wheel travel and improved ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Specifically designed shock lengths for compatibility with Sequoia TRD Pro's stock front upper control arms
- Adjustable ride height offers 1-2.5" of front lift over stock on Sequoia TRD Pro
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
Product Details
| AAP_UDA_12: | EA |
|---|---|
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Active or Passive Suspension: | Passive |
| Add-On Part: | 55156 - 22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT |
| Adjustable Compression: | Yes |
| Adjustable Damping: | NO |
| Adjustable Height: | Yes |
| Adjustable Rebound: | No |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Cylinder Color: | Silver |
| Cylinder Finish: | Cadmium Plated |
| Cylinder Material: | Steel |
| Damping Adjustment Type: | Manual |
| Damping Type: | Oil |
| Description: | ICON 23-24 Toyota Sequoia TRD Pro 2.5 VS RR CDCV Coilover Kit |
| Dust Shield Included: | No |
| Dust Shield: | No |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Internal Construction Type: | Single Tube |
| Lower Mount Type: | Eyelet |
| Material: | Steel |
| Maximum Lift: | 2.5 |
| Minimum Lift: | 1 |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico58772C |
| Recommended Aftermarket Tires: | 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Recommended Aftermarket Wheels: | 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Remote Reservoir: | Yes |
| Reservoir Style: | Remote |
| Self-Leveling: | No |
| Service Parts: | 252010 - 2.5 IFP REBUILD KIT |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Spring Color: | Black |
| Spring Material: | Steel |
| Spring Rate Type: | Linear |
| Title: | ICON 2023-2024 Sequoia TRD Pro, 1-2.5" Lift, Front, V.S. 2.5 Series Front Coilover Kit, Remote Reservoir w/ CDCV, Pair |
| Upper Mount Type: | Mounting Plate |
| Valving Type: | Digressive |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |
icoK53395 | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023-2024 SEQUOIA K53395 23-24 TRD PRO 2.5" STAGE 5 SUSPENSION SYSTEM |
 |
icoK53396 | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023-2024 SEQUOIA K53396 23-24 TRD PRO 2.5" STAGE 6 SUSPENSION SYSTEM BILLET |
 |
icoK53396T | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023-2024 SEQUOIA K53396T 23-24 TRD PRO 2.5" STAGE 6 SUSPENSION SYSTEM TUBULAR |
 |
icoK53397 | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023-2024 SEQUOIA K53397 23-24 TRD PRO 2.5" STAGE 7 SUSPENSION SYSTEM BILLET |
 |
icoK53397T | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023-2024 SEQUOIA K53397T 23-24 TRD PRO 2.5" STAGE 7 SUSPENSION SYSTEM TUBULAR |
Part Type
Coilover Set
Features
- 6061 Aircraft grade aluminum CNC machined components
- Adjustable ride height offers 1-2.5" of front lift over stock on Sequoia TRD Pro
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- ICON engineered coil springs
- Increased wheel travel and improved ride quality over stock
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- Specifically designed shock lengths for compatibility with Sequoia TRD Pro's stock front upper control arms
- Vehicle specific tuned for superior shock damping and control
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 58772C
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - UPC
- 00840103432151
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico58772C |
| SFX Item ID | 4141883 |
| Supplier Item Code | 4141883 |
| Manufacturer SKU | 58772C |
| Manufacturer UPC | 840103432151 |
| Alternative References | IVD58772C |
