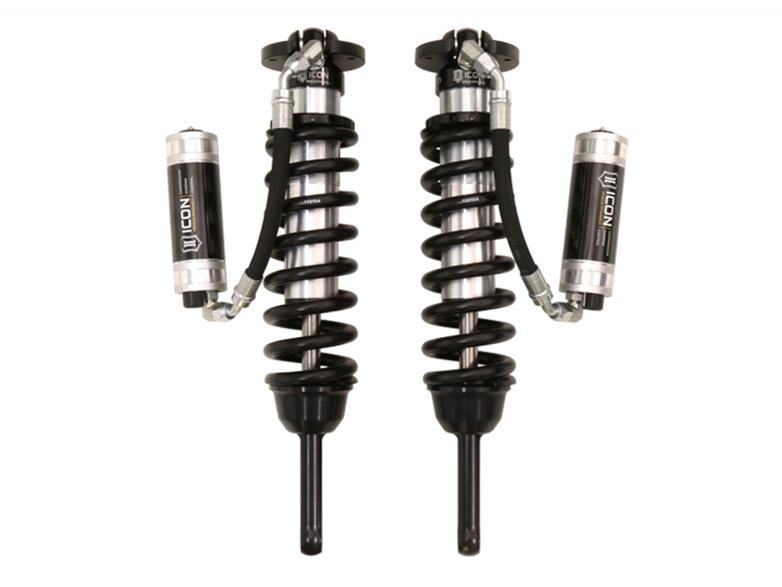

ICON 07-09 Toyota FJ / 03-09 Toyota 4Runner Ext Travel CDCV Coilover Kit w/700lb Spring Rate
ICON 07-09 Toyota FJ / 03-09 Toyota 4Runner Ext Travel CDCV Coilover Kit w/700lb Spring Rate
A$4,215.61
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description
When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Toyota or Lexus SUV.
Product Overview
The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the Toyota FJ Cruiser, 4Runner, and Lexus GX platforms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers.
Features and Benefits
- Bolt-in design makes for an easy install into OEM shock location
- Adjustable coilovers yield 0-3.5" of front lift height
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- Extended Travel length requires installation of aftermarket front upper control arms
- Superior low speed control reduces body roll and increases on-road stability
- External reservoir to attain cooler operating temperatures during extended off-road use
- ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end
- Corrosion resistant CAD plated shock body with 7/8" shaft
- FK Rod End bearings provide extended longevity and minimal deflection
Product Details
| 110: | No |
|---|---|
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Damping: | Yes |
| Adjustable Height: | yes |
| Amortiguación Ajustable: | SI |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Damping Type: | Oil |
| Description: | 07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL CDCV COILOVER KIT 700LB |
| Diámetro del árbol: | 2021-07-08 |
| Dust Shield: | No |
| Gas Charged: | yes |
| Grade Type: | Performance |
| Lower Mount Type: | Eyelet |
| Material del resorte: | Acero |
| Material: | Aluminum |
| Muelles helicoidales incluidos: | SI |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico58745C-700 |
| Recommended Aftermarket Tires: | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels: | ICON Alloys | 20x9" w/ 5†Backspace / 0mm Offset |
| Remote Reservoir: | Yes |
| Service Parts: | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Spring Color: | Black |
| Spring Material: | Steel |
| Spring Rate: | 700 |
| Tipo de Grado: | Reparación de Banda |
| Title: | 07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL CDCV COILOVER KIT 700LB |
| Upper Mount Type: | Mounting Plate |
Part Type
Coilover Set
Features
- Adjustable coilovers yield 0-3.5" of front lift height
- Bolt-in design makes for an easy install into OEM shock location
- Corrosion resistant CAD plated shock body with 7/8" shaft
- Extended Travel length requires installation of aftermarket front upper control arms
- External reservoir to attain cooler operating temperatures during extended off-road use
- FK Rod End bearings provide extended longevity and minimal deflection
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end
- ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- Superior low speed control reduces body roll and increases on-road stability
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 58745C-700
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - Product Line
- Icon Vehicle Dynamics 2.5 RR Extended Travel Coilover Kits
- Product Attributes - UPC
- 00840103404400
- Product Attributes - Coilover Kit Position
- Front
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Shocks Included
- Yes
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Coilover Springs Included
- Yes
- Product Attributes - Spring Rate (lbs./in.)
- 700 lbs./in.
- Product Attributes - Suspension Height Adjustment
- 0.0-3.5 in. raised
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Upper Mount
- Bracket
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Body Diameter (in.)
- 2.500
- Product Attributes - Shock Body Material
- Aluminum
- Product Attributes - Shock Body Finish
- Silver
- Product Attributes - Spring Finish
- Black
- Product Attributes - Crossmember Included
- No
- Product Attributes - Adjustable Mounting Bracket Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Welding Required
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico58745C-700 |
| SFX Item ID | 4140708 |
| Supplier Item Code | 4140708 |
| Manufacturer SKU | 58745C-700 |
| Manufacturer UPC | 840103404400 |
| Alternative References | IVD58745C-700, 4Runner, w/700lb |
