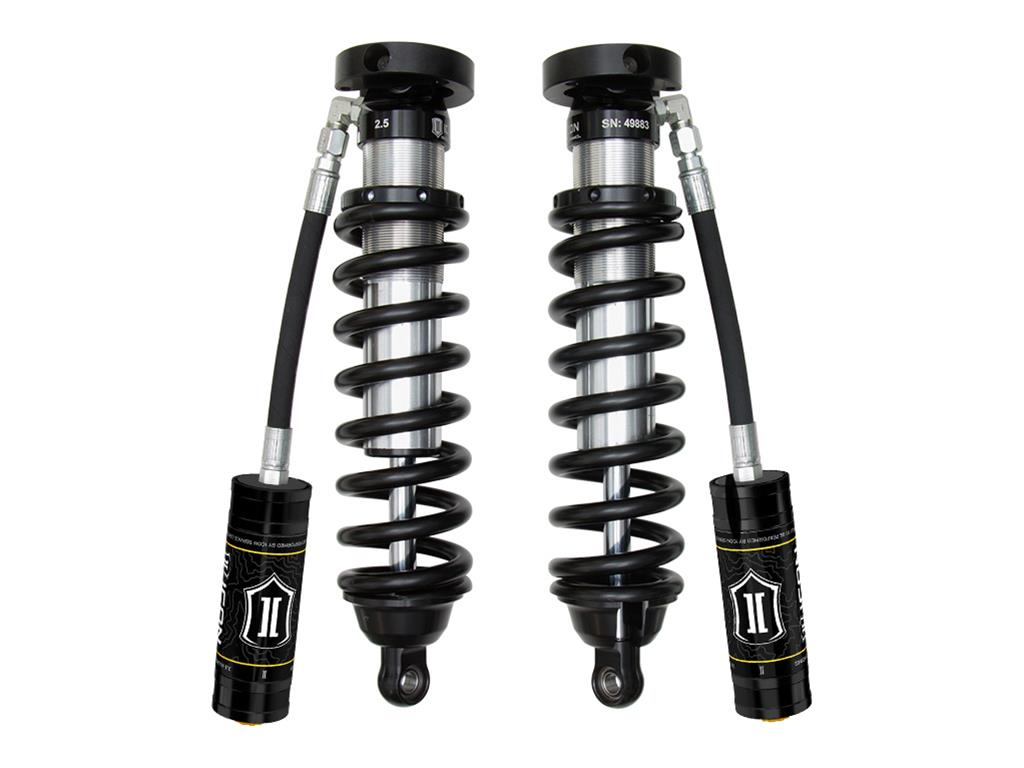

ICON 96-02 Toyota 4Runner Ext Travel 2.5 Series Shocks VS RR Coilover Kit 700LB
ICON 96-02 Toyota 4Runner Ext Travel 2.5 Series Shocks VS RR Coilover Kit 700LB
A$3,625.53
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description
ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2002 Toyota 4Runner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5" Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tacoma.
Product Overview
ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2002 Toyota 4Runner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5" Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 4Runner.
Features and Benefits
- FK Rod End bearings for extended longevity and minimal deflection
- Increased wheel travel over ICON standard travel coilovers
- 100% Bolt-on - no cutting or welding necessary for installation
- Vehicle specific tuned front shocks for superior shock damping and control
- External reservoir to attain cooler operating temperatures during extended off-road use
- Improved ride quality over stock both on and off-road
- Height-adjustable coilovers offer 0-3" of lift height adjustment
- ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
Product Details
| 110: | No |
|---|---|
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Active or Passive Suspension: | Passive |
| Add-On Part: | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Compression: | No |
| Adjustable Damping: | NO |
| Adjustable Height: | yes |
| Adjustable Rebound: | No |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Cylinder Color: | Silver |
| Cylinder Finish: | Cadmium Plated |
| Cylinder Material: | Steel |
| Damping Type: | Oil |
| Description: | 96-02 4RUNNER EXT TRAVEL 2.5 VS RR COILOVER KIT 700LB |
| Diámetro del árbol: | 2021-07-08 |
| Dust Shield Included: | No |
| Dust Shield: | No |
| Gas Charged: | yes |
| Grade Type: | Performance |
| Internal Construction Type: | Single Tube |
| Lower Mount Type: | Eyelet |
| Material del resorte: | Acero |
| Material: | Steel |
| Maximum Lift: | 3 |
| Minimum Lift: | 0 |
| Muelles helicoidales incluidos: | SI |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico58716-700 |
| Recommended Aftermarket Tires: | 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels: | ICON Alloys | 20x9" w/ 5†Backspace / 0mm Offset |
| Remote Reservoir: | Yes |
| Reservoir Style: | Remote |
| Self-Leveling: | No |
| Service Parts: | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Spring Color: | Black |
| Spring Material: | Steel |
| Spring Rate Type: | Linear |
| Spring Rate: | 700 |
| Tipo de Grado: | Reparación de Banda |
| Title: | 96-02 4RUNNER EXT TRAVEL 2.5 VS RR COILOVER KIT 700LB |
| Upper Mount Type: | Mounting Plate |
| Valving Type: | Digressive |
Part Type
Coilover Set
Features
- 100% Bolt-on - no cutting or welding necessary for installation
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
- External reservoir to attain cooler operating temperatures during extended off-road use
- FK Rod End bearings for extended longevity and minimal deflection
- Height-adjustable coilovers offer 0-3" of lift height adjustment
- ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
- Improved ride quality over stock both on and off-road
- Increased wheel travel over ICON standard travel coilovers
- Vehicle specific tuned front shocks for superior shock damping and control
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 58716-700
- Product Attributes - Part Type
- Suspension Leveling & Lift Kits
- Product Attributes - UPC
- 00840103409733
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico58716-700 |
| SFX Item ID | 4141771 |
| Supplier Item Code | 4141771 |
| Manufacturer SKU | 58716-700 |
| Manufacturer UPC | 840103409733 |
| Alternative References | IVD58716-700, 4Runner, 700LB |
