ICON 2024+ Toyota Tacoma 2.5in VS lR Coilover Kit
ICON 2024+ Toyota Tacoma 2.5in VS lR Coilover Kit
A$2,831.72
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

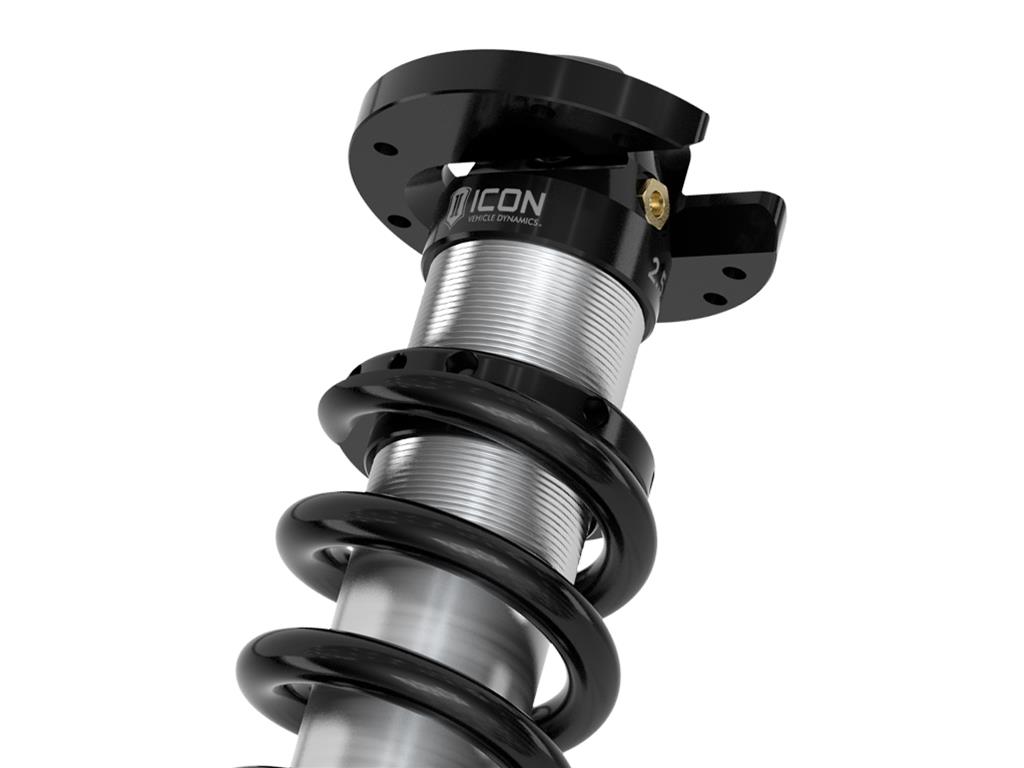

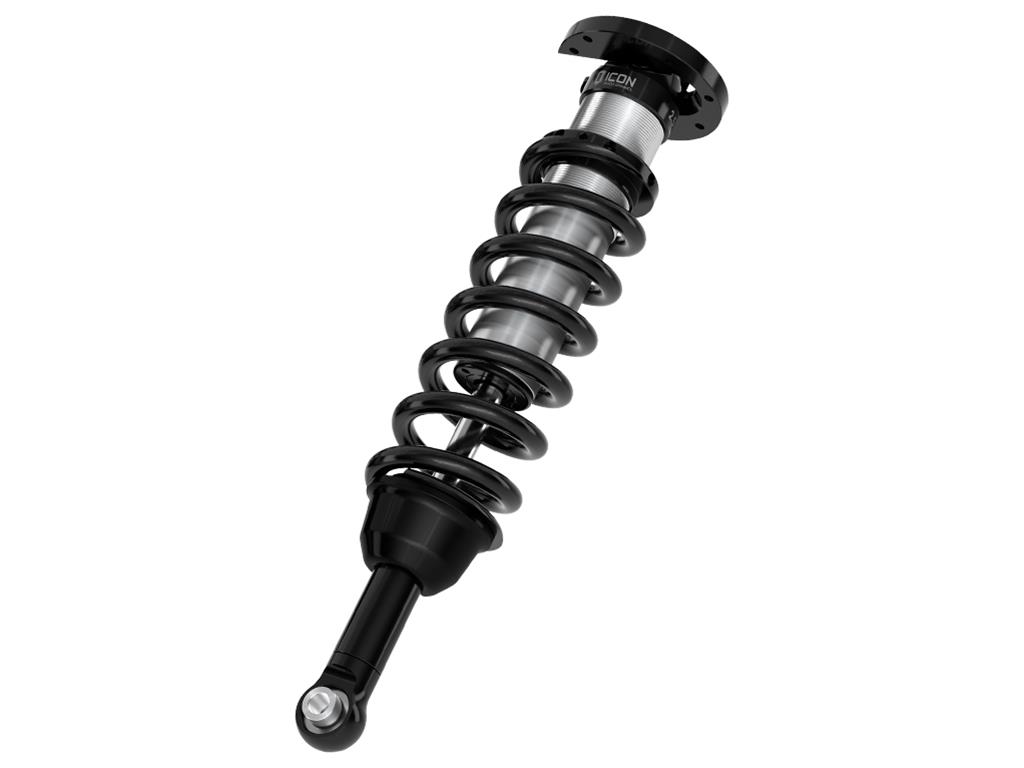

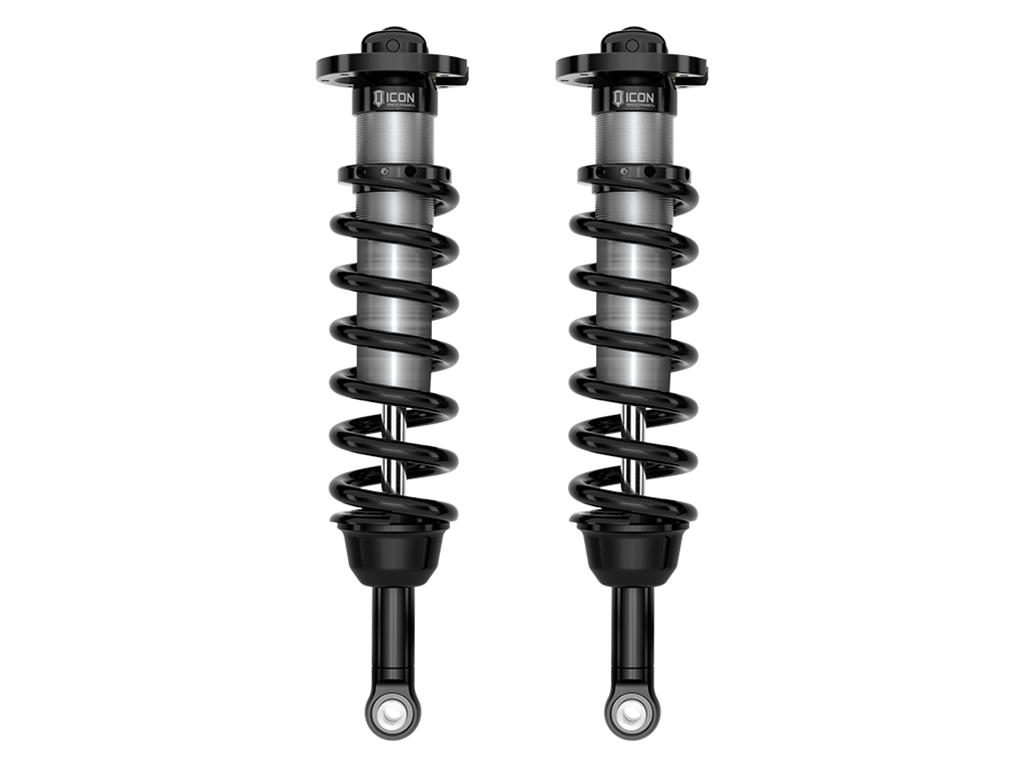

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2024-2026 Toyota Tacoma. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop (4WD only), yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
Product Overview
ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2024-2025 Toyota Tacoma. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop (4WD only), yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
Features and Benefits
- Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
- Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
- Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
- 2.5" diameter shock bodies with internal reservoirs for consistent performance
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
Product Details
| AAP_UDA_12: | EA |
|---|---|
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Active or Passive Suspension: | Passive |
| Add-On Part: | 55160 - 24 TACOMA/24 LC250 DIFF DROP KIT |
| Adjustable Compression: | No |
| Adjustable Damping: | No |
| Adjustable Height: | Yes |
| Adjustable Rebound: | No |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Cylinder Color: | Silver |
| Cylinder Finish: | Cadmium Plated |
| Cylinder Material: | Steel |
| Damping Type: | Oil |
| Description: | ICON 2024+ Toyota Tacoma 2.5in VS lR Coilover Kit |
| Dust Shield Included: | No |
| Dust Shield: | No |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Internal Construction Type: | Single Tube |
| Lower Mount Type: | Eyelet |
| Material: | Aluminum |
| Maximum Lift: | 3 |
| Minimum Lift: | 1.25 |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico58680 |
| Recommended Aftermarket Tires: | 33" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels: | ICON Alloys - 18x9 with 6.00†Backspace / 25mm Offset |
| Remote Reservoir: | No |
| Reservoir Style: | Internal |
| Self-Leveling: | No |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Center of Eyelet |
| Spring Color: | Black |
| Spring Material: | Steel |
| Spring Rate Type: | Linear |
| Title: | ICON 2024 Toyota Tacoma, 2.5 VS Coilover Kit, Internal Reservoir, Pair |
| Upper Mount Type: | Mounting Plate |
| Valving Type: | Digressive |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |
icoK53291 | ICON 2024+ Toyota Tacoma 1.25-3in Stage 1 Suspension System (2x ico56518, 1x ico55160, 1x ico58680) |
 |
icoK53292TS | Icon 2024 Toyota Tacoma 1.25-3in Stage 2 Tubular Suspension System w/ Triple Rate Springs (1x ico51213, 2x ico56518, 1x ico55160, 1x ico58680, 1x ico58452DJ) |
 |
icoK53292S | ICON 2024+ ToyotaTacoma 1.25-3in Stage 2 Suspension System Billet w/Triple Rate Springs (1x ico51213, 2x ico56518, 1x ico55160, 1x ico58680, 1x ico58552DJ) |
 |
icoK53293S | ICON 2024+ Toyota Tacoma 1.25in-3in Stage 3 Suspension System Billet w/ Triple Rate Spring (1x ico51213, 2x ico56518R, 1x ico55160, 1x ico58680, 1x ico58552DJ) |
 |
icoK53292 | ICON 2024+ Toyota Tacoma 1.25in-3in Stage 2 Suspension System - Billet (2x ico56518, 1x ico55160, 1x ico58680, 1x ico58552DJ) |
 |
icoK53292T | ICON 2024+ Toyota Tacoma 1.25in-3in Stage 2 Suspension System Tubular (2x ico56518, 1x ico55160, 1x ico58680, 1x ico58452DJ) |
 |
icoK53293TS | ICON 2024+ Toyota Tacoma 1.25in-3in Stage 3 Suspension System Tubular w/ Triple Rate Spring (1x ico51213, 2x ico56518R, 1x ico55160, 1x ico58680, 1x ico58452DJ) |
 |
icoK53293T | (2x ico56518R, 1x ico55160, 1x ico58680, 1x ico58452DJ) |
 |
icoK53292TX | Icon 2024+ Toyota Tacoma 1.25-3in Stage 2 Suspension System w/ Tubular Overland Rear Coils (2x ico56518, 1x ico55160, 1x ico58680, 1x ico58452DJ, 1x ico51215) |
 |
icoK53292X | Icon 2024+ Toyota Tacoma 1.25-3in Stage 2 Suspension System w/ Billet Overland Rear Coils (2x ico56518, 1x ico55160, 1x ico58680, 1x ico58552DJ, 1x ico51215) |
 |
icoK53293TX | Icon 2024+ Toyota Tacoma 1.25-3in Stage 3 Suspension System w/ Tubular Overland Rear Coils (2x ico56518R, 1x ico55160, 1x ico58680, 1x ico58452DJ, 1x ico51215) |
 |
icoK53293X | Icon 2024+ Toyota Tacoma 1.25-3in Stage 3 Suspension System w/ Billet Overland Rear Coils (2x ico56518R, 1x ico55160, 1x ico58680, 1x ico58552DJ, 1x ico51215) |
 |
icoK53293 | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2024 TACOMA K53293 STAGE 3 SUSPENSION KIT 24 1.25-3" BILLET |
Part Type
Coilover Set
Features
- 2.5" diameter shock bodies with internal reservoirs for consistent performance
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
- ICON engineered coil springs
- Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
- Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 58680
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - UPC
- 00840103428802
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico58680 |
| SFX Item ID | 4141761 |
| Supplier Item Code | 4141761 |
| Manufacturer SKU | 58680 |
| Manufacturer UPC | N/A |
| Alternative References | IVD58680, 2.5in |
