Product Overview

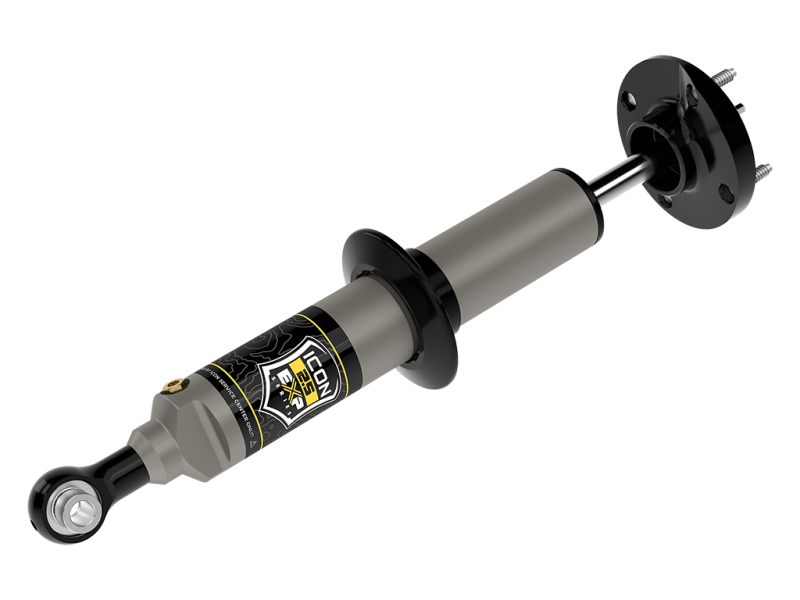

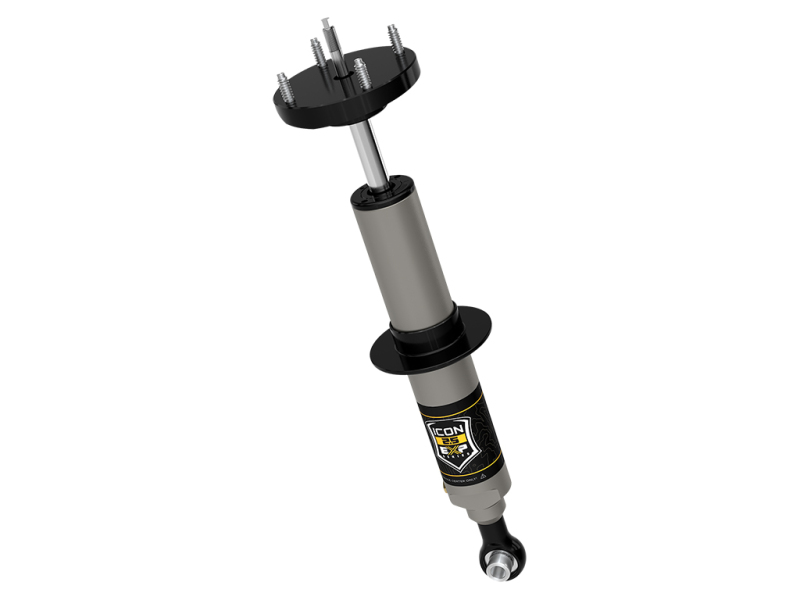

EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tundra in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.

Features and Benefits

• Vehicle specific design for 2007-2021 Toyota Tundra
• Fully rebuildable and re-tunable
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• Adjustable ride heights from 0-2.25” of front lift over stock with the use of snap ring
• Utilizes factory coil and coil hardware
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
• Impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearing for extended longevity and minimal deflection

Product Details

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK53226	ICON 07-21 Toyota Tundra 0-2.25in Stage 1 EXP Suspension System (2x ico56506, 2x ico58655)
	icoK53227	ICON 07-21 Toyota Tundra 0-2.25in Stage 2 EXP Suspension System (1x ico51200, 2x ico56506, 2x ico58655)
	icoK53228	ICON 07-21 Toyota Tundra 0-2.25in Lift Stage 3 EXP Suspension System (1x ico51200, 2x ico56506R, 2x ico58655)
