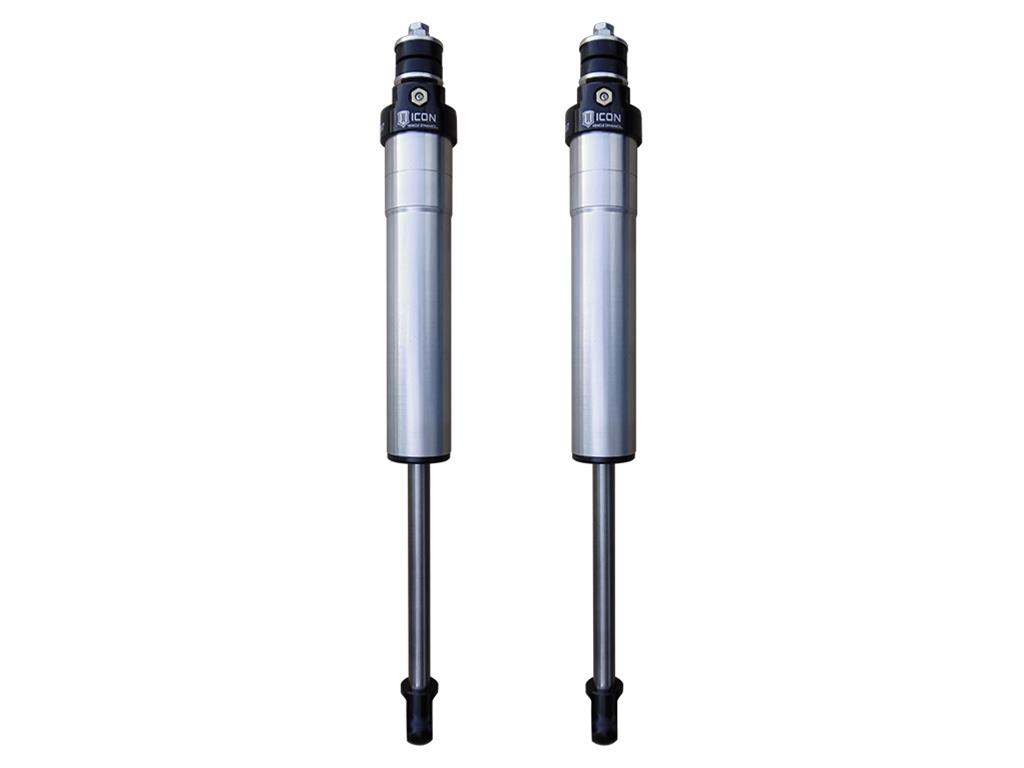

ICON 2010+ Toyota FJ/4Runner 2.5 Series Shocks VS IR Coilover Kit w/700lb Spring Rate
ICON 2010+ Toyota FJ/4Runner 2.5 Series Shocks VS IR Coilover Kit w/700lb Spring Rate
A$3,123.58
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.
Product Overview
ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. These adjustable coilovers allow up to 0-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible, while still being compatible with the vehicle’s stock front upper control arms, along with superior ride quality and suspension performance both on- and off-road. Coil springs with increased spring rate are included to help support added weight of accessories such as bumpers, winches, etc., and help ensure proper lift heights for heavier equipped vehicles. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota 4Runner, FJ Cruiser or Lexus GX460.
Features and Benefits
- Bolt-in design makes for an easy install into OEM shock location
- Adjustable coilovers yield 0-3.5" of front lift height
- Corrosion resistant CAD plated shock body with 7/8" shaft
- FK Rod End bearings provide extended longevity and minimal deflection
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- Superior low speed control reduces body roll and increases on-road stability
- High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end
Product Details
| 110: | No |
|---|---|
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Adjustable Damping: | NO |
| Adjustable Height: | yes |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Damping Type: | Oil |
| Description: | 10-UP FJ/4RNR/10-UP GX 2.5 VS IR COILOVER KIT 700LB |
| Diámetro del árbol: | 2021-07-08 |
| Dust Shield Included: | No |
| Dust Shield: | No |
| Gas Charged: | yes |
| Grade Type: | Performance |
| Lower Mount Type: | Eyelet |
| Material del resorte: | Acero |
| Material: | Aluminum |
| Maximum Lift: | 3.5 |
| Minimum Lift: | 0 |
| Muelles helicoidales incluidos: | SI |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico58646-700 |
| Recommended Aftermarket Tires: | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels: | ICON Alloys | 20x9" w/ 5†Backspace / 0mm Offset |
| Remote Reservoir: | NO |
| Service Parts: | 611019 - COILOVER HARDWARE KIT PAIR |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Spring Color: | Black |
| Spring Material: | Steel |
| Spring Rate Type: | Linear |
| Spring Rate: | 700 |
| Tipo de Grado: | Reparación de Banda |
| Title: | ICON 2010-2024 Toyota 4Runner/2010-2014 Toyota FJ Cruiser/2010-2023 Lexus GX, V.S. 2.5 Series Coilover Kit, Internal Reservoir, 700 lbs/in Coils |
| Upper Mount Type: | Mounting Plate |
Part Type
Coilover Set
Features
- Adjustable coilovers yield 0-3.5" of front lift height
- Bolt-in design makes for an easy install into OEM shock location
- Corrosion resistant CAD plated shock body with 7/8" shaft
- FK Rod End bearings provide extended longevity and minimal deflection
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- Superior low speed control reduces body roll and increases on-road stability
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 58646-700
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - Product Line
- Icon Vehicle Dynamics 2.5 IR Coilover Kits
- Product Attributes - UPC
- 00840103404011
- Product Attributes - Coilover Kit Position
- Front
- Product Attributes - Adjustable Valving
- No
- Product Attributes - Shocks Included
- Yes
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Coilover Springs Included
- Yes
- Product Attributes - Spring Rate (lbs./in.)
- 700 lbs./in.
- Product Attributes - Suspension Height Adjustment
- 0.0-3.5 in. raised
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Upper Mount
- Bracket
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Body Diameter (in.)
- 2.500
- Product Attributes - Shock Body Material
- Aluminum
- Product Attributes - Shock Body Finish
- Silver
- Product Attributes - Spring Finish
- Black
- Product Attributes - Crossmember Included
- No
- Product Attributes - Adjustable Mounting Bracket Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Welding Required
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico58646-700 |
| SFX Item ID | 4141055 |
| Supplier Item Code | 4141055 |
| Manufacturer SKU | 58646-700 |
| Manufacturer UPC | 840103404011 |
| Alternative References | IVD58646-700, FJ/4Runner, w/700lb |
