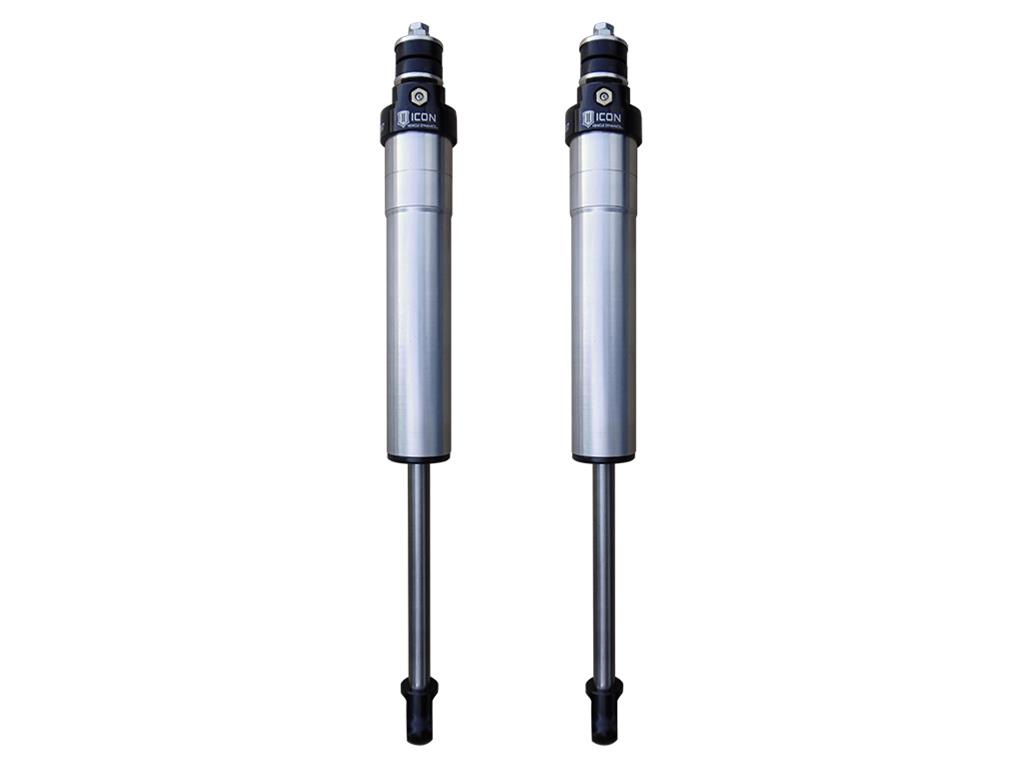

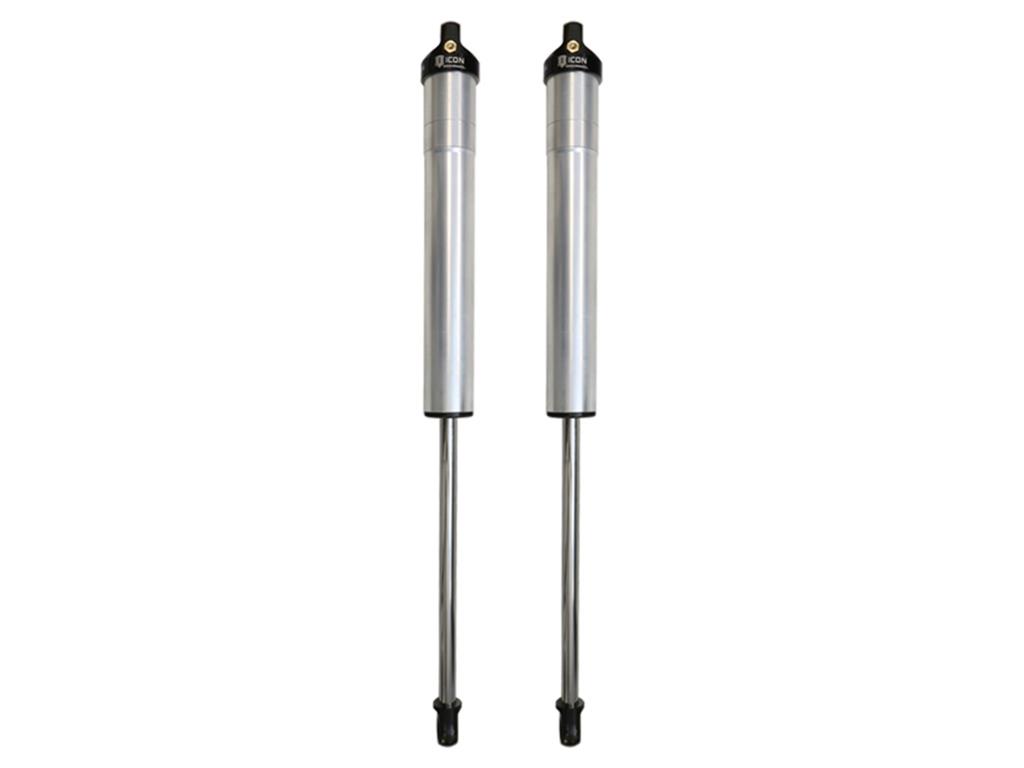

ICON 96-04 Toyota Tacoma / 96-02 Toyota 4Runner Ext Travel 2.5 Series VS IR Coilover Kit w/700lb SR
ICON 96-04 Toyota Tacoma / 96-02 Toyota 4Runner Ext Travel 2.5 Series VS IR Coilover Kit w/700lb SR
A$3,117.57
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner. These adjustable coilovers allow up to 0-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma or Toyota 4Runner.
Product Overview
ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner. These adjustable coilovers allow up to 0-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma or Toyota 4Runner.
Features and Benefits
- Increased wheel travel and improved ride quality over stock
- Extended Travel length requires installation of aftermarket front upper control arms
- Vehicle specific tuned for superior shock damping and control
- Height-adjustable coilovers offer 0-3" of front lift height adjustment
- ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
Product Details
| 110: | No |
|---|---|
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Active or Passive Suspension: | Passive |
| Add-On Part: | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Adjustable Compression: | No |
| Adjustable Damping: | NO |
| Adjustable Height: | Yes |
| Adjustable Rebound: | No |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Cylinder Color: | Silver |
| Cylinder Finish: | Cadmium Plated |
| Cylinder Material: | Steel |
| Damping Type: | Oil |
| Description: | 96-04 TACOMA/96-02 4RUNNER EXT TRAVEL 2.5 VS IR COILOVER KIT 700LB |
| Diámetro del árbol: | 2021-07-08 |
| Dust Shield Included: | No |
| Dust Shield: | No |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Internal Construction Type: | Single Tube |
| Lower Mount Type: | Eyelet |
| Material del resorte: | Acero |
| Material: | Steel |
| Maximum Lift: | 3 |
| Minimum Lift: | 0 |
| Muelles helicoidales incluidos: | SI |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico58615-700 |
| Recommended Aftermarket Tires: | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels: | ICON Alloys | 20x9" w/ 5†Backspace / 0mm Offset |
| Remote Reservoir: | NO |
| Reservoir Style: | Internal |
| Self-Leveling: | No |
| Service Parts: | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Spring Color: | Black |
| Spring Material: | Steel |
| Spring Rate Type: | Linear |
| Spring Rate: | 700 |
| Tipo de Grado: | Reparación de Banda |
| Title: | 96-04 TACOMA/96-02 4RUNNER EXT TRAVEL 2.5 VS IR COILOVER KIT 700LB |
| Upper Mount Type: | Mounting Plate |
| Valving Type: | Digressive |
Part Type
Coilover Set
Features
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- Extended Travel length requires installation of aftermarket front upper control arms
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- Height-adjustable coilovers offer 0-3" of front lift height adjustment
- ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
- Increased wheel travel and improved ride quality over stock
- Vehicle specific tuned for superior shock damping and control
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 58615-700
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - Product Line
- Icon Vehicle Dynamics 2.5 IR Extended Travel Coilover Kits
- Product Attributes - UPC
- 00840103403809
- Product Attributes - Coilover Kit Position
- Front
- Product Attributes - Adjustable Valving
- No
- Product Attributes - Shocks Included
- Yes
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Coilover Springs Included
- Yes
- Product Attributes - Spring Rate (lbs./in.)
- 700 lbs./in.
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Upper Mount
- Bracket
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Body Diameter (in.)
- 2.500
- Product Attributes - Shock Body Material
- Aluminum
- Product Attributes - Shock Body Finish
- Silver
- Product Attributes - Spring Finish
- Black
- Product Attributes - Crossmember Included
- No
- Product Attributes - Adjustable Mounting Bracket Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Welding Required
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico58615-700 |
| SFX Item ID | 4141002 |
| Supplier Item Code | 4141002 |
| Manufacturer SKU | 58615-700 |
| Manufacturer UPC | 840103403809 |
| Alternative References | IVD58615-700, 4Runner, w/700lb |
