Description

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Product Overview

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Features and Benefits

• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir

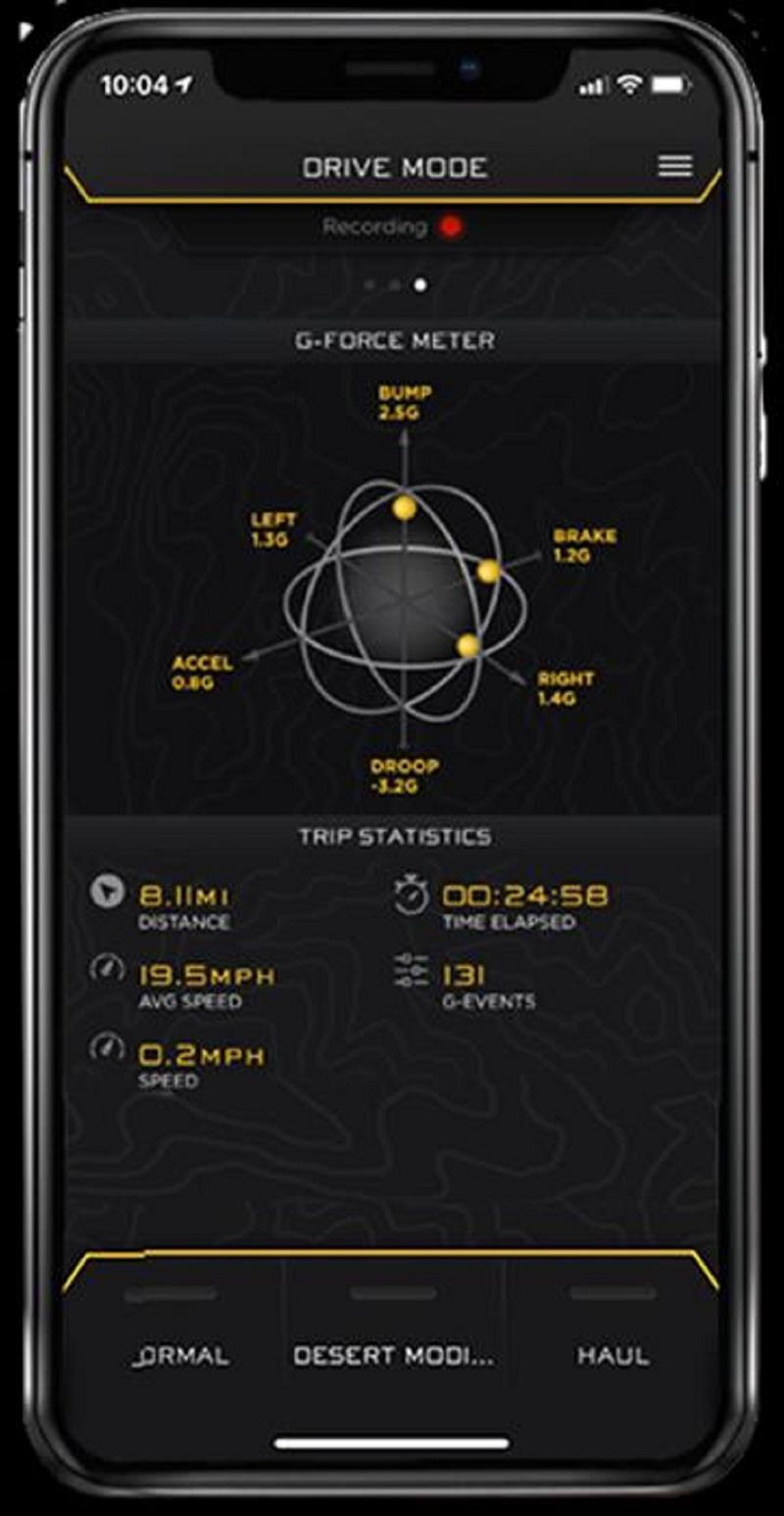

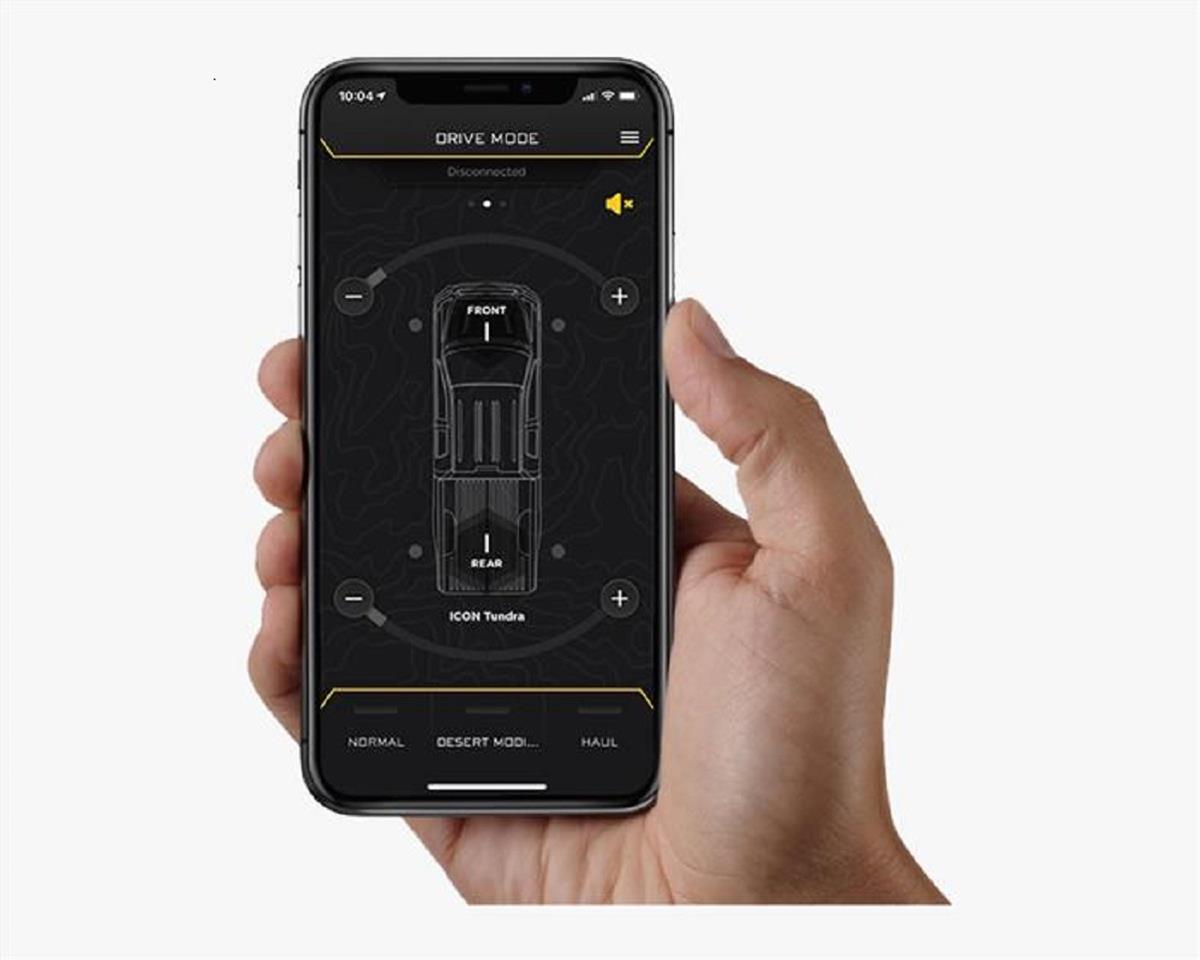

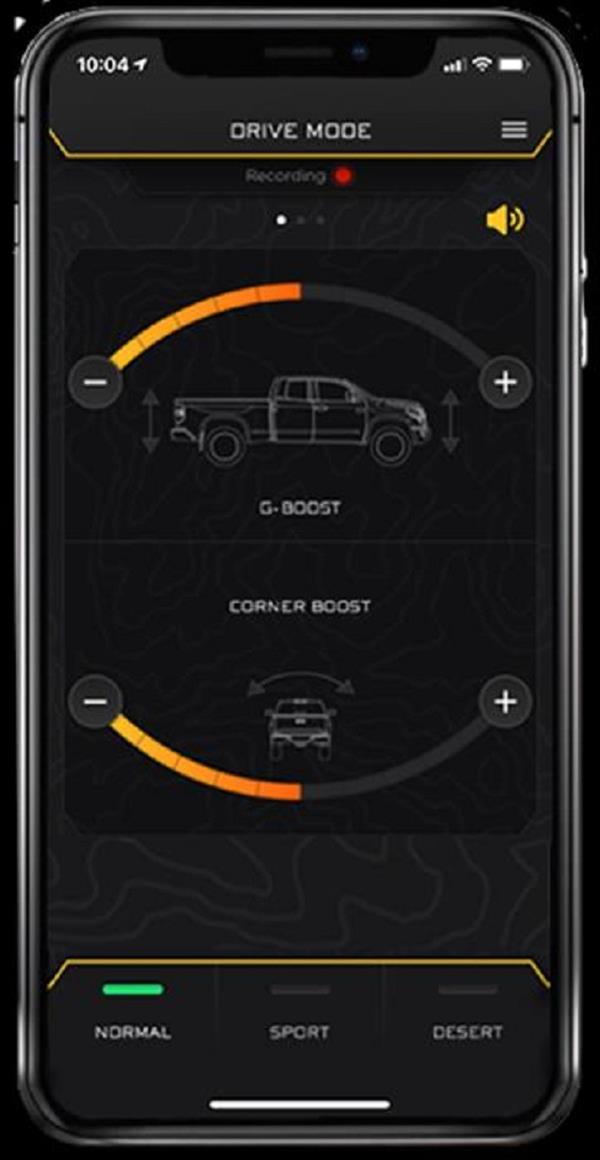

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• Rubber dust boot included for added shaft protection
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

Product Details

Add-On Part:	53512 - 24 GX550 IIC INSTALL KIT
Adjustable Compression:	Yes
Adjustable Damping:	Yes
Adjustable Rebound:	No
Adjustable:	Yes
Boot Included:	Yes
Bore Diameter:	2.25
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color:	Grey
Cylinder Diameter:	2.5
Cylinder Material:	Aluminum
Damping Adjustment Type:	Electronic
Damping Type:	Oil
Description:	Icon 2024 Toyota Land Cruiser 250/2024 Lexus GX550 Rear 2.5 Series Shocks 0-3 in Lift
External Reservoir:	Yes
Gas Charged:	Yes
Grade Type:	Performance
Lower Mount Type:	Eyelet
Mounting Hardware Included:	Yes
Part Number:	ico57870EP
Service Parts:	252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Shaft Diameter:	0.875
Shaft Material:	Chrome
Shock Absorber Body End Measuring Point:	Shoulder of Stem
Shock Absorber Rod End Measuring Point:	Center of Eylet

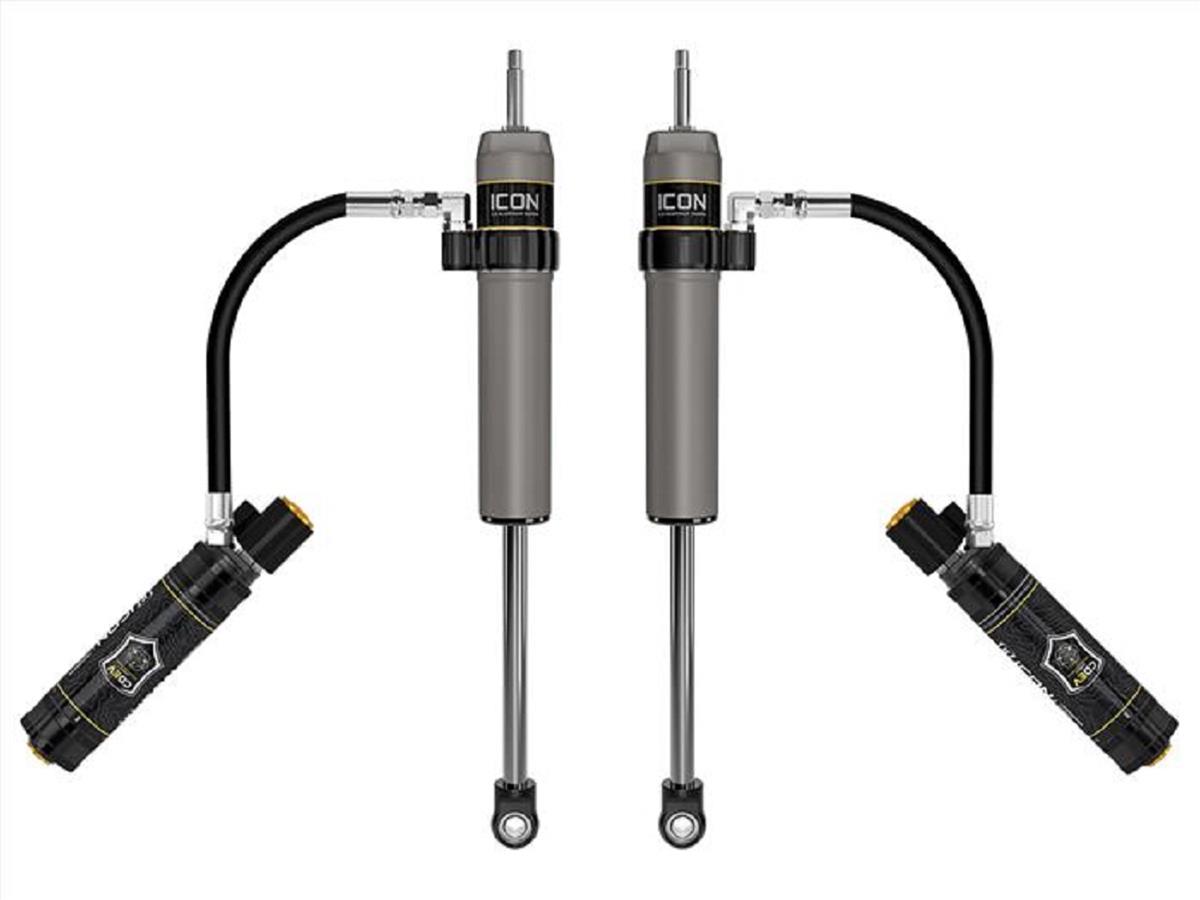

Title:	ICON 2024 Toyota Land Cruiser 250 Series/2024 Lexus GX550, 0-3” Lift, Rear, V.S. 2.5 Aluminum Series, Remote Reservoir w/ CDEV Shocks, Pair
Tube Outside Diameter:	2.5
Upper Mount Type:	Stem
Valving Type:	Digressive

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK53360	(1x ico54102, 1x ico54202, 1x ico55156, 1x ico58552DJ, 1x ico57870EP, 1x ico55161, 1x ico54003, 1x ico52752, 1x ico53512, 1x ico58790E)
	icoK53360T	Icon 2024 GX550 1.25-3in Stage 10 Tubular Suspension System (1x ico54202, 1x ico55156, 1x ico54102T, 1x ico58452DJ, 1x ico57870EP, 1x ico55161, 1x ico54003T, 1x ico52752, 1x ico53512, 1x ico58790E)
	icoK53370T	ICON 2024 Toyota Land Cruiser 250 Series 1.25-3in List Stage 10 Suspension System - Tubular (1x ico54202, 1x ico53509, 1x ico55160, 1x ico58452DJ, 1x ico57870EP, 1x ico58791E, 1x ico52752)
	icoK53370	ICON 2024 Toyota Land Cruiser 250 Series 1.25-3in List Stage 10 Suspension System - Billet (1x ico54202, 1x ico53509, 1x ico55160, 1x ico58552DJ, 1x ico57870EP, 1x ico58791E, 1x ico52752)
	icoK53371T	ICON 2024 Toyota Land Cruiser 250 Series 1.25-3in List Stage 11 Suspension System - Tubular (1x ico54202, 1x ico53509, 1x ico55160, 1x ico58452DJ, 1x ico57870EP, 1x ico58791E, 1x ico54003T, 1x ico52752)
	icoK53371	ICON 2024 Toyota Land Cruiser 250 Series 1.25-3in List Stage 11 Suspension System - Billet (1x ico54202, 1x ico53509, 1x ico55160, 1x ico58552DJ, 1x ico57870EP, 1x ico58791E, 1x ico54003, 1x ico52752)
	icoK53372T	ICON 2024 Toyota Land Cruiser 250 Series 1.25-3in List Stage 12 Suspension System - Tubular (1x ico54202, 1x ico53509, 1x ico54102T, 1x ico55160, 1x ico58452DJ, 1x ico57870EP, 1x ico58791E, 1x ico55161, 1x ico54003T, 1x ico52752)
	icoK53372	ICON 2024 Toyota Land Cruiser 250 Series 1.25-3in List Stage 12 Suspension System - Billet (1x ico54102, 1x ico54202, 1x ico53509, 1x ico55160, 1x ico58552DJ, 1x ico57870EP, 1x ico58791E, 1x ico55161, 1x ico54003, 1x ico52752)

Data: v4.2 - Upd: 2026-10-14 13:32:00

Features

Specifications

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Manufacturer's Part Number

57870EP

Product Attributes - Part Type

Shocks and Struts

Product Attributes - Product Line

Icon Vehicle Dynamics 2.5 VS PB CDEV Shocks

Product Attributes - UPC

00840103430508

Product Attributes - Ride Height

Lifted

Product Attributes - Ride Height Note

Additional ride height information may be available for your vehicle, please refer to the app tab.

Product Attributes - Lifted Amount Range (in.)

0.00-3.00 in.

Product Attributes - Internal Design

Monotube

Product Attributes - Adjustable Valving

No

Product Attributes - Gas Charged

Yes

Product Attributes - Upper Mount

Stud

Product Attributes - Lower Mount

Eyelet

Product Attributes - Bushing Material

Polyurethane

Product Attributes - Bushing Color

Black

Product Attributes - Boot Included

No

Product Attributes - Body Diameter (in.)

2.000

Product Attributes - Remanufactured

No

Product Attributes - Quantity

Sold as a pair.
