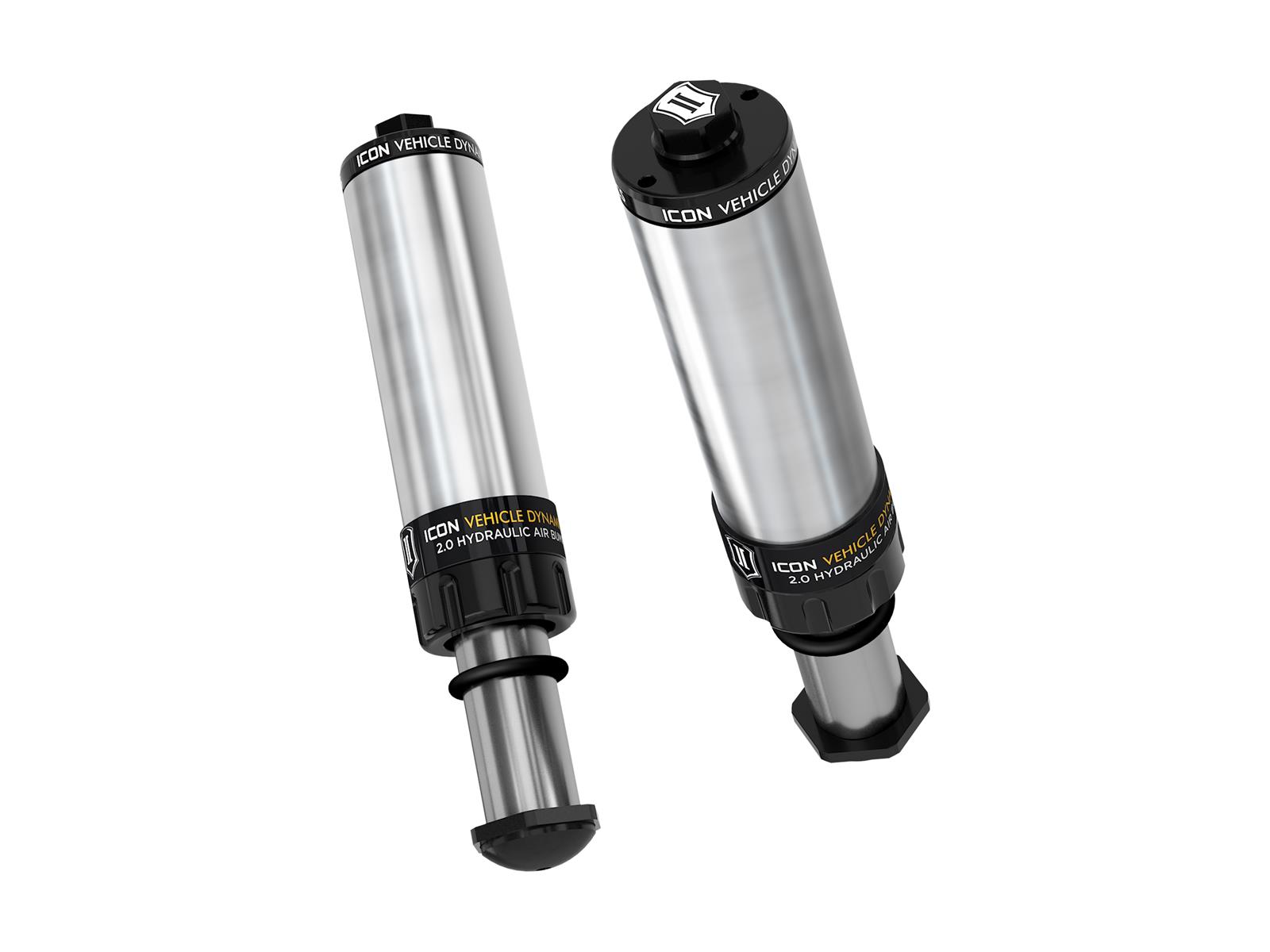

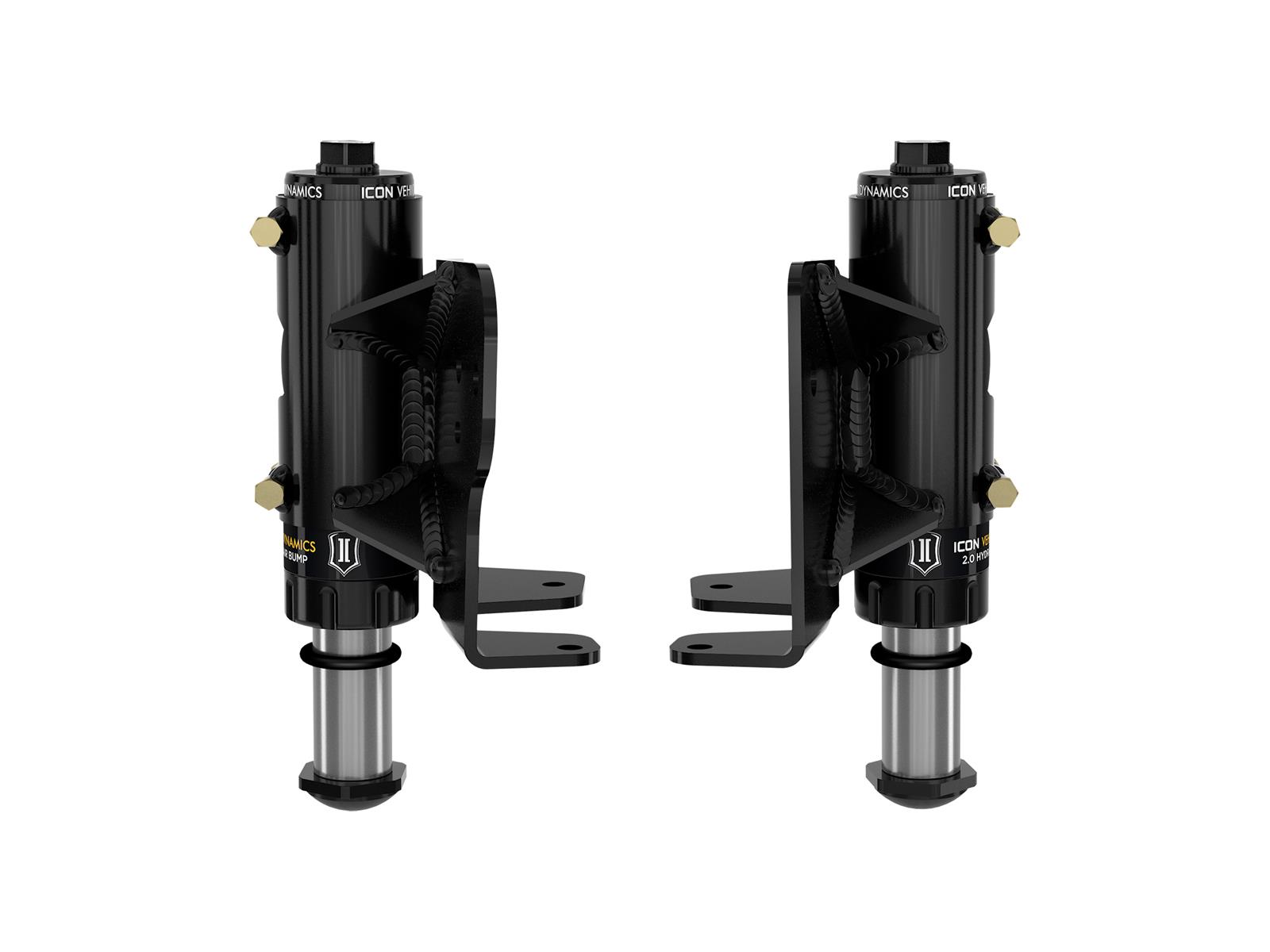

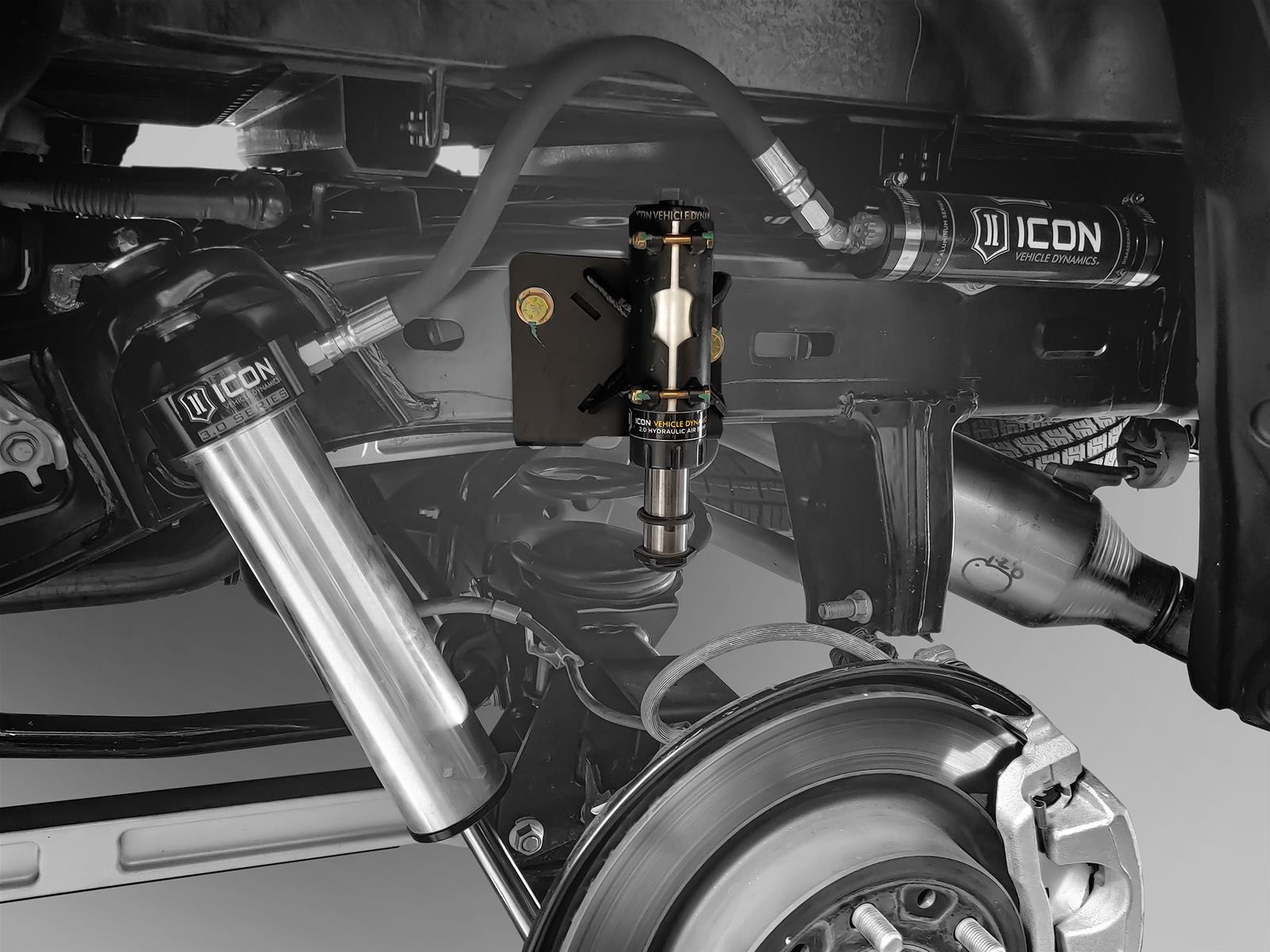

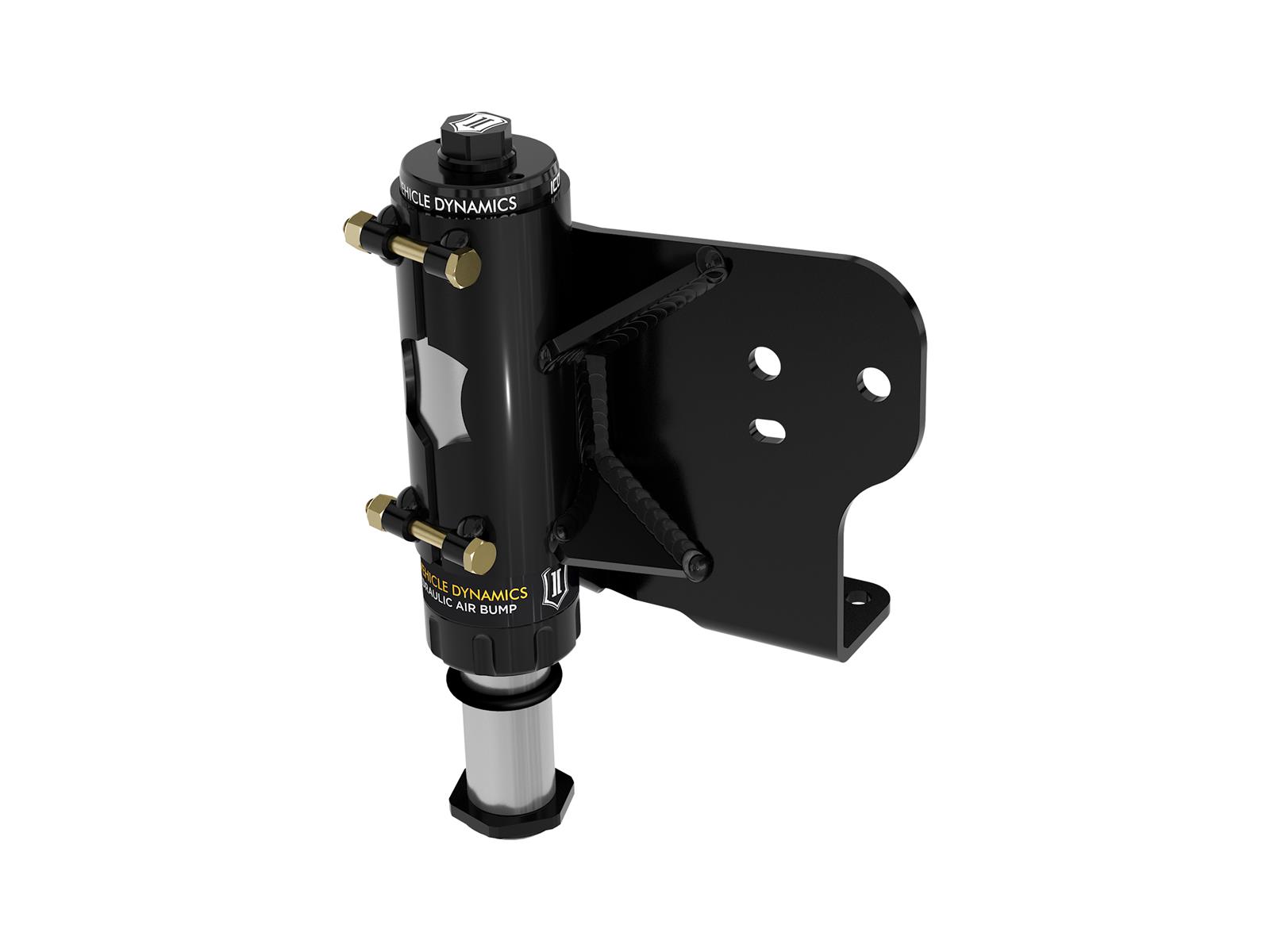

ICON 2022+ Toyota Tundra Rear Hydraulic Bump Stop Kit
ICON 2022+ Toyota Tundra Rear Hydraulic Bump Stop Kit
A$2,188.42
LOW STOCK! Est Ship 3-5 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
While the factory rear bump stops do a satisfactory job of absorbing impacts on a street driven truck, ICON found that there was much room for improvement during spirited driving in rough, off-road terrain. The ICON Vehicle Dynamics 2022-2026 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. Like all ICON hydraulic bumps stops, these feature both velocity and position sensitive technology which means that as the shaft speed increases and moves through the travel, the force increases exponentially to provide excellent bottoming resistance that won’t negatively affect articulation.
Product Overview
While the factory rear bump stops do a satisfactory job of absorbing impacts on a street driven truck, ICON found that there was much room for improvement during spirited driving in rough, off-road terrain. The ICON Vehicle Dynamics 2022-2025 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. Like all ICON hydraulic bumps stops, these feature both velocity and position sensitive technology which means that as the shaft speed increases and moves through the travel, the force increases exponentially to provide excellent bottoming resistance that won’t negatively affect articulation.
Features and Benefits
- Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
- Fully serviceable
- Fully reversible to factory configuration with no bed cutting required
- 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
- Position and velocity sensitive technology exponentially increases bottom-out resistance
- Vehicle specific bump stop tune to provide smooth engagement and best ride quality
- Heavy duty 1 ¼” CNC machined nitro steel shaft
- Multi stage CAD plated body for maximum corrosion resistance
- Double sealed high pressure Schrader valve
- Replaceable noise reducing striker pad
Product Details
| AAP_UDA_12: | EA |
|---|---|
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Attachment Type: | Bolt On |
| Bumper Material: | Hydraulic |
| Bumper Type: | Hydraulic |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Color: | Silver |
| Description: | ICON 2022+ Toyota Tundra Rear Hyd Bump Stop Kit |
| Diameter: | 2 |
| Grade Type: | Performance |
| Grade: | Performance |
| Length: | 2.5 |
| Material: | Aluminum |
| Mounting Hardware Included: | yes |
| Mounting Hardware Required: | No |
| Outside Diameter: | 2 |
| Part Number: | ico56111 |
| Title: | ICON 2022-2024 Toyota Tundra, Rear Hydraulic Bump Stop Kit, 0-2" Lift |
| Travel Length: | 2.5 |
Part Type
Suspension Bump Stop Kit
Features
- 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
- Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
- Double sealed high pressure Schrader valve
- Fully reversible to factory configuration with no bed cutting required
- Fully serviceable
- Heavy duty 1 ¼” CNC machined nitro steel shaft
- Multi stage CAD plated body for maximum corrosion resistance
- Position and velocity sensitive technology exponentially increases bottom-out resistance
- Replaceable noise reducing striker pad
- Vehicle specific bump stop tune to provide smooth engagement and best ride quality
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 56111
- Product Attributes - Part Type
- Hydraulic Bump Stops
- Product Attributes - Product Line
- Icon Vehicle Dynamics Hydraulic Bump Stop Kits
- Product Attributes - UPC
- 00840103420851
- Product Attributes - Hydraulic Bump Stop Diameter
- 2.000 in.
- Product Attributes - Hydraulic Bump Stop Shaft Diameter
- 1.250 in.
- Product Attributes - Hydraulic Bump Stop Brackets Included
- Yes
- Product Attributes - Hydraulic Bump Stop Material
- Steel
- Product Attributes - Hydraulic Bump Stop Color
- Zinc
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Not compatible with models equipped with factory adaptive variable suspension or rear load leveling.
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico56111 |
| SFX Item ID | 4141518 |
| Supplier Item Code | 4141518 |
| Manufacturer SKU | 56111 |
| Manufacturer UPC | 840103420851 |
| Alternative References | IVD56111 |
