ICON Vehicle Dynamics Suspension Leveling & Lift Kits K53136 05-11 HILUX 0-3" STAGE 1 SUSPENSION SYSTEM
icoK53136
A$3,610.29

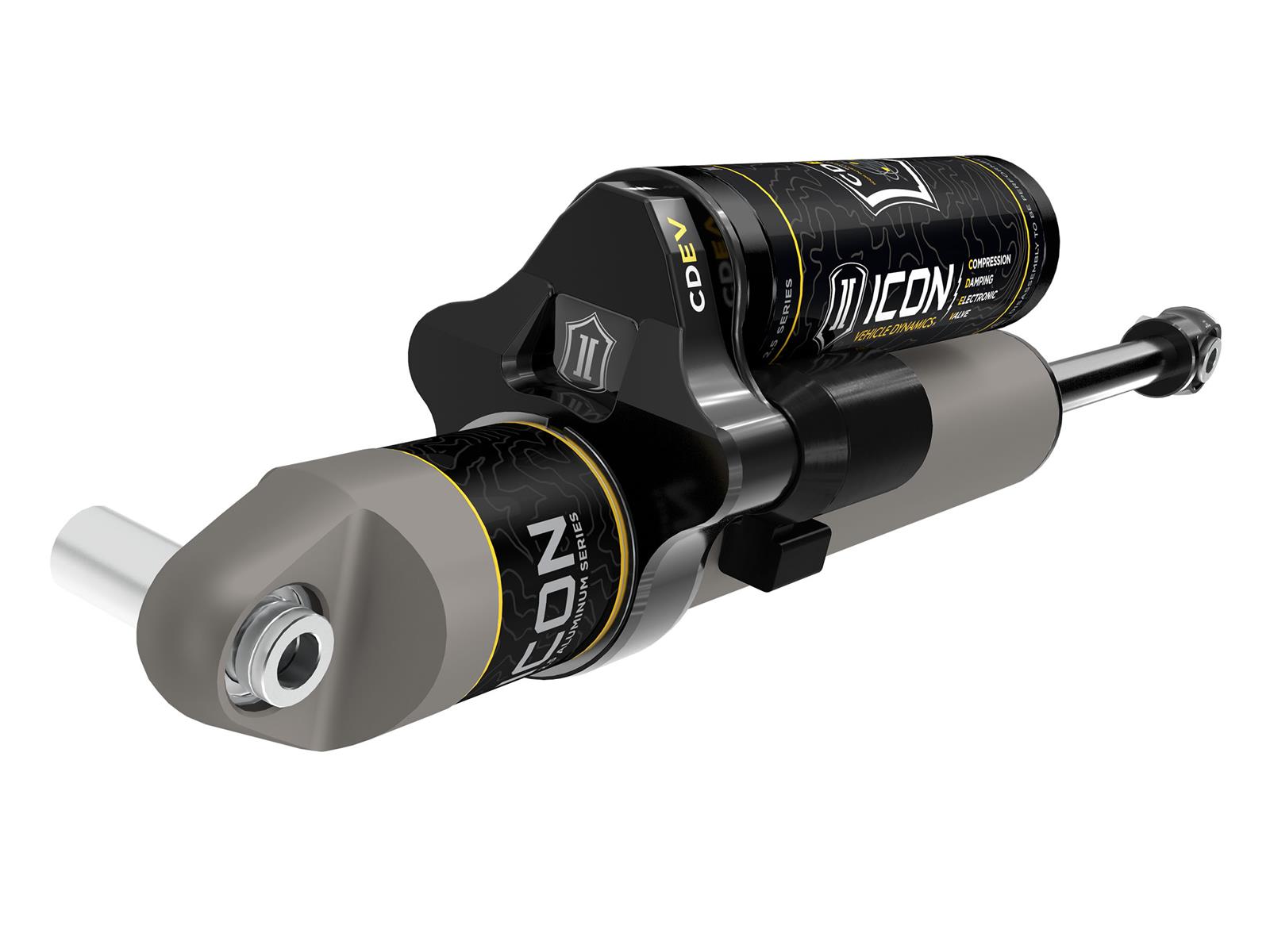

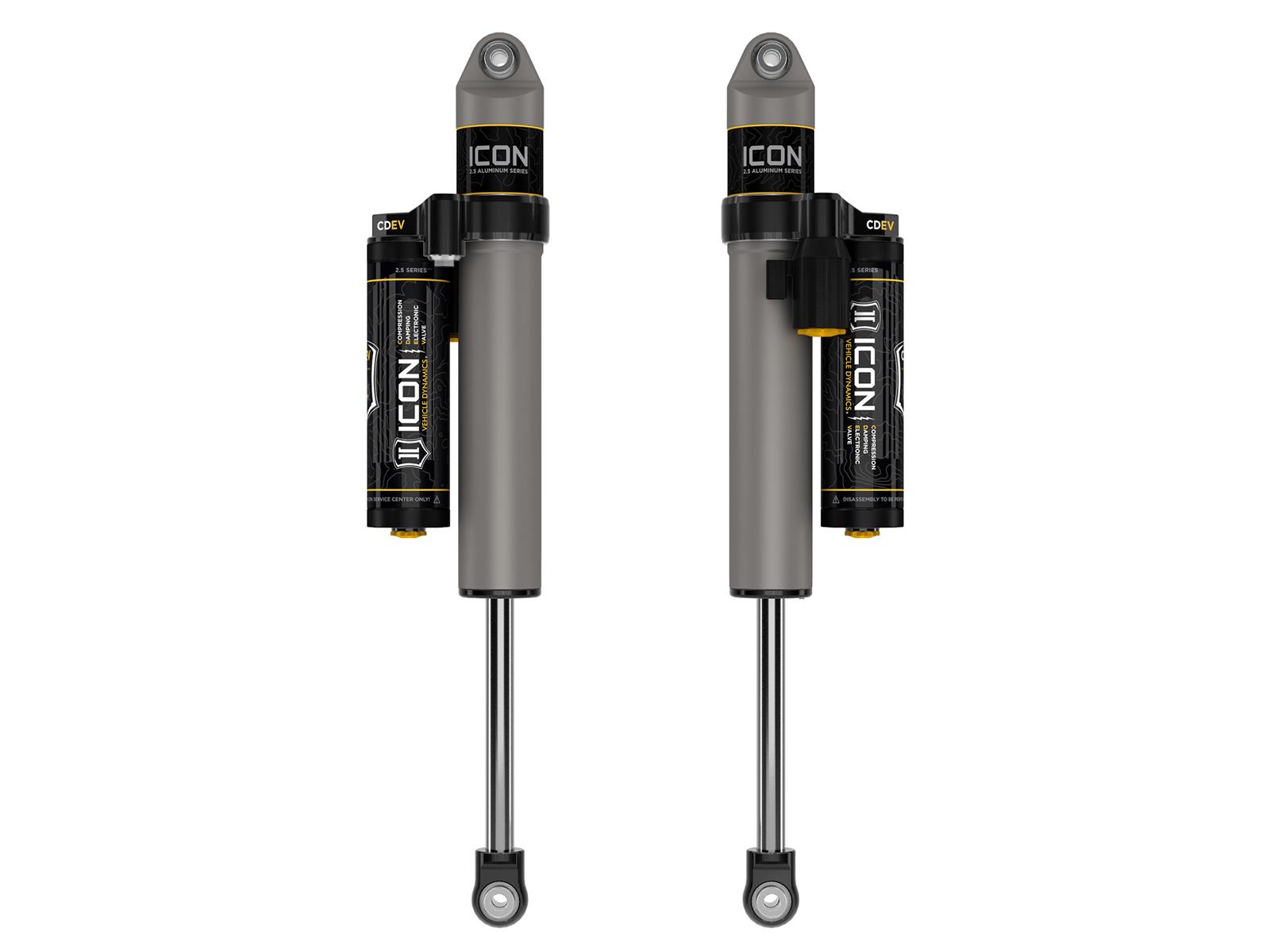

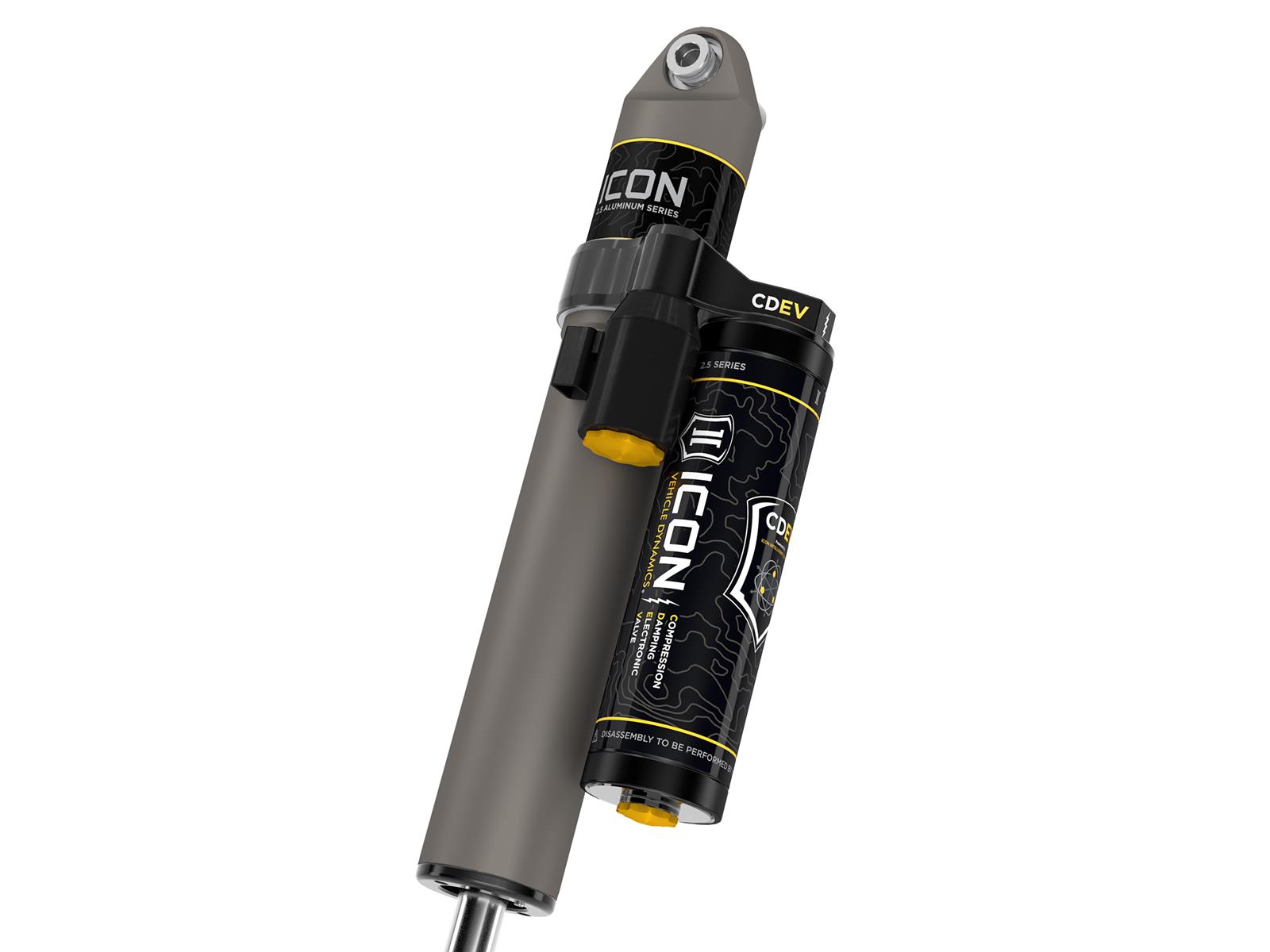

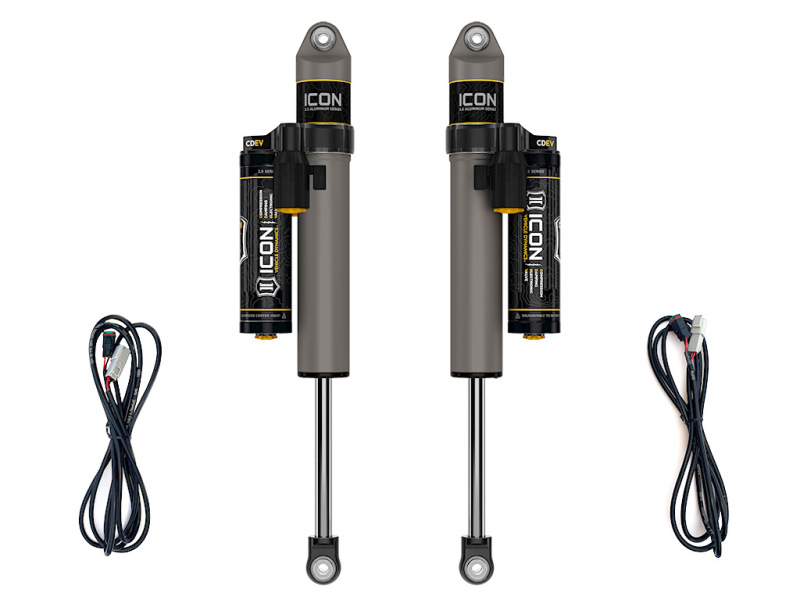

ICON 2018+ Jeep Wrangler JL 2.5in Rear 2.5 Series Shocks VS PB CDEV - Pair
ICON 2018+ Jeep Wrangler JL 2.5in Rear 2.5 Series Shocks VS PB CDEV - Pair
A$4,022.78
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are 100% rebuildable and 100% revalveable.
Product Overview
Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
Features and Benefits
- 100% Revalveable
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- 6061 aircraft grade aluminum CNC machined components
- 100% Rebuildable
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with piggyback reservoir
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
Product Details
| 71060: | Yes |
|---|---|
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 27821EP - 20-23 JT/18-23 JL 2.5" FRONT 2.5 VS RR CDEV PAIR |
| Adjustable Damping: | Yes |
| Adjustable: | Yes |
| Boot Included: | NO |
| Bore Diameter: | 2.25 |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Color: | Gray |
| Cylinder Diameter: | 2.5 |
| Cylinder Material: | Aluminum |
| Damping Adjustment Type: | Electronic |
| Damping Type: | Oil |
| Description: | 18-UP JL 2.5" REAR 2.5 VS PB CDEV PAIR |
| External Reservoir: | Yes |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Lower Mount Type: | Eyelet |
| Mounting Hardware Included: | Yes |
| Part Number: | ico27726EP |
| Service Parts: | 252001 - 2.5 FIXED SPANNER WRENCH |
| Shaft Diameter: | 0.875 |
| Shaft Material: | Chrome |
| Shock Absorber Body End Measuring Point: | Center of Eylet |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Title: | ICON 2018-2023 Jeep Wrangler JL, 2.5" Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDEV, Pair |
| Tube Outside Diameter: | 2.5 |
| Upper Mount Type: | Eyelet |
Part Type
Suspension Shock Absorber Set
Features
- 100% Rebuildable
- 100% Revalveable
- 6061 aircraft grade aluminum CNC machined components
- 7/8” diameter induction hardened, chrome plated shock shaft
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- Nitrogen charged monotube design with piggyback reservoir
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- PTFE lined spherical bearings and application specific mounting hardware
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 27726EP
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - UPC
- 00840103411743
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico27726EP |
| SFX Item ID | 4141404 |
| Supplier Item Code | 4141404 |
| Manufacturer SKU | 27726EP |
| Manufacturer UPC | 840103411743 |
| Alternative References | IVD27726EP, 2.5in |
