Description

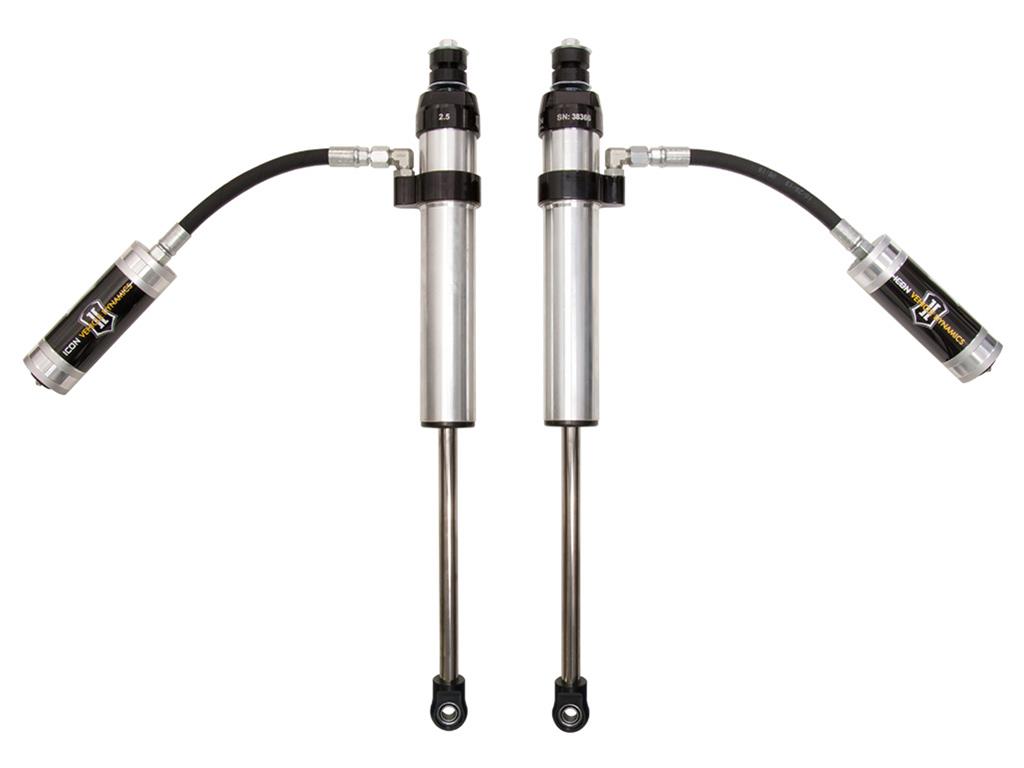

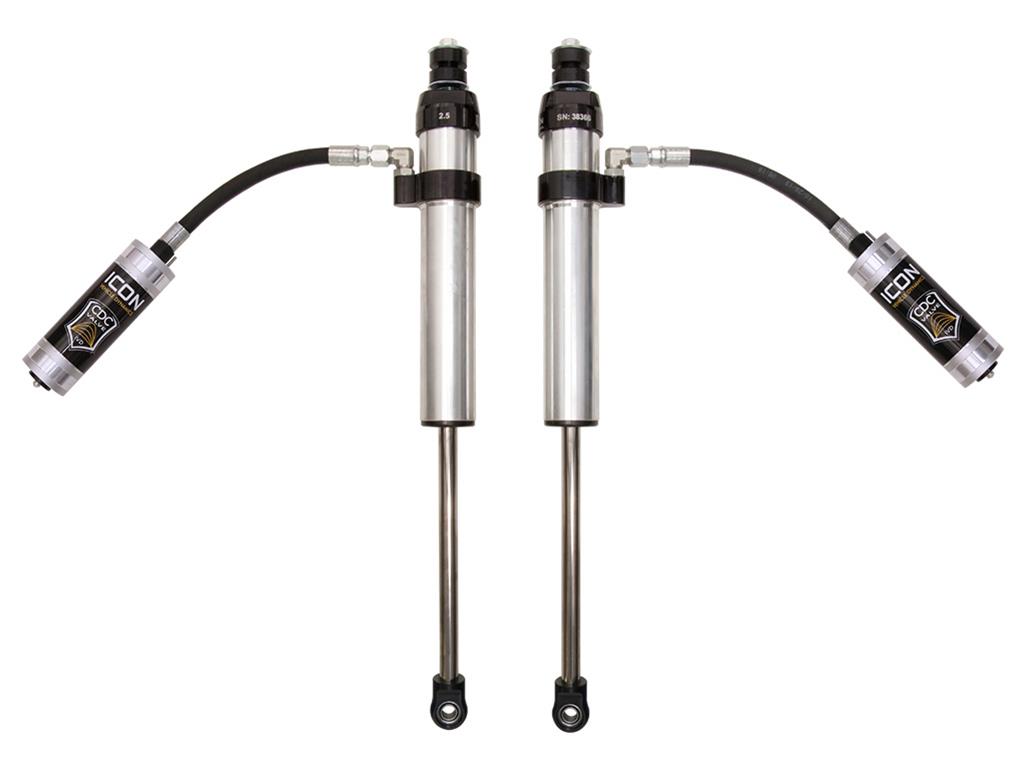

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Product Overview

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Features and Benefits

• 100% Revalveable
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• 100% Rebuildable
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression

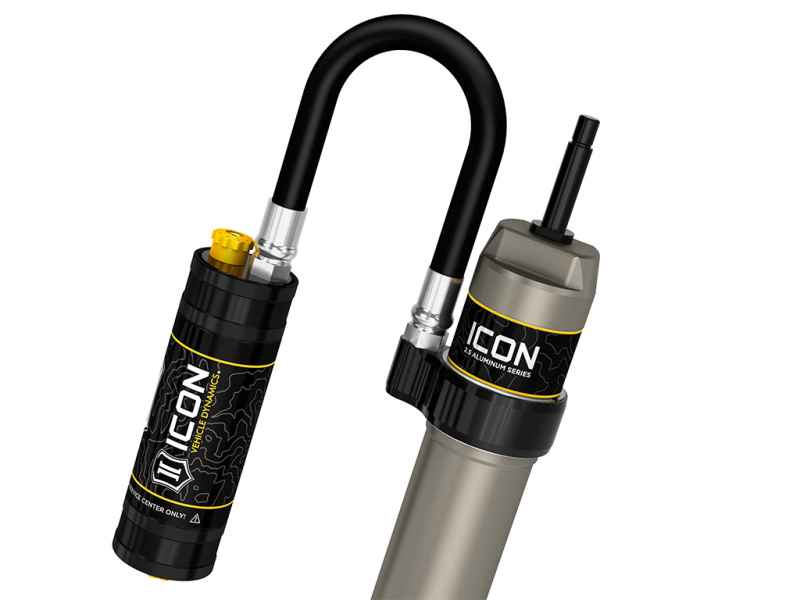

• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range

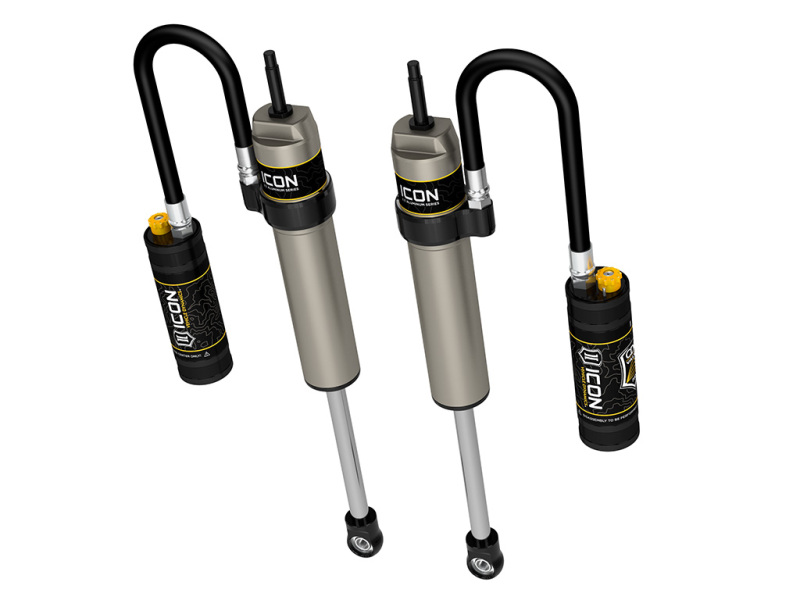

• Nitrogen charged monotube design with remote reservoir
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components

Product Details

71060:	Yes
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Add-On Part:	252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable:	Yes
Attributed Description:	ICON Vehicle Dynamics; Shock Absorber Set; Adjustable: Yes; Boot Included: No; Bore Diameter: 2.25 IN; Compressed Length: 16.35 IN; Fully Open Length: 26.68 IN; Gas Charged: Yes; Lower Mount Type: Eyelet; Mounting Hardware Included: Yes; Shock Absorber Body End Measuring Point: Shoulder of Stem; Shock Absorber Rod End Measuring Point: Center of Eyelet; Stroke Length Front: 10.3 IN; Tube Outside Dia meter: 2.50 IN; Upper Mount Type: Stem; External Reservoir: Yes
Boot Included:	NO
Bore Diameter:	2.25
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color:	Silver
Cylinder Material:	Aluminum
Damping Type:	Oil
Description:	14-UP RAM 2500 4.5" FRONT 2.5 VS RR CDCV PAIR
Diámetro del árbol:	2021-07-08
External Reservoir:	Yes
Gas Charged:	Yes
Grade Type:	Performance
Lower Mount Type:	EYELET
Material del cilindro:	Acero
Mounting Hardware Included:	Yes
Part Number:	ico217803CP
Service Parts:	191016 - 7.5" FINNED RESI UPGRADE KIT
Shaft Diameter:	0.875
Shaft Material:	Chrome
Shock Absorber Body End Measuring Point:	Shoulder of Stem
Shock Absorber Rod End Measuring Point:	CENTER OF EYELET
Tipo de Grado:	Reparación de Banda
Title:	14-UP RAM 2500 4.5" FRONT 2.5 VS RR CDCV PAIR
Tube Outside Diameter:	2.5
Upper Mount Type:	Stem

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK214524P	ICON 14-18 Ram 2500 4WD 4.5in Stage 4 Suspension System (1x ico214201, 1x ico214202, 1x ico214204, 1x ico214205, 1x ico217803CP, 1x ico216520, 1x ico217706CP, 1x ico214214)
	icoK214523	ICON 2014+ Ram 2500 4WD 4.5in Stage 3 Suspension System (1x ico214201, 1x ico214204, 1x ico214205, 1x ico217803CP, 1x ico217707CP, 1x ico214214)

Data: v4.2 - Upd: 2026-10-14 01:11:04

Features

Specifications

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Manufacturer's Part Number

217803CP

Product Attributes - Part Type

Shocks and Struts

Product Attributes - Product Line

Icon Vehicle Dynamics 2.5 VS RR CDCV Shocks

Product Attributes - UPC

00840103401096

Product Attributes - Ride Height

Lifted

Product Attributes - Ride Height Note

Additional ride height information may be available for your vehicle, please refer to the app tab.

Product Attributes - Lifted Amount Range (in.)

4.50 in.

Product Attributes - Internal Design

Monotube

Product Attributes - Adjustable Valving

Yes

Product Attributes - Gas Charged

Yes

Product Attributes - Upper Mount

Stud

Product Attributes - Lower Mount

Eyelet

Product Attributes - Bushing Material

Spherical bearing/PTFE

Product Attributes - Boot Included

No

Product Attributes - Body Diameter (in.)

2.500

Product Attributes - Remanufactured

No

Product Attributes - Quantity

Sold as a pair.
