Description

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Product Overview

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Features and Benefits

• 100% Revalveable
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression

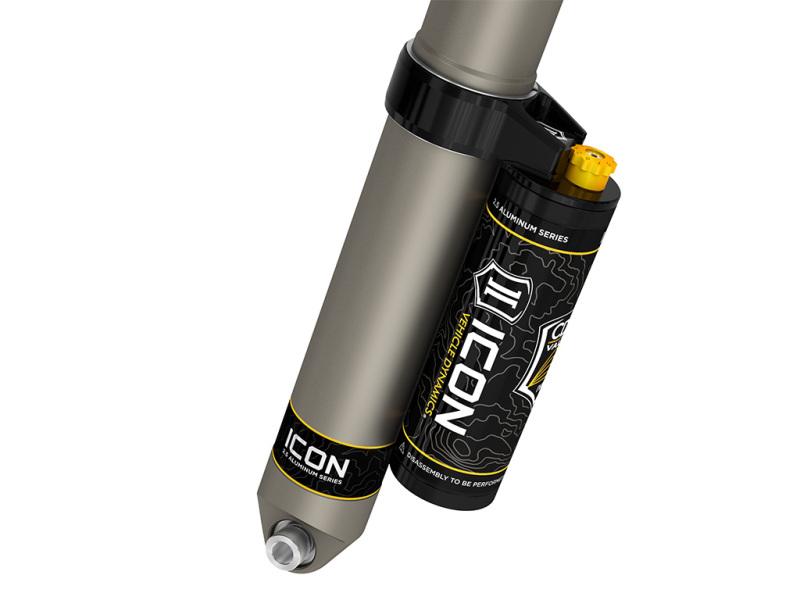

• Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with piggyback reservoir
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• Polyurethane bushings and forged steel mounting stems for OE factory type fitment
• PTFE lined spherical bearings and application specific mounting hardware

Product Details

71060:	Piggyback Reservoir
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Adjustable:	Yes
Boot Included:	NO
Bore Diameter:	2.25
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Material:	Aluminum

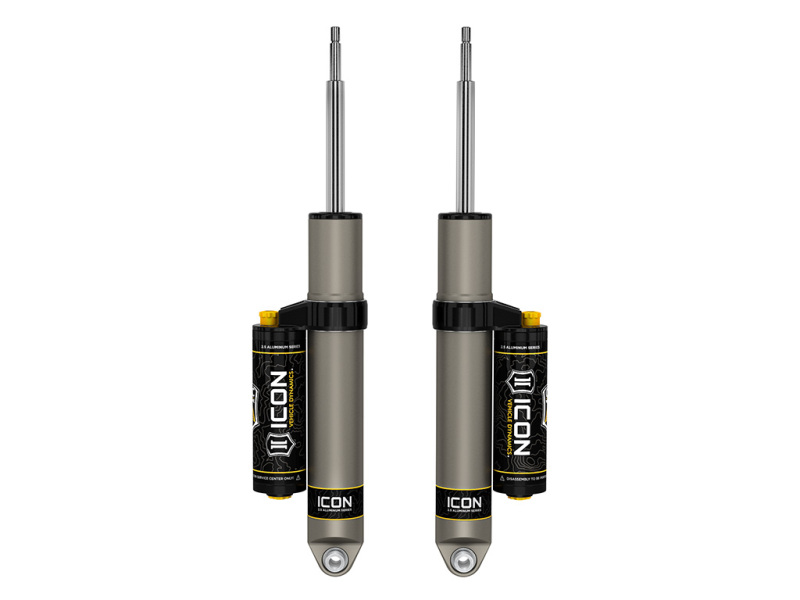

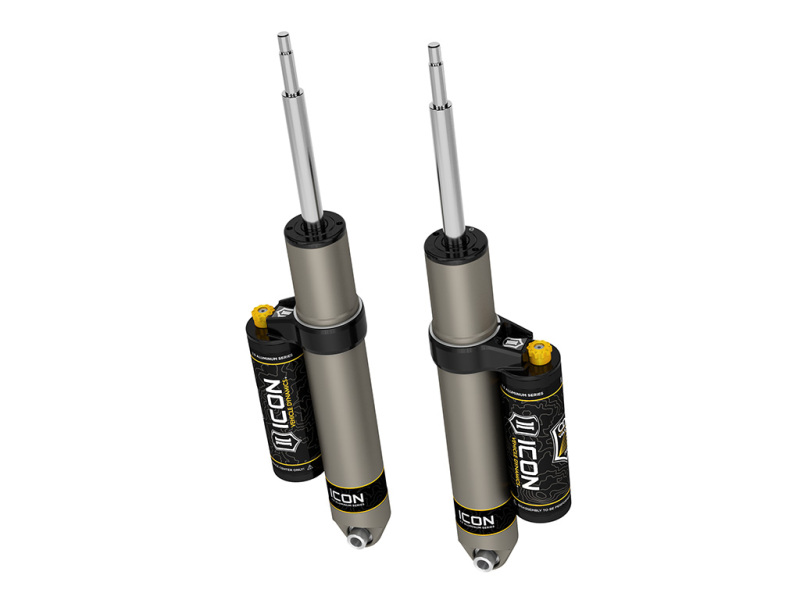

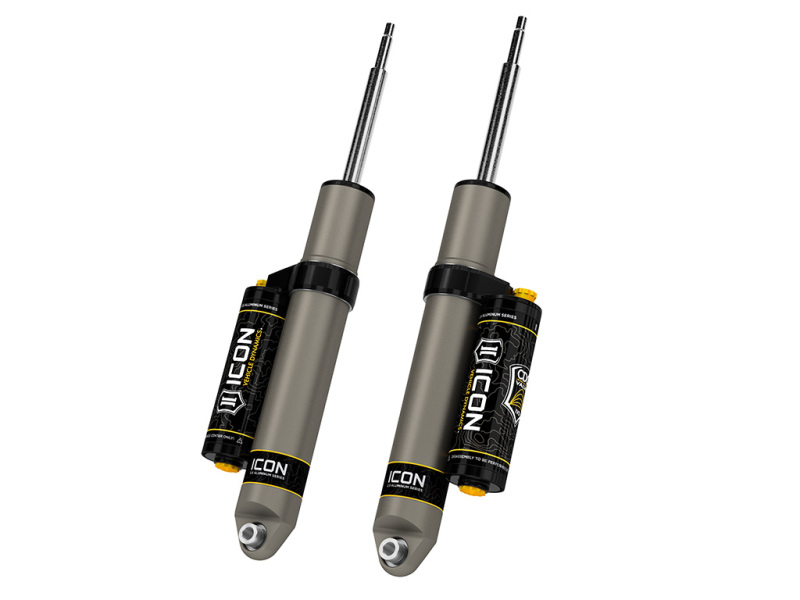

Description:	14-UP RAM 2500 AIR RIDE REAR 2.5 VS PB CDCV PAIR
External Reservoir:	Piggyback Reservoir
Gas Charged:	Yes
Lower Mount Type:	EYELET
Mounting Hardware Included:	Yes
Part Number:	ico217708CP
Service Parts:	191016 - 7.5" FINNED RESI UPGRADE KIT
Shock Absorber Body End Measuring Point:	CENTER OF EYELET
Shock Absorber Rod End Measuring Point:	Shoulder of Stem
Title:	14-UP RAM 2500 AIR RIDE REAR 2.5 VS PB CDCV PAIR
Tube Outside Diameter:	2.5
Upper Mount Type:	Stem

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK212544A	ICON 19+ Ram 2500 4WD 2.5in Stage 4 Suspension System (Air Ride) (1x ico217802CP, 1x ico217708CP, 1x ico214200, 1x ico214214)

Data: v4.2 - Upd: 2026-10-13 20:37:23

Features

Specifications

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Manufacturer's Part Number

217708CP

Product Attributes - Part Type

Shocks and Struts

Product Attributes - Product Line

Icon Vehicle Dynamics 2.5 VS PB CDCV Shocks

Product Attributes - UPC

00840103401010

Product Attributes - Ride Height

Stock

Product Attributes - Internal Design

Monotube

Product Attributes - Adjustable Valving

No

Product Attributes - Gas Charged

Yes

Product Attributes - Upper Mount

Stud

Product Attributes - Lower Mount

Eyelet

Product Attributes - Boot Included

No

Product Attributes - Body Diameter (in.)

2.500

Product Attributes - Remanufactured

No

Product Attributes - Quantity

Sold as a pair.

Product Attributes - Notes

For use on vehicles with air ride rear suspension.
