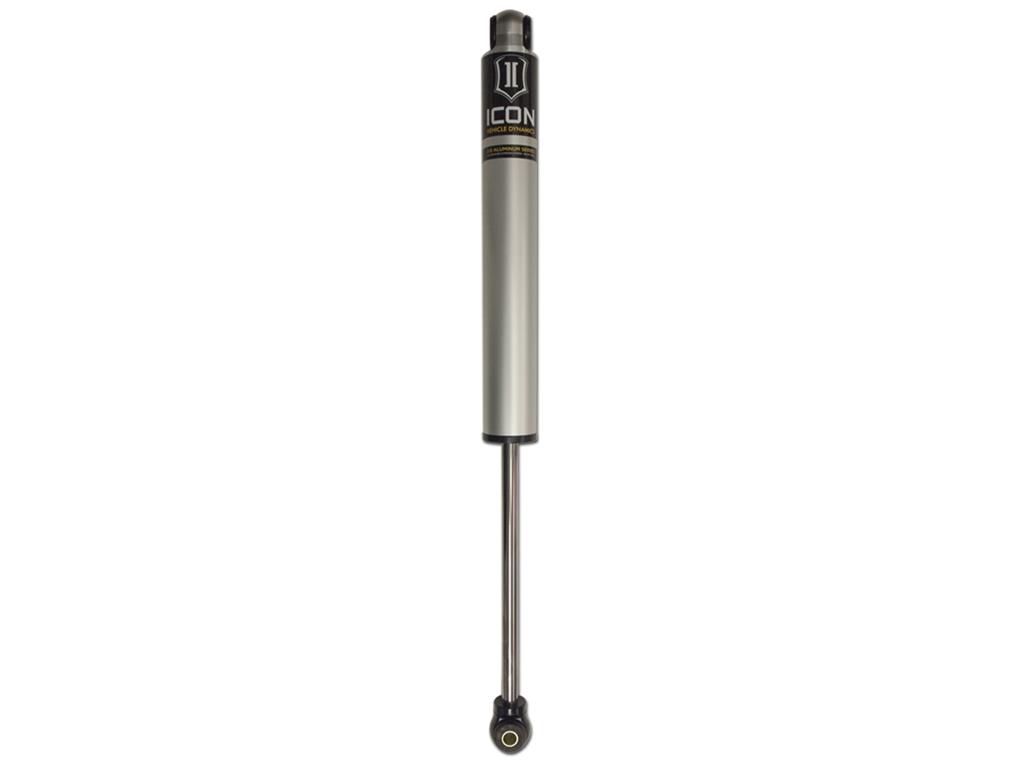

ICON Universal 2.0 Series Shocks Shocks 9.5in Travel NR IFSV - Single

SKU: ICO206512

Shocks and Struts

ICO Universal 2.0 Shocks...

Icon

ICON Universal 2.0 Series Shocks Shocks 9.5in Travel NR IFSV - Single

SKU: ICO206512

Shocks and Struts

ICO Universal 2.0 Shocks...

Last Available from MFR. LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.

We accept

Description

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Product Overview

Features and Benefits

100% revalveable
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged emulsion shock
One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
5/8” chrome plated hardened steel shaft resists corrosion and pits
6061 aluminum rod end, top cap, and internals ensure strength and durability
Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
Nitrile rubber top out bumper for noise free operation
100% rebuildable

Product Details

110:	No
71059:	ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Le ngth: 11.550 IN; Fully Open Length: 19.00 IN; Shock Stroke: 7.445 IN; Travel Length: 7.445 IN
71063:	1.5" x 1/2" Bolt (Upper&Lower)
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Add On Part:	614700 - Shock Boot Kit
Add-On Part:	614700 - 2.0 SHOCK BOOT KIT (EACH)
Adjustable Damping:	Yes
Adjustable:	No
Attributed Description:	ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Le ngth: 11.550 IN; Fully Open Length: 19.00 IN; Shock Stroke: 7.445 IN; Travel Length: 7.445 IN
Body Color:	Gray
Body Diameter:	2
Boot Included:	No
Bore Diameter:	1.75
Bushing Color:	Black
Bushing Included:	yes
Bushing Material:	Polyurethane
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included:	No
Compressed Length:	13.55
Cylinder Material:	Aluminum
Damping Type:	Oil
Description:	UNIVERSAL 9.5" TRAVEL 2.0 NR IFSV
Dust Shield Included:	No
Dust Shield:	No
Extended Length:	23
Finish:	Anodized
Gas Charged:	Yes
Grade Type:	Performance
Herraje de montaje incluido:	no
Hydraulic Lockout:	No
Lower Mount Type:	Eyelet
Mounting Hardware Included:	No
Mounting Width:	1.5" x 1/2" Bolt (Upper&Lower)
Part Number:	ico206512
Remote Reservoir:	NO
Service Parts:	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shock Absorber Body End Measuring Point:	CENTER OF EYELET
Shock Absorber Rod End Measuring Point:	CENTER OF EYELET
Shock Stroke:	9.45
Tipo de Grado:	ReparaciÃ³n de Banda
Title:	ICON Universal 2.0 Aluminum Series Front Shock, 9.5â€ Travel
Travel Length:	9.45
Upper Mount Type:	EYELET

Part Type

Suspension Shock Absorber

Data: v4.2 - Upd: 2026-10-13 17:29:29

Features

100% rebuildable
100% revalveable
5/8” chrome plated hardened steel shaft resists corrosion and pits
6061 aluminum rod end, top cap, and internals ensure strength and durability
6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
Nitrile rubber top out bumper for noise free operation
Nitrogen charged emulsion shock
One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range

Specifications

Product Attributes - Brand: ICON Vehicle Dynamics
Product Attributes - Manufacturer's Part Number: 206512
Product Attributes - Part Type: Shocks and Struts
Product Attributes - UPC: 00840103400310

Reference Information

Brand Name/s	Icon
StreetFX SKU	ico206512
SFX Item ID	4140924
Supplier Item Code	4140924
Manufacturer SKU	206512
Manufacturer UPC	840103400310
Alternative References	IVD206512, 9.5in
