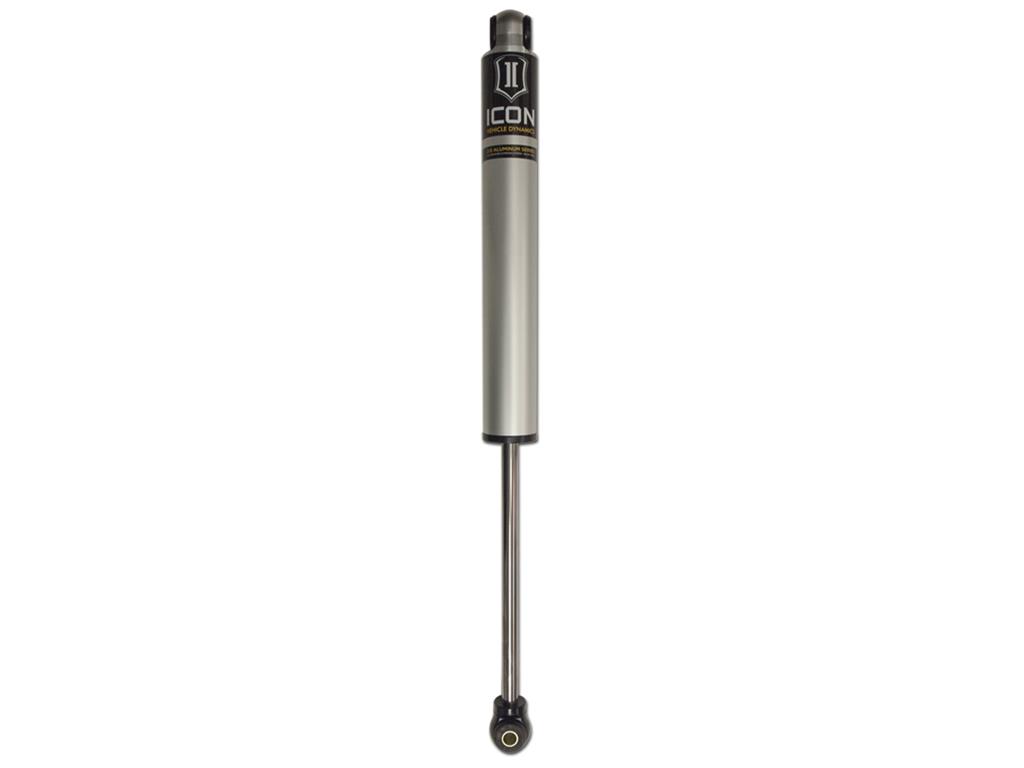

ICON Universal 2.0 Series Shocks Shocks 7.5in Travel NR IFSV - Single
ICON Universal 2.0 Series Shocks Shocks 7.5in Travel NR IFSV - Single
A$420.20
LOW STOCK! Est Ship 3-5 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Product Overview
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Features and Benefits
- 100% revalveable
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged emulsion shock
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
Product Details
| 110: | NO |
|---|---|
| 71063: | 1.5" x 1/2" Bolt (Upper&Lower) |
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add On Part: | 614700 - Shock Boot Kit |
| Add-On Part: | 614700 - 2.0 SHOCK BOOT KIT (EACH) |
| Adjustable Damping: | No |
| Adjustable: | NO |
| Attributed Description: | ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Le ngth: 11.550 IN; Fully Open Length: 19.00 IN; Shock Stroke: 7.445 IN; Travel Length: 7.445 IN |
| Body Color: | Gray |
| Body Diameter: | 2 |
| Boot Included: | NO |
| Bushing Color: | Black |
| Bushing Included: | yes |
| Bushing Material: | Polyurethane |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included: | NO |
| Compressed Length: | 11.55 |
| Description: | UNIVERSAL 7.5" TRAVEL 2.0 NR IFSV |
| Dust Shield Included: | No |
| Dust Shield: | NO |
| Extended Length: | 19 |
| Finish: | Anodized |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Herraje de montaje incluido: | no |
| Hydraulic Lockout: | No |
| Includes Bump Stop: | No |
| Internal Construction Type: | Single Tube |
| Internal Rebound Bumper: | Yes |
| Lower Mount Type: | EYELET |
| Mounting Hardware Included: | No |
| Mounting Width: | 1.5" x 1/2" Bolt (Upper&Lower) |
| Part Number: | ico206511 |
| Remote Reservoir: | NO |
| Service Parts: | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Shaft Diameter: | 0.625 |
| Shock Absorber Body End Measuring Point: | CENTER OF EYELET |
| Shock Absorber Rod End Measuring Point: | CENTER OF EYELET |
| Shock Stroke: | 7.45 |
| Tipo de Grado: | Reparación de Banda |
| Title: | UNIVERSAL 7.5" TRAVEL 2.0 NR IFSV |
| Travel Length: | 7.45 |
| Upper Mount Type: | EYELET |
Part Type
Suspension Shock Absorber
Features
- 100% rebuildable
- 100% revalveable
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- Nitrogen charged emulsion shock
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 206511
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - UPC
- 00840103400297
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico206511 |
| SFX Item ID | 4140922 |
| Supplier Item Code | 4140922 |
| Manufacturer SKU | 206511 |
| Manufacturer UPC | 840103400297 |
| Alternative References | IVD206511, 7.5in |
