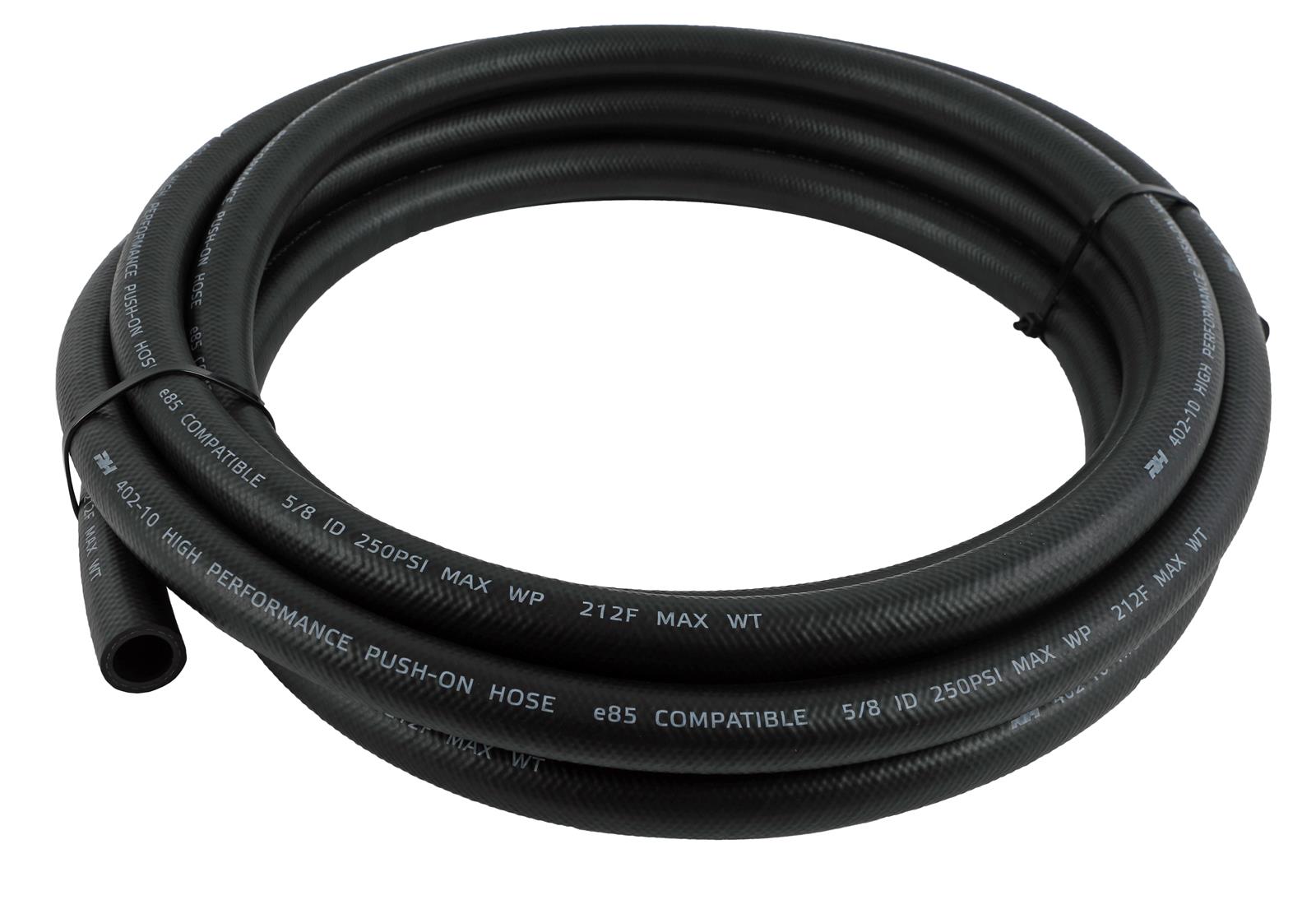

Redhorse Performance 402 Series Push-Lock Hose -10 AN 20 ft. 402-10-20 Hose, Series, Synthetic Rubber, Black, AN, Length, Each
Redhorse Performance 402 Series Push-Lock Hose -10 AN 20 ft. 402-10-20 Hose, Series, Synthetic Rubber, Black, AN, Length, Each
A$420.73
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
The Redhorse Performance 402 Series push-lock hose contains a fully e85 compatible inner tube, a braided layer of tough nylon mesh and a smooth outer cover. Engineered for use with RHP 2000 Series hose ends, the RHP 402 Series hose will deliver great performance and can be assembled in minutes. Hit the sweet spot between ease of installation and high performance with the Redhorse Performance 402 Series hoses!
Features and specs:
* Rated for temperatures up to 212 degrees F (100 Celsius)
* With a max working pressure of 300 psi, the 401 Series push-lock hoses are not recommended for high pressure applications or suction systems
* NHRA accepted
Note: If you are thinking of running the hose near a heat source, RHP recommends using their 244 Series fire sleeves over the line, which are good to withstand continuous working temperatures up to 500 degrees F.
Part Type
10AN Black Push Lock Hos 20ft
Specifications
- Product Attributes - Brand
- Redhorse Performance
- Product Attributes - Manufacturer's Part Number
- 402-10-20
- Product Attributes - Part Type
- AN Hose
- Product Attributes - Product Line
- Redhorse Performance 402 Series Push-Lock Hose
- Product Attributes - UPC
- 848487012341
- Product Attributes - Hose Size
- -10 AN
- Product Attributes - PTFE Lined
- No
- Product Attributes - Hose Length (ft.)
- 20.00
- Product Attributes - Outer Material
- Synthetic rubber
- Product Attributes - Hose Color
- Black
- Product Attributes - Hose Material
- Nylon
- Product Attributes - Hose Inside Diameter (in.)
- 0.625 in.
- Product Attributes - Hose Outside Diameter
- 0.910 in.
- Product Attributes - Minimum Recommended Temperature
- -40 degrees F
- Product Attributes - Maximum Recommended Temperature
- 212 degrees F
- Product Attributes - Maximum Operating Pressure (psi)
- 250 psi
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Recommended Hose Ends
- Redhorse 2000 Series push lock
Reference Information
| Brand Name/s | Redhorse Performance |
|---|---|
| StreetFX SKU | hse402-10-20 |
| SFX Item ID | 5003088 |
| Supplier Item Code | 5003088 |
| Manufacturer SKU | 402-10-20 |
| Manufacturer UPC | 848487012341 |
| Alternative References | RHP402-10-20 |
