Redhorse Performance 302 Series PTFE Hose -10 AN 20 ft. 302-10-20 Hose, Series, Braided Stainless Steel, Black, Lined, AN, Length, Each
Redhorse Performance 302 Series PTFE Hose -10 AN 20 ft. 302-10-20 Hose, Series, Braided Stainless Steel, Black, Lined, AN, Length, Each
A$642.80
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

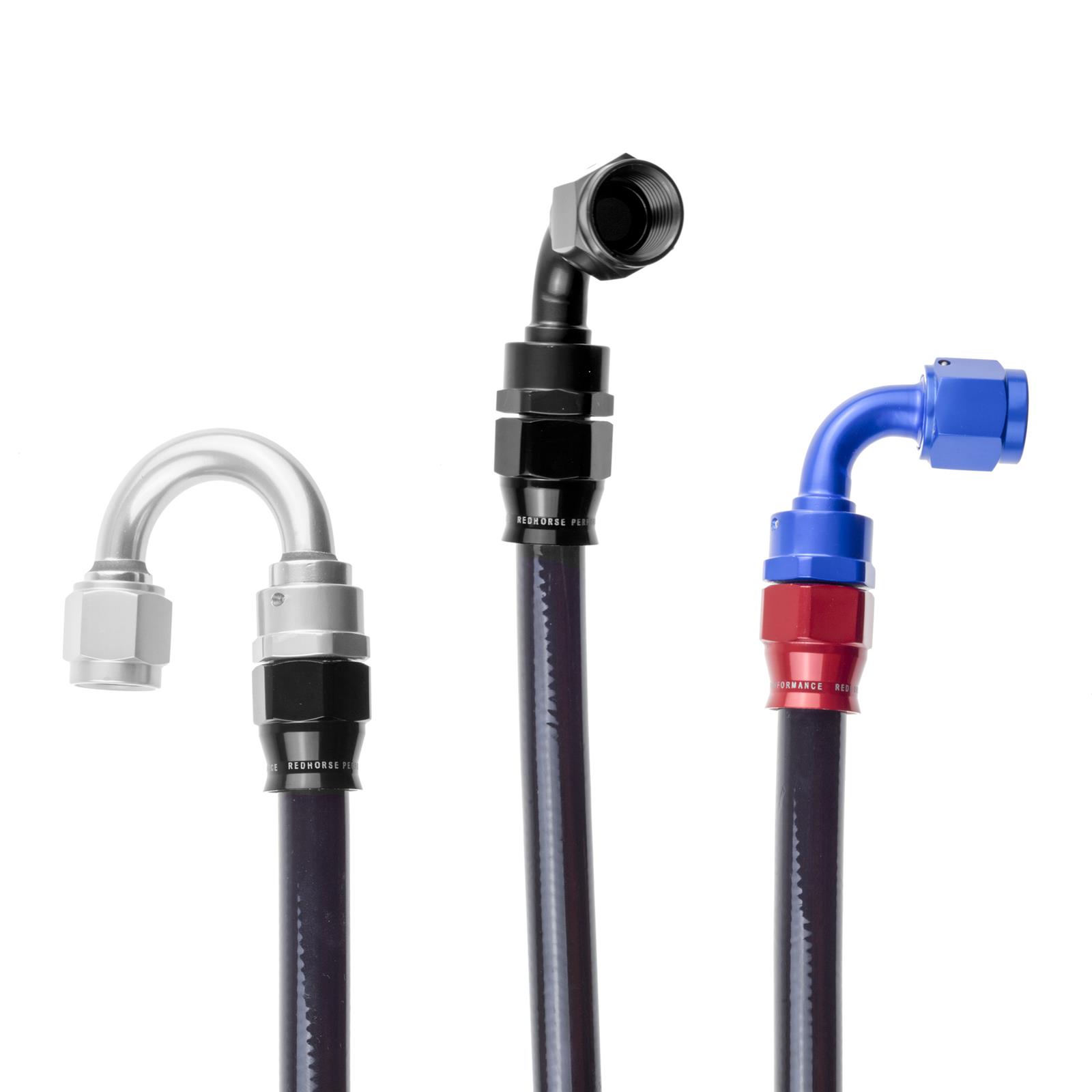

Harness the power of PTFE with Redhorse Performance 302 series PTFE high performance hoses! Engineered for use with RHP's 1200 Series reusable PTFE hose ends, the 302 Series is equipped to handle extremely high-pressure and are fully compatible with all types of fuel. Select the hose diameter and length suited for your application needs.
Features and specs:
* Features a stainless steel weave over a custom-designed smooth bore dual-layer conductive core PTFE inner-tube that eliminates the risk of electro-static discharge
* Available in precut 3 ft., 6 ft., 10 ft., 20 ft., and 50 ft. lengths
* 50 ft. lengths only available in sizes -04 through -10
* NHRA accepted
Part Type
10AN 302 Series PTFE Hose 20ft Black
Specifications
- Product Attributes - Brand
- Redhorse Performance
- Product Attributes - Manufacturer's Part Number
- 302-10-20
- Product Attributes - Part Type
- AN Hose
- Product Attributes - Product Line
- Redhorse Performance 302 Series PTFE Hose
- Product Attributes - UPC
- 848487013775
- Product Attributes - Hose Size
- -10 AN
- Product Attributes - PTFE Lined
- Yes
- Product Attributes - Hose Length (ft.)
- 20.00
- Product Attributes - Outer Material
- Braided stainless steel
- Product Attributes - Hose Color
- Black
- Product Attributes - Hose Material
- PTFE
- Product Attributes - Hose Inside Diameter (in.)
- 0.500 in.
- Product Attributes - Hose Outside Diameter
- 0.681 in.
- Product Attributes - Minimum Recommended Temperature
- -65 degrees F
- Product Attributes - Maximum Recommended Temperature
- 450 degrees F
- Product Attributes - Maximum Operating Pressure (psi)
- 1,500 psi
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Recommended Hose Ends
- Redhorse 1200 Series
Reference Information
| Brand Name/s | Redhorse Performance |
|---|---|
| StreetFX SKU | hse302-10-20 |
| SFX Item ID | 5002714 |
| Supplier Item Code | 5002714 |
| Manufacturer SKU | 302-10-20 |
| Manufacturer UPC | 848487013775 |
| Alternative References | RHP302-10-20 |
