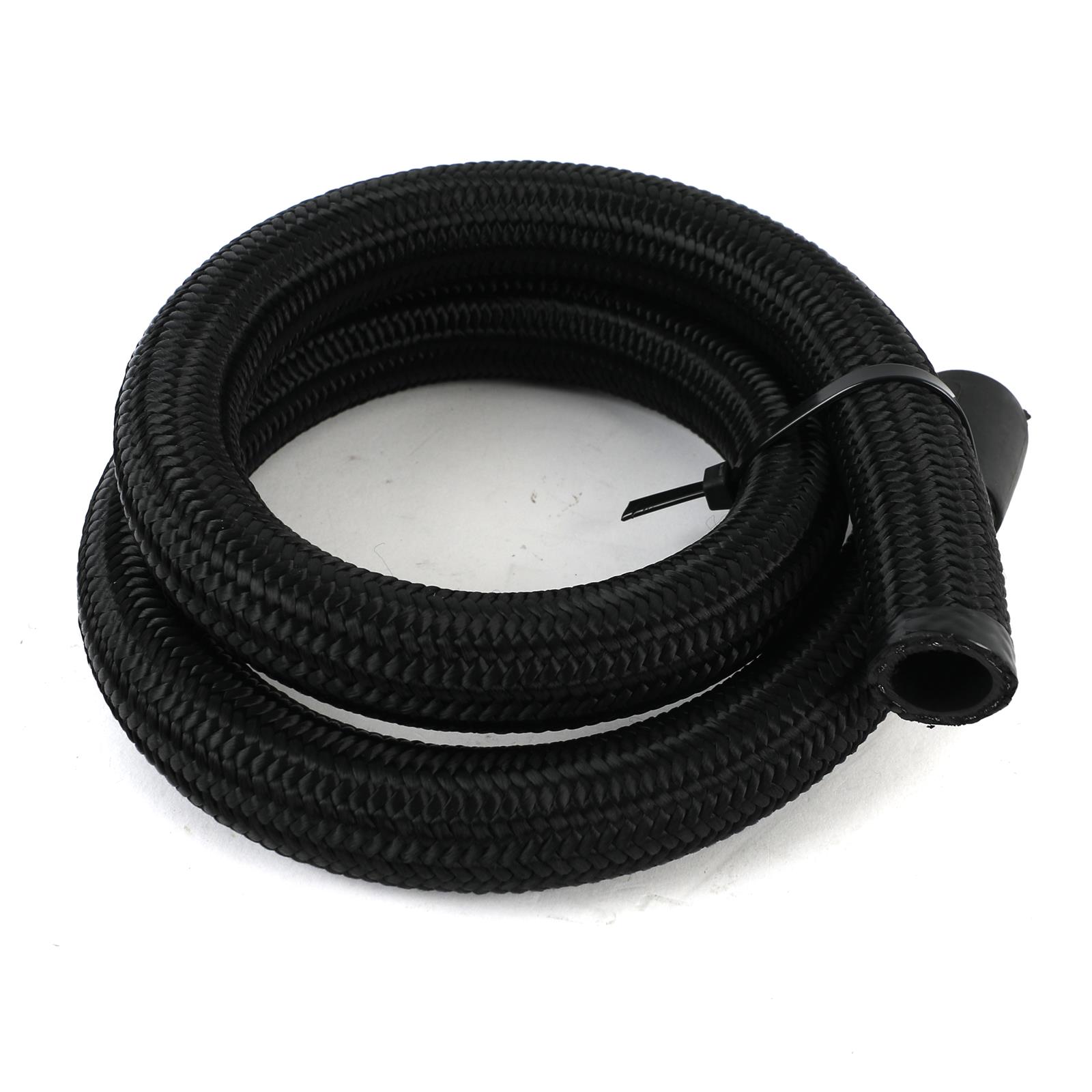

Redhorse Performance 230 Series Black Nylon Braided Hose -12 AN 3 ft. 230-12-3 Hose, Series, Nylon, Black, AN, Length, Each
Redhorse Performance 230 Series Black Nylon Braided Hose -12 AN 3 ft. 230-12-3 Hose, Series, Nylon, Black, AN, Length, Each
A$180.16
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Redhorse Performance 230 Series black nylon braided hose is constructed with a unique half layer of high-quality braided stainless wire hidden beneath. The 230 Series uses a fuel resistant seamless NBR synthetic tube liner and combine that with RHP's industry exclusive bonding process and you have the highest quality nylon braided hose available. With a stainless core you can be assured that this hose gives you the best of both worlds—an aesthetically pleasing hose with protection of stainless, all while providing a pressure rating unsurpassed by the competition. Select the hose diameter and length that you need.
Features and specs:
* Available in precut 3 ft., 6 ft., 10 ft., 20 ft., and 50 ft. lengths
* 50 ft. lengths only available in sizes -04 through -10
* Engineered for use with RHP 1000 Series swivel seal, 6000 Series non-swivel and 7000 Series crimp style hose ends
* NHRA accepted
Important Note: Not designed for use on high pressure power steering lines and is not to be used for high pressure hydraulic applications.
Part Type
12AN Black Hose 3ft
Specifications
- Product Attributes - Brand
- Redhorse Performance
- Product Attributes - Manufacturer's Part Number
- 230-12-3
- Product Attributes - Part Type
- AN Hose
- Product Attributes - Product Line
- Redhorse Performance 230 Series Black Nylon Braided Hose
- Product Attributes - UPC
- 810465019895
- Product Attributes - Hose Size
- -12 AN
- Product Attributes - PTFE Lined
- No
- Product Attributes - Hose Length (ft.)
- 3.00
- Product Attributes - Outer Material
- Braided nylon
- Product Attributes - Hose Color
- Black
- Product Attributes - Hose Material
- Synthetic rubber
- Product Attributes - Hose Inside Diameter (in.)
- 0.688 in.
- Product Attributes - Hose Outside Diameter
- 0.940 in.
- Product Attributes - Minimum Recommended Temperature
- -40 degrees F
- Product Attributes - Maximum Recommended Temperature
- 257 degrees F
- Product Attributes - Maximum Operating Pressure (psi)
- 350 psi
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Fluid Type
- Gasoline
Reference Information
| Brand Name/s | Redhorse Performance |
|---|---|
| StreetFX SKU | hse230-12-3 |
| SFX Item ID | 5002074 |
| Supplier Item Code | 5002074 |
| Manufacturer SKU | 230-12-3 |
| Manufacturer UPC | 810465019895 |
| Alternative References | RHP230-12-3 |
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
