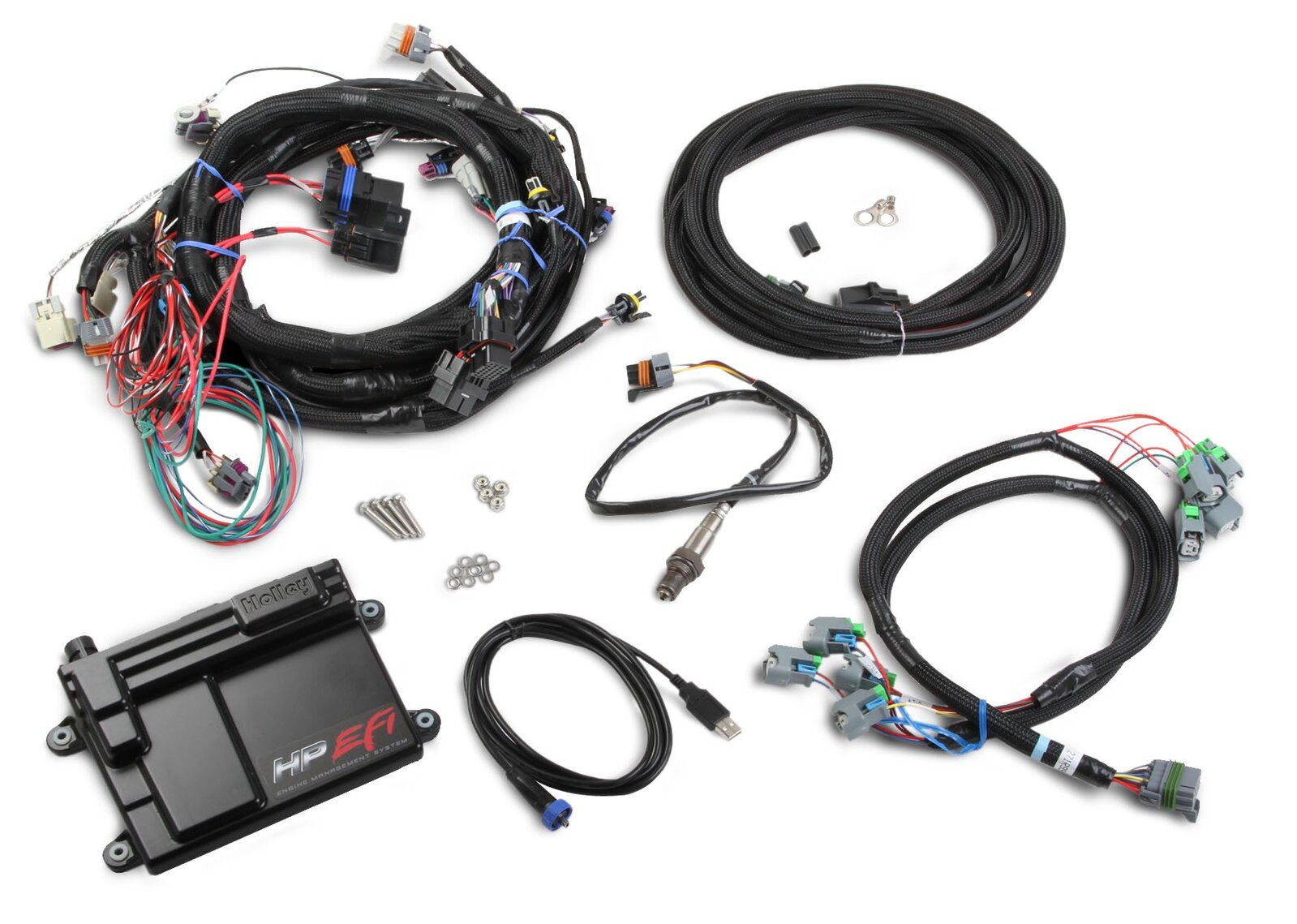

Holley HP EFI ECU and Harness Kits 550-603 Engine Management Systems, EFI, Harness, Up to 16-Injectors, 8-Coils, Four Digital Inputs, GM, LS2, LS7, 58x Crank Sensor, Kit
Holley HP EFI ECU and Harness Kits 550-603 Engine Management Systems, EFI, Harness, Up to 16-Injectors, 8-Coils, Four Digital Inputs, GM, LS2, LS7, 58x Crank Sensor, Kit
A$5,184.81
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Holley HP EFI ECU and harness kits allow you to manage automotive functions—like the fuel and ignition of your engine, along with controlling nitrous, boost, or water/methanol. Select the model with options needed for your vehicle application. (Note: some models are engine-specific.)
Features and notes:
* Eight sequentially driven 8:2 peak and hold injector drivers capable of driving up to 16 low or high-impedance injectors are standard
* 8-channel distributorless ignition (DIS) outputs capable of directly driving "smart" ignition coils or Holley DIS coils
* Integrated, single-channel wideband oxygen sensor control. Works with NTK or Bosch sensors. More channels can be added via CAN bus.
* Internal data-logging is standard, with a huge 2GB of memory
* 4-stage progressive nitrous control
* Turbo boost control
* Integrated water/methanol injection control
* Self-tuning fuel table strategy greatly simplifies tuning process
* Individual cylinder fuel and spark control allow you to unlock your engine's potential
* Compatible with 4, 6, and 8-cylinder engines
* Unique lbs./hr.-based fueling strategy greatly simplifies tuning
* Advanced idle, closed loop, and enrichment strategies allow for very stable operation
* Fully potted and can be mounted in the engine compartment or interior
* Sealed automotive and marine-grade connectors
* Allows for use of common OEM sensors, as well as customer sensor calibration input
* Ignition plug-and-play with GM 24x and 58x LSx engines, GM HEI, Ford TFI, magnetic, and hall effect trigger, and other ignition systems
* 1-5 bar MAP sensor capability
* 2-channel knock control sensor inputs for both one and 2-wire knock sensors
* Dedicated fuel and oil pressure inputs
* Control both stepper and PWM idle air control (IAC) motors
* Speed density, Alpha-N, or combination fueling strategies
* Four programmable high or low pulse width modulated (PWM) outputs and four fully configurable inputs can be configured for use
* Lean or rich safety cutoff
Part Type
ECU & Wiring Harness LS2
Specifications
- Product Attributes - Brand
- Holley
- Product Attributes - Manufacturer's Part Number
- 550-603
- Product Attributes - Part Type
- Engine Management Systems
- Product Attributes - Product Line
- Holley HP EFI ECU and Harness Kits
- Product Attributes - UPC
- 090127666937
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Boost Control
- Yes
- Product Attributes - Traction Control
- Yes
- Product Attributes - High Impedence Injectors
- Up to 16
- Product Attributes - Low Impedence Injectors
- Up to 16
- Product Attributes - Fuel Injector Connector Style
- USCAR/EV6
- Product Attributes - Coils
- Up to 8
- Product Attributes - Digital Inputs
- 4
- Product Attributes - Wideband Controller
- Yes
- Product Attributes - Wideband Channels
- 1
- Product Attributes - CANBUS Enabled
- Yes
- Product Attributes - CANBUS Networks
- 1
- Product Attributes - Knock Control
- Yes
- Product Attributes - Knock Channels
- 2
- Product Attributes - Drive-By-Wire Capable
- No
- Product Attributes - VVT Control
- No
- Product Attributes - Nitrous Control
- Yes
- Product Attributes - Launch Control
- No
- Product Attributes - Engine Protection
- Yes
- Product Attributes - Flex Fuel Compatible
- No
- Product Attributes - Multi-fuel Capable
- No
- Product Attributes - Data Logger
- Yes
- Product Attributes - Oxygen Sensor Included
- Yes
- Product Attributes - Reluctor Wheel Tooth Quantity
- 58
- Product Attributes - Display Included
- No
- Product Attributes - Handheld Controller Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed for use with GM LS2/LS3 and LS7 engines with 58x crank sensor, re-use factory GM ignition coil harnesses.
Reference Information
| Brand Name/s | Holley |
|---|---|
| StreetFX SKU | hly550-603 |
| SFX Item ID | 4784612 |
| Supplier Item Code | 4784612 |
| Manufacturer SKU | 550-603 |
| Manufacturer UPC | 90127666937 |
| Alternative References | HOL550-603, 16-Injectors, 8-Coils, LS2, LS7, 58x |
