On sale

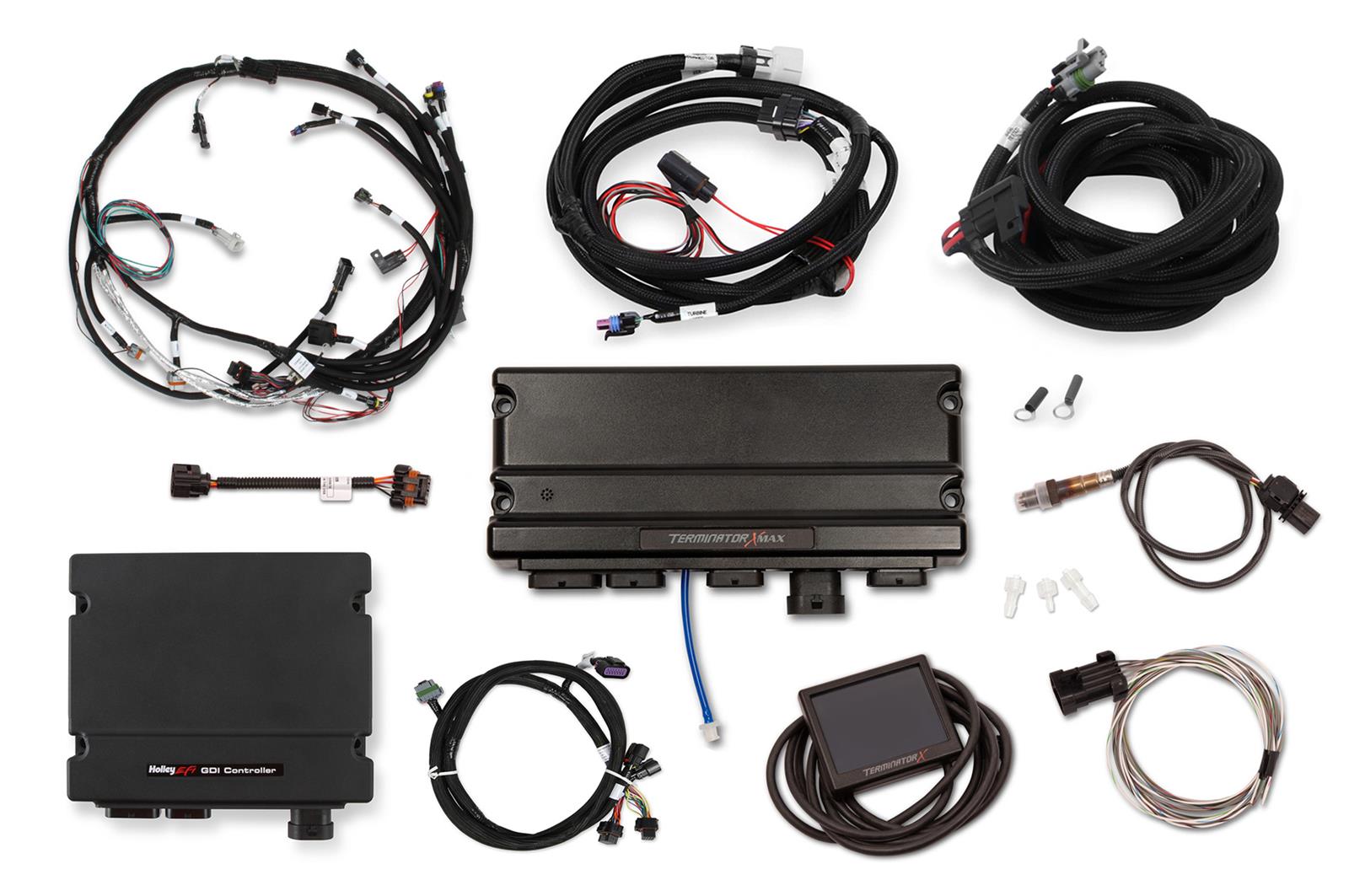

Holley Terminator X MAX Engine Management Systems 550-1610 Systems, MAX, 8-Injectors, 8-Coils, Plug-and-Play, LT, Trans Control, Chevy, Early LT, 5.3L, 6.2L, Kit
Holley Terminator X MAX Engine Management Systems 550-1610 Systems, MAX, 8-Injectors, 8-Coils, Plug-and-Play, LT, Trans Control, Chevy, Early LT, 5.3L, 6.2L, Kit
A$6,639.30
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Holley Terminator X MAX engine management systems let you take control of your domestic V8 engine. They give you complete charge of your engine and self-learning fuel strategies, along with the proven, race-winning technology of Holley EFI—all at a budget-friendly price! Every MPFI Terminator X MAX features real-time fuel learn, high-impedance injector drivers, an integrated one-bar MAP sensor—and four programmable inputs and outputs, ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Also, Holley offers the X MAX systems with either or both drive-by-wire (DBW) throttle body control or transmission control. All kits come fully loaded with base maps for common domestic V8 engine combinations to get you out of the garage and onto the road or track fast. Order the model recommended for your vehicle application.
Features include:
* Holley EFI industry-leading, easy-to-use software suite allows full laptop access for advanced users
* Real-time fuel map learn—takes the guesswork out of tuning your base fuel table
* High-impedance injector drivers will safely power most standard injectors and Holley EFI injectors (will not control low-impedance injectors)
* Bosch LSU 4.9 wideband relays AFR information to the ECU for accurate reading and precise tuning control
* On-board one-bar MAP sensor is perfect for N/A or nitrous engine combos
* MAP sensor vacuum hose adapters
* 4 inputs: 12 V, ground, 5 V, and frequency
* 4 outputs: Ground, PWM, and for accessories
* Boost control: boost vs. time, boost vs. gear, boost vs. rpm, boost vs. speed, and boost safeties
* Nitrous control: single channel of wet or dry, progressive or non-progressive, rich/lean safeties, and target closed loop AFR; adjustable through touch screen
* Advanced tables can be used for any custom tables
* On-board diagnostic LEDs allow you to identify any critical engine issues at a glance
* The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDs must face up!
* Plug-and-play compatible with more Holley EFI accessories
* Available with or without a 3.5 in. touch screen LCD hand-held with easy-to-use calibration wizard; allows you to quickly build a base tune for most V8 engines, as well as tuning and gauge display functions
Part Type
Engine Management Systems
Specifications
- Product Attributes - Brand
- Holley
- Product Attributes - Manufacturer's Part Number
- 550-1610
- Product Attributes - Part Type
- Engine Management Systems
- Product Attributes - Product Line
- Holley Terminator X MAX Engine Management Systems
- Product Attributes - UPC
- 090127101902
- Product Attributes - Transmission Controller Included
- Yes
- Product Attributes - Boost Control
- Yes
- Product Attributes - Traction Control
- No
- Product Attributes - High Impedence Injectors
- Up to 8
- Product Attributes - Fuel Injector Connector Style
- USCAR/EV6
- Product Attributes - Coils
- Up to 8
- Product Attributes - Ignition Coil Connector
- GM LS/LT 4-pin
- Product Attributes - Analog Inputs
- 4
- Product Attributes - Wideband Controller
- Yes
- Product Attributes - Wideband Channels
- 1
- Product Attributes - CANBUS Enabled
- Yes
- Product Attributes - CANBUS Networks
- 1
- Product Attributes - Knock Control
- Yes
- Product Attributes - Knock Channels
- 2
- Product Attributes - Drive-By-Wire Capable
- No
- Product Attributes - VVT Control
- Yes
- Product Attributes - VVT Channels
- 1
- Product Attributes - Nitrous Control
- Yes
- Product Attributes - Launch Control
- No
- Product Attributes - Engine Protection
- Yes
- Product Attributes - Flex Fuel Compatible
- Yes
- Product Attributes - Multi-fuel Capable
- No
- Product Attributes - Data Logger
- Yes
- Product Attributes - Oxygen Sensor Included
- Yes
- Product Attributes - Reluctor Wheel Tooth Quantity
- 58
- Product Attributes - Display Included
- Yes
- Product Attributes - Handheld Controller Included
- Yes
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Fits early direct injection engines.
Reference Information
| Brand Name/s | Holley |
|---|---|
| StreetFX SKU | hly550-1610 |
| SFX Item ID | 4784210 |
| Supplier Item Code | 4784210 |
| Manufacturer SKU | 550-1610 |
| Manufacturer UPC | 90127101902 |
| Alternative References | HOL550-1610, 8-Injectors, 8-Coils, 5.3L, 6.2L |
