On sale
Holley Terminator X Stealth 4500 2x4 EFI Fuel Injection Systems 550-1081 Systems, X, 4500, EFI, Eight Injector, Dual Throttle Body, Speed Density, Aluminum, Black, Tunable, Kit
Holley Terminator X Stealth 4500 2x4 EFI Fuel Injection Systems 550-1081 Systems, X, 4500, EFI, Eight Injector, Dual Throttle Body, Speed Density, Aluminum, Black, Tunable, Kit
A$7,918.38
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Holley Terminator X Stealth 4500 2x4 EFI fuel injection systems feature eight 100lb./hr. fuel injectors capable of supporting up to 1,500 hp naturally aspirated or 1,250 hp on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower. Holley Terminator X Stealth EFI systems are designed to fit with Gen 3 Ultra Dominator air cleaners and fuel crossovers, allowing you to easily convert your 4500 equipped 800+ hp dragster or door car!
Features:

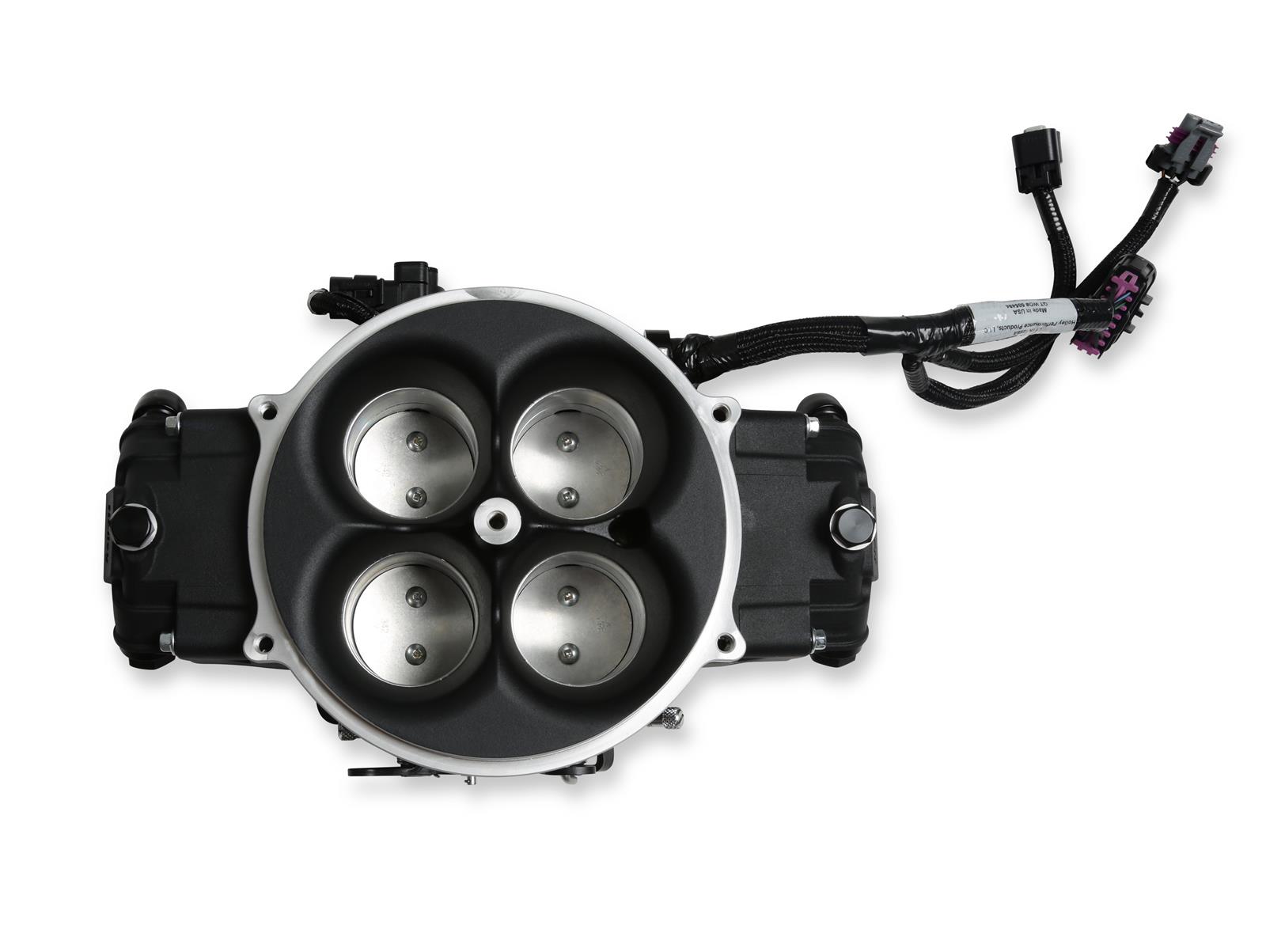

* Bolt-on 4500 flange carburetor replacement for 2x4 intake manifolds
* 2.125 in. throttle plates flow 1,440 cfm each for large cubic inch engines
* Gen 3 Ultra Dominator-style 4-bolt air cleaner flange offering many air cleaner options

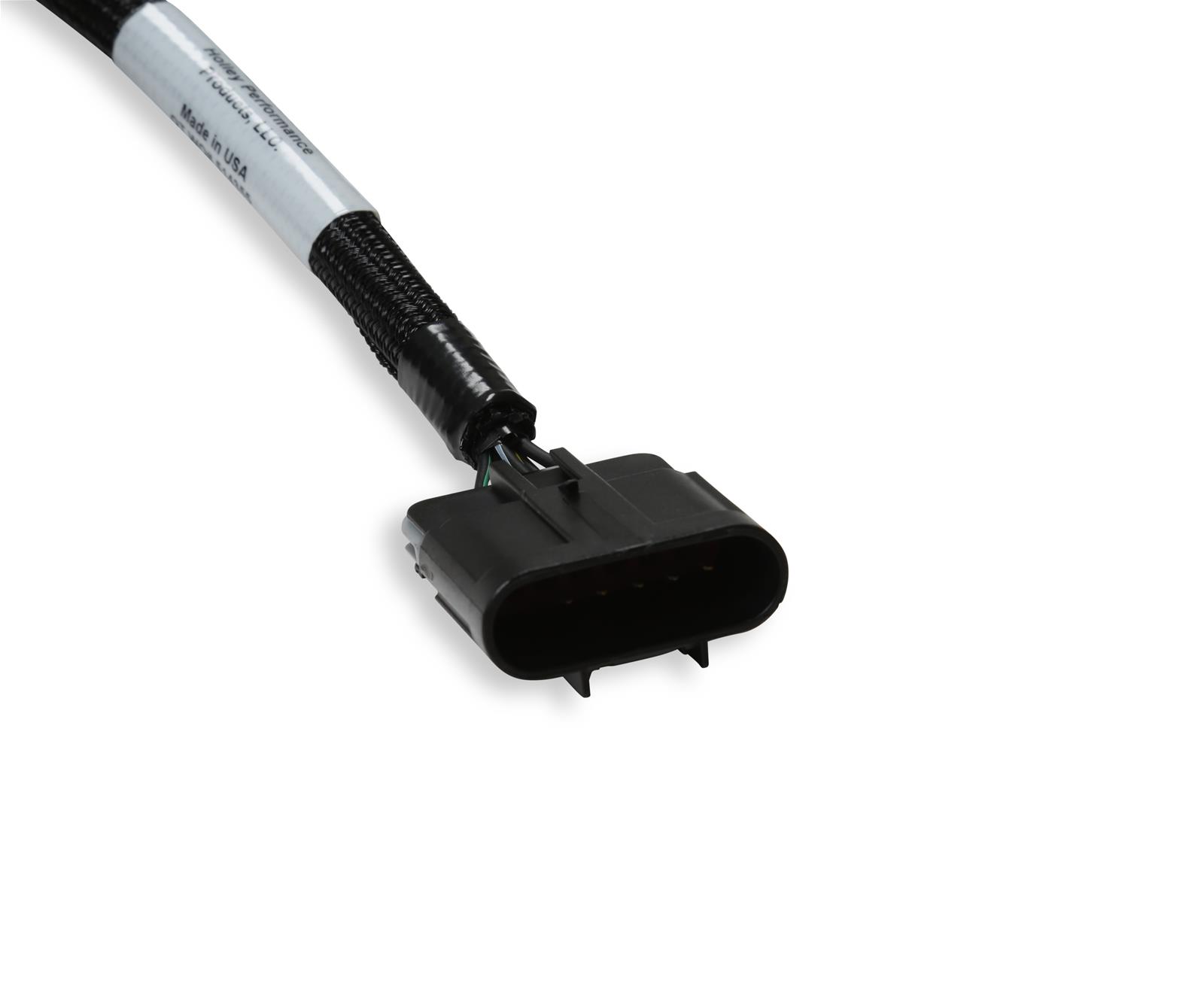

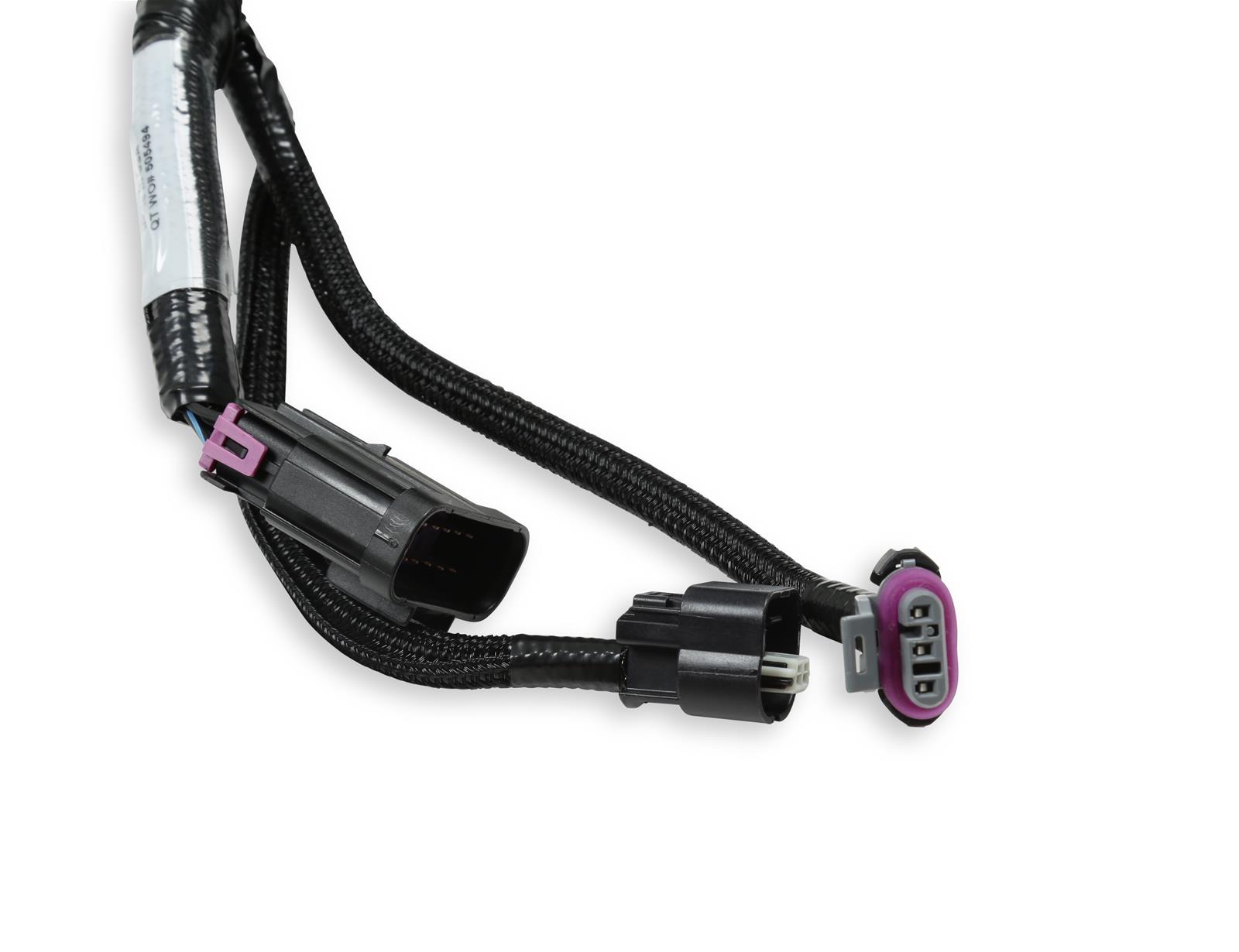

* Universal engine harness allows you to easily install the Terminator X 2x4 4500 system on a wide variety of engine combinations
* Timing control support integrated within the ECU using supporting components
* High-resolution, full-color touch screen for initial setup, tuning, and gauge displays
* Simple Calibration Wizard--laptop not required
* Self-tuning ECU means you don't have to be a computer/tuning wiz to have EFI
* The included genuine Bosch LSU 4.9 wideband oxygen sensor provides real-time Fuel Map Learn
* Weld-in oxygen sensor bung for the exhaust ensures a leak-free installation
* Plug-and-play with Holley EFI accessories (Pro Dash; CAN EGT; and Digital Analog-style EFI gauges)
* Available in two finishes, Shiny and Black
Part Type
Fuel Injection Systems
Specifications
- Product Attributes - Brand
- Holley
- Product Attributes - Manufacturer's Part Number
- 550-1081
- Product Attributes - Part Type
- Fuel Injection Systems
- Product Attributes - Product Line
- Holley Terminator X Stealth 4500 2x4 EFI Fuel Injection Systems
- Product Attributes - UPC
- 090127130247
- Product Attributes - Fuel Injection Style
- Throttle body
- Product Attributes - Fuel Injection System Type
- Dual 4-Barrel Throttle Bodies (4500 Flange)
- Product Attributes - Maximum Horsepower with Gas
- 1,500
- Product Attributes - Timing Control Compatible
- Yes
- Product Attributes - ECM Included
- Yes
- Product Attributes - Self Tuning
- Yes
- Product Attributes - User Tunable
- Yes
- Product Attributes - Fuel System Included
- None
- Product Attributes - Ignition System Included
- None
- Product Attributes - Power Distribution Included
- None
- Product Attributes - User Interface Included
- 3.5 in. display
- Product Attributes - EGR
- No
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Metering Style
- Speed density
- Product Attributes - Multi-Port Fuel Rails Included
- No
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Throttle Body Mounting Flange
- 4-barrel square bore
- Product Attributes - Venturi Quantity
- 8
- Product Attributes - Venturi Diameter (mm)
- 53.98mm
- Product Attributes - Airflow Rate (cfm)
- 2,880 cfm
- Product Attributes - Throttle Body Material
- Cast aluminum
- Product Attributes - Throttle Body Color
- Black
- Product Attributes - Injectors Included
- Yes
- Product Attributes - Injector Size (lbs/hr)
- 100 lbs./hr.
- Product Attributes - Calibration Module Included
- Yes
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Oxygen Sensor Included
- Yes
- Product Attributes - Fuel Pressure Regulator Included
- No
- Product Attributes - MAP Sensor Included
- Yes
- Product Attributes - IAT Sensor Included
- Yes
- Product Attributes - TPS Sensor Included
- Yes
- Product Attributes - IAC Motor Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- External fuel pressure regulator required, set to a base pressure of 58.5 psi.
- Product Attributes - Special Attention
- Two throttle body system supports up to 1,250 hp on forced induction applications.
Reference Information
| Brand Name/s | Holley |
|---|---|
| StreetFX SKU | hly550-1081 |
| SFX Item ID | 4783889 |
| Supplier Item Code | 4783889 |
| Manufacturer SKU | 550-1081 |
| Manufacturer UPC | 90127130247 |
| Alternative References | HOL550-1081, 2x4 |
