Holley Retrofit Engine Oil Pans for GM LS Engines 302-5 Pans, Retrofit, Swap, Rear Sump, Wet Style, 5.6 Quarts, Aluminum, Natural, Buick, Chevy, Ford, GMC, Mercury, Oldsmobile, Pontiac, Each
Holley Retrofit Engine Oil Pans for GM LS Engines 302-5 Pans, Retrofit, Swap, Rear Sump, Wet Style, 5.6 Quarts, Aluminum, Natural, Buick, Chevy, Ford, GMC, Mercury, Oldsmobile, Pontiac, Each
A$1,291.85
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

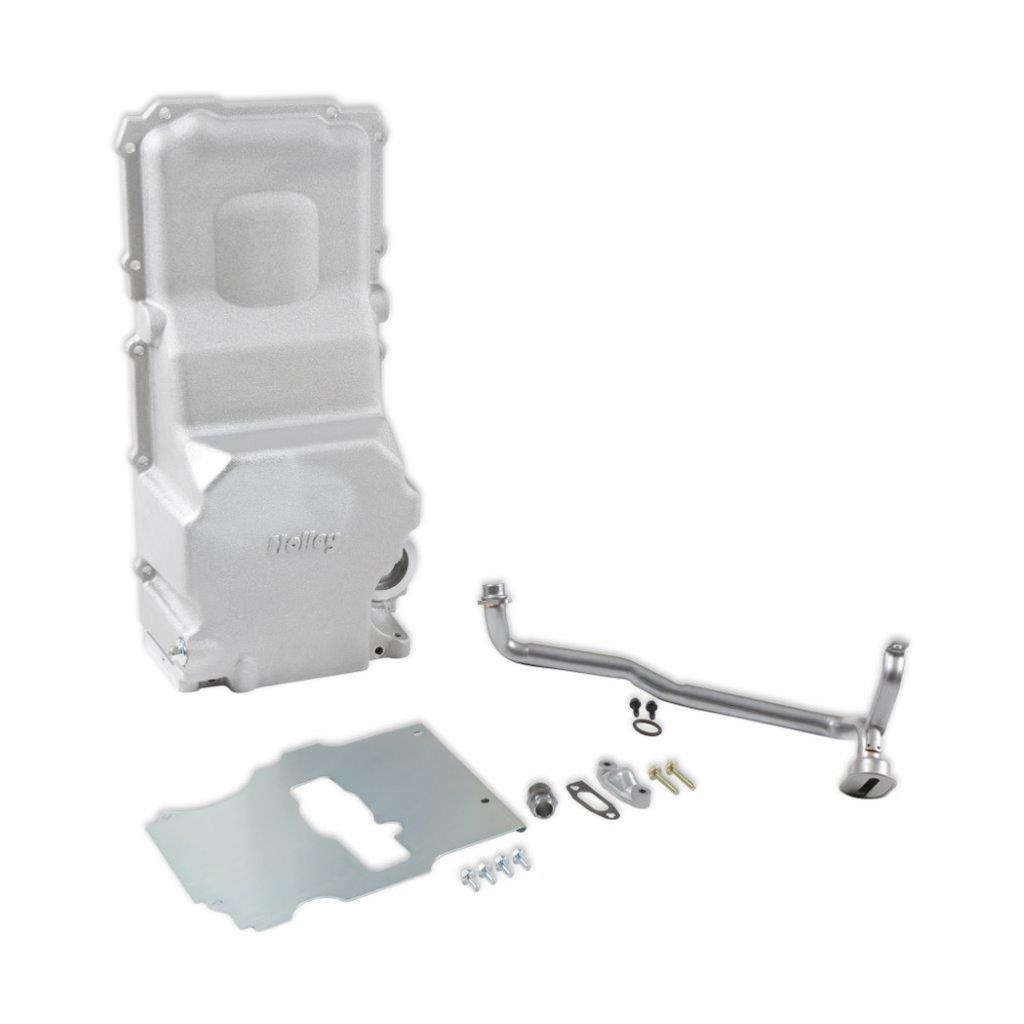

Holley retrofit engine oil pans for GM LS engines are designed to install an LS engine in a variety of GM muscle car and truck chassis. They provide OEM fitment, OEM oil filter mounting, OEM oil cooler port provision, OEM engine NVH suppression, OEM flange gasket and sealing, proper structural rigidity, and OEM bellhousing attachments. The oil pans are manufactured from traditional high-quality cast aluminum and include a sump baffle, oil pump pickup tube, sump plug, oil filter stud, and oil passage cover.
Part Type
5.6qt Cast Alm Oil Pan Kit GM LS Engine Swap
Specifications
- Product Attributes - Brand
- Holley
- Product Attributes - Manufacturer's Part Number
- 302-5
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Holley Retrofit Engine Oil Pans for GM LS Engines
- Product Attributes - UPC
- 090127139301
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Street/Strip
- Product Attributes - Sump Location
- Rear
- Product Attributes - Oil Pan Capacity
- 5.60 quarts
- Product Attributes - Stroker Clearanced
- No
- Product Attributes - Maximum Stroke with OE Rod
- 4.000 in.
- Product Attributes - Dipstick Provision
- No
- Product Attributes - Dipstick Included
- No
- Product Attributes - Oil Pan Material
- Aluminum
- Product Attributes - Oil Pan Color
- Natural
- Product Attributes - Baffled
- No
- Product Attributes - Kicked Out
- No
- Product Attributes - Windage Tray Included
- No
- Product Attributes - Pickup Included
- Yes
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- This pan is designed for naturally aspirated engines and is similar to Holley 302-3 but with no turbo oil drain back holes and plugs. Requires use of Holley 302-15 dipstick and tube kit or LS3 style and is designed to use GM 12558253 F-body windage tray with some modifications.
Reference Information
| Brand Name/s | Holley |
|---|---|
| StreetFX SKU | hly302-5 |
| SFX Item ID | 4783296 |
| Supplier Item Code | 4783296 |
| Manufacturer SKU | 302-5 |
| Manufacturer UPC | 90127139301 |
| Alternative References | HOL302-5 |
