Holley

Holley Retrofit Engine Oil Pans for GM LS Engines 302-4 Pans, Retrofit, Swap, Rear Sump, Wet Style, 5.6 Quarts, Aluminum, Natural Finish, Chevy, GMC, 4.8L, 5.3L, 5.7L, 6.0L, 6.2L, 7.0L, Each

SKU: HLY302-4

Oil Pans
Holley Retrofit Engine Oil Pans for GM LS Engines 302-4 Pans, Retrofit, Swap, Rear Sump, Wet Style, 5.6 Quarts, Aluminum, Natural Finish, Chevy, GMC, 4.8L, 5.3L, 5.7L, 6.0L, 6.2L, 7.0L, Each

Holley

Holley Retrofit Engine Oil Pans for GM LS Engines 302-4 Pans, Retrofit, Swap, Rear Sump, Wet Style, 5.6 Quarts, Aluminum, Natural Finish, Chevy, GMC, 4.8L, 5.3L, 5.7L, 6.0L, 6.2L, 7.0L, Each

SKU: HLY302-4

Oil Pans
A$1,157.96
LOW STOCK! Est Ship 4-7 days. HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

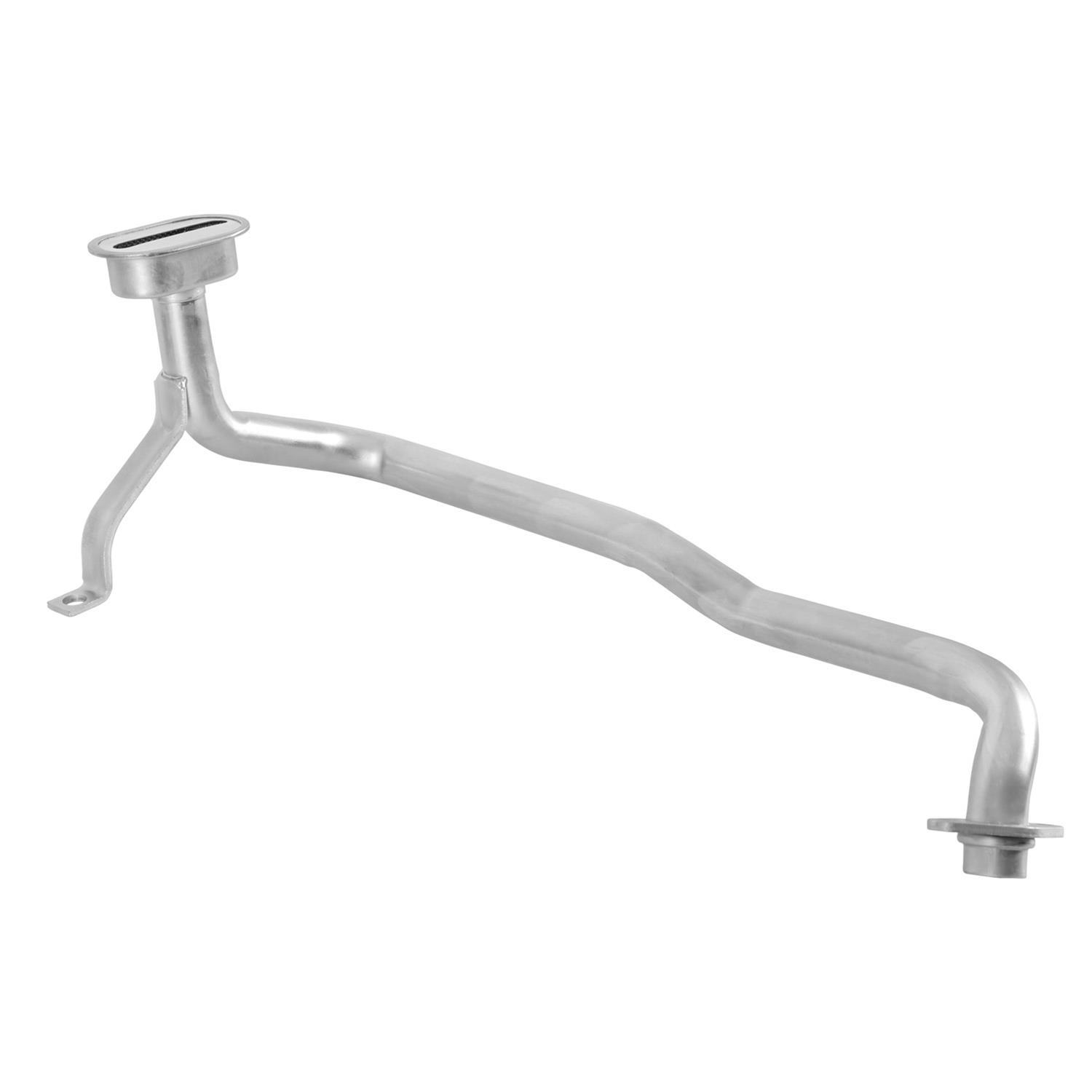

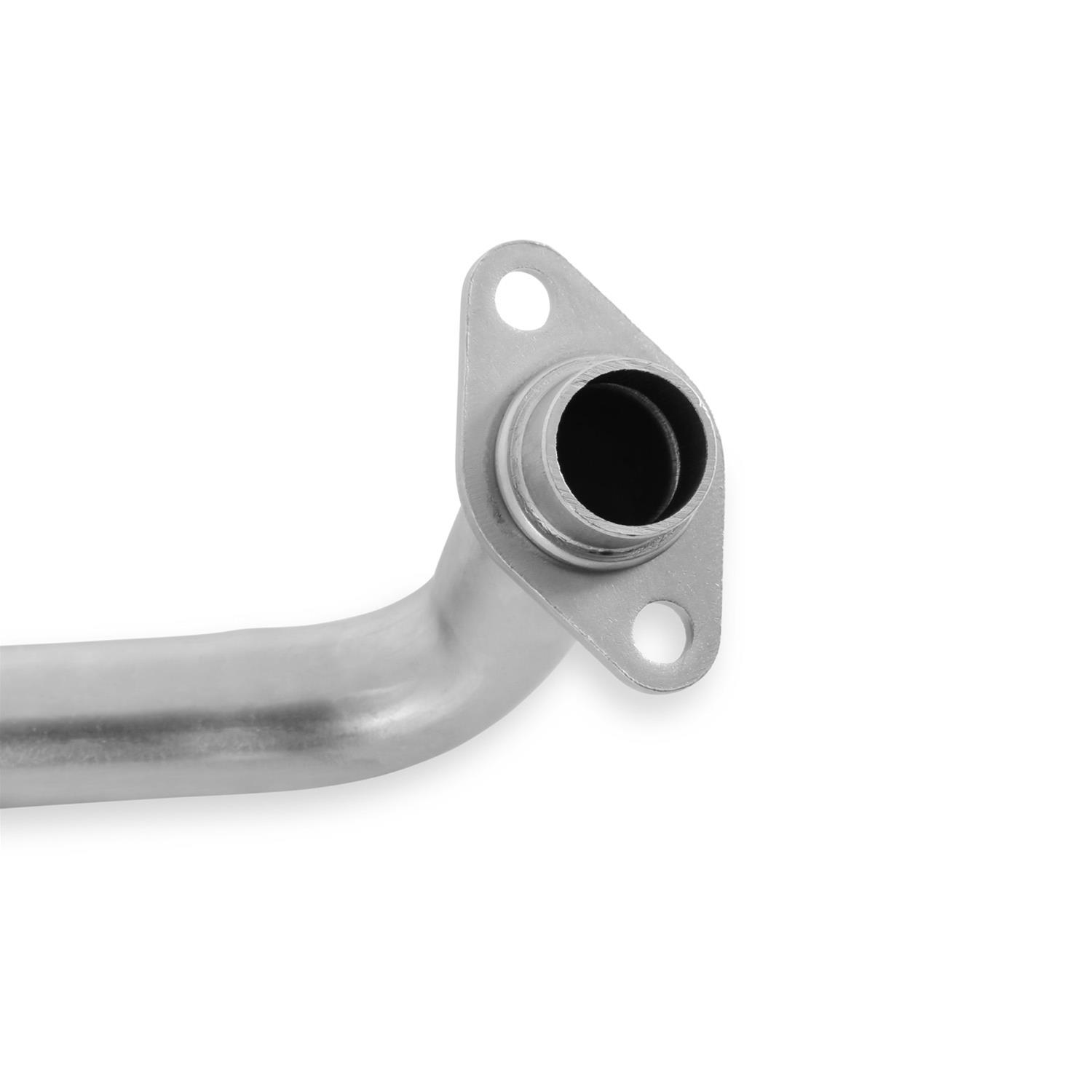

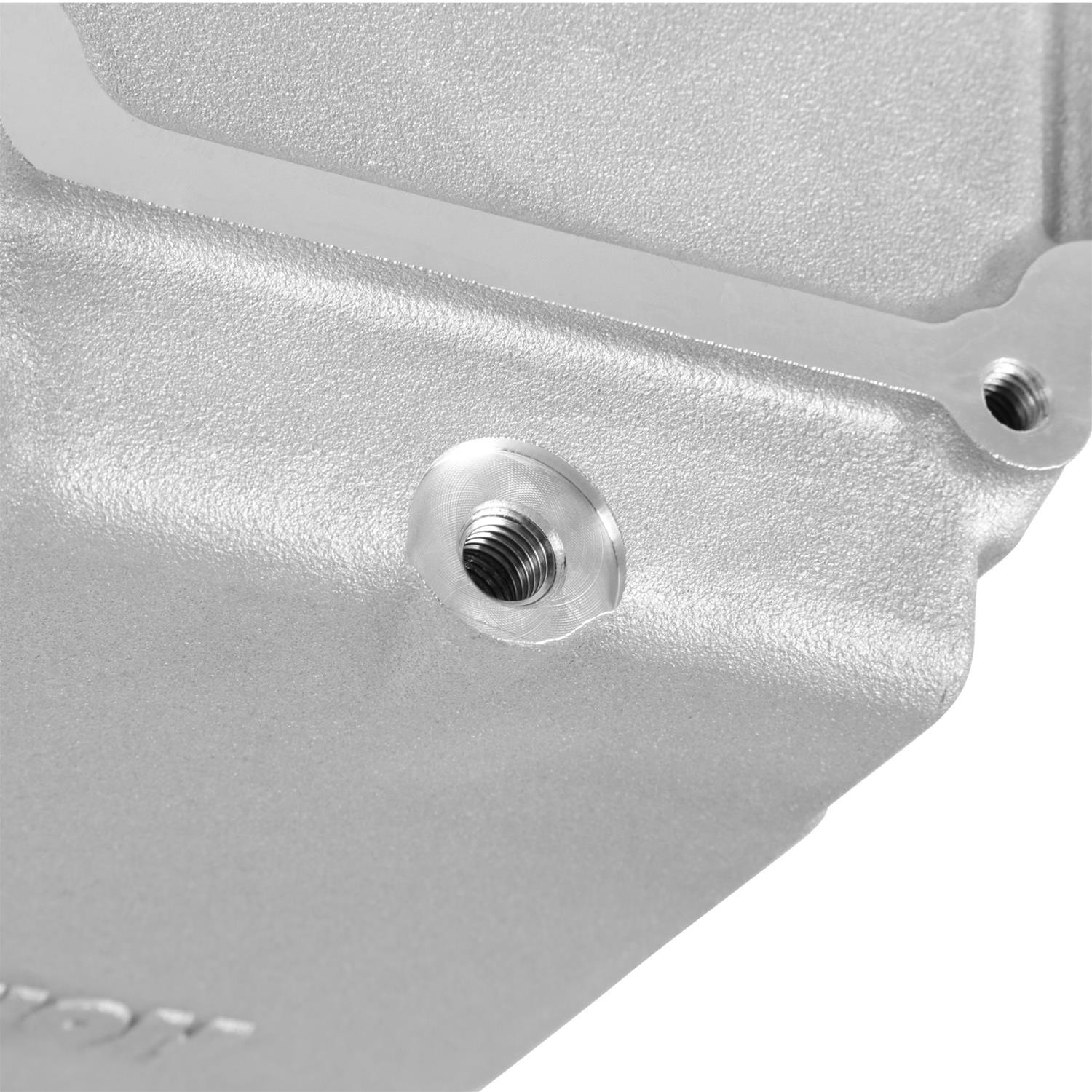

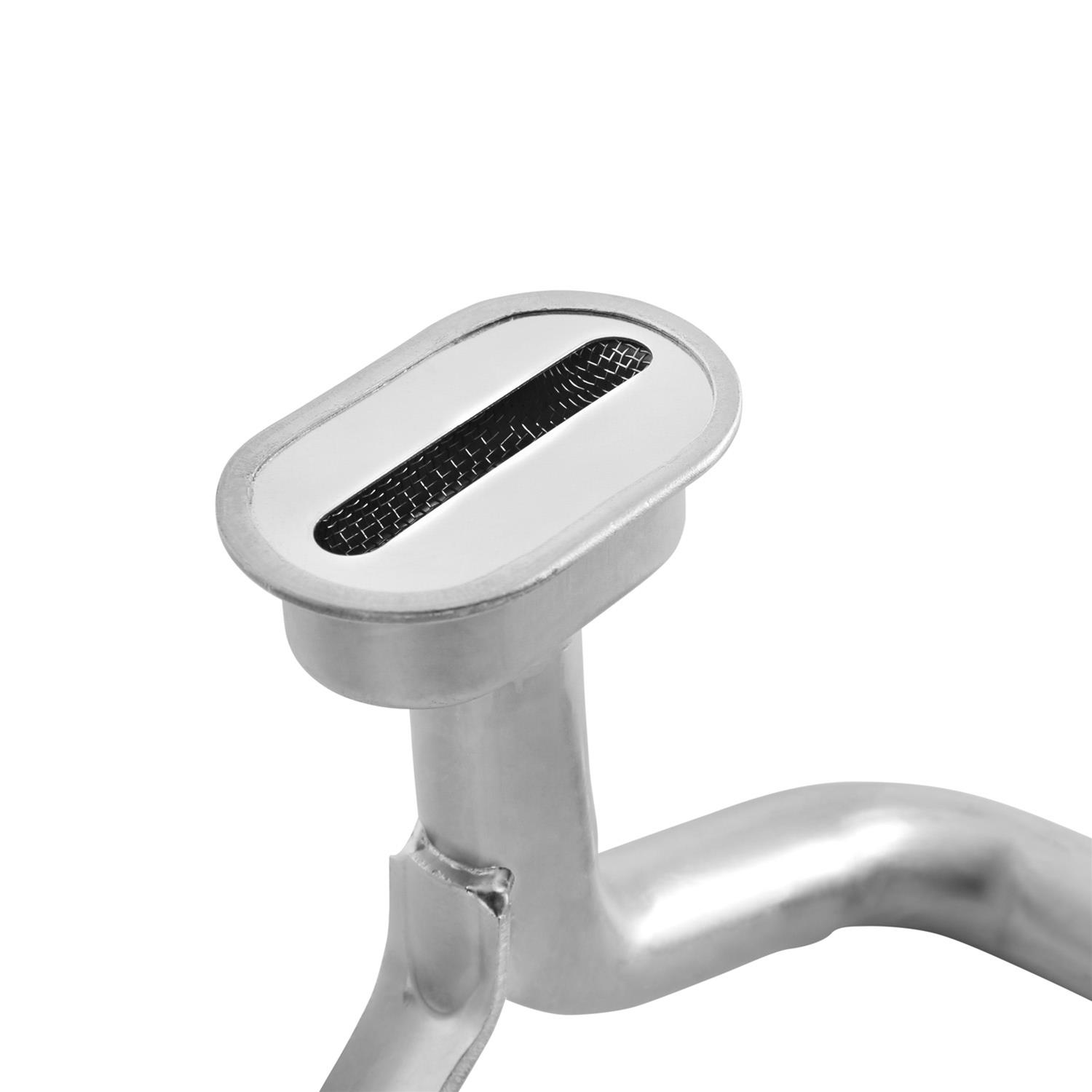

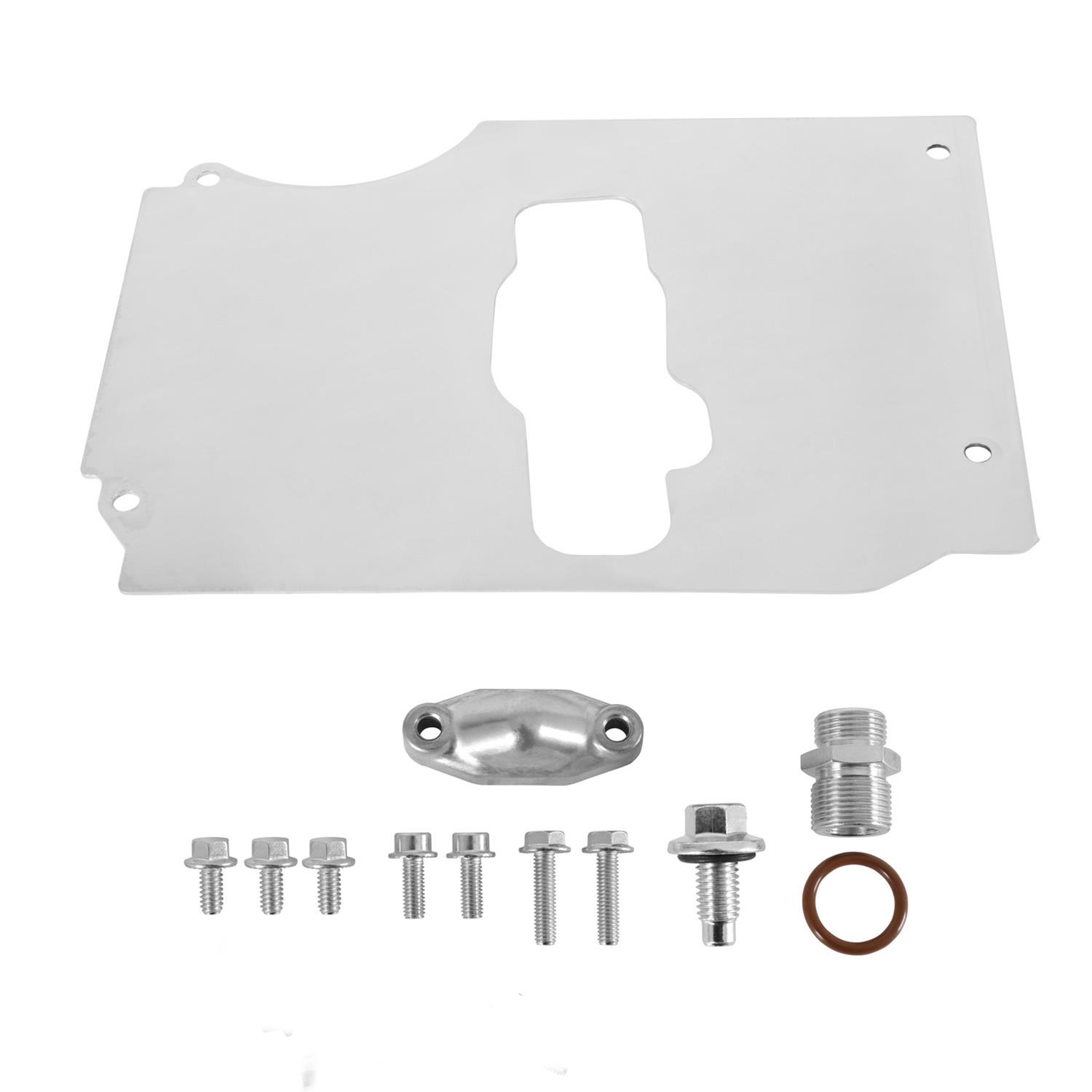

Holley retrofit engine oil pans for GM LS engines are designed to install an LS engine in a variety of GM muscle car and truck chassis. They provide OEM fitment, OEM oil filter mounting, OEM oil cooler port provision, OEM engine NVH suppression, OEM flange gasket and sealing, proper structural rigidity, and OEM bellhousing attachments. The oil pans are manufactured from traditional high-quality cast aluminum and include a sump baffle, oil pump pickup tube, sump plug, oil filter stud, and oil passage cover.

Part Type

Off-Road 4x4 Truck Oil Pan GM LS Engine Swap

Data: v4.2 - Upd: 2026-10-15 03:09:36

Specifications

Product Attributes - Brand
Holley
Product Attributes - Manufacturer's Part Number
302-4
Product Attributes - Part Type
Oil Pans
Product Attributes - Product Line
Holley Retrofit Engine Oil Pans for GM LS Engines
Product Attributes - UPC
090127616413
Product Attributes - Sump Style
Wet
Product Attributes - Oil Pan Style
Off-Road
Product Attributes - Rear Main Seal Style
1-piece
Product Attributes - Sump Location
Rear
Product Attributes - Oil Pan Capacity
5.60 quarts
Product Attributes - Stroker Clearanced
Yes
Product Attributes - Maximum Stroke with OE Rod
4.000 in.
Product Attributes - Dipstick Provision
No
Product Attributes - Dipstick Included
No
Product Attributes - Oil Pan Material
Aluminum
Product Attributes - Oil Pan Color
Natural
Product Attributes - Baffled
Yes
Product Attributes - Kicked Out
No
Product Attributes - Windage Tray Included
No
Product Attributes - Pickup Included
Yes
Product Attributes - Oil Pump Included
No
Product Attributes - Oil Pump Driveshaft Included
No
Product Attributes - Crank Scraper Included
No
Product Attributes - Gaskets Included
No
Product Attributes - Hardware Included
Yes
Product Attributes - Quantity
Sold individually.

Reference Information

Brand Name/s Holley
StreetFX SKU hly302-4
SFX Item ID 4782485
Supplier Item Code 4782485
Manufacturer SKU 302-4
Manufacturer UPC 90127616413
Alternative References HOL302-4, 4.8L, 5.3L, 5.7L, 6.0L, 6.2L

Compatibility

Application Data
  • MakeGMC
    ModelK35
    Beginning Year1977
    Ending Year1978
    Engine TypeV8
    Engine Size7.0L/427
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelK35
    Beginning Year1977
    Ending Year1978
    Engine TypeV8
    Engine Size4.8L/294
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelK35
    Beginning Year1977
    Ending Year1978
    Engine TypeV8
    Engine Size5.3L/325
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelK35
    Beginning Year1977
    Ending Year1978
    Engine TypeV8
    Engine Size5.7L/350
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelK35
    Beginning Year1977
    Ending Year1978
    Engine TypeV8
    Engine Size6.0L/364
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelV1500 SUBURBAN
    Beginning Year1979
    Ending Year1978
    Engine TypeV8
    Engine Size6.2L/376
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelV1500 SUBURBAN
    Beginning Year1975
    Ending Year1978
    Engine TypeV8
    Engine Size7.0L/427
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelV1500 SUBURBAN
    Beginning Year1975
    Ending Year1978
    Engine TypeV8
    Engine Size4.8L/294
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelV1500 SUBURBAN
    Beginning Year1975
    Ending Year1978
    Engine TypeV8
    Engine Size5.3L/325
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelV1500 SUBURBAN
    Beginning Year1975
    Ending Year1978
    Engine TypeV8
    Engine Size5.7L/350
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelV1500 SUBURBAN
    Beginning Year1975
    Ending Year1978
    Engine TypeV8
    Engine Size6.0L/364
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelV2500 SUBURBAN
    Beginning Year1975
    Ending Year1978
    Engine TypeV8
    Engine Size6.2L/376
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelV2500 SUBURBAN
    Beginning Year1979
    Ending Year1974
    Engine TypeV8
    Engine Size7.0L/427
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelV2500 SUBURBAN
    Beginning Year1979
    Ending Year1974
    Engine TypeV8
    Engine Size4.8L/294
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelV2500 SUBURBAN
    Beginning Year1979
    Ending Year1974
    Engine TypeV8
    Engine Size5.3L/325
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelV2500 SUBURBAN
    Beginning Year1979
    Ending Year1978
    Engine TypeV8
    Engine Size5.7L/350
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelV2500 SUBURBAN
    Beginning Year1979
    Ending Year1978
    Engine TypeV8
    Engine Size6.0L/364
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelV3500
    Beginning Year1979
    Ending Year1978
    Engine TypeV8
    Engine Size6.2L/376
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelV3500
    Beginning Year1979
    Ending Year1978
    Engine TypeV8
    Engine Size7.0L/427
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelV3500
    Beginning Year1979
    Ending Year1978
    Engine TypeV8
    Engine Size4.8L/294
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelV3500
    Beginning Year1979
    Ending Year1978
    Engine TypeV8
    Engine Size5.3L/325
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelV3500
    Beginning Year1979
    Ending Year1978
    Engine TypeV8
    Engine Size5.7L/350
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelV3500
    Beginning Year1979
    Ending Year1978
    Engine TypeV8
    Engine Size6.0L/364
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelK3500
    Beginning Year1979
    Ending Year1978
    Engine TypeV8
    Engine Size6.2L/376
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
  • MakeGMC
    ModelK35
    Beginning Year1977
    Ending Year1978
    Engine TypeV8
    Engine Size7.0L/427
    Drivetrain4WD
    Engine FamilyChevy small block Gen III/IV (LS-based engines)
