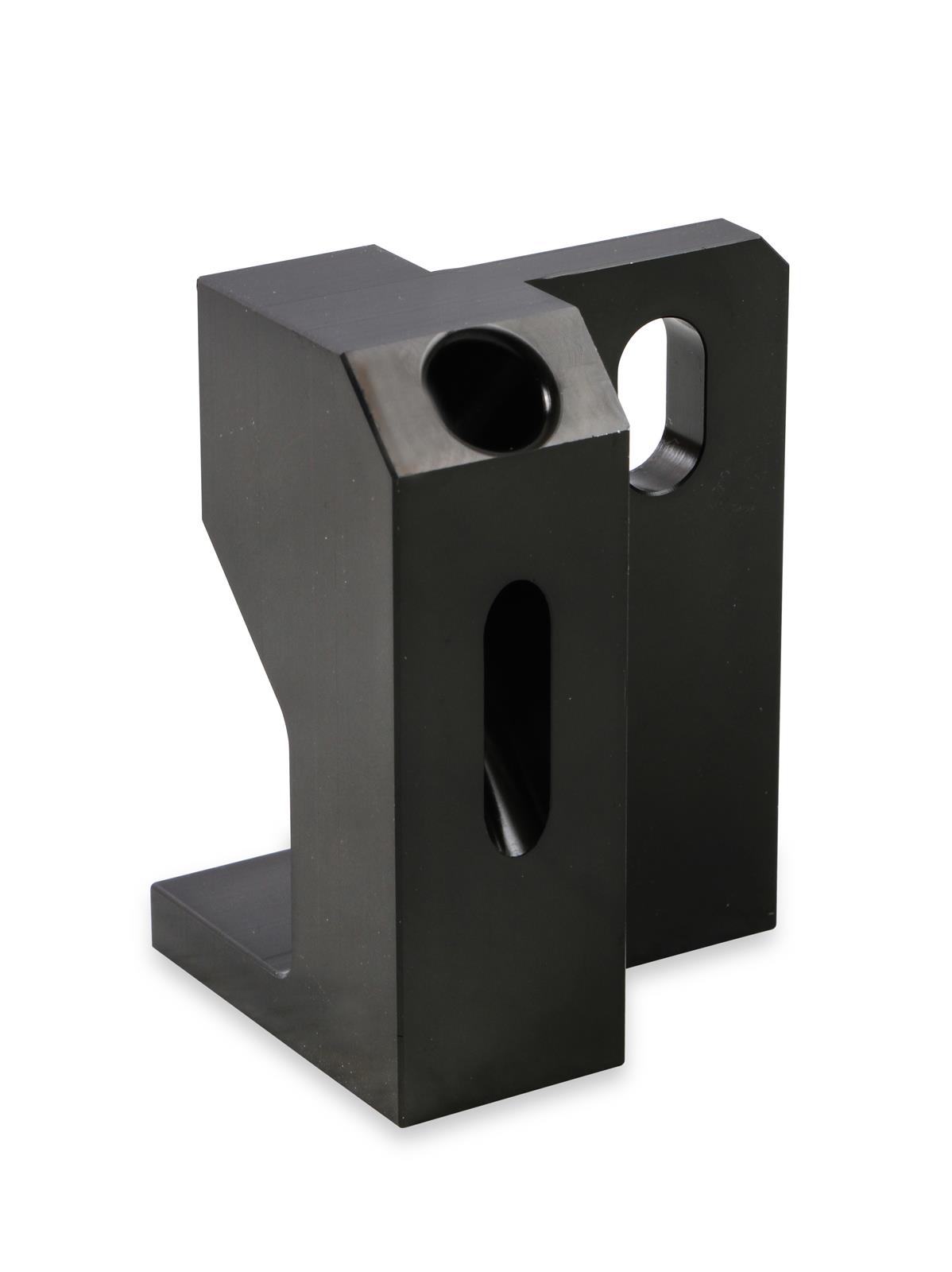

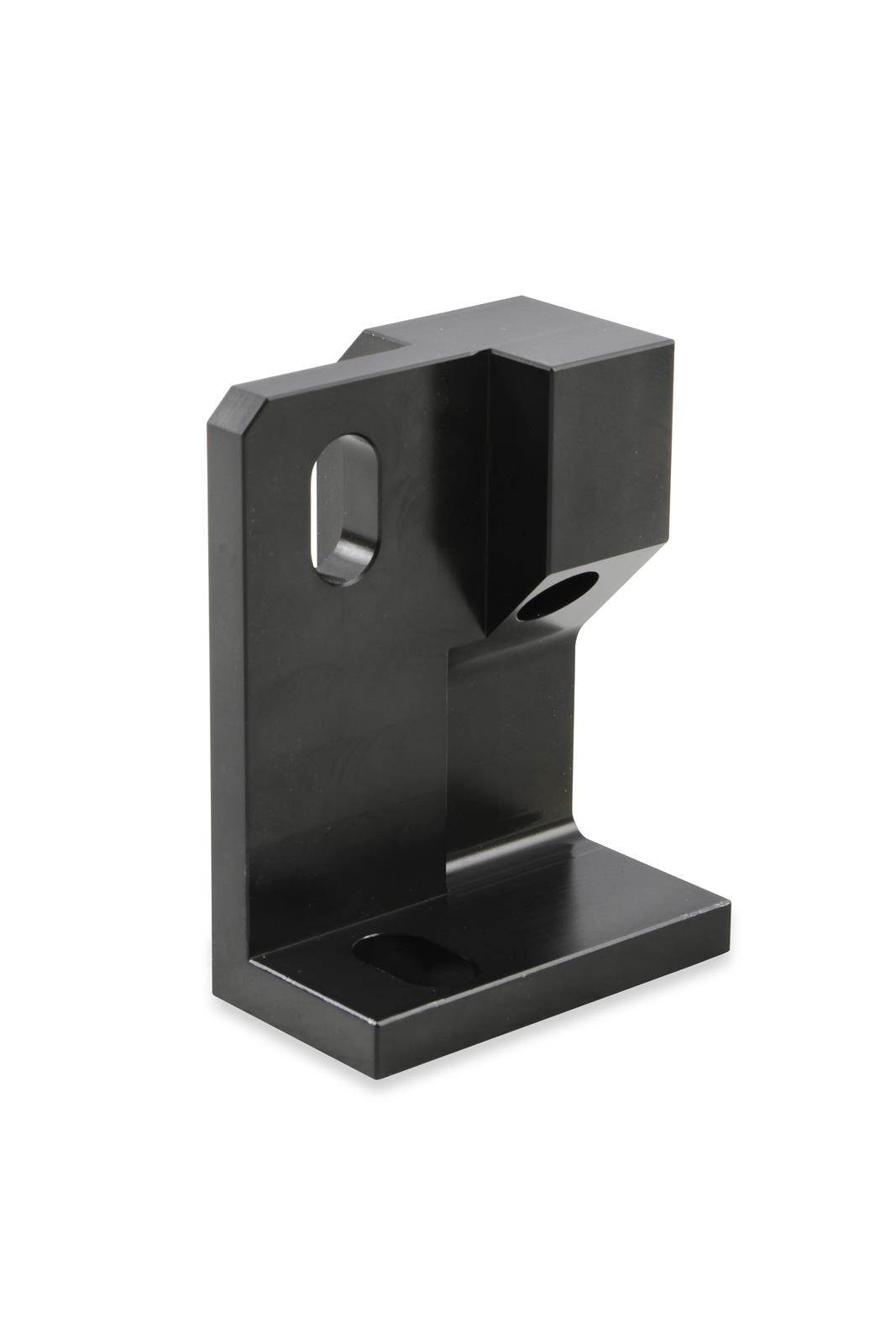

Holley Dipstick Drill Guides 302-31 Guides, Guide, Billet Steel, Black Finish, LS7, Dry Sump, Conversion, Each
Holley Dipstick Drill Guides 302-31 Guides, Guide, Billet Steel, Black Finish, LS7, Dry Sump, Conversion, Each
A$329.83
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
When installing an LS7 with a dry sump system into your project, you'll need to modify a few items on the engine before installation of the wet sump system. The Holley dipstick drill guide is a great aid in aligning the new oil dipstick location.
LS dry sump engines have the dipstick in the remote oil tank. The boss in the block that is typically used for the dipstick is not drilled. When converting to wet sump, the boss must be drilled. This boss is parallel to nothing else—and you only get one shot at the hole. Holley has developed an easy guide to help locate the bit during the drilling process. Using two nearby threaded block holes, the guide creates easy alignment for a hand drill to exactly drill the hole GM would have for a wet sump application. An innovative drill chip slot allows chips to be vacuumed during the drilling process.
Features at a glance:
* Allows easy drilling of dipstick hole in dry sump blocks when converting to wet sump applications
* Self-aligning and locating
* Drill chip evacuation port
* Machined billet steel construction
* One-piece design
Part Type
Drill Jig - LS7 Wet Sump Oil Dipstick Conversion
Specifications
- Product Attributes - Brand
- Holley
- Product Attributes - Manufacturer's Part Number
- 302-31
- Product Attributes - Part Type
- Drill Guides
- Product Attributes - Product Line
- Holley Dipstick Drill Guides
- Product Attributes - UPC
- 090127106815
- Product Attributes - Drill Bushings Included
- No
- Product Attributes - Drill Locating Pin Included
- No
- Product Attributes - Drill Guide Included
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed for converting an LS7 dry sump to a wet sump oiling system.
Reference Information
| Brand Name/s | Holley |
|---|---|
| StreetFX SKU | hly302-31 |
| SFX Item ID | 4783587 |
| Supplier Item Code | 4783587 |
| Manufacturer SKU | 302-31 |
| Manufacturer UPC | 90127106815 |
| Alternative References | HOL302-31, LS7 |
