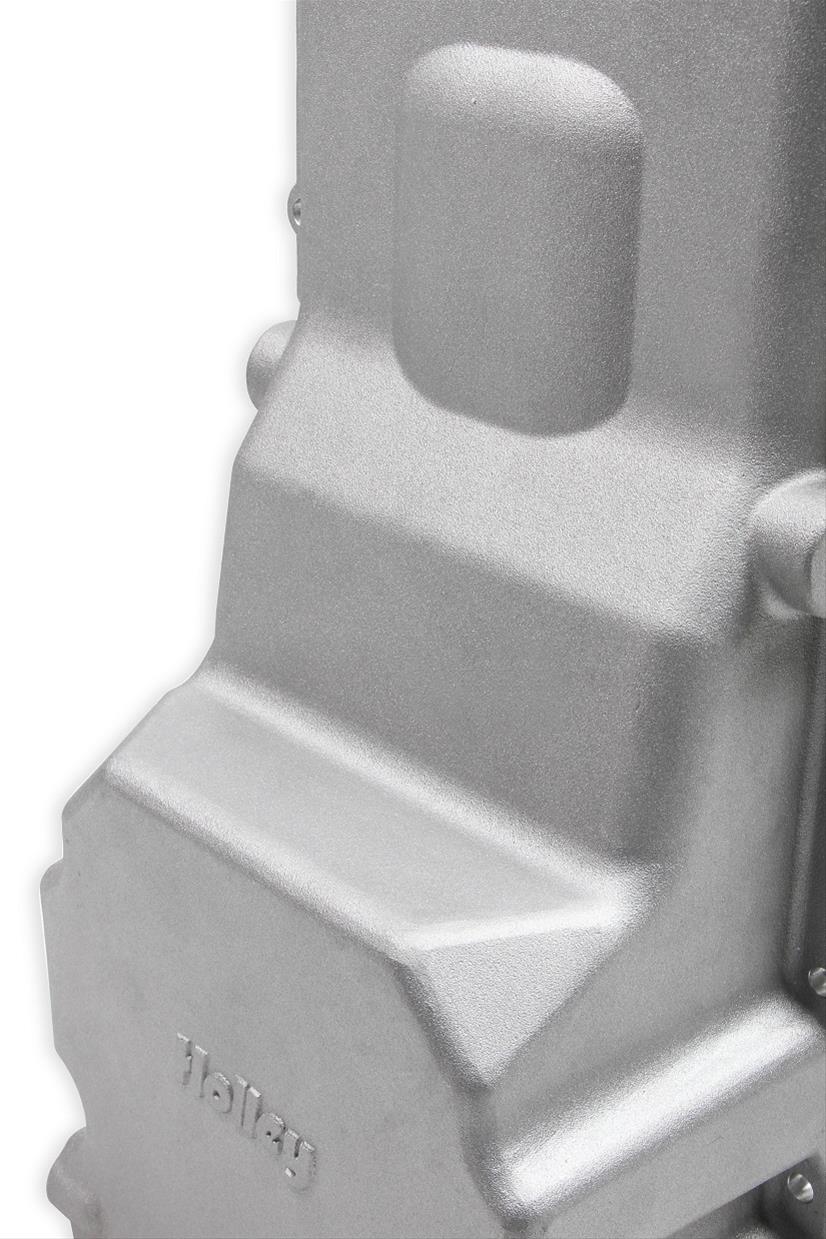

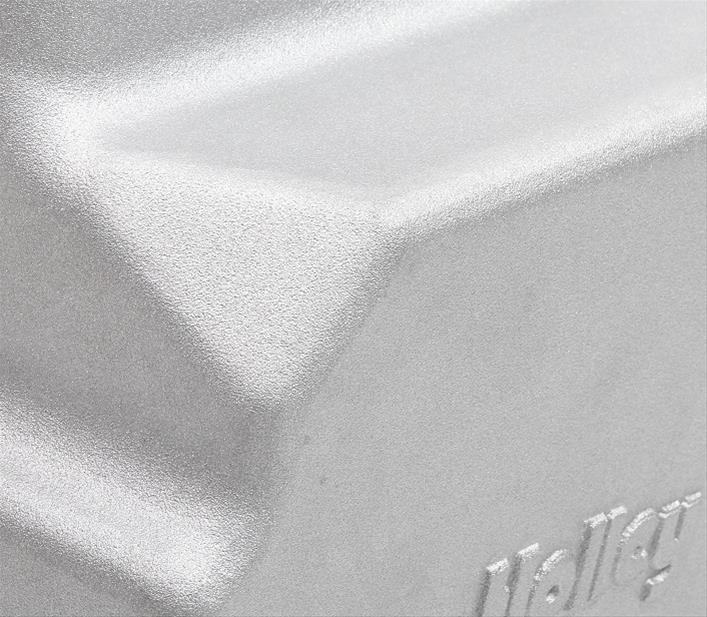

Holley Retrofit Engine Oil Pans for GM LS Engines 302-3 Pan, Low Profile Design, Swap, Aluminum, Natural, 4.000 in. Stroke, 5.9 Quarts, Chevy, 4.8, 5.3, 6.0, 6.2L, Each
Holley Retrofit Engine Oil Pans for GM LS Engines 302-3 Pan, Low Profile Design, Swap, Aluminum, Natural, 4.000 in. Stroke, 5.9 Quarts, Chevy, 4.8, 5.3, 6.0, 6.2L, Each
A$1,344.22
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Holley retrofit engine oil pans for GM LS engines are designed to install an LS engine in a variety of GM muscle car and truck chassis. They provide OEM fitment, OEM oil filter mounting, OEM oil cooler port provision, OEM engine NVH suppression, OEM flange gasket and sealing, proper structural rigidity, and OEM bellhousing attachments. The oil pans are manufactured from traditional high-quality cast aluminum and include a sump baffle, oil pump pickup tube, sump plug, oil filter stud, and oil passage cover.
Part Type
GM LS Oil Pan Retrofit
Specifications
- Product Attributes - Brand
- Holley
- Product Attributes - Manufacturer's Part Number
- 302-3
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Holley Retrofit Engine Oil Pans for GM LS Engines
- Product Attributes - UPC
- 090127018521
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Street/Strip
- Product Attributes - Sump Location
- Rear
- Product Attributes - Oil Pan Capacity
- 5.90 quarts
- Product Attributes - Stroker Clearanced
- No
- Product Attributes - Maximum Stroke with OE Rod
- 4.000 in.
- Product Attributes - Dipstick Provision
- No
- Product Attributes - Dipstick Included
- No
- Product Attributes - Oil Pan Material
- Aluminum
- Product Attributes - Oil Pan Color
- Natural
- Product Attributes - Baffled
- No
- Product Attributes - Kicked Out
- No
- Product Attributes - Windage Tray Included
- No
- Product Attributes - Pickup Included
- Yes
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes

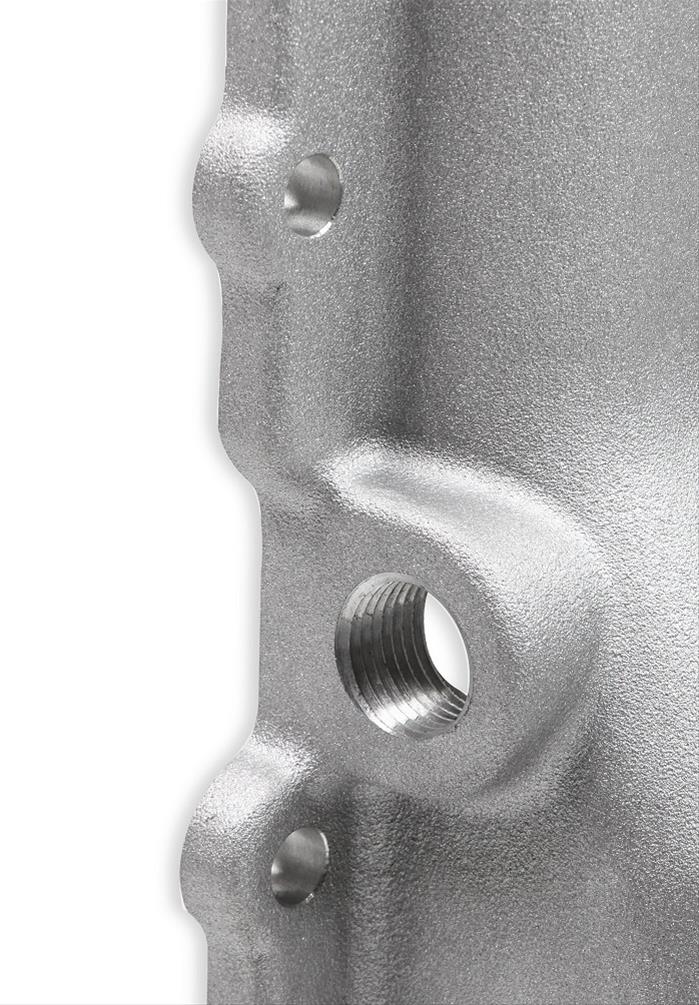

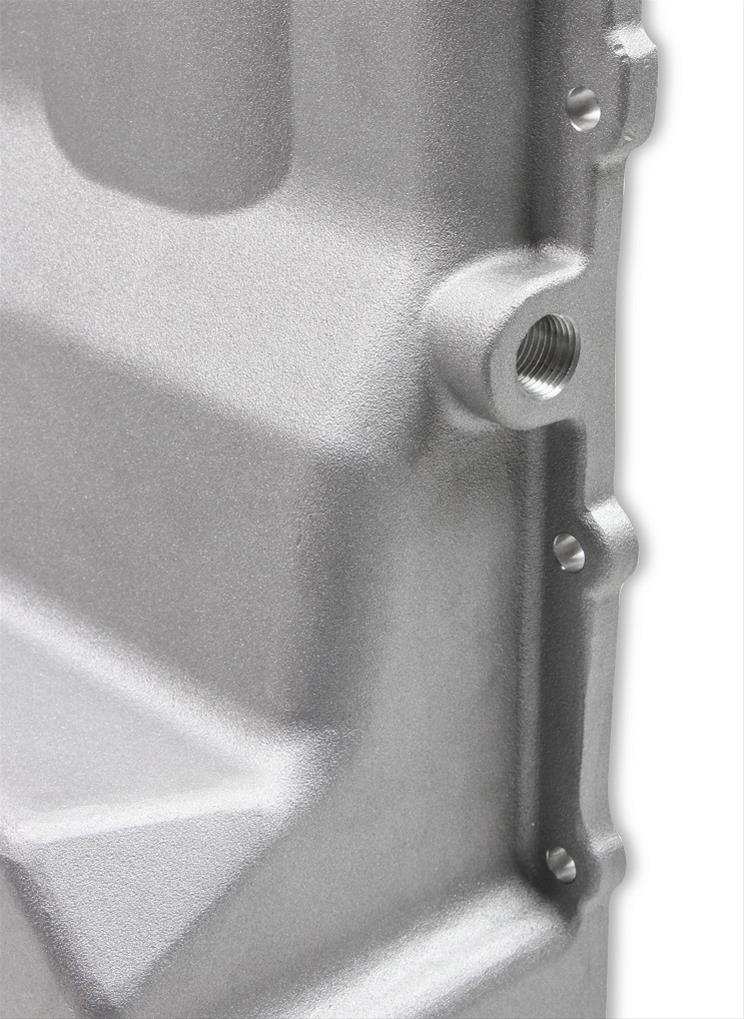

- Low profile oil pan design provides additional sump clearance.. Some applications may require frame notching to access oil drain ports. Requires use of LS3 dipstick (GM part number 12634547) and tube (GM part number 12625031). See the “required parts” tab. Designed to use a GM F-body windage tray, GM part number 12558253. A modification to the windage tray is required to provide clearance to the pick-up tube. A full-length windage tray may be used if the front quarter of the tray is removed. See the attached instruction sheets to see the windage tray modifications required. Includes two 1/2 in.-14 NPT oil return ports to provide a convenient oil return for turbochargers (one port on each side).
Reference Information
| Brand Name/s | Holley |
|---|---|
| StreetFX SKU | hly302-3 |
| SFX Item ID | 4782399 |
| Supplier Item Code | 4782399 |
| Manufacturer SKU | 302-3 |
| Manufacturer UPC | 90127018521 |
| Alternative References | HOL302-3, 6.2L |
