Home / Shop / Holley GM Gen V LT Retrofit Oil Pans 302-21 Pan, Engine Swap, Aluminum, Natural, 6.1 Quarts, Retrofit, Chevrolet, Engines, Each

Holley GM Gen V LT Retrofit Oil Pans 302-21 Pan, Engine Swap, Aluminum, Natural, 6.1 Quarts, Retrofit, Chevrolet, Engines, Each

SKU: HLY302-21

Oil Pans

Holley

Holley GM Gen V LT Retrofit Oil Pans 302-21 Pan, Engine Swap, Aluminum, Natural, 6.1 Quarts, Retrofit, Chevrolet, Engines, Each

SKU: HLY302-21

Oil Pans

LOW STOCK! Est Ship 4-7 days. HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

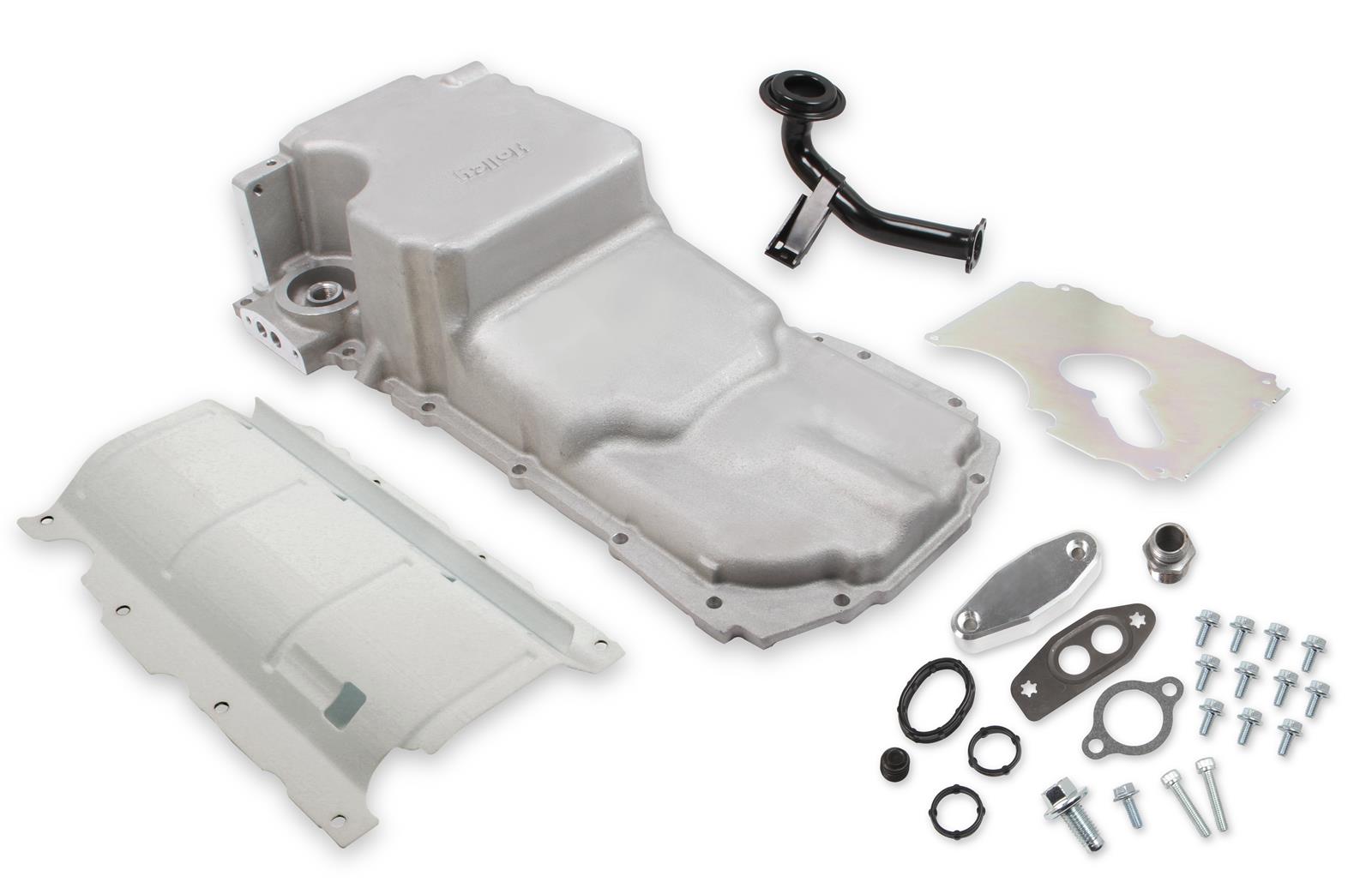

Holley GM LT retrofit oil pans provide maximum clearance to the chassis and ground; plus, they provide OEM fitment for durability and proper sealing. GM's Gen V LT direct-injected engines are finding their way into a large variety of vehicles. They make great power, they're durable, and reliable, but unfortunately, the factory oil pans don't always fit--or they hang too low for today's hot rods. Holley LT retrofit oil pans are designed to help!

Features include:

* Cast and machined aluminum
* Allow for up to 4.00 in. crankshaft stroke
* Can be used anywhere a GM F-body oil pan can be used
* Provide OEM fitment--oil filter mounting, OEM engine NVH suppression, OEM flange sealing, proper structural rigidity, and OEM bellhousing attachments
* Traditional high-quality cast aluminum appearance with clean exterior styling
* Provide maximum clearance for vehicles where the steering linkage is behind the engine crossmember
* Oil cooler port provision
* 1/2 in. NPT port--ideal for turbo oil return or PCV oil return
* Drag race version includes special hinged door baffles and pickup

Part Type

GM LT Gen-V Oil Pan Swap Kit - As-Cast Finish

Data: v4.2 - Upd: 2026-10-15 20:07:46

Specifications

Product Attributes - Brand: Holley
Product Attributes - Manufacturer's Part Number: 302-21
Product Attributes - Part Type: Oil Pans
Product Attributes - Product Line: Holley GM Gen V LT Retrofit Oil Pans
Product Attributes - UPC: 090127139318
Product Attributes - Sump Style: Wet
Product Attributes - Oil Pan Style: Street/Strip
Product Attributes - Sump Location: Rear
Product Attributes - Dipstick Location: Driver side
Product Attributes - Oil Pan Capacity: 6.10 quarts
Product Attributes - Stroker Clearanced: No
Product Attributes - Maximum Stroke with OE Rod: 4.000 in.
Product Attributes - Dipstick Provision: Yes
Product Attributes - Dipstick Included: No
Product Attributes - Oil Pan Depth (in.): 5.560
Product Attributes - Oil Pan Material: Aluminum
Product Attributes - Oil Pan Color: Natural
Product Attributes - Baffled: Yes
Product Attributes - Kicked Out: No
Product Attributes - Windage Tray Included: Yes
Product Attributes - Pickup Included: Yes
Product Attributes - Oil Pump Included: No
Product Attributes - Oil Pump Driveshaft Included: No
Product Attributes - Crank Scraper Included: No
Product Attributes - Gaskets Included: No
Product Attributes - Hardware Included: Yes
Product Attributes - Quantity: Sold as a kit.
Product Attributes - Notes: Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Reference Information

Brand Name/s	Holley
StreetFX SKU	hly302-21
SFX Item ID	4783135
Supplier Item Code	4783135
Manufacturer SKU	302-21
Manufacturer UPC	90127139318
Alternative References	HOL302-21

Compatibility

Application Data

Make	PONTIAC
Model	VENTURA
Beginning Year	1971
Ending Year	1987
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	OLDSMOBILE
Model	CUTLASS
Beginning Year	1978
Ending Year	1991
Engine Type	V8
Engine Size	5.3L/325
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	OLDSMOBILE
Model	F85
Beginning Year	1964
Ending Year	1972
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	OLDSMOBILE
Model	F85
Beginning Year	1964
Ending Year	1972
Engine Type	V8
Engine Size	5.3L/325
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	OLDSMOBILE
Model	OMEGA
Beginning Year	1973
Ending Year	1974
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	OLDSMOBILE
Model	OMEGA
Beginning Year	1973
Ending Year	1974
Engine Type	V8
Engine Size	5.3L/325
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	OLDSMOBILE
Model	VISTA CRUISER
Beginning Year	1973
Ending Year	1991
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	OLDSMOBILE
Model	VISTA CRUISER
Beginning Year	1973
Ending Year	1991
Engine Type	V8
Engine Size	5.3L/325
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	PONTIAC
Model	BONNEVILLE
Beginning Year	1982
Ending Year	1986
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	PONTIAC
Model	BONNEVILLE
Beginning Year	1982
Ending Year	1986
Engine Type	V8
Engine Size	5.3L/325
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	PONTIAC
Model	FIREBIRD
Beginning Year	1967
Ending Year	2002
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	RWD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	PONTIAC
Model	FIREBIRD
Beginning Year	1967
Ending Year	2002
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	PONTIAC
Model	GRAND AM
Beginning Year	1978
Ending Year	1980
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	RWD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	PONTIAC
Model	GRAND AM
Beginning Year	1978
Ending Year	1980
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	PONTIAC
Model	GRAND PRIX
Beginning Year	1978
Ending Year	1991
Engine Type	V8
Engine Size	5.3L/325
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	PONTIAC
Model	GRAND PRIX
Beginning Year	1978
Ending Year	1978
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	PONTIAC
Model	GTO
Beginning Year	1964
Ending Year	1972
Engine Type	V8
Engine Size	5.3L/325
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	PONTIAC
Model	GTO
Beginning Year	1964
Ending Year	1972
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	PONTIAC
Model	LEMANS
Beginning Year	1964
Ending Year	1972
Engine Type	V8
Engine Size	5.3L/325
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	PONTIAC
Model	LEMANS
Beginning Year	1964
Ending Year	1972
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	PONTIAC
Model	LEMANS
Beginning Year	1978
Ending Year	1981
Engine Type	V8
Engine Size	5.3L/325
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	PONTIAC
Model	LEMANS
Beginning Year	1978
Ending Year	1981
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	PONTIAC
Model	TEMPEST
Beginning Year	1964
Ending Year	1970
Engine Type	V8
Engine Size	5.3L/325
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	PONTIAC
Model	TEMPEST
Beginning Year	1964
Ending Year	1970
Engine Type	V8
Engine Size	6.2L/376
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.

Make	PONTIAC
Model	VENTURA
Beginning Year	1971
Ending Year	1974
Engine Type	V8
Engine Size	5.3L/325
Drivetrain	4WD
Engine Family	Chevy small block Gen V
Application Notes	Kit does not include the turbo oil return port. This oil pan is not for use on engines that originally used a dry sump oiling system. Recommended LT dipstick and dipstick tube.
