Home / Shop / Holley Retrofit Engine Oil Pans for GM LS Engines 302-1BK Pan, Swap, Aluminum, Black Ceramic Coated, 4.250 in. Stroke, 5.5 Quarts, Chevy, 4.8, 5.3, 6.0L, Each

Holley Retrofit Engine Oil Pans for GM LS Engines 302-1BK Pan, Swap, Aluminum, Black Ceramic Coated, 4.250 in. Stroke, 5.5 Quarts, Chevy, 4.8, 5.3, 6.0L, Each

SKU: HLY302-1BK

Oil Pans

Holley

Holley Retrofit Engine Oil Pans for GM LS Engines 302-1BK Pan, Swap, Aluminum, Black Ceramic Coated, 4.250 in. Stroke, 5.5 Quarts, Chevy, 4.8, 5.3, 6.0L, Each

SKU: HLY302-1BK

Oil Pans

LOW STOCK! Est Ship 4-7 days. HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

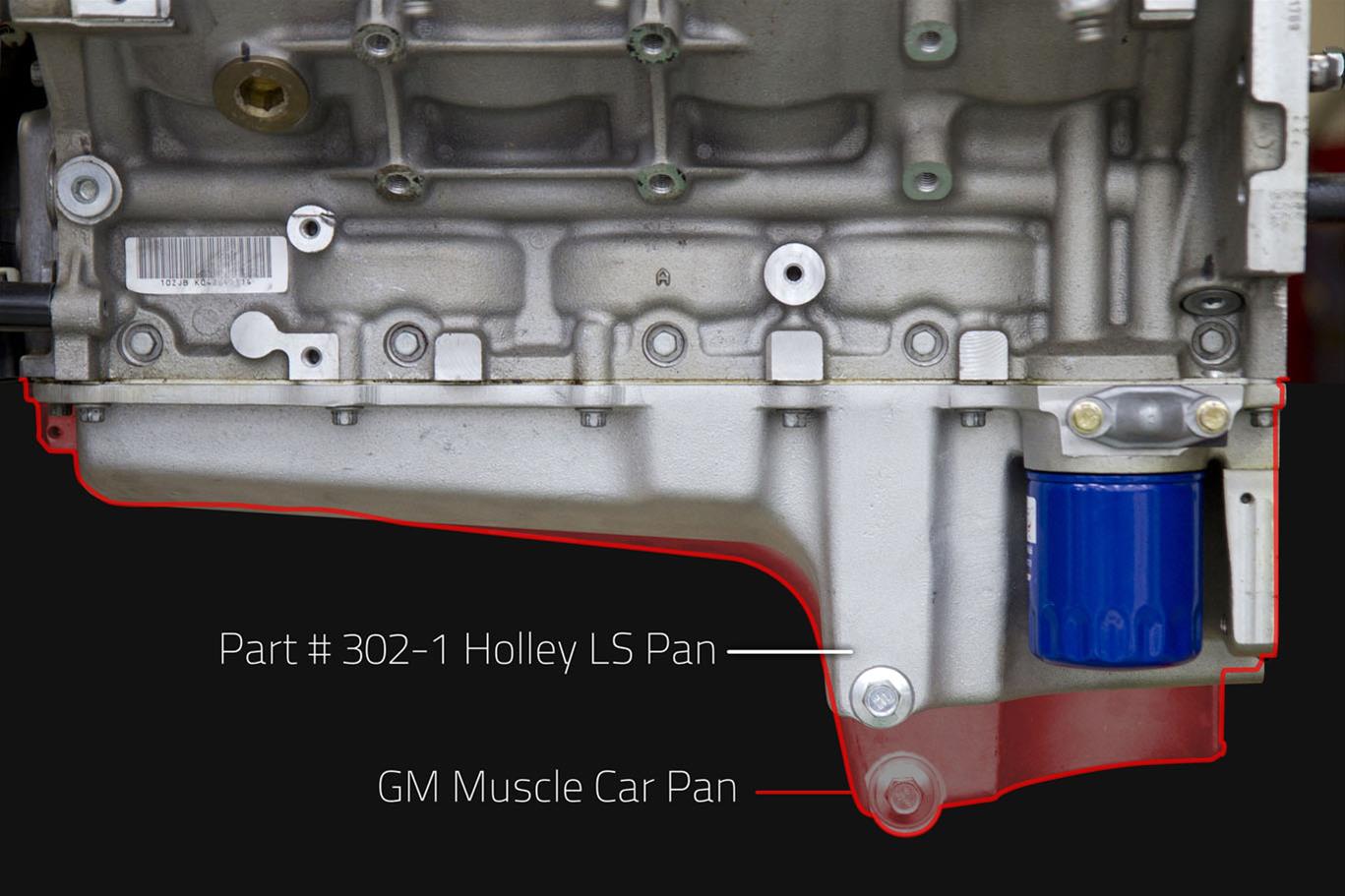

Holley retrofit engine oil pans for GM LS engines are designed to install an LS engine in a variety of GM muscle car and truck chassis. They provide OEM fitment, OEM oil filter mounting, OEM oil cooler port provision, OEM engine NVH suppression, OEM flange gasket and sealing, proper structural rigidity, and OEM bellhousing attachments. The oil pans are manufactured from traditional high-quality cast aluminum and include a sump baffle, oil pump pickup tube, sump plug, oil filter stud, and oil passage cover.

Part Type

GM Retro Fit Oil Pan - LS Engines - Black

Data: v4.2 - Upd: 2026-10-15 03:09:36

Specifications

Product Attributes - Brand: Holley
Product Attributes - Manufacturer's Part Number: 302-1BK
Product Attributes - Part Type: Oil Pans
Product Attributes - Product Line: Holley Retrofit Engine Oil Pans for GM LS Engines
Product Attributes - UPC: 090127715048
Product Attributes - Sump Style: Wet
Product Attributes - Oil Pan Style: Street/Strip
Product Attributes - Sump Location: Rear
Product Attributes - Oil Pan Capacity: 5.50 quarts
Product Attributes - Stroker Clearanced: Yes
Product Attributes - Maximum Stroke with OE Rod: 4.250 in.
Product Attributes - Dipstick Provision: No
Product Attributes - Dipstick Included: No
Product Attributes - Oil Pan Depth (in.): 5.890
Product Attributes - Oil Pan Material: Aluminum
Product Attributes - Oil Pan Color: Black
Product Attributes - Baffled: Yes
Product Attributes - Kicked Out: No
Product Attributes - Windage Tray Included: No
Product Attributes - Pickup Included: Yes
Product Attributes - Oil Pump Included: No
Product Attributes - Oil Pump Driveshaft Included: No
Product Attributes - Crank Scraper Included: No
Product Attributes - Gaskets Included: No
Product Attributes - Hardware Included: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Engine will take a total of 6 quarts of oil including the stock filter. Engine location may need to be adjusted (up/down or fore/aft) for proper clearance.

Reference Information

Brand Name/s	Holley
StreetFX SKU	hly302-1BK
SFX Item ID	4783529
Supplier Item Code	4783529
Manufacturer SKU	302-1BK
Manufacturer UPC	90127715048
Alternative References	HOL302-1BK, 6.0L

Compatibility

Application Data

Make CHEVROLET
Model BEL AIR
Beginning Year 1955
Ending Year 1974
Engine Type V8
Engine Size 4.8L/294
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BEL AIR
Beginning Year 1955
Ending Year 1974
Engine Type V8
Engine Size 5.3L/325
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BEL AIR
Beginning Year 1955
Ending Year 1974
Engine Type V8
Engine Size 5.7L/350
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BEL AIR
Beginning Year 1955
Ending Year 1974
Engine Type V8
Engine Size 6.0L/364
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BEL AIR
Beginning Year 1955
Ending Year 1974
Engine Type V8
Engine Size 6.2L/376
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BISCAYNE
Beginning Year 1958
Ending Year 1972
Engine Type V8
Engine Size 4.8L/294
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BISCAYNE
Beginning Year 1958
Ending Year 1972
Engine Type V8
Engine Size 5.3L/325
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BISCAYNE
Beginning Year 1958
Ending Year 1972
Engine Type V8
Engine Size 5.7L/350
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BISCAYNE
Beginning Year 1958
Ending Year 1972
Engine Type V8
Engine Size 6.0L/364
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BISCAYNE
Beginning Year 1958
Ending Year 1972
Engine Type V8
Engine Size 6.2L/376
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BLAZER
Beginning Year 1969
Ending Year 1974
Engine Type V8
Engine Size 4.8L/294
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BLAZER
Beginning Year 1969
Ending Year 1974
Engine Type V8
Engine Size 5.3L/325
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BLAZER
Beginning Year 1969
Ending Year 1974
Engine Type V8
Engine Size 5.7L/350
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BLAZER
Beginning Year 1969
Ending Year 1974
Engine Type V8
Engine Size 6.0L/364
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BLAZER
Beginning Year 1969
Ending Year 1974
Engine Type V8
Engine Size 6.2L/376
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BLAZER
Beginning Year 1987
Ending Year 1987
Engine Type V8
Engine Size 4.8L/294
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BLAZER
Beginning Year 1987
Ending Year 1987
Engine Type V8
Engine Size 5.3L/325
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BLAZER
Beginning Year 1987
Ending Year 1987
Engine Type V8
Engine Size 5.7L/350
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BLAZER
Beginning Year 1987
Ending Year 1987
Engine Type V8
Engine Size 6.0L/364
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BLAZER
Beginning Year 1987
Ending Year 1987
Engine Type V8
Engine Size 6.2L/376
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BROOKWOOD
Beginning Year 1958
Ending Year 1961
Engine Type V8
Engine Size 4.8L/294
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BROOKWOOD
Beginning Year 1958
Ending Year 1961
Engine Type V8
Engine Size 5.3L/325
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BROOKWOOD
Beginning Year 1958
Ending Year 1961
Engine Type V8
Engine Size 5.7L/350
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BROOKWOOD
Beginning Year 1958
Ending Year 1961
Engine Type V8
Engine Size 6.0L/364
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make CHEVROLET
Model BROOKWOOD
Beginning Year 1958
Ending Year 1961
Engine Type V8
Engine Size 6.2L/376
Drivetrain RWD
Engine Family Chevy small block Gen III/IV (LS-based engines)
