Holley LS Modular Lo-Ram EFI Intake Systems 300-624BK Manifolds, Dual Injection, EFI, Cathedral Port Heads, Standard Deck, 105mm Bore, Aluminum, Black Finish, Chevy, LS, 4.8-6.0L, Each
Holley LS Modular Lo-Ram EFI Intake Systems 300-624BK Manifolds, Dual Injection, EFI, Cathedral Port Heads, Standard Deck, 105mm Bore, Aluminum, Black Finish, Chevy, LS, 4.8-6.0L, Each
A$3,114.03
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Holley LS Modular Lo-Ram EFI intake systems have a top-feed plenum entry configuration, designed to allow the currently available Hi-Ram 105mm plenum tops to be fitted to a low-profile base intake manifold. The short runner, low-profile base intake manifold intended for forced induction applications and was conceived to package with an air-to-water plenum-mounted intercooler—with a shorter overall height than is possible with other existing intake manifolds. Using a modular design, the top-feed plenum configuration with 105mm top keeps the overall height at just 9.07 in.!
Additional features and specs include:
* Cast aluminum construction
* Modular design allows the use of the included top-feed plenum entry
* Designed for GM LS Gen III and IV engines equipped with GM LS1/LS2/LS6 (cathedral port) cylinder heads
* Will also work with OE or aftermarket cylinder heads
* Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7,000 to 8,000 rpm, depending on application
* Low height to aid the packaging of a plenum-mounted air-to-water intercooler in a top-feed configuration (or to fit under a stock or mildly modified hood in the front-feed configuration)

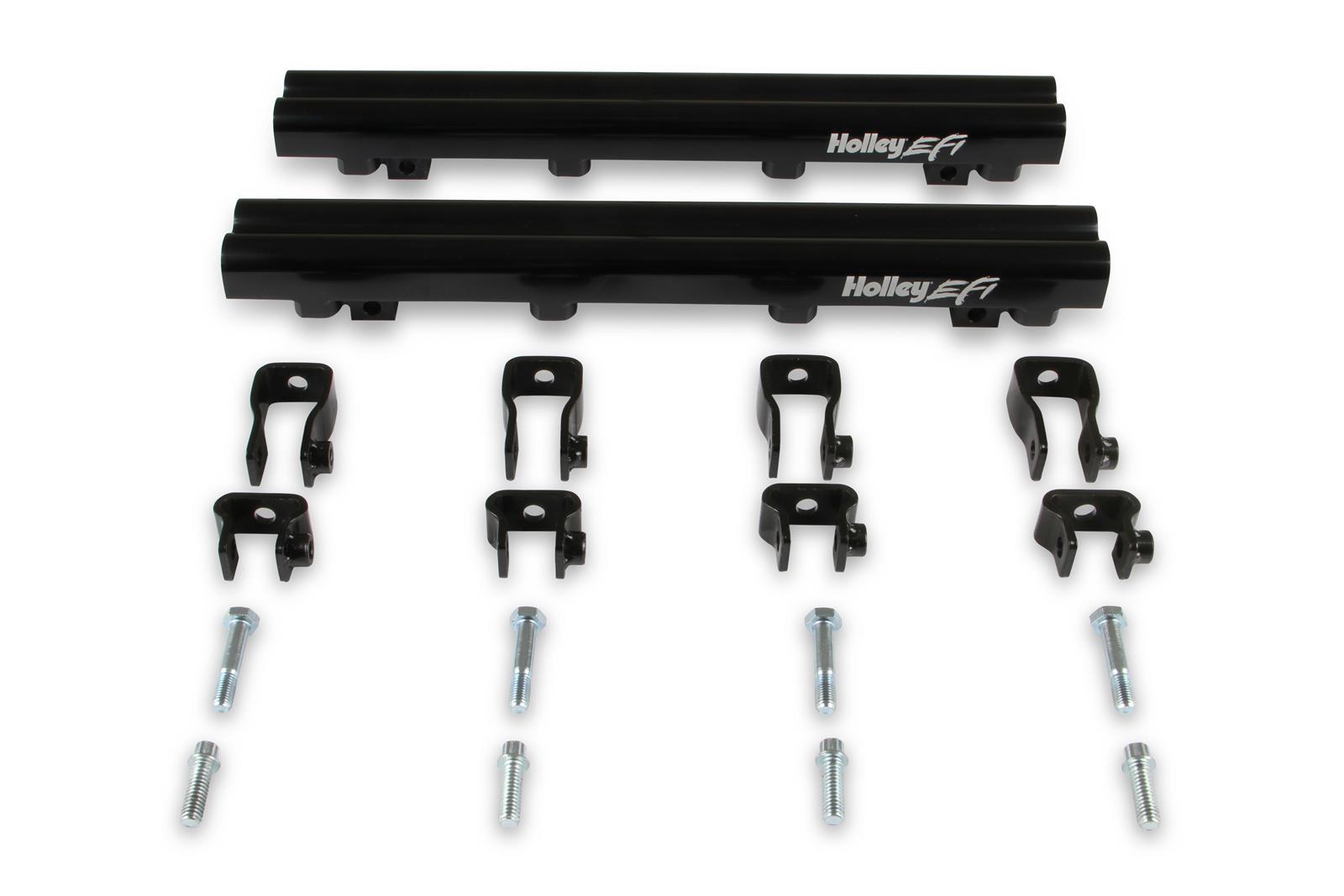

* High-volume fuel rails and mounting hardware included with 3/4 in.-16 O-ring ports (8 AN)
* Fuel rail kits come with two sets of brackets—a set for long (usually standard length) fuel injectors, and a set for short (such as Pico or LS7) fuel injectors
Part Type
Intake Manifolds, Fuel Injected
Specifications
- Product Attributes - Brand
- Holley
- Product Attributes - Manufacturer's Part Number
- 300-624BK
- Product Attributes - Part Type
- Intake Manifolds, Fuel Injected
- Product Attributes - Product Line
- Holley LS Modular Lo-Ram EFI Intake Systems
- Product Attributes - UPC
- 090127080085
- Product Attributes - Cylinder Head Configuration
- Cathedral Port LS1/LS2/LS6
- Product Attributes - Fuel Injection Style
- Multi-port
- Product Attributes - Intake Section Included
- Complete
- Product Attributes - Throttle Body Bore Size
- 105mm
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Injectors Included
- No
- Product Attributes - Multi-Port Fuel Rails Included
- Yes
- Product Attributes - EGR
- No
- Product Attributes - Aftermarket Fuel Rail Required
- Yes
- Product Attributes - Throttle Body Included
- No
- Product Attributes - Supplemental Bosses Cast-In
- No
- Product Attributes - Supplemental Bosses Machined
- No
- Product Attributes - Runners Included
- No
- Product Attributes - Runners Removable
- No
- Product Attributes - Plenum Material
- Aluminum
- Product Attributes - Plenum Finish
- Black
- Product Attributes - Base Material
- Aluminum
- Product Attributes - Base Color
- Black
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Dual injector intake manifold provides two injectors per cylinder for hi-volume fuel demands, flexible fuel supply strategies, and dual-fuel capability.
Reference Information
| Brand Name/s | Holley |
|---|---|
| StreetFX SKU | hly300-624BK |
| SFX Item ID | 4782789 |
| Supplier Item Code | 4782789 |
| Manufacturer SKU | 300-624BK |
| Manufacturer UPC | 90127080085 |
| Alternative References | HOL300-624BK, 105mm, 4.8-6.0L |
