On sale

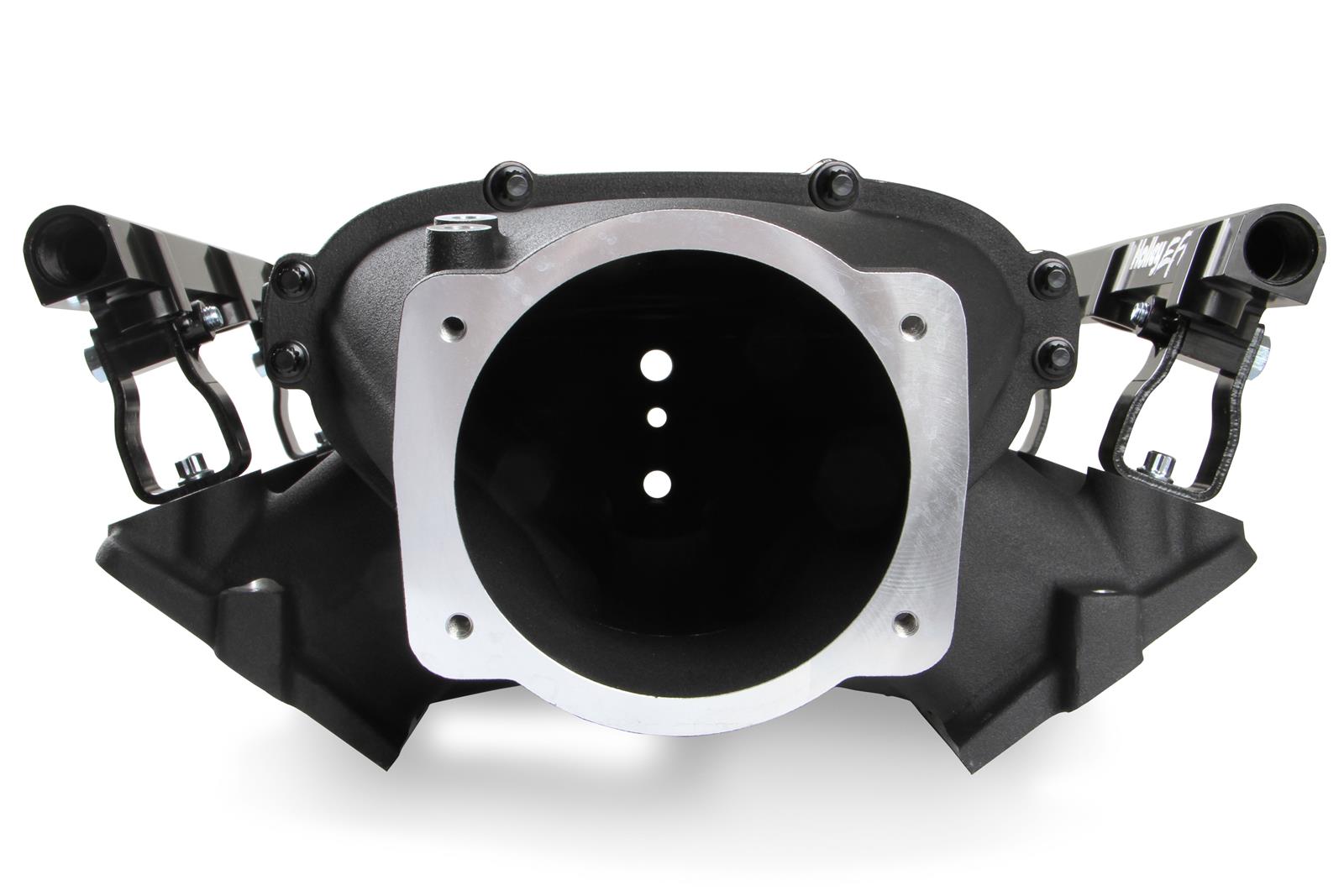

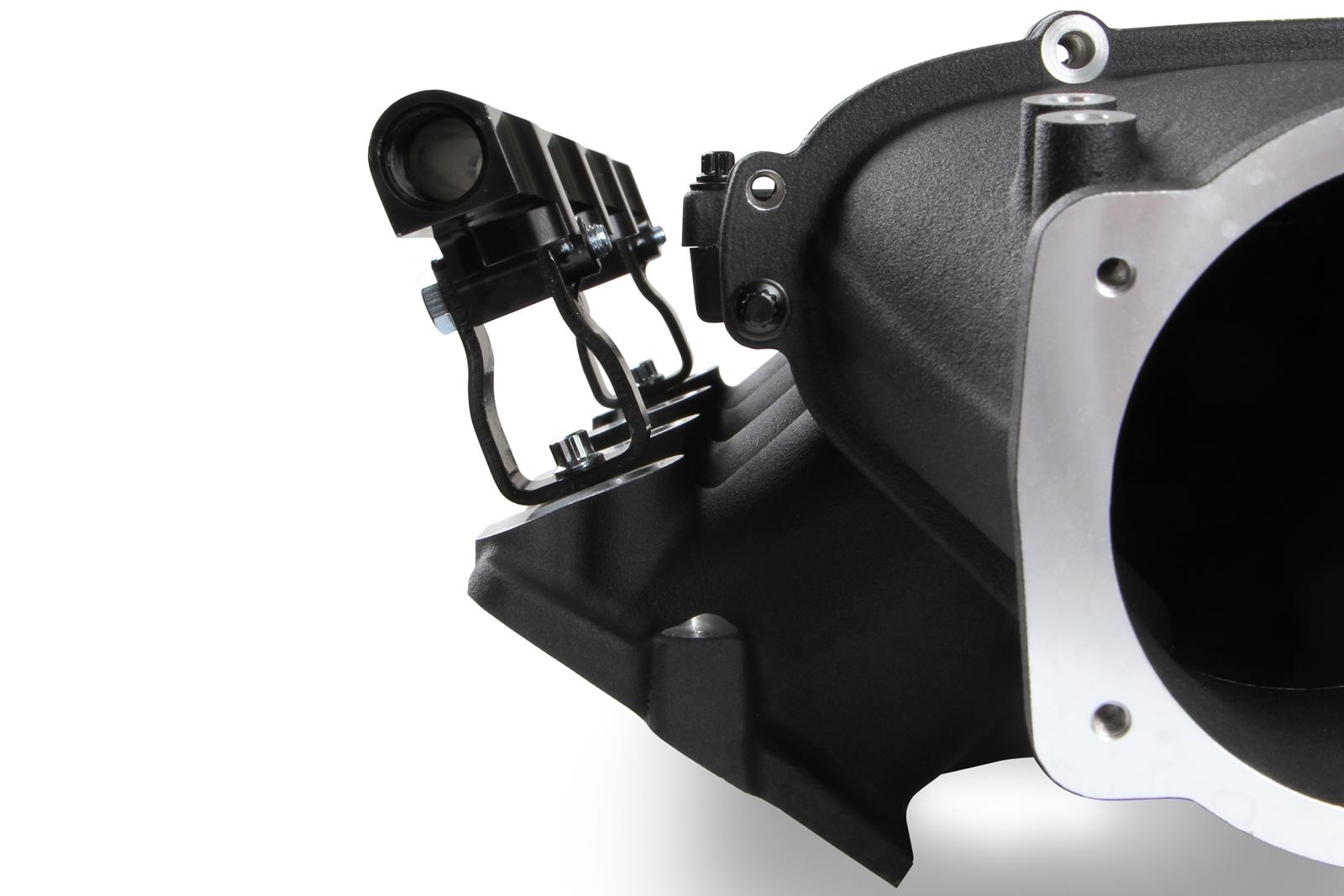

Holley LS Modular Lo-Ram EFI Intake Manifolds 300-621BK Manifolds, Modular, Ultra EFI, Cathedral Port Head, Multi-port, Standard Deck, 105mm Bore, Aluminum, Black, Chevy, 4.8-6.0L, Each
Holley LS Modular Lo-Ram EFI Intake Manifolds 300-621BK Manifolds, Modular, Ultra EFI, Cathedral Port Head, Multi-port, Standard Deck, 105mm Bore, Aluminum, Black, Chevy, 4.8-6.0L, Each
A$2,462.29
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Holley LS Modular Lo-Ram EFI intake manifolds are designed for GM LS Gen III and IV engines equipped with GM LS1/LS2/LS6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and a 105 mm throttle or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood in the front-feed configuration. The modular design allows the use of front-feed plenum entry, while intake design facilitates custom inlet duct and throttle body placement.
Additional features and specs:
* Cast aluminum construction with satin silver finish
* Modular design allows the use of front-feed plenum entry
* Clears 4th Gen Camaro and C5 Corvette cowls and hoods without modification
* With forced-induction and the short runner length the engine rpm at which peak power occurs is more likely to be coupled to the supercharger or turbocharger being used
* High-volume fuel rails and mounting hardware included with 3/4 in.-16 O-ring ports (8 AN)
* Fuel rail kits include two sets of brackets; a set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors
Part Type
Lo-Ram Intake Manifold Kit LS1/LS2/LS6 Frt Feed
Specifications
- Product Attributes - Brand
- Holley
- Product Attributes - Manufacturer's Part Number
- 300-621BK
- Product Attributes - Part Type
- Intake Manifolds, Fuel Injected
- Product Attributes - Product Line
- Holley LS Modular Lo-Ram EFI Intake Manifolds
- Product Attributes - UPC
- 090127079676
- Product Attributes - Cylinder Head Configuration
- Cathedral Port LS1/LS2/LS6
- Product Attributes - Fuel Injection Style
- Multi-port
- Product Attributes - Intake Section Included
- Complete
- Product Attributes - Throttle Body Bore Size
- 105mm
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Injectors Included
- No
- Product Attributes - Multi-Port Fuel Rails Included
- Yes
- Product Attributes - EGR
- No
- Product Attributes - Aftermarket Fuel Rail Required
- Yes
- Product Attributes - Throttle Body Included
- No
- Product Attributes - Supplemental Bosses Cast-In
- No
- Product Attributes - Supplemental Bosses Machined
- No
- Product Attributes - Runners Included
- Yes
- Product Attributes - Runners Removable
- No
- Product Attributes - Plenum Material
- Aluminum
- Product Attributes - Plenum Finish
- Black
- Product Attributes - Base Material
- Aluminum
- Product Attributes - Base Color
- Natural
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Fuel rails are machined for -8 AN O-ring female fittings. Intake manifold features a plenum height of 5.17 in. and is designed for forced induction applications with peak power of 7,000 to 8,000 rpm.
Reference Information
| Brand Name/s | Holley |
|---|---|
| StreetFX SKU | hly300-621BK |
| SFX Item ID | 4782933 |
| Supplier Item Code | 4782933 |
| Manufacturer SKU | 300-621BK |
| Manufacturer UPC | 90127079676 |
| Alternative References | HOL300-621BK, 105mm, 4.8-6.0L |
