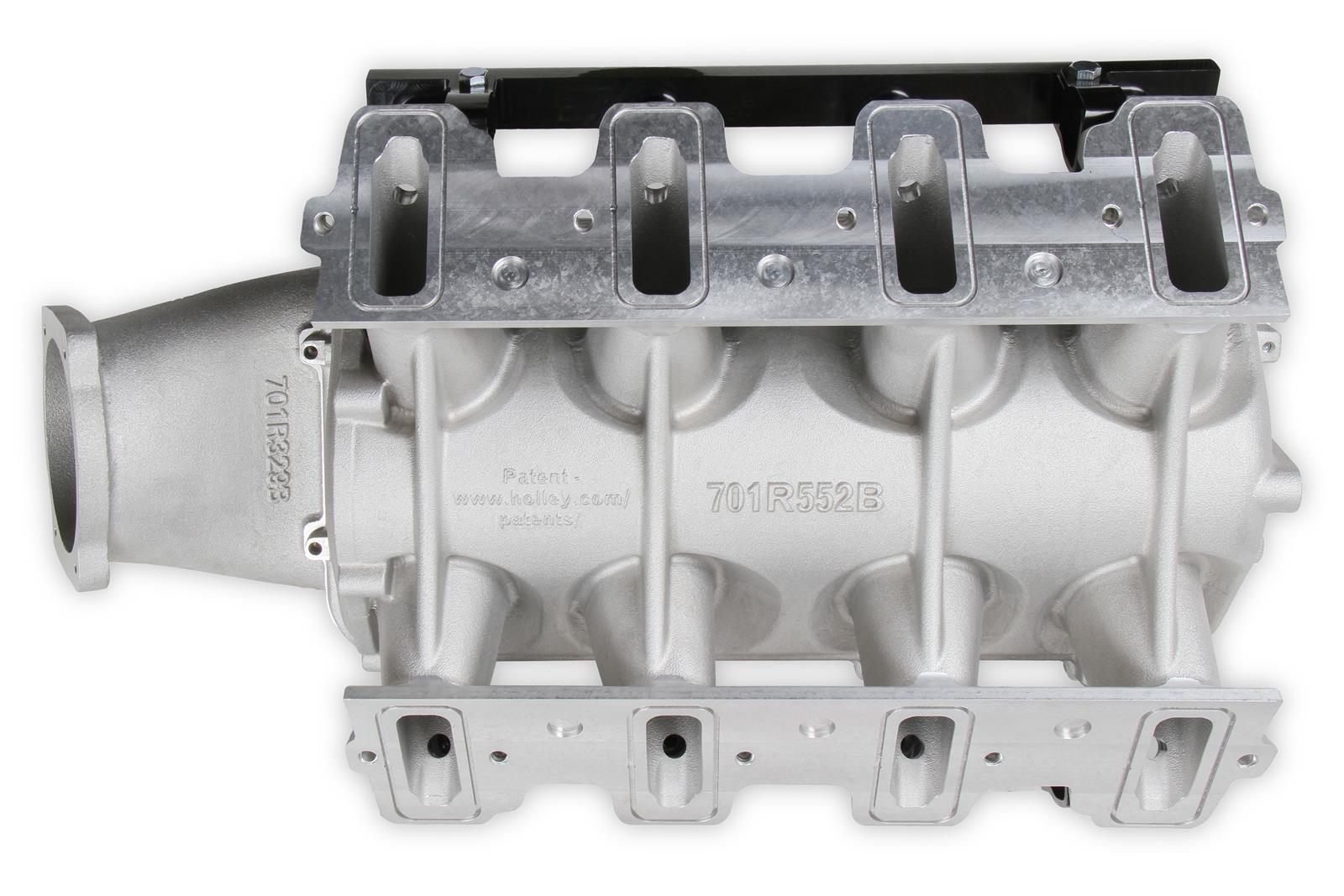

Holley LS Modular Lo-Ram EFI Intake Systems 300-620 Manifolds, Modular, EFI, Cathedral Port Head, Multi-port, Standard Deck, 105mm Bore, Aluminum, Satin Finish, Chevy, 4.8-6.0L, Each
Holley LS Modular Lo-Ram EFI Intake Systems 300-620 Manifolds, Modular, EFI, Cathedral Port Head, Multi-port, Standard Deck, 105mm Bore, Aluminum, Satin Finish, Chevy, 4.8-6.0L, Each
A$2,525.10
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Holley LS Modular Lo-Ram EFI intake systems have a top-feed plenum entry configuration, designed to allow the currently available Hi-Ram 105mm plenum tops to be fitted to a low-profile base intake manifold. The short runner, low-profile base intake manifold intended for forced induction applications and was conceived to package with an air-to-water plenum-mounted intercooler—with a shorter overall height than is possible with other existing intake manifolds. Using a modular design, the top-feed plenum configuration with 105mm top keeps the overall height at just 9.07 in.!
Additional features and specs include:
* Cast aluminum construction
* Modular design allows the use of the included top-feed plenum entry
* Designed for GM LS Gen III and IV engines equipped with GM LS1/LS2/LS6 (cathedral port) cylinder heads
* Will also work with OE or aftermarket cylinder heads
* Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7,000 to 8,000 rpm, depending on application
* Low height to aid the packaging of a plenum-mounted air-to-water intercooler in a top-feed configuration (or to fit under a stock or mildly modified hood in the front-feed configuration)
* High-volume fuel rails and mounting hardware included with 3/4 in.-16 O-ring ports (8 AN)
* Fuel rail kits come with two sets of brackets—a set for long (usually standard length) fuel injectors, and a set for short (such as Pico or LS7) fuel injectors
Part Type
Intake Manifold Lo-Ram GM LS1 - Satin
Specifications
- Product Attributes - Brand
- Holley
- Product Attributes - Manufacturer's Part Number
- 300-620
- Product Attributes - Part Type
- Intake Manifolds, Fuel Injected
- Product Attributes - Product Line
- Holley LS Modular Lo-Ram EFI Intake Systems
- Product Attributes - UPC
- 090127077542
- Product Attributes - Cylinder Head Configuration
- Cathedral Port LS1/LS2/LS6
- Product Attributes - Fuel Injection Style
- Multi-port
- Product Attributes - Basic Operating RPM Range
- 3,500-8,000
- Product Attributes - Intake Section Included
- Complete
- Product Attributes - Throttle Body Bore Size
- 105mm
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Injectors Included
- No
- Product Attributes - Multi-Port Fuel Rails Included
- Yes
- Product Attributes - EGR
- No
- Product Attributes - Aftermarket Fuel Rail Required
- No
- Product Attributes - Throttle Body Included
- No
- Product Attributes - Supplemental Bosses Cast-In
- No
- Product Attributes - Supplemental Bosses Machined
- No
- Product Attributes - Runners Included
- No
- Product Attributes - Runners Removable
- No
- Product Attributes - Plenum Material
- Aluminum
- Product Attributes - Plenum Finish
- Satin
- Product Attributes - Base Material
- Aluminum
- Product Attributes - Base Color
- Satin
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Holley |
|---|---|
| StreetFX SKU | hly300-620 |
| SFX Item ID | 4782604 |
| Supplier Item Code | 4782604 |
| Manufacturer SKU | 300-620 |
| Manufacturer UPC | 90127077542 |
| Alternative References | HOL300-620, 105mm, 4.8-6.0L |
