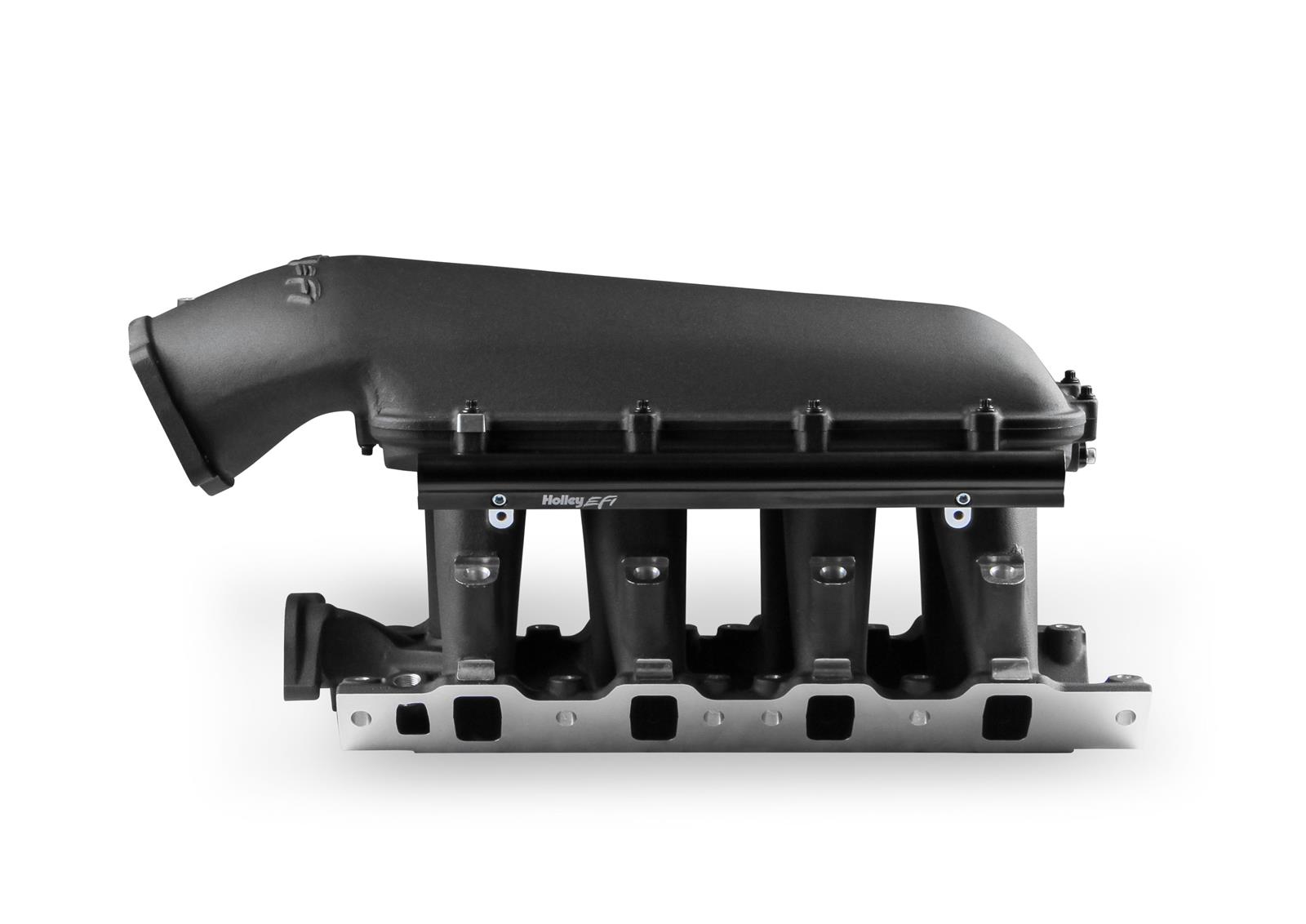

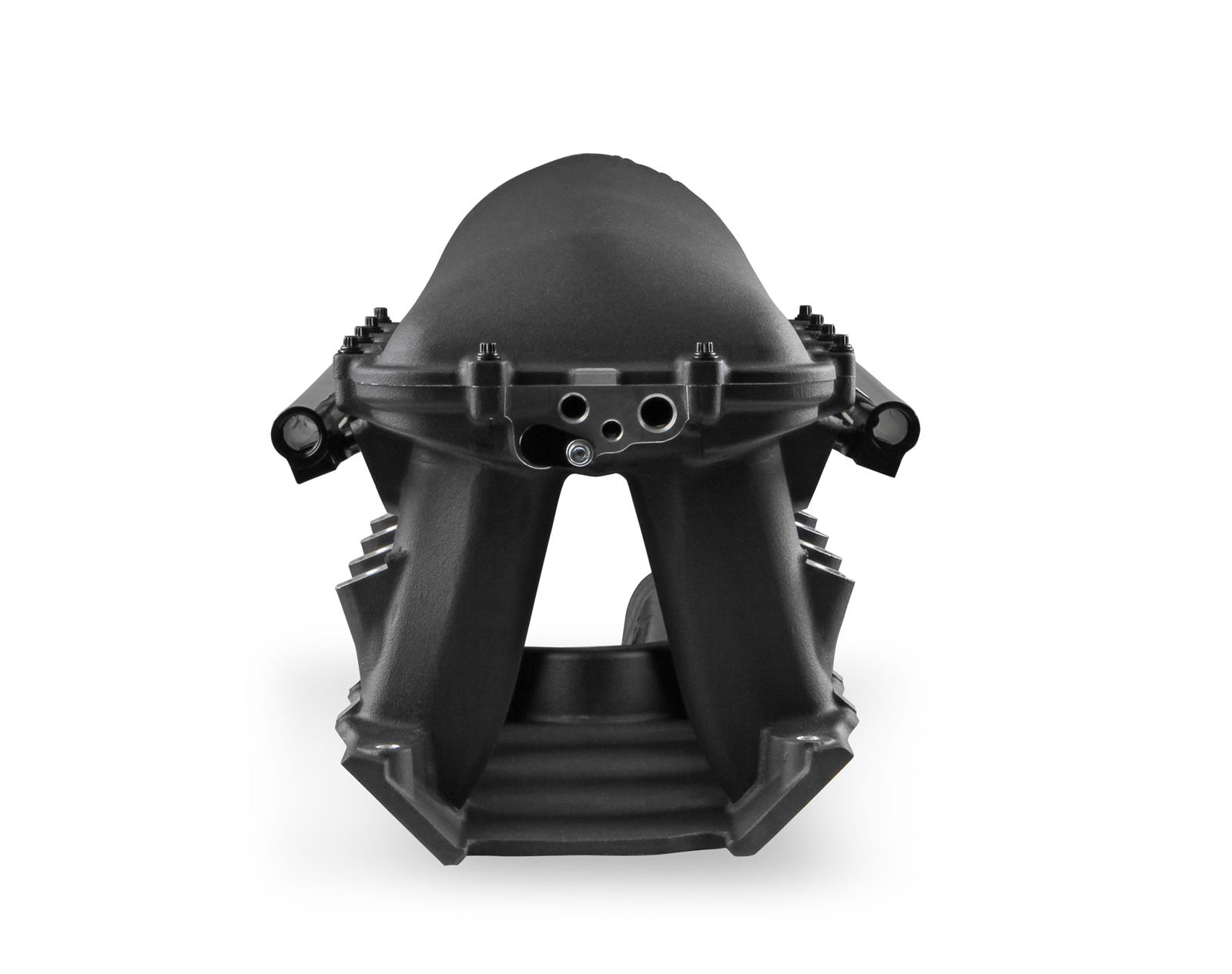

Holley SBF Hi-Ram EFI Intake Manifolds 300-272BK Manifolds, Hi-Ram, EFI, Multi-port, 1,500-7,000 RPM Range, 95mm Bore, Aluminum, Black, Ford, 4.7L, 5.0L, Windsor, 8.20 in. Deck Height, Kit
Holley SBF Hi-Ram EFI Intake Manifolds 300-272BK Manifolds, Hi-Ram, EFI, Multi-port, 1,500-7,000 RPM Range, 95mm Bore, Aluminum, Black, Ford, 4.7L, 5.0L, Windsor, 8.20 in. Deck Height, Kit
A$3,091.10
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Holley introduces a new addition to their manifold line up—the SBF Hi-Ram EFI intake manifolds that come with an LS throttle body flange top (in either 95mm or 105mm throttle body sizes). Their runner length and tapered cross-section design will perform well for a wide range of engine configurations. The Holley engineering team also redesigned the water crossover passage to allow room for distributor phasing. With the aggressive, bold, race-bred styling, there's no doubt that these Hi-Ram EFI manifolds will make your bad intentions clear for drag racing, muscle car, marine, off-road, sandrails, pulling trucks, competition track, street rod applications, and more!
Additional features and specs include:
* Cast aluminum construction
* Available in natural cast aluminum or black powdercoat finish
* Manifold is designed for an 8.2 in. SBF deck height

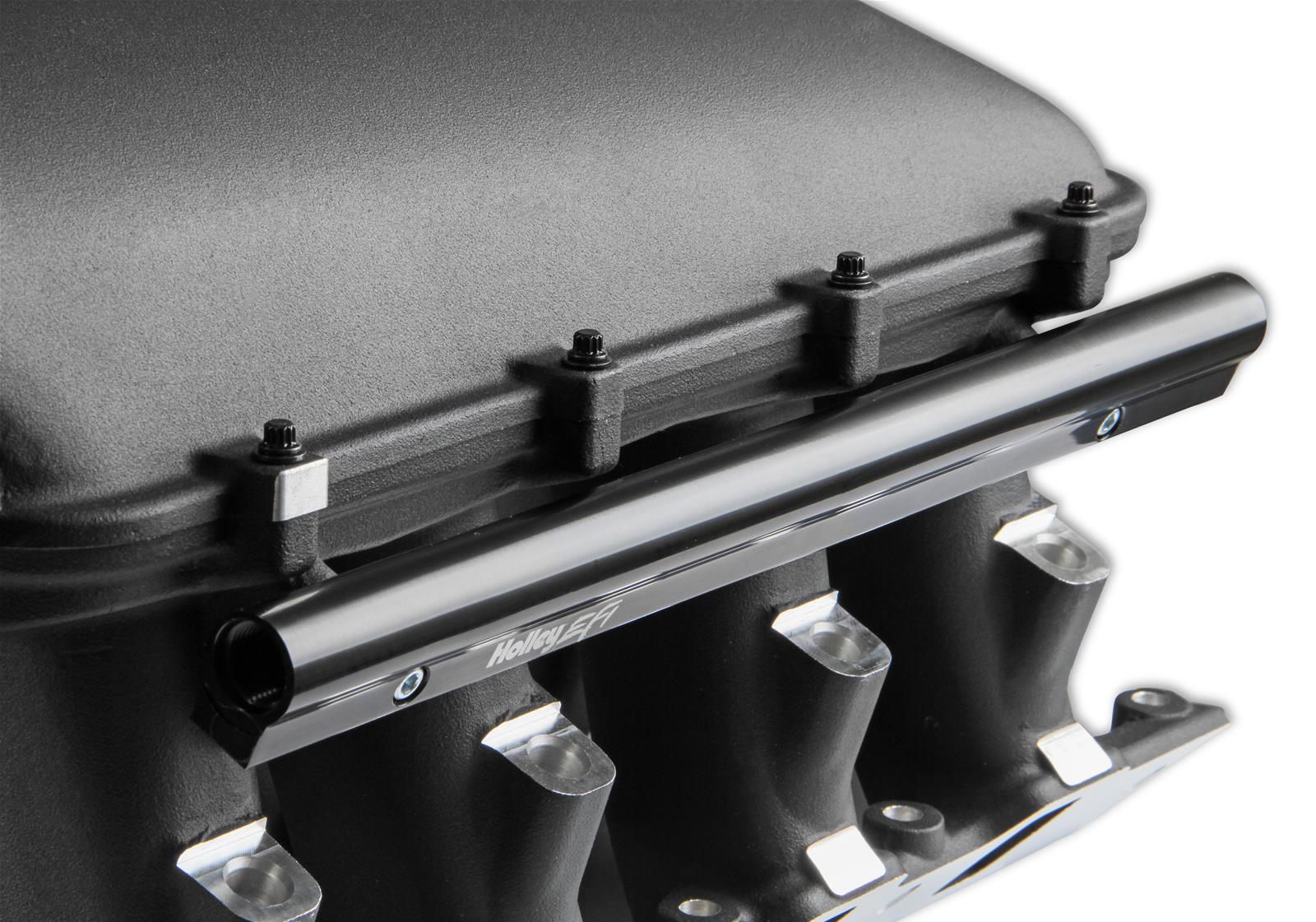

* EFI fuel rails are machined for -8 AN O-ring fittings, with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system; they come standard with EFI Hi-Ram kits
* Plenum top gasket type: 3/32 in. round O-ring cord
* A low-profile distributor will be needed when using this manifold (sold separately)
Additional Information
w/95mm LS Throttle Body Flange
Part Type
SBF 302 EFI Hi-Ram Intake Manifold Black
Specifications
- Product Attributes - Brand
- Holley
- Product Attributes - Manufacturer's Part Number
- 300-272BK
- Product Attributes - Part Type
- Intake Manifolds, Fuel Injected
- Product Attributes - Product Line
- Holley SBF Hi-Ram EFI Intake Manifolds
- Product Attributes - UPC
- 090127068342
- Product Attributes - Fuel Injection Style
- Multi-port
- Product Attributes - Basic Operating RPM Range
- 1,500-7,000
- Product Attributes - Intake Section Included
- Complete
- Product Attributes - Throttle Body Bore Size
- 95mm
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Injectors Included
- No
- Product Attributes - Multi-Port Fuel Rails Included
- Yes
- Product Attributes - EGR
- No
- Product Attributes - Aftermarket Fuel Rail Required
- No
- Product Attributes - Throttle Body Included
- No
- Product Attributes - Supplemental Bosses Cast-In
- No
- Product Attributes - Supplemental Bosses Machined
- No
- Product Attributes - Runners Included
- No
- Product Attributes - Runners Removable
- Yes
- Product Attributes - Plenum Material
- Aluminum
- Product Attributes - Plenum Finish
- Black powdercoated
- Product Attributes - Base Material
- Aluminum
- Product Attributes - Base Color
- Black powdercoated
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- For application with 8.200 in. deck height. Comes with a 95mm LS-style throttle body flange. Fuel rails are machined for -8 AN O-ring fittings. A low-profile distributor will be needed when using this manifold.
Reference Information
| Brand Name/s | Holley |
|---|---|
| StreetFX SKU | hly300-272BK |
| SFX Item ID | 4783415 |
| Supplier Item Code | 4783415 |
| Manufacturer SKU | 300-272BK |
| Manufacturer UPC | 90127068342 |
| Alternative References | HOL300-272BK, 95mm, 4.7L, 5.0L |
