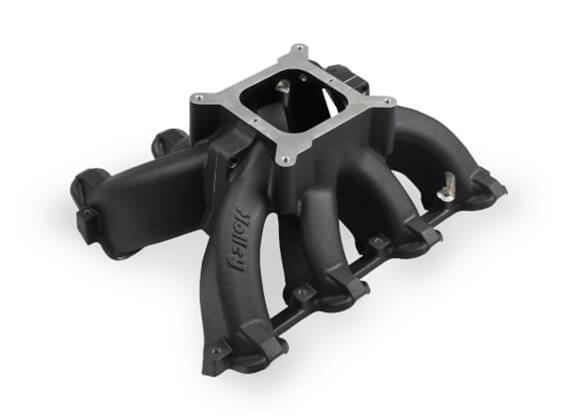

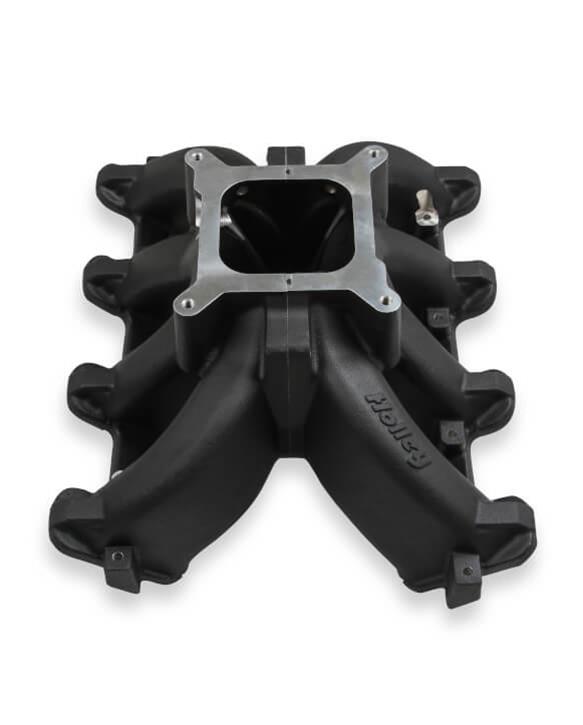

Holley LS Split Design Carbureted Intake Manifolds 300-256BK Manifolds, Design, Carbureted, Cathedral Port Head, Single Plane, 4-barrel, Square Bore, Aluminum, Black Finish, Chevy, 4.8-6.0L, Each
Holley LS Split Design Carbureted Intake Manifolds 300-256BK Manifolds, Design, Carbureted, Cathedral Port Head, Single Plane, 4-barrel, Square Bore, Aluminum, Black Finish, Chevy, 4.8-6.0L, Each
A$2,145.42
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
Holley LS split design carbureted intake manifolds are single-plane racing units designed with performance in mind. They feature a race-bred, 2-piece split feature that was previously only found on the most expensive race intakes. The manifolds will fit GM LS Gen III engines with cathedral port heads—and are intended for 4150-style square bore flanged carburetors or throttle body EFI. The LS Race single-plane intake manifold was designed for high performance/racing engine applications, 5.3 to 6.2+ liter displacement—and maximum engine speeds of 6,000 to 7,000 rpm, depending on the engine combination. This single-plane design provides optimal performance across the rpm spectrum, while providing maximum performance up to 7,000 rpm.
Features include:
* Maximum performance race design with hood clearance consideration
* Lighter than other split race intakes
* Split feature allows disassembly of the intake for direct access to internal plenum and port surfaces, making custom porting and matching a snap

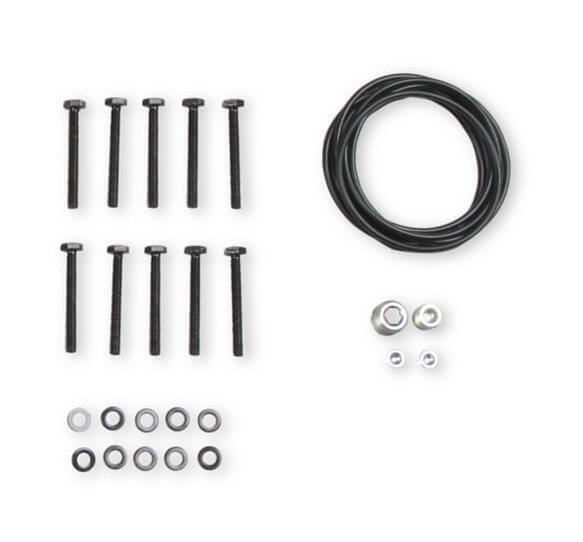

* Shoulder bolt locators and O-ring seal make reassembly simple and precise
* 33 to 50 percent the price of other split race intakes
* Vacuum port options: Two 1/8 in., one 1/4 in., and one 3/8 in. NPT ports at the carb flange
Part Type
Intake Manifolds, Carbureted
Specifications
- Product Attributes - Brand
- Holley
- Product Attributes - Manufacturer's Part Number
- 300-256BK
- Product Attributes - Part Type
- Intake Manifolds, Carbureted
- Product Attributes - Product Line
- Holley LS Split Design Carbureted Intake Manifolds
- Product Attributes - UPC
- 090127052358
- Product Attributes - Intake Section Included
- Complete
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Carburetor Quantity
- One
- Product Attributes - Intake Style
- Single plane
- Product Attributes - Basic Operating RPM Range
- 2,500-7,000

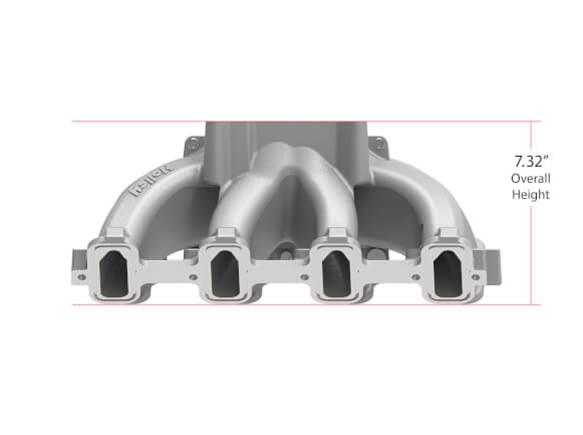

- Product Attributes - Intake Manifold Height
- 7.320 in.
- Product Attributes - Intake Color
- Black ceramic coated
- Product Attributes - Intake Material
- Aluminum
- Product Attributes - EGR
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Holley |
|---|---|
| StreetFX SKU | hly300-256BK |
| SFX Item ID | 4783862 |
| Supplier Item Code | 4783862 |
| Manufacturer SKU | 300-256BK |
| Manufacturer UPC | 90127052358 |
| Alternative References | HOL300-256BK, 4-barrel, 4.8-6.0L |
