Holley EFI LT1 Gen V Hi-Ram Intake Manifolds 300-141 Manifolds, LT1, V, Hi-Ram, Direct Injection, 3,500-8,000 RPM Range, 92mm Bore, Standard Deck, Aluminum, Satin Finish, Chevy, 6.2L, Each
Holley EFI LT1 Gen V Hi-Ram Intake Manifolds 300-141 Manifolds, LT1, V, Hi-Ram, Direct Injection, 3,500-8,000 RPM Range, 92mm Bore, Standard Deck, Aluminum, Satin Finish, Chevy, 6.2L, Each
A$3,147.94
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
Holley EFI LT1 Gen V Hi-Ram intake manifolds provide the ultimate performance with GM direct-injected Gen V 6.2L LT1 engines. The modular design allows easy disassembly for custom porting, multiple tops, or custom induction systems. Each runner has a large radius where it meets the plenum, and optimized taper and cross-sectional area to perform in a wide variety of engine configurations. When you look for the pinnacle of performance, price, and quality, look to Holley Hi-Ram intake manifolds for your LT1 application.
Features include:

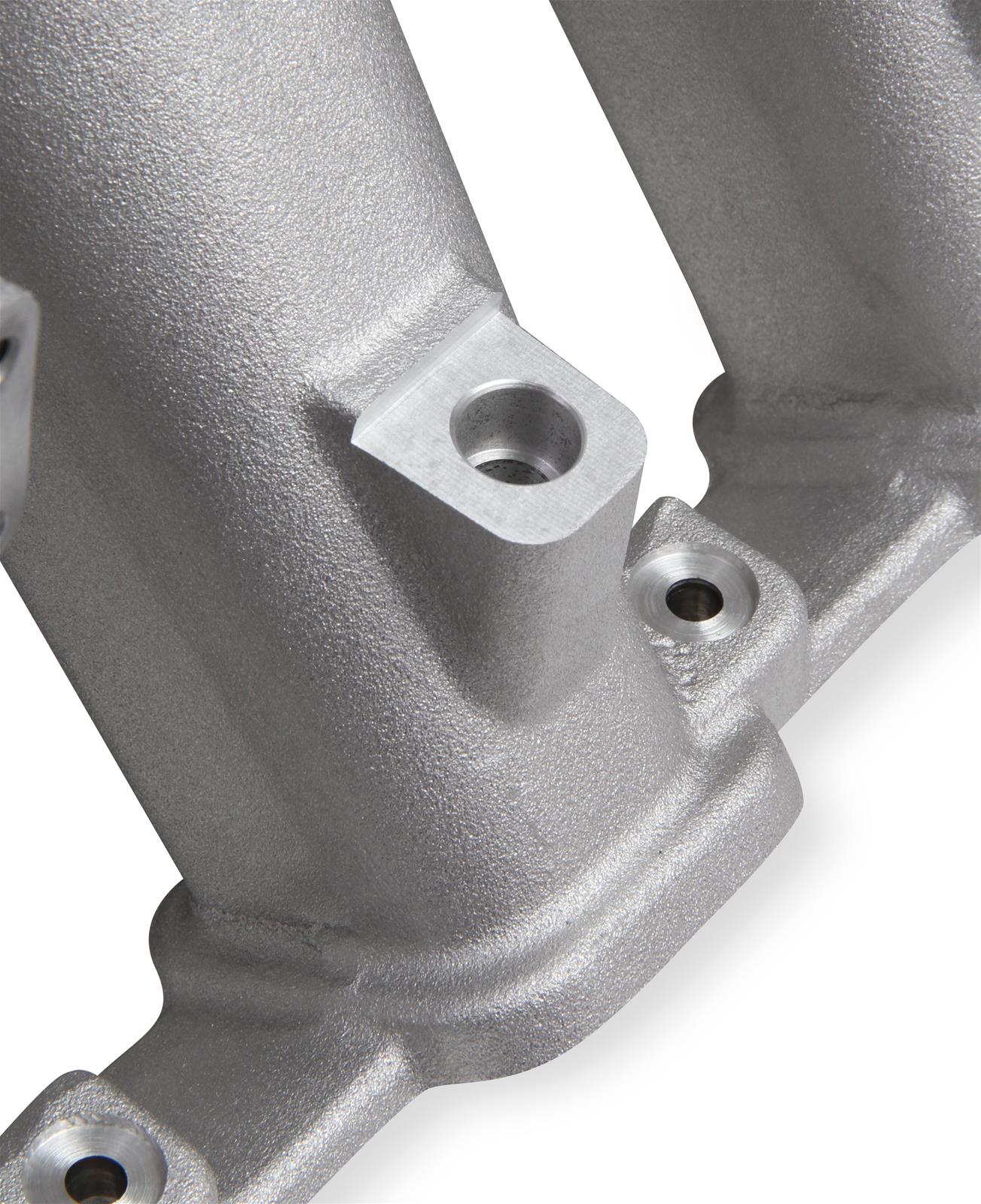

* Available with injector bosses on the intake runners that provide increased performance potential by using additional injectors and the factory direct injection
* Removable top
* Large plenum volume
* Intakes with injector ports include fuel rails with dual mounting
* Fuel rails are anodized, laser-etched, and machined for -8 AN O-ring fittings at each end
* Rear of plenum machined for MAP sensor and three vacuum ports
* Head flange has clearance for fuel supply to a high-pressure pump
* Increased runner wall thickness for custom porting at the plenum to runner entry on each runner

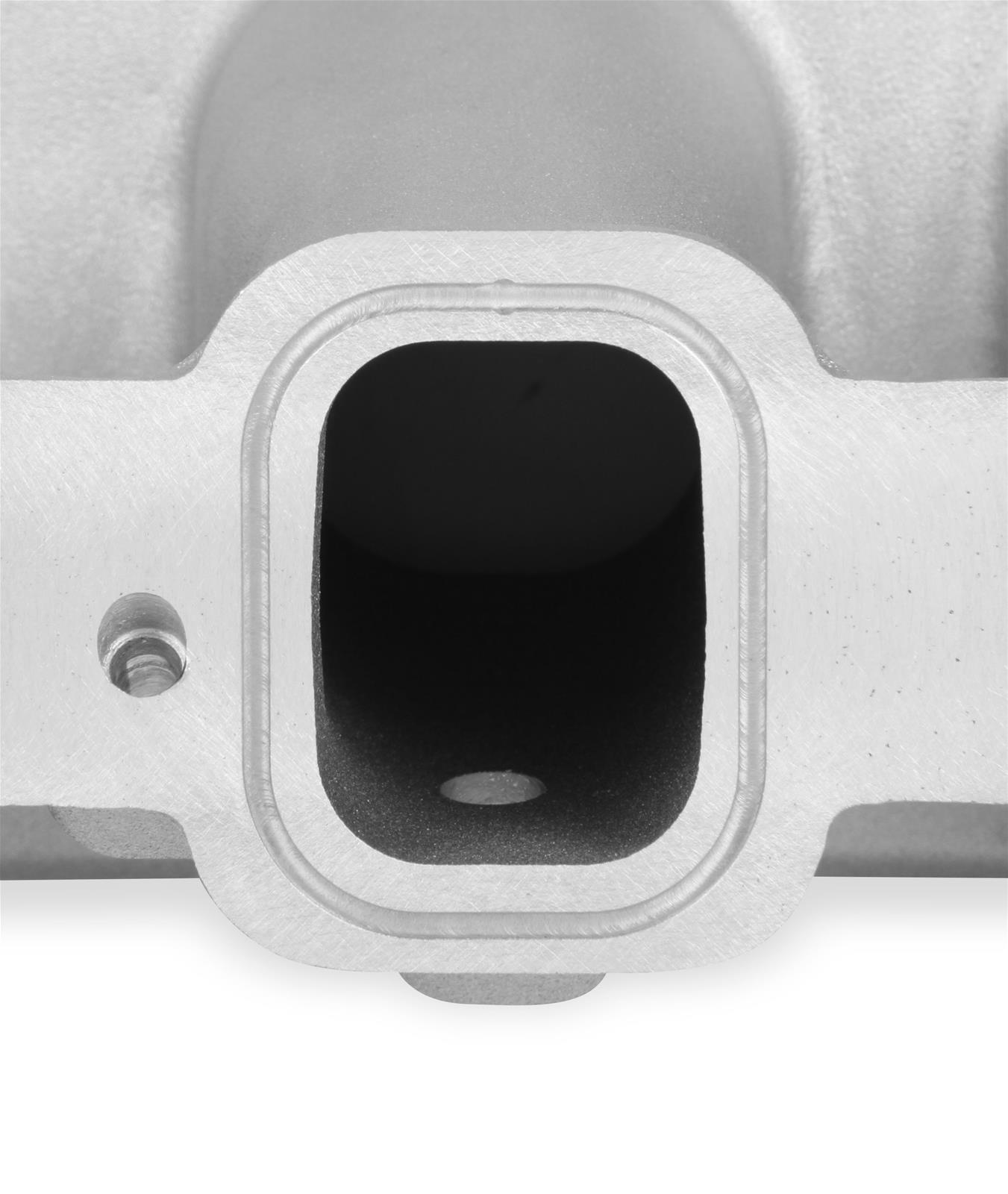

* O-ring seals at cylinder heads and plenum top
* Easy assembly with top-mounted screws on plenum top (except front two screws)
* Several top options: 1 x 95mm, 1 x 105mm, 2 x 4150, 2 x 4500, or blank flange for custom throttle bodies
* 3,500 to 8,000-plus rpm power band
Part Type
Intake Manifolds, Fuel Injected
Specifications
- Product Attributes - Brand
- Holley
- Product Attributes - Manufacturer's Part Number
- 300-141
- Product Attributes - Part Type
- Intake Manifolds, Fuel Injected
- Product Attributes - Product Line
- Holley EFI LT1 Gen V Hi-Ram Intake Manifolds
- Product Attributes - UPC
- 090127730522
- Product Attributes - Fuel Injection Style
- Direct injection
- Product Attributes - Basic Operating RPM Range
- 3,500-8,000
- Product Attributes - Intake Section Included
- Complete

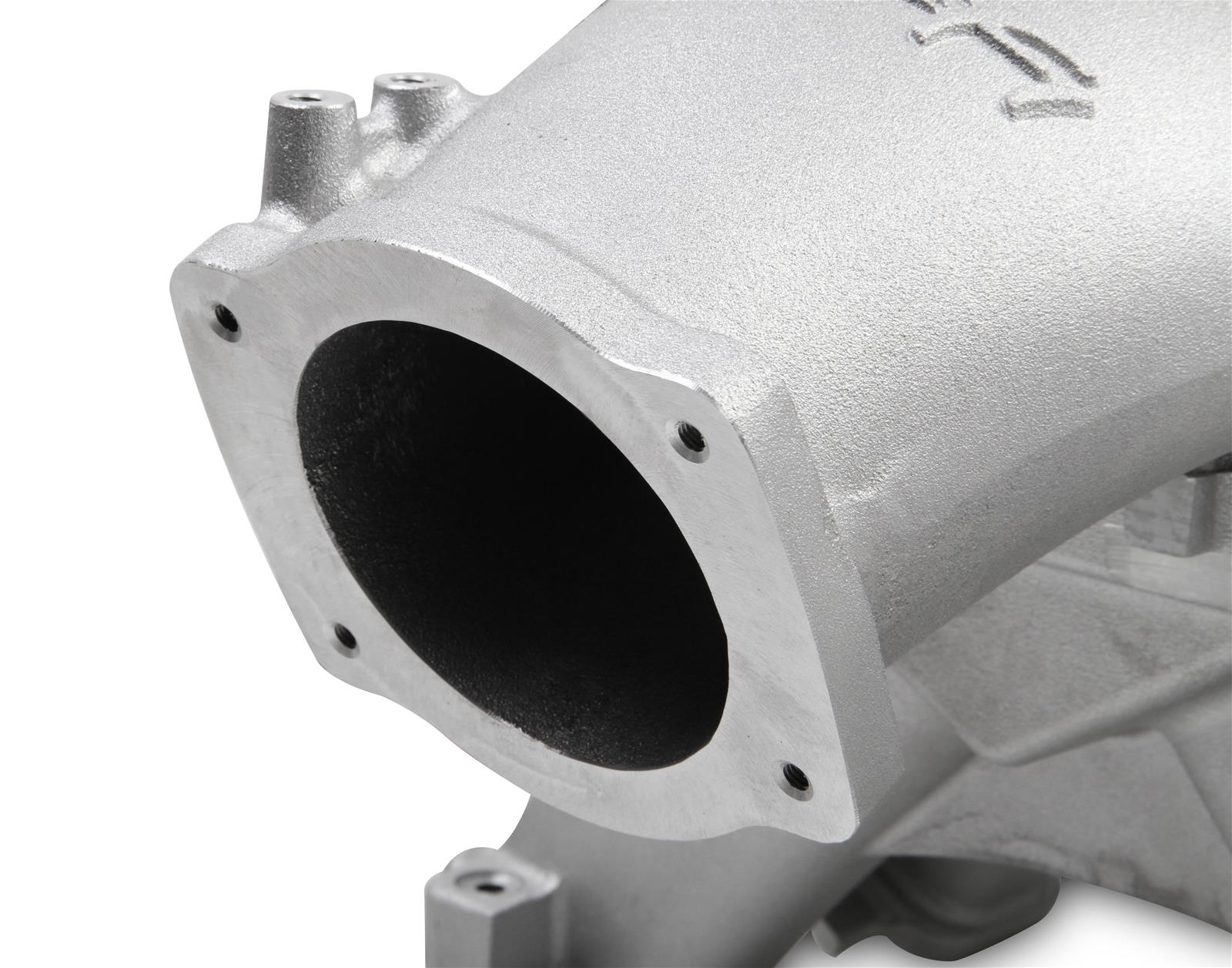

- Product Attributes - Throttle Body Bore Size
- 92mm
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Injectors Included
- No
- Product Attributes - Multi-Port Fuel Rails Included
- Yes
- Product Attributes - EGR
- No
- Product Attributes - Aftermarket Fuel Rail Required
- No
- Product Attributes - Throttle Body Included
- No
- Product Attributes - Supplemental Bosses Cast-In
- Yes
- Product Attributes - Supplemental Bosses Machined
- No
- Product Attributes - Supplemental Boss Quantity
- Eight
- Product Attributes - Runners Included
- Yes
- Product Attributes - Runners Removable
- No
- Product Attributes - Plenum Material
- Aluminum
- Product Attributes - Plenum Finish
- Natural
- Product Attributes - Base Material
- Aluminum
- Product Attributes - Base Color
- Natural
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- The fuel rails and the ports on this manifold are designed to accept Bosch-style EV-1 or GM LS7 fuel injectors. Kit includes mounting hardware and gaskets.
Reference Information
| Brand Name/s | Holley |
|---|---|
| StreetFX SKU | hly300-141 |
| SFX Item ID | 4782889 |
| Supplier Item Code | 4782889 |
| Manufacturer SKU | 300-141 |
| Manufacturer UPC | N/A |
| Alternative References | HOL300-141, LT1, 92mm, 6.2L |
