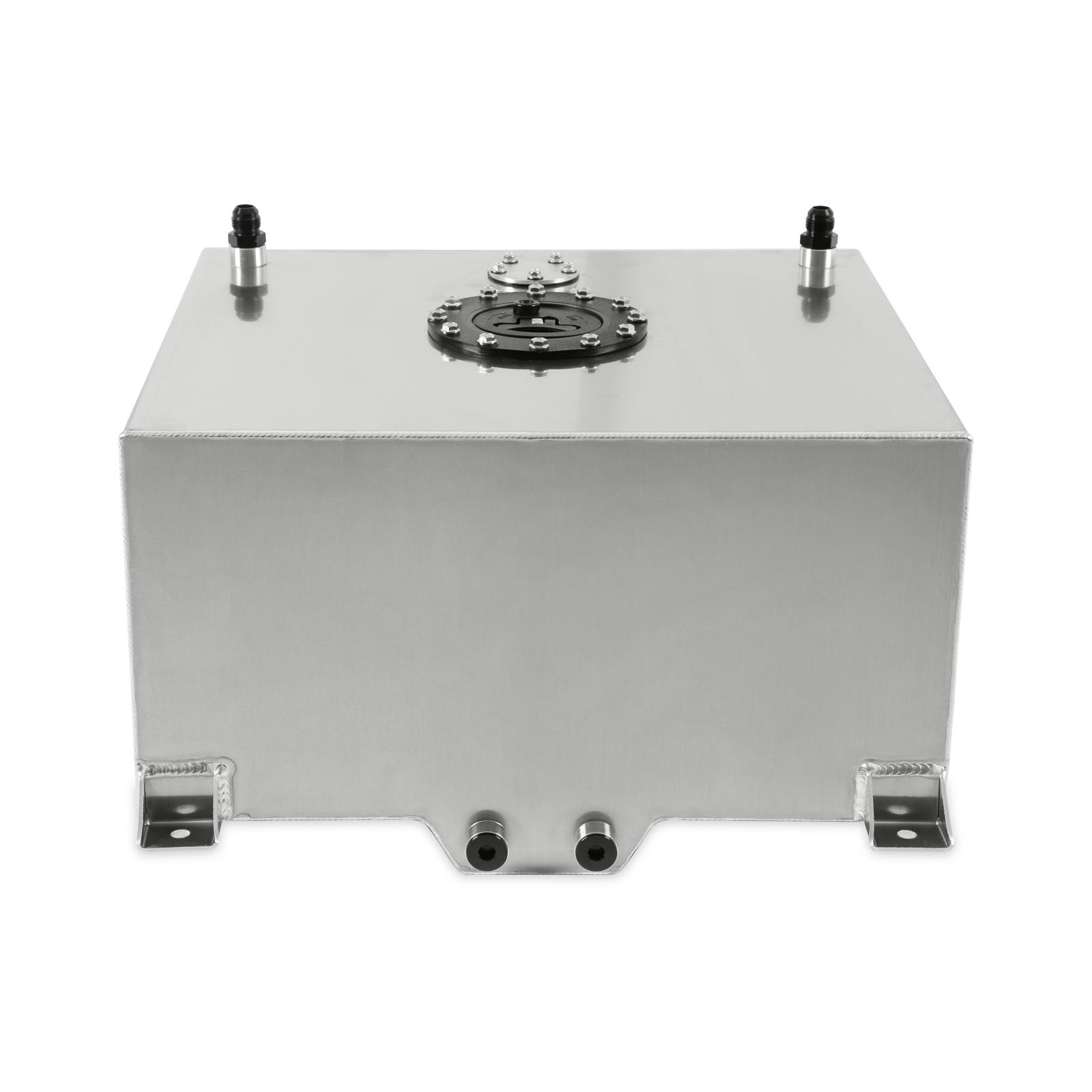

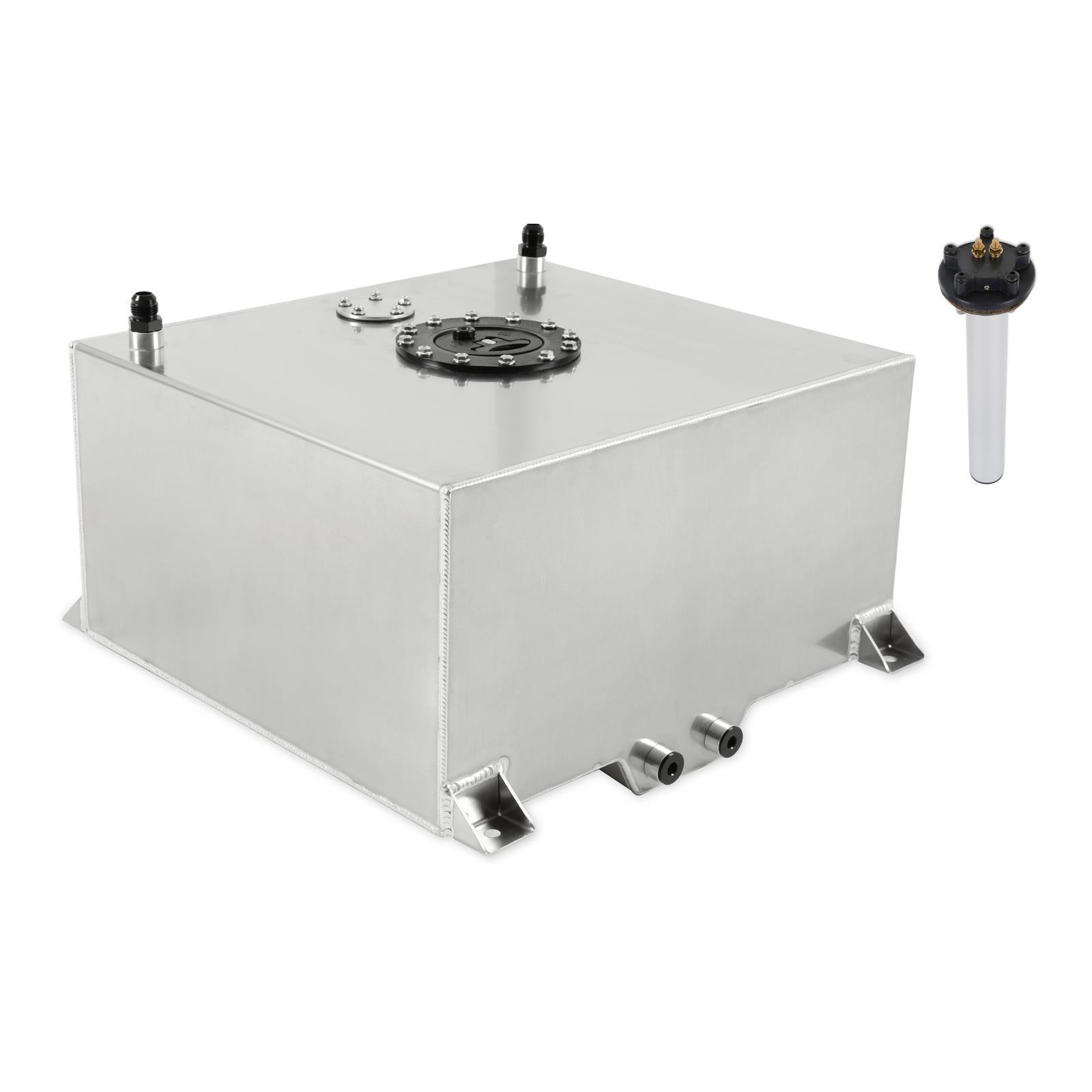

Holley Fuel Cells 19-214 Cells, Aluminum, 15 Gallon, Rear Sump, 20 in. Long, 18 in. Wide, 10 in. Tall, -10 AN, ORB Ports, Anti-Slosh Foam, 0-90 ohm, Sending Unit, Each
Holley Fuel Cells 19-214 Cells, Aluminum, 15 Gallon, Rear Sump, 20 in. Long, 18 in. Wide, 10 in. Tall, -10 AN, ORB Ports, Anti-Slosh Foam, 0-90 ohm, Sending Unit, Each
A$1,415.90
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
Holley offers their fuel cells in several configurations to meet the needs of nearly every race application. Available in both flat bottom and rear sump variations to prevent fuel starvation under heavy acceleration, they feature -10AN ORB fittings on the feed, return, and vent ports for high-flow support and easy plumbing. They are constructed from 2.5mm thick 5052 TIG-welded aluminum with triangulated mounting tabs for added support and long-term reliability. These fuel cells contain anti-slosh foam (removable for E85 use; do not use foam with E85) that is pre-cut to accept Holley fuel level senders. Available in different capacity models with or without a sender, order the Holley fuel cells best suited for your application.
More product features, items, and specifications include:
* Current size models include 3-, 5-, 10-, 15-, and 20-gallon
* Compatible with single and dual in-tank fuel pump modules
* Modular design easily upgradable providing customer flexibility to add options to suit their needs
* Readily adoptable -10 AN ORB fittings help avoid cutting and re-welding bungs and feature interior welding for clean look
* 12-bolt, flush-mount aircraft-style cap assembly can be upgraded to a billet fuel cap or an in-tank fuel cell pump module
* 5-bolt fuel sender block-off plate can be removed for a fuel gauge tube level sender installation
* -10 AN plugs and male adapters
Sender (where applicable) features, items, and specifications:
* Operates on standard GM 0-90 ohms (empty-full) providing compatibility with many stock and aftermarket gauges
* Standard SAE 5-bolt mounting pattern
* Tube design acts as a damper for consistent readings
* Saves space, eliminates need for a float arm
* Gasket and mounting hardware
* Compatible with E85
Part Type
Fuel Cells
Specifications
- Product Attributes - Brand
- Holley
- Product Attributes - Manufacturer's Part Number
- 19-214
- Product Attributes - Part Type
- Fuel Cells
- Product Attributes - Product Line
- Holley Fuel Cells
- Product Attributes - UPC
- 090127142257
- Product Attributes - Capacity
- 15 gallons
- Product Attributes - Foam
- Yes
- Product Attributes - Baffled
- No
- Product Attributes - Fuel Cell Material
- Aluminum
- Product Attributes - Fuel Pump Included
- No
- Product Attributes - Sending Unit Included
- Yes
- Product Attributes - Sender Ohm Range
- 0 ohms empty, 90 ohms full
- Product Attributes - Length (in.)
- 20.000 in.
- Product Attributes - Width (in.)
- 18.000 in.
- Product Attributes - Height (in.)
- 10.000 in.
- Product Attributes - Fuel Cell Color
- Natural
- Product Attributes - Outlet Fitting Quantity
- Two
- Product Attributes - Outlet Fitting Size
- -10 AN
- Product Attributes - Vent Fitting Size
- -10 AN
- Product Attributes - Return Fitting Size
- -10 AN
- Product Attributes - Sump
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- This foam is not E-85 compliant and should be removed if that fuel type is used.
Reference Information
| Brand Name/s | Holley |
|---|---|
| StreetFX SKU | hly19-214 |
| SFX Item ID | 4784236 |
| Supplier Item Code | 4784236 |
| Manufacturer SKU | 19-214 |
| Manufacturer UPC | 90127142257 |
| Alternative References | HOL19-214 |
