On sale
Holley Fuel Cell EFI Pump Module/VR Series Brushless Assemblies 12-143 Pumps, Cell, Drop-In EFI, 335 lph, 130 psi, -8 AN Inlet, -10 AN Outlet, 6-bolt Flange, Each
Holley Fuel Cell EFI Pump Module/VR Series Brushless Assemblies 12-143 Pumps, Cell, Drop-In EFI, 335 lph, 130 psi, -8 AN Inlet, -10 AN Outlet, 6-bolt Flange, Each
A$6,856.04
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description

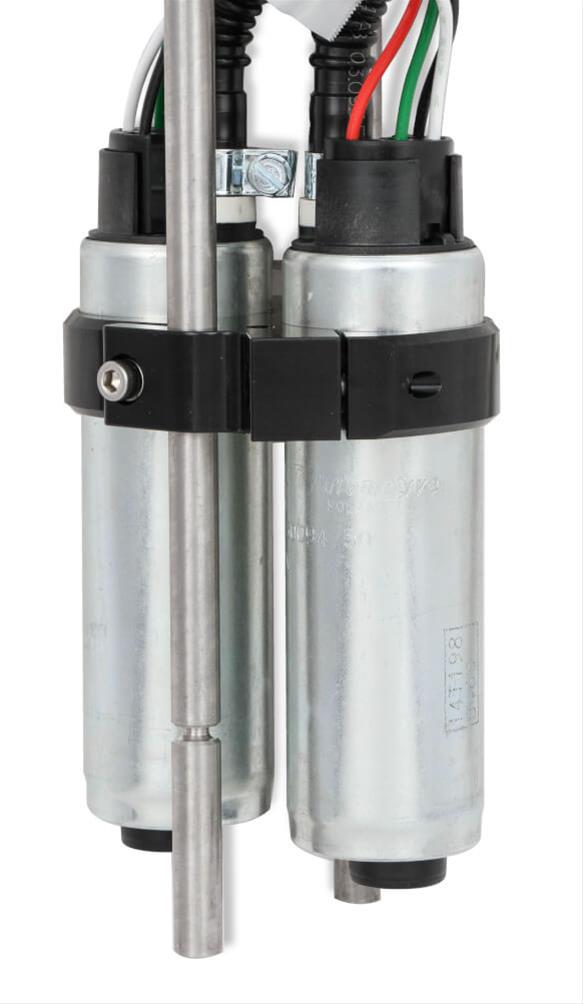

Holley Fuel Cell EFI pump module/VR Series brushless fuel pump assemblies are engineered to give you VR fuel pump power inside your cell. Designed as direct drop-in replacements for your existing 6-, 10-, or 12-bolt flange fuel cell cap assemblies, they're made to work on high-boosted race cars, as well as your daily driven weekend endurance car. Built for continuous duty if needed, The VR Series of pumps include 2-step controllers for precise low or full speed pump control and harnesses. Holley Fuel Cell EFI pump module kits include all the hardware to install into your existing fuel cell—all you need to add is your fuel line.
Features:

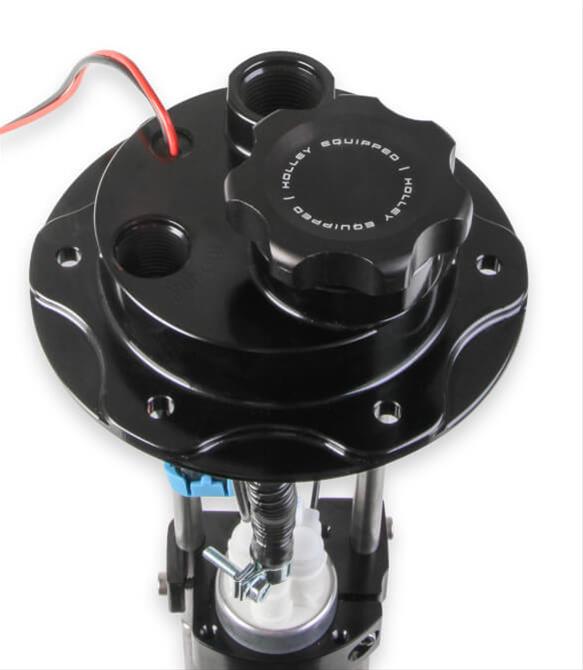

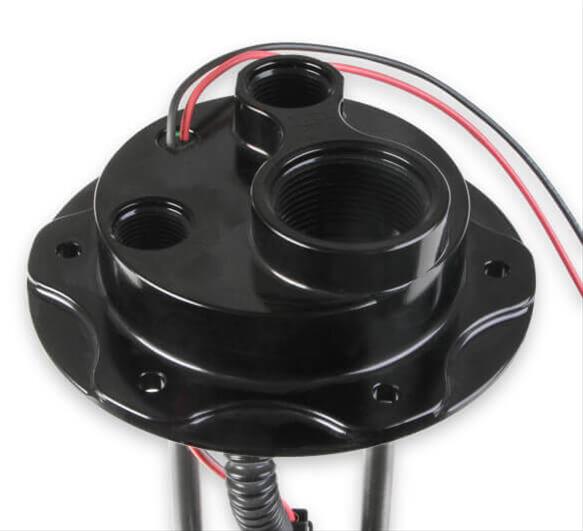

* Billet top flange includes a -8 AN inlet port, a -10 AN outlet port, and a fuel filler cap
* Fuel pump depth is fully adjustable from 7.5 in. to 11 in. deep
* Capable of 130 psi, while providing significant flow for forced induction applications where belt-driven pumps are normally used
* Billet aluminum construction for durability and good looks
* High-flow and high-pressure with low-amperage draw
* Can be fully submerged in the fuel cell or chassis mounted
* Maximum amp draw of 38 amps for the VR Series

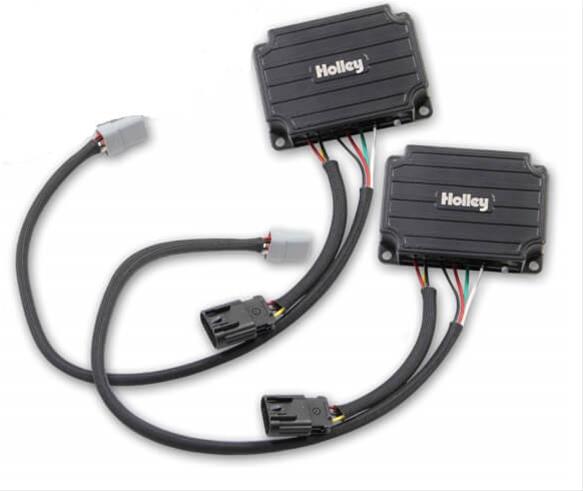

* Single VR1 brushless fuel pump includes one 2-step controller and harness
* Dual VR2 brushless fuel pumps include two 2-step controllers to control pumps independently of each other and harnesses
* Can be used as an upgrade for carbureted systems with the proper regulator
Part Type
Fuel Pumps
Specifications
- Product Attributes - Brand
- Holley
- Product Attributes - Manufacturer's Part Number
- 12-143
- Product Attributes - Part Type
- Fuel Pumps
- Product Attributes - Product Line
- Holley Fuel Cell EFI Pump Module/VR Series Brushless Fuel Pump Assemblies
- Product Attributes - UPC
- 090127029626
- Product Attributes - Fuel Pump Type
- Electric In-tank
- Product Attributes - Flow Rate
- 335 gph/1,268 lph
- Product Attributes - Fuel Pressure (psi)
- 130 psi
- Product Attributes - Fuel Pump Voltage
- 12 V
- Product Attributes - Fuel Pressure Regulator Included
- No
- Product Attributes - Sending Unit Included
- No
- Product Attributes - Fuel Pump Inlet Size
- -8 AN O-ring
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Inlet Attachment
- Female O-ring
- Product Attributes - Fuel Pump Outlet Size
- -10 AN
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Outlet Attachment
- Female O-ring
- Product Attributes - Gasket Included
- Yes
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Mounting Bracket Included
- No
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Pulley Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Module has 6-bolt flange. Includes two, 2-step controller for pump speed control. The pump depth is adjustable for fitment in cell sizes 7.5 in. to 11 in. deep. Supports up to 4,400 EFI or 4,800 carbureted HP.
Reference Information
| Brand Name/s | Holley |
|---|---|
| StreetFX SKU | hly12-143 |
| SFX Item ID | 4782237 |
| Supplier Item Code | 4782237 |
| Manufacturer SKU | 12-143 |
| Manufacturer UPC | 90127029626 |
| Alternative References | HOL12-143, 6-bolt |
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
