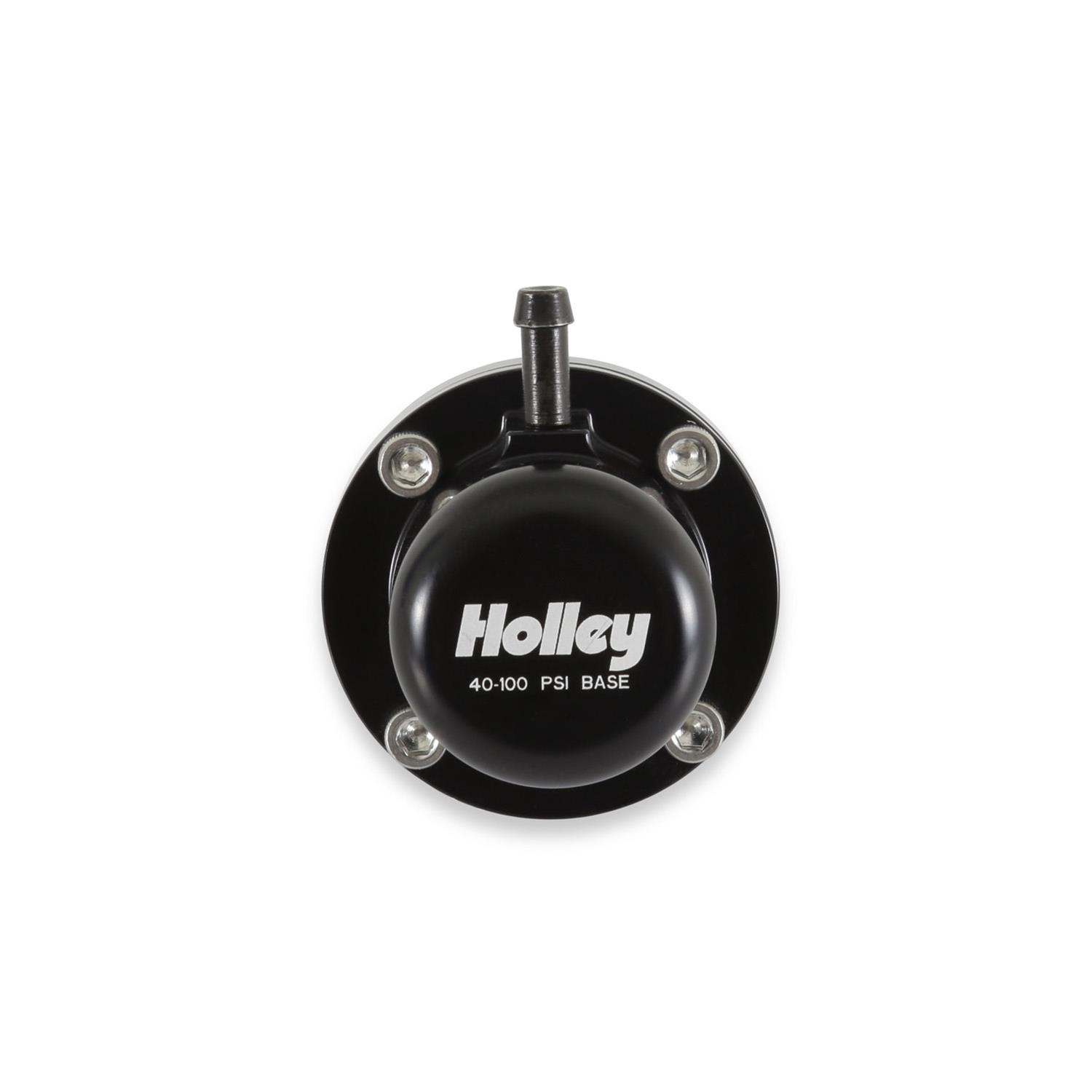

Holley EFI Fuel Pulse Dampers 12-1005 System Dampers, Billet Aluminum, Black Anodized, 40-100 psi, -8 AN Male Threads Inlet/Outlet, Extended Range, Each
Holley EFI Fuel Pulse Dampers 12-1005 System Dampers, Billet Aluminum, Black Anodized, 40-100 psi, -8 AN Male Threads Inlet/Outlet, Extended Range, Each
A$306.09
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Holley EFI fuel pulse dampers act in tandem with the fuel pressure regulator to further control the fuel pressure in an EFI system. They act to smooth out the pressure pulsations caused by the injectors opening and closing as well as the fuel pump operating. These pulsations happen so quickly that in many cases they can't be identified with an analog gauge but can cause issues with fuel delivery to the engine.
Options include:
* Direct-mount or inline mount
* Multiple inlet/outlet dimensions
* Standard or extended fuel pressure range
* Male or female threads
Features:
* Engineered to stabilize pressure pulsations caused by the injectors opening; ideal for applications with large fuel injectors and high-volume fuel pumps
* Compatible with any fuel; full anodized billet aluminum construction with stainless steel springs and fluorosilicone diaphragm
* Fittings included for damper/regulators and direct-mount dampers
* 1/8 in. NPT port on body of damper/regulators and inline dampers for easy installation of mechanical pressure gauge or pressure transducer

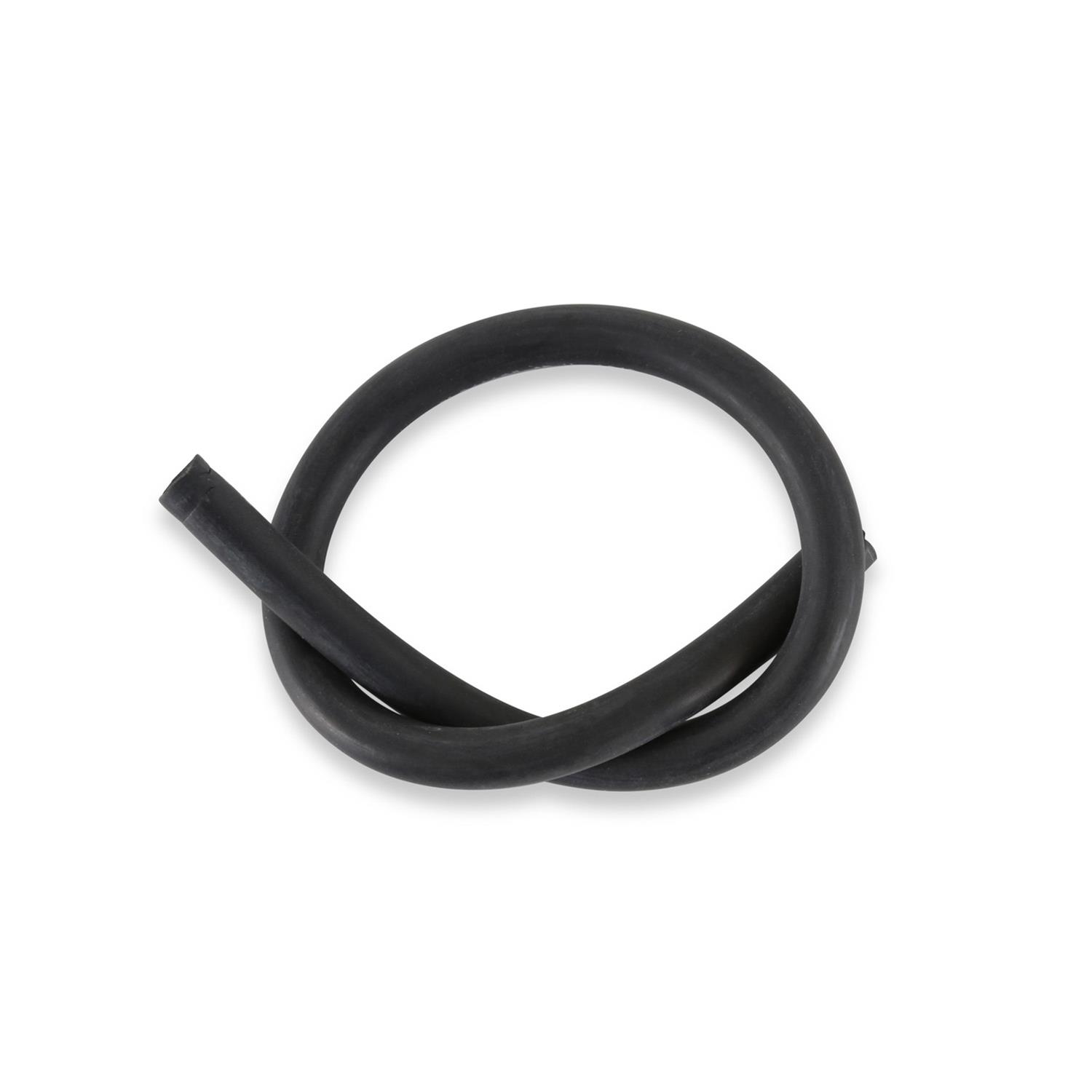

* Vacuum fitting and one foot of hose included with all dampers for vacuum referencing
Part Type
Fuel Pulse Damper Billet Alm 8an ORB 40-100PSI
Specifications
- Product Attributes - Brand
- Holley
- Product Attributes - Manufacturer's Part Number
- 12-1005
- Product Attributes - Part Type
- Fuel System Pulsation Dampers
- Product Attributes - Product Line
- Holley EFI Fuel Pulse Dampers
- Product Attributes - UPC
- 90127475676
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Inlet Size
- -8 AN O-ring
- Product Attributes - Inlet Attachment
- Female O-ring
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Outlet Size
- -8 AN O-ring
- Product Attributes - Outlet Attachment
- Female O-ring
- Product Attributes - Fuel Pressure (psi)
- 40-100 psi
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Direct mount fuel pulse damper.
Reference Information
| Brand Name/s | Holley |
|---|---|
| StreetFX SKU | hly12-1005 |
| SFX Item ID | 4784554 |
| Supplier Item Code | 4784554 |
| Manufacturer SKU | 12-1005 |
| Manufacturer UPC | 90127475676 |
| Alternative References | HOL12-1005 |
