Hella Universal Black Magic 21.5in Tough Double Row Curved Light Bar - Spot & Flood Light

SKU: HELLA358197601

Light Bars, Light Pods and Fog Lights

HELLA Black Magic Lamp...

Hella

Hella Universal Black Magic 21.5in Tough Double Row Curved Light Bar - Spot & Flood Light

SKU: HELLA358197601

Light Bars, Light Pods and Fog Lights

HELLA Black Magic Lamp...

Sale ends in Calculating... Thu 15 Oct, 10:06 pm AEST

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

The new light bar series includes four worklights in an elongated design in different lengths and light intensities. Cooling fins on the back of the aluminium housing ensure the necessary heat dissipation of the high-power LEDs. The innovative lens technology of the light bars creates homogeneous illumination for both near-field and far-field illumination.

Product Overview

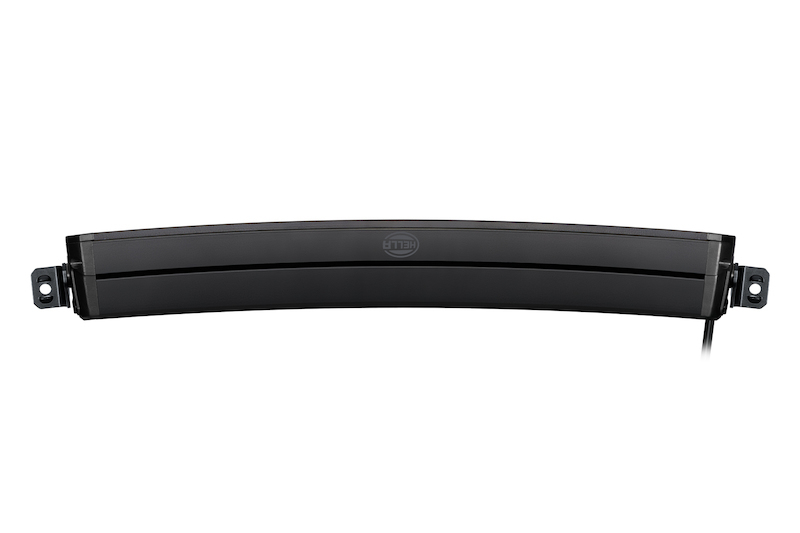

Every vehicle starts to glisten. Brand new in the HELLA range: our "curved" variants. They enable an even wider light diffusion without any stability being lost. And they look pretty cool, too. With their unique appearance, they give every vehicle the ultimate look - of extravagance and class at the same time. All models are equipped with a temperature control system: it adjusts the light bars to the ambient temperature, protecting against overheating and also regulating the light output in cold ambient temperatures - ideal for off-road vehicles, such as all-terrain vehicles, pick-ups, trucks, buggies, quads

Features and Benefits

Universal Lighting Auxiliary Lamps
Intense light output
New "Curved" Variant: Introducing HELLA's sleek curved lights, designed for wider light diffusion without sacrificing stability, offering a unique blend of extravagance and class for the ultimate vehicle look.
Advanced Temperature Control System: Integrated temperature management ensures optimal performance and longevity by preventing overheating in demanding conditions.
Exceptional Light Output: Equipped with a modern reflector system and powerful, high-performance LEDs across all 16 off-road variants for superior illumination.
Iconic Black Magic Design: Features the signature Black Magic appearance with sleek black holders for a bold, stealthy look.
Rugged & Durable Construction: Built with robust materials and a tough design to withstand the harshest off-road environments.

Product Details

Assy/Disassy by Qualified Personnel Required!:	.
Bulb Technology:	LED
Cable Length (in):	78.74
Cable Length (mm):	2000
Cable Length [mm]:	2000
California Proposition 65 Required:	WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov
Color Temperature (K):	5700
Depth (in):	3.35
Depth (mm):	85
Description:	HELLA Vehicle-Mounted Work Light 358197601
Diffusing Lens Material:	PC (Polycarbonate)
Electromagnetic Compatability (EMC):	ECE R10
Fastening Type:	Vertical
Fulfils ECE norm:	R10
Height (in):	3.58
Height (mm):	91
Housing Color:	black
Housing Type:	Aluminium Housing
Housing material:	Die-Cast Aluminium
IP Rating:	IP68/IP69K
Lamp Type:	LED
Length (in):	22.17
Length (inch):	21.5
Length (mm):	563
Light Design:	LED
Light Distribution:	Off-road Lighting
Light Function:	Spot & Flood
Lumen (lm):	11000
Lumen [lm]:	11000
Luminous Flux (lm):	11000
Mounting Type:	Screw Connection / Mounting
Number of LEDs:	40
Number of light functions:	2
Part Number:	hella358197601
Plug Type:	Open Cable Ends
Plug:	Open Cable Ends
Power Cord Length:	2000.00
Protection Type (IP Code):	IP68 & IP69K
Quantity:	1
Shape:	dual version
Voltage (V):	12/24V
Voltage 1 (V):	12
Voltage 2 (V):	24
Voltage [V]:	12/24V
Width (in):	2.95
Width (mm):	75

Part Type

Light Bar

Data: v4.2 - Upd: 2026-10-14 20:14:10

Features

Blaze through the darkest nights with HELLA’s ultra-bright LED light bar—engineered to deliver intense, crystal-clear illumination for unbeatable nighttime visibility and safety!
Built tough for all weather, HELLA’s light bar resists rain, mud, and snow so you can tackle any adventure without worrying about durability or performance.
Intense light output
Save your battery and power smarter with HELLA’s energy-efficient LEDs that shine brighter while keeping your ride’s power consumption ultra-low.
Skip the hassle and install HELLA’s light bar in minutes with simple plug-and-play—no tools or mechanics needed, so you’re road-ready faster than ever.
Turn heads and light up the road with HELLA’s sleek, low-profile design that combines aggressive style with maximum output—upgrade your vehicle’s look and function today!
Universal Lighting Auxiliary Lamps

Specifications

Product Attributes - UPC: 4082300863604
Product Attributes - Brand: Hella
Product Attributes - Watts: 212.0 watts
Product Attributes - Lumens: 11,000
Product Attributes - Quantity: Sold individually.
Product Attributes - Bulb Type: LED
Product Attributes - Part Type: Light Bars, Light Pods and Fog Lights
Product Attributes - Bulb Color: White
Product Attributes - Lens Color: Clear
Product Attributes - Light Type: Light bar
Product Attributes - Optics Style: Flood/Spot
Product Attributes - Product Line: Hella Black Magic Lights
Product Attributes - Housing Color: Black
Product Attributes - Light Bar Type: Curved dual row
Product Attributes - Number of LEDs: 40
Product Attributes - Relay Included: No
Product Attributes - Maximum Voltage: 30 V
Product Attributes - Housing Material: Aluminum
Product Attributes - Hardware Included: Yes
Product Attributes - Light Bar Size (in.): 21.5 in.
Product Attributes - Light Cover Included: No
Product Attributes - Wiring Harness Included: No
Product Attributes - Manufacturer's Part Number: 358197601

Reference Information

Brand Name/s	Hella
StreetFX SKU	hella358197601
SFX Item ID	4521656
Supplier Item Code	4521656
Manufacturer SKU	358197601
Manufacturer UPC	4082300863604
Alternative References	hla-358197601, 21.5in
