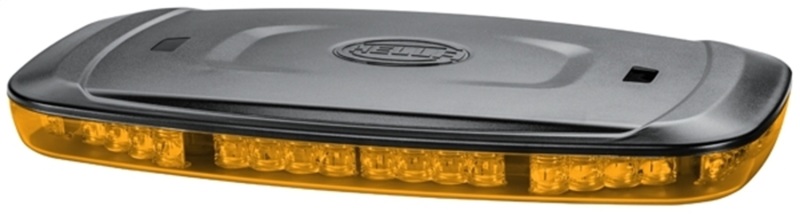

Hella L/Bar Mini 16In Led (Mv Fxd Amber Lens)
Hella L/Bar Mini 16In Led (Mv Fxd Amber Lens)
Sale ends in Calculating...
A$572.32 A$655.83
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
The powerful LED warning lights generate an intensive 360-degree warning signal and are suitable for various applications. Both sizes of the light bar offer different design and mounting options and combine a flashing and a rotating signal in one product. The strobe lights are available with a clear or yellow cover lens option, the built-in LEDs providing the warning signal are yellow for both design variants. In addition, there is also a special SAE version with a two-color warning signal. Half of this is equipped with yellow LEDs and half with white LEDs. Depending on the mounting variant, the flat light bars can be fixed with screws, a bracket or by magnets. They are suitable for both 12V and 24V systems.
Product Overview
The powerful LED warning lights "Micro Lightbar" and "Mini Lightbar" generate an intensive 360-degree warning signal and are suitable for various applications. Both sizes of the light bar offer different design and mounting options and combine a flashing and a rotating signal in one product. The Micro and Mini Lightbars are available with a clear or yellow cover lens option, the built-in LEDs providing the warning signal are yellow for both design variants. In addition, there is also a special SAE version with a two-colour warning signal. Half of this is equipped with yellow LEDs and half with white LEDs. Depending on the mounting variant, the flat light bars can be fixed with screws, a bracket or by magnets. They are suitable for both 12V and 24V systems.
Features and Benefits
- 10 User Selectable Flashing Options Incl. Rotating Pattern
- Flashing or rotating light function
- Power Consumption - 70W
- 10-30 VDC - Multi-Voltage
- Approvals - SAE J845 Class 1/ECE-R10/EMC CISPR 25 Class 3
- 5 Year Warranty
- High-Visibility Lighting: Emits bright, flashing light to alert others in emergency or high-visibility situations.
- Wide Coverage: Offers a powerful, attention-grabbing strobe effect visible from long distances.
- Long-Lasting Performance: Engineered for longevity, ensuring reliable operation during critical situations.
- Durable & Weatherproof: Designed to withstand harsh weather conditions and vibrations for reliable performance.
- Versatile Mounting Options: Can be easily mounted on vehicles, equipment, or other locations for various uses.
Product Details
| Assy./disassy. by qualified personnel required!: | . |
|---|---|
| Bulb Technology: | LED |
| Cable Length (in): | 19.69 |
| Cable Length [mm]: | 500 |
| California Proposition 65 Required: | No |
| Description: | HELLA Strobe Light 014565311 |
| Fitting Position: | mounting |
| Housing Color: | black |
| Housing Colour: | Black |
| Housing material: | PC (Polycarbonate) |
| Inspection Tag: | SAE |
| LED Colour: | Yellow |
| Lamp Type: | LED |
| Length (in): | 10.04 |
| Length [mm]: | 255 |
| Lens Color: | yellow (amber) |
| Lens Colour: | Amber |
| Light Color: | amber |
| Light Design: | LED |
| Light Function: | With flashing warning signal |
| Light colour: | Amber |
| Overall Length: | 16.000 in. |
| Part Number: | hella014565311 |
| Power Consumption [W]: | 70 |
| Protection Type (IP Code): | IP X4K |
| Rated Voltage [V]: | 12 |
| Registration Type: | SAE approved |
| Reverse polarity protection: | Yes |
| SVHC: | 123-77-3; Diazene-1,2-dicarboxamide (C,C-azodi(formamide)) |
| Supplementary Article/Info 2: | with bracket |
| Supplementary Article/Supplementary Info: | with holder |
| Temperature range from (F): | -40.00 |
| Temperature range from [°C]: | -40 |
| Temperature range to (F): | 149.00 |
| Temperature range to [°C]: | +65 |
| Test Mark: | SAE |
| Thickness (in): | 1.77 |
| Thickness [mm]: | 45 |
| Voltage [V]: | 12 |
| WARNING CA Proposition 65: | No |
| Width (in): | 6.50 |
| Width [mm]: | 165 |
Part Type
Strobe Light
Features
- 10 User Selectable Flashing Options Incl. Rotating Pattern
- 10-30 VDC - Multi-Voltage
- 5 Year Warranty
- Approvals - SAE J845 Class 1/ECE-R10/EMC CISPR 25 Class 3
- Durable & Weatherproof: Designed to withstand harsh weather conditions and vibrations for reliable performance.
- Flashing or rotating light function
- High-Visibility Lighting: Emits bright, flashing light to alert others in emergency or high-visibility situations.
- Long-Lasting Performance: Engineered for longevity, ensuring reliable operation during critical situations.
- Power Consumption - 70W
- Versatile Mounting Options: Can be easily mounted on vehicles, equipment, or other locations for various uses.
- Wide Coverage: Offers a powerful, attention-grabbing strobe effect visible from long distances.
Specifications
- Product Attributes - Brand
- Hella
- Product Attributes - Manufacturer's Part Number
- 014565311
- Product Attributes - Part Type
- Light Bars, Light Pods and Fog Lights
- Product Attributes - UPC
- 04082300777451
Reference Information
| Brand Name/s | Hella |
|---|---|
| StreetFX SKU | hella014565311 |
| SFX Item ID | 4521663 |
| Supplier Item Code | 4521663 |
| Manufacturer SKU | 014565311 |
| Manufacturer UPC | 4082300777451 |
| Alternative References | HLA-014565311, 16In |
