Hella Led Lamp 12/24V Amber Fix Mounting 2Rl
Hella Led Lamp 12/24V Amber Fix Mounting 2Rl
A$582.91
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
The RotaLED beacon is available as a flashing or rotating version. The signal is generated by means of an electronic concept and thus without moving parts. The beacon can be connected to an operating voltage of 10 - 30 V and has an impact-resistant polycarbonate light cover. The height is approx. 124 mm (F) to 184 mm (FL), depending on the design. The RotaLED beacon meets the requirements of IP 5K4K and IP X9K and is therefore protected against dust and resistant to high-pressure cleaners. The product is attached to the vehicle by means of screws in the case of fixed mounting or by means of a flexible pipe socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots.
Product Overview
HELLA Beacons. Play it safe - with beacons from HELLA. Whenever a special visual warning of dangerous situations is needed, beacons are the answer. This is by far not only the case for rescue operations, but also applies to work operations with large, heavy and/or slow-moving vehicles, such as combine harvesters or heavy goods vehicles. HELLA beacons have a strong warning effect and thus signal to other road users: Attention, please be considerate - work is being done around the vehicle. In this way, our beacons make a strong contribution to greater safety. A safety that is achieved, among other things, by the optimal Light bundling and distribution, the resulting long Range as well as the high luminous intensity of the LED technology used. HELLA beacons are also characterized by outstanding quality in terms of workmanship and stability - the long service life proves it. Don't leave safety to chance - put your trust in HELLA's beacons.
Features and Benefits
- No moving parts are required for the lighting functions - no wear and tear and maximum reliability
- No moving parts are required for the lighting functions - no wear and tear and maximum reliability.
Product Details
| Assy./disassy. by qualified personnel required!: | . |
|---|---|
| Assy/Disassy by Qualified Personnel Required!: | . |
| Cable Length (in): | 98.43 |
| Cable Length (mm): | 2500 |
| Cable Length [mm]: | 2500 |
| Cable Length: | 2500 mm |
| California Proposition 65 Required: | WARNING: Reproductive Harm - www.P65Warnings.ca.gov |
| California Proposition 65: | WARNING! This product can expose you to chemicals including Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www. P65Warnings.ca.gov. |
| Certification: | Regulatory Compliance Mark (RCM) |
| Colour: | Amber |
| Description: | LED LAMP 12/24V AMBER FIX MOUNTING 2RL |
| Diffusing Lens Material: | PC (Polycarbonate) |
| Electromagnetic Compatability (EMC): | ECE R10/R65 |
| Fulfills Test Standard: | RCM |
| Fulfils ECE norm: | R10 |

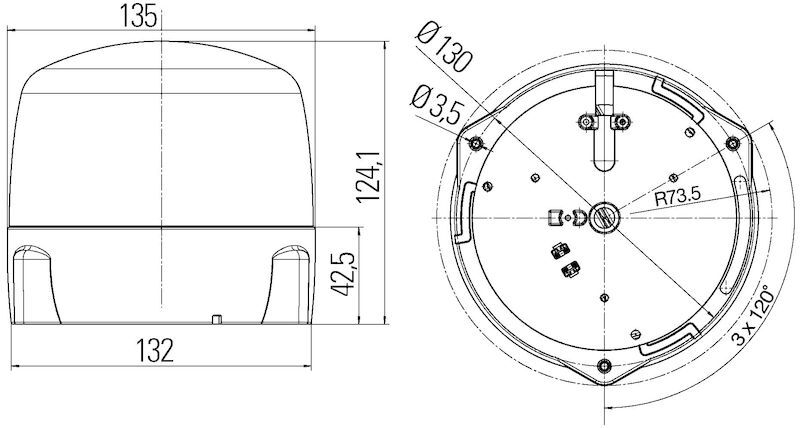

| Height (in): | 4.88 |
| Height (mm): | 124 |
| Height [mm]: | 124 |
| Housing Color: | black |
| Housing Colour: | Black |
| Housing material: | EPDM (ethylene propylene diene Monomer (M-class) rubber) |
| IP Rating: | IP65/IPX9K |
| Inspection Tag: | ECE-R65 |
| LED Quantity: | 8 |
| Lamp Type: | LED |
| Lens Color: | yellow |
| Lens Colour: | Yellow |
| Light Color: | yellow |
| Light Design: | LED |
| Light Function: | With rotating warning signal |
| Light colour: | Yellow |
| Lighting Compliance: | SAE |
| Mounting Type: | Bolted |
| Number of LEDs: | 8 |
| Number of pins: | 2 |
| Outer Diameter 1 (in): | 5.20 |
| Outer diameter (mm): | 132 |
| Outer diameter 1 (mm): | 132 |
| Outer diameter 1 [mm]: | 132 |
| Part Number: | hella010979001 |
| Plug Type ID: | 2-pole plug |
| Power Consumption [W]: | 10 |
| Protection Type (IP Code): | IP5KX/IPX4K |
| Quantity Unit: | Box |
| Quantity: | 1 |
| Rated Voltage [V]: | 12 |
| Registration Type: | ADR/GGVS approved |
| Reverse polarity protection: | Yes |
| Rotating Beacon RPM: | 123 1/min |
| Rotating beacon RPM (1/min): | 123 |
| Rotating beacon RPM [1/min]: | 123 |
| Supplementary Article/Info 2: | Electromagnetic Compatibility (EMC) |
| Test Mark: | ECE-R65 |
| Type: | Yes |
| Voltage (V): | 24 |
| Voltage [V]: | 24 |
| Voltage: | 12.00 |
| Wattage (W): | 10 |
| Wattage: | 10.00 |
| Weight (g): | 630 |
| Weight (oz): | 22.22 |
| Weight [g]: | 630 |
Part Type
Hazard Warning and Turn Signal Flasher
Features
- Delivers consistent performance with durable construction designed to withstand demanding operating conditions.
- Ensures reliable signaling for increased road safety with precise control of hazard warning and turn indicators.
- Facilitates straightforward installation with a compact form factor adaptable to diverse vehicle electrical systems.
- Minimizes failure rates with advanced electronic components, supporting dependable light activation.
- No moving parts are required for the lighting functions - no wear and tear and maximum reliability
- Offers universal compatibility, ensuring seamless integration with most modern vehicles.
Specifications
- Product Attributes - Brand
- Hella
- Product Attributes - Manufacturer's Part Number
- 010979001
- Product Attributes - Part Type
- Emergency and Warning Lights
- Product Attributes - Product Line
- Hella Rota LED Beacon Lights
- Product Attributes - UPC
- 010979001
- Product Attributes - Emergency Light Type
- Rotary beacon
- Product Attributes - Installation
- Bolt-on
- Product Attributes - Bulb Type
- LED
- Product Attributes - Bulb Color
- White
- Product Attributes - Lens Color
- Amber
- Product Attributes - Housing Color
- Black
- Product Attributes - Housing Material
- Plastic
- Product Attributes - Diameter (in.)
- 5.315 in.
- Product Attributes - Height (in.)
- 4.880 in.
- Product Attributes - Volts
- 10-32 V
- Product Attributes - Wiring Harness Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Relay Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Fixed mount design. Accepts 12-24 Volts.
Reference Information
| Brand Name/s | Hella |
|---|---|
| StreetFX SKU | hella010979001 |
| SFX Item ID | 4521188 |
| Supplier Item Code | 4521188 |
| Manufacturer SKU | 010979001 |
| Manufacturer UPC | 760687130345 |
| Alternative References | HLA-010979001, 12/24V, 2Rl |
